ARFA149"You should buy this Air Filter Assembly (Air Box)"
An airbox is an empty chamber on the inlet of most combustion engines. It collects air from outside and feeds it to the intake hoses of each cylinder.
The airbox allows the use of one air filter instead of multiple filters thus reducing complexity. Developments arising from concerns about engine emissions during the late 1970s now allow the airbox to collect gases from the crankcase and the tank air vent and re-feed them to the engine.

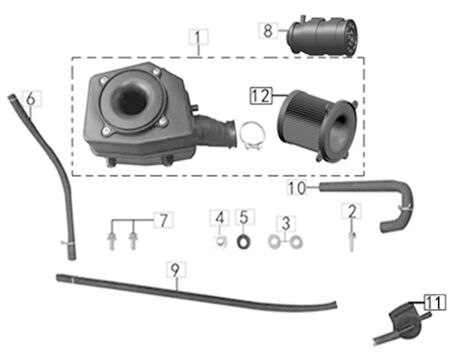

| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 1 | ![]() |

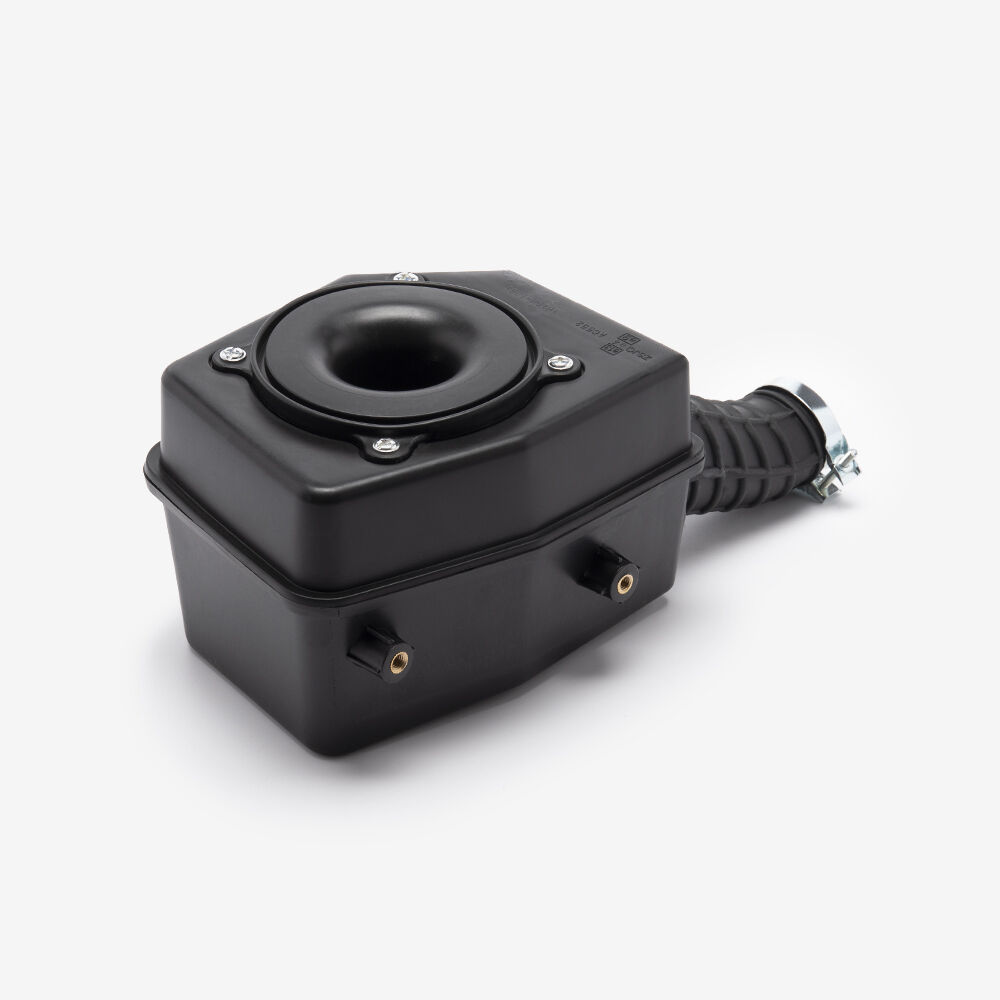

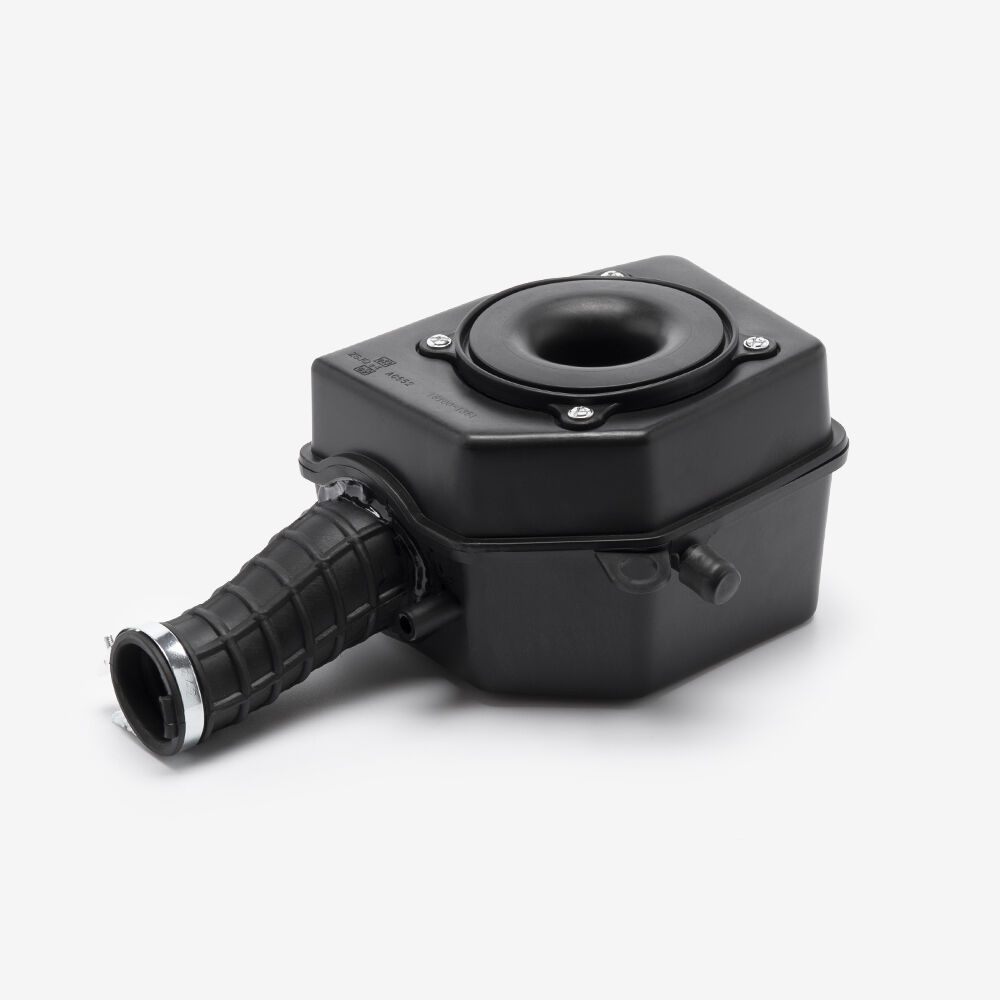

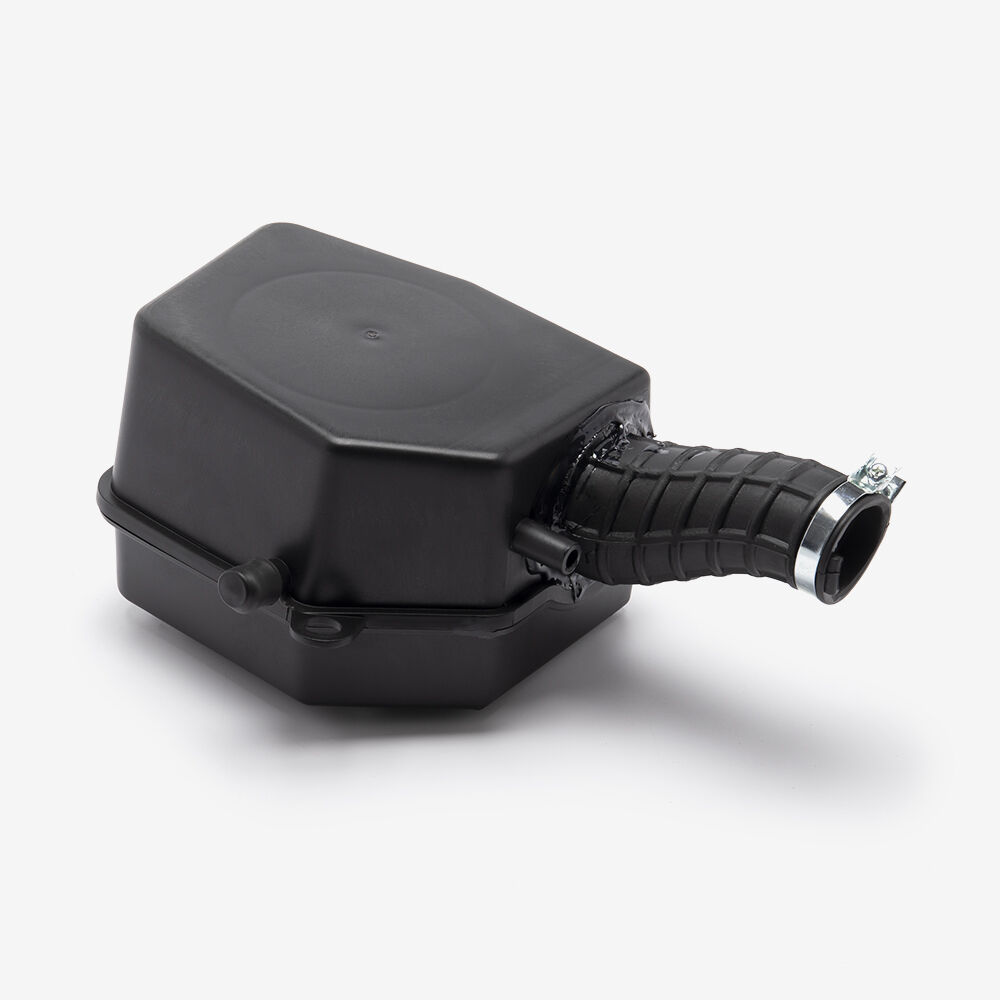

Air Filter Assembly (Air Box) for ZS125-79-E5, SR125-E5 ARFA149 x 1
|
||
| 3 | ![]() |
Stainless Steel Washer Form A2 M6 WSH116 x 1
|
||
| 5 | ![]() |
Rubber Washer 12 x 17 x 8.5mm WSH35 x 1
|
||
| 6 | ![]() |
Fuel Pipe for SR125-E5 FLPP075 x 1
|
||
| 7 | ![]() |
Flanged Hex Bolt M6 x 12mm BLT124 x 1
|
||
| 8 | ![]() |
Emissions Charcoal Canister (EGR Valve) for ZS125-79 EGRCC024 x 1
|
||
| 9 | ![]() |
Fuel Pipe for SR125-E5 FLPP076 x 1
|
||
| 10 | ![]() |
EFI Fuel Pipe for ZS125-79-E4 FLPP004 x 1
|
||
| 11 | ![]() |
Fuel Shut off Valve FLVS009 x 1
|
||
| 12 | ![]() |
Air Filter Element ARF017 x 1
|
| Manufacturer | Model | Diagram |
|---|---|---|
| Lexmoto | Detroit 125 Euro 5 [SR125-E5] | View parts diagram |
| Michigan 125 Euro 5 [ZS125-79-E5] | View parts diagram | |
| Sinnis | Outlaw 125 [SR125-S] | |
