ARFA153"Another great Air Filter Assembly"
An airbox is an empty chamber on the inlet of most combustion engines. It collects air from outside and feeds it to the intake hoses of each cylinder.
The airbox allows the use of one air filter instead of multiple filters thus reducing complexity. Developments arising from concerns about engine emissions during the late 1970s now allow the airbox to collect gases from the crankcase and the tank air vent and re-feed them to the engine.
| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 1 | ![]() |

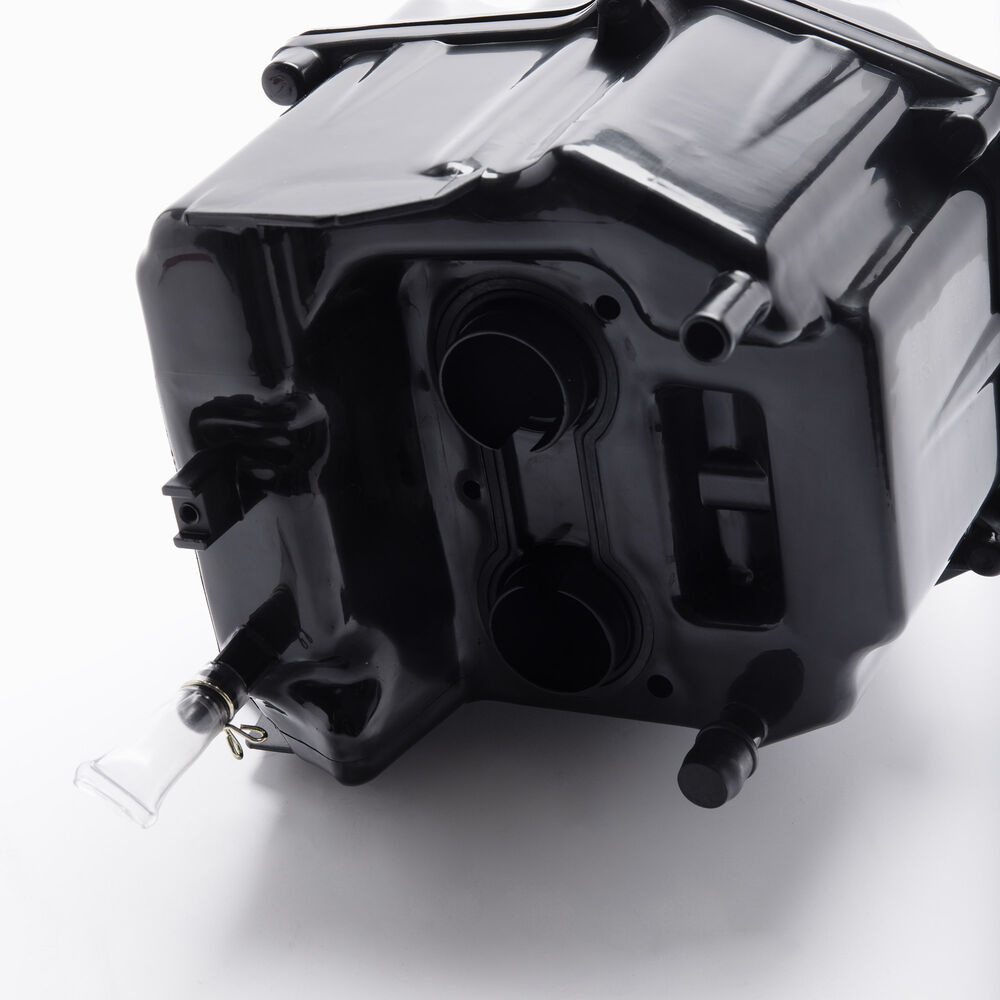

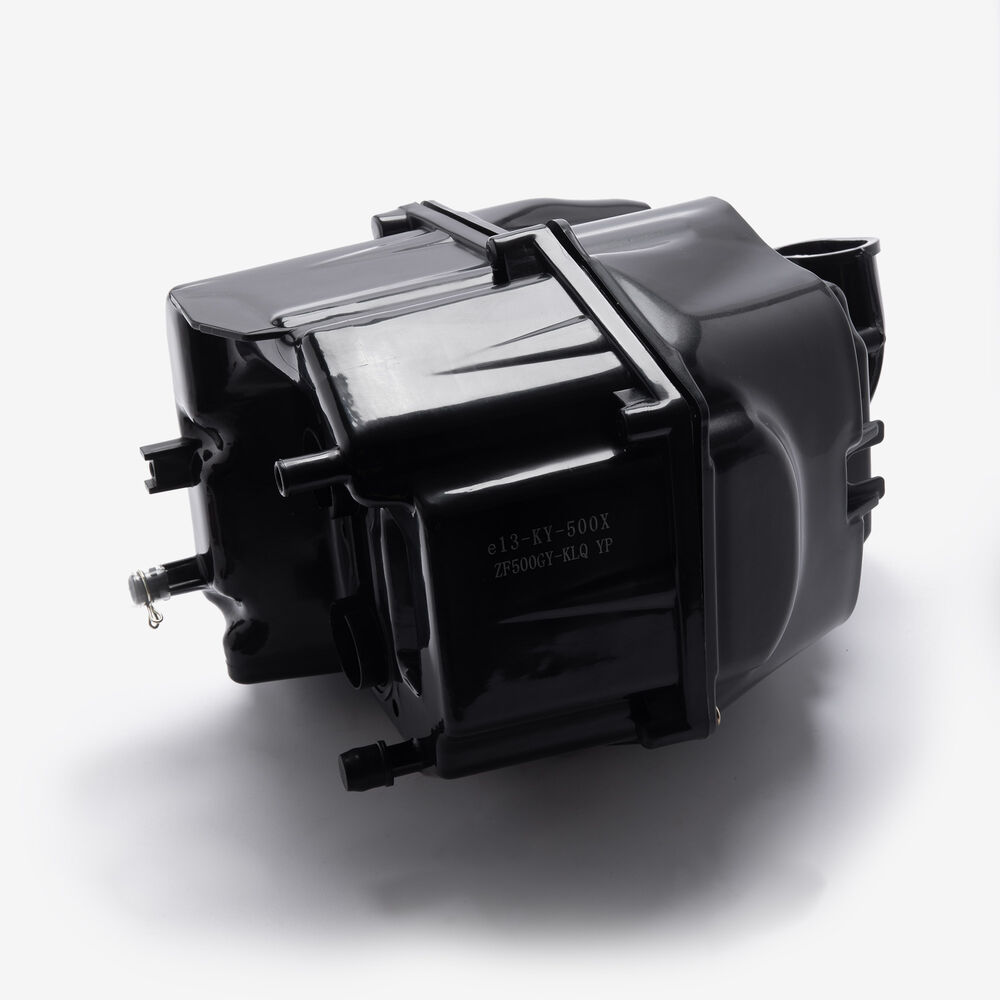

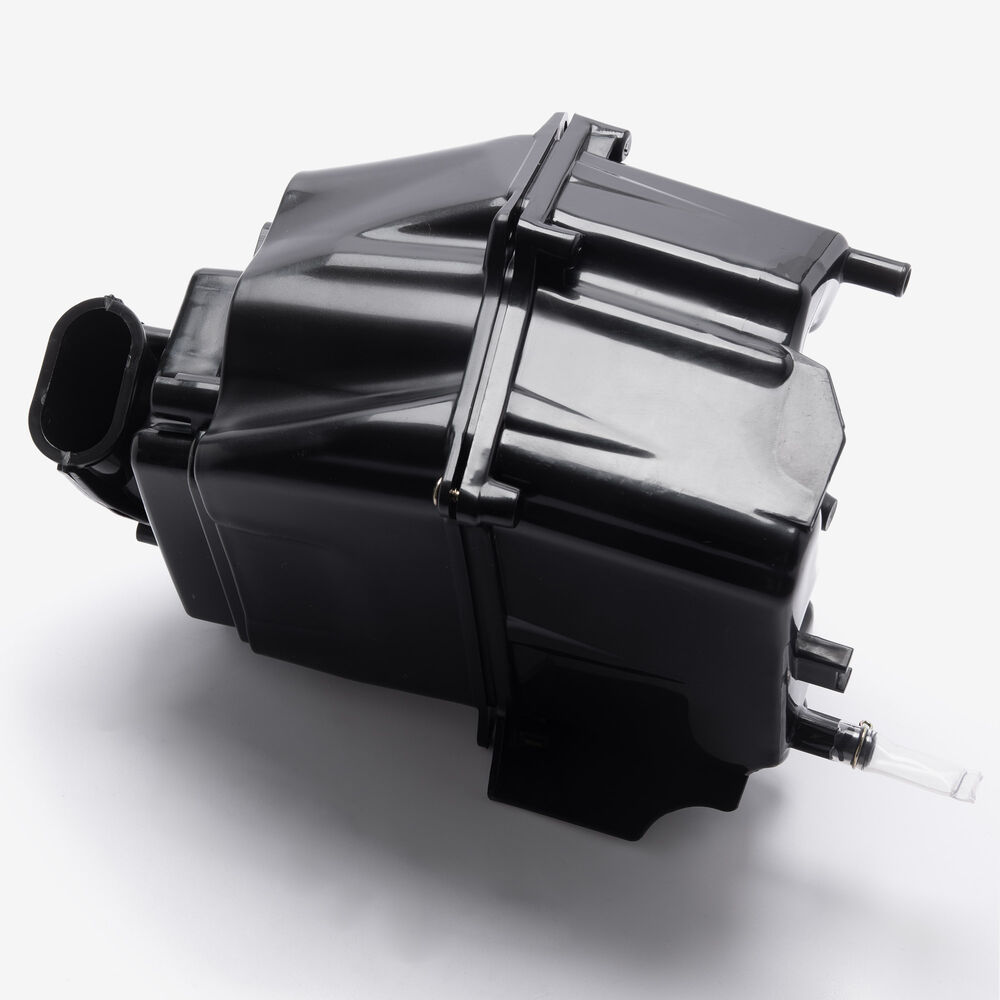

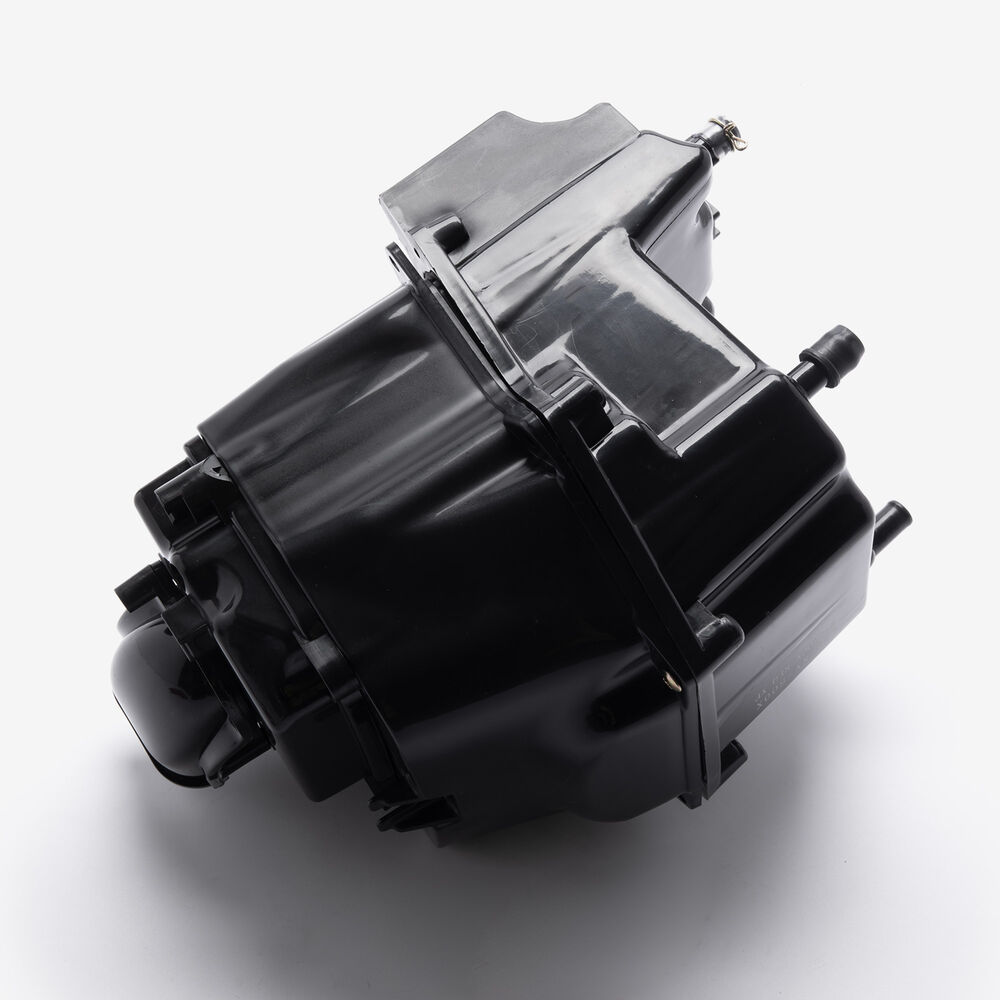

Air Filter Assembly (Air Box) for KY500X-E5 ARFA153 x 1
|
||
| 2 | ![]() |
Throttle Body for KY500X-E5 THRB034 x 1
|
||
| 3 | ![]() |
Inlet Manifold Rubber for KY500X-E5 MNF099 x 1
|
||
| 4 | ![]() |
Fuel Injector for KY500X-E5 FLINJ043 x 1
|
||
| 9 | ![]() |
Charcoal Canister for KY500X-E5 EGRCC034 x 1
|
||
| 10 | ![]() |
Oil Shut Off Valve(EGR) for KY500X-E5 EGRVS001 x 1
|
||
| 17 | ![]() |
Air Filter Element for KY500X-E5 ARF160 x 1
|
| Manufacturer | Model | Diagram |
|---|---|---|
| Colove | KY500X | |
| Lexmoto | Pioneer 500X Euro 5 [KY500X-E5] | View parts diagram |
