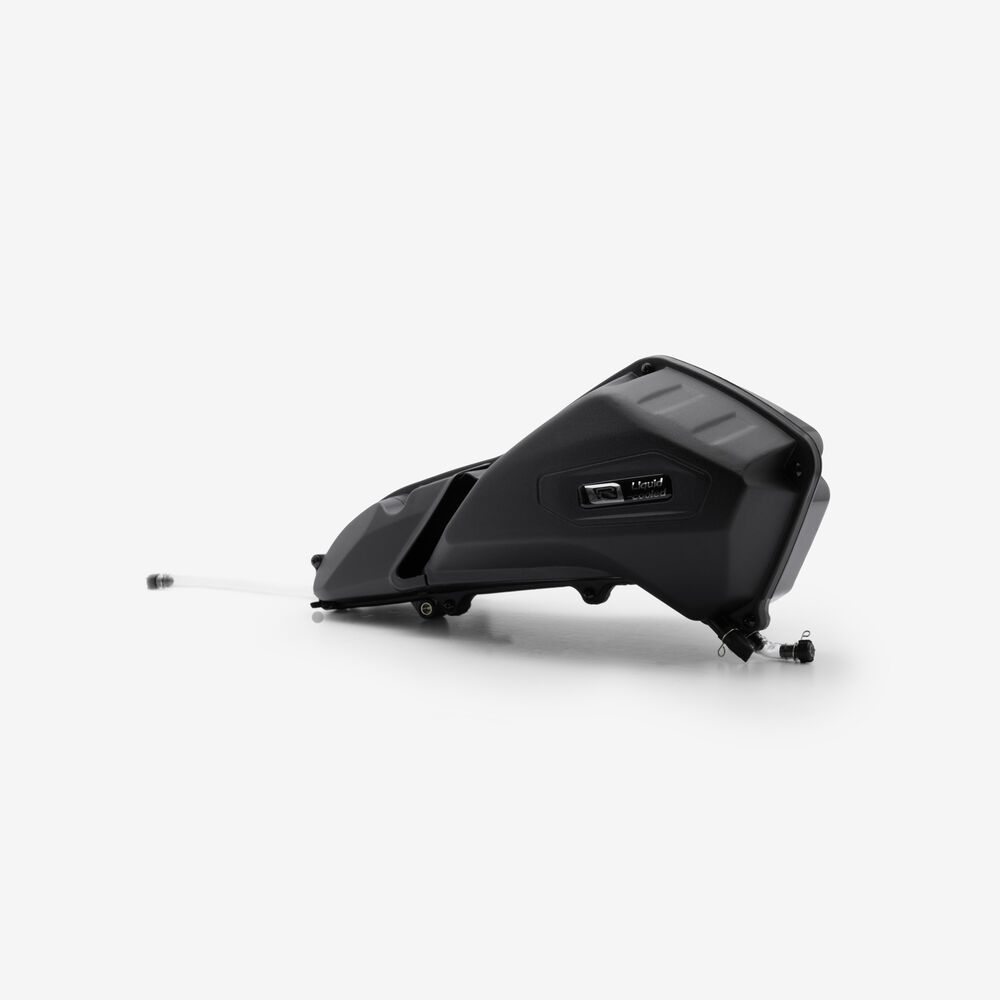

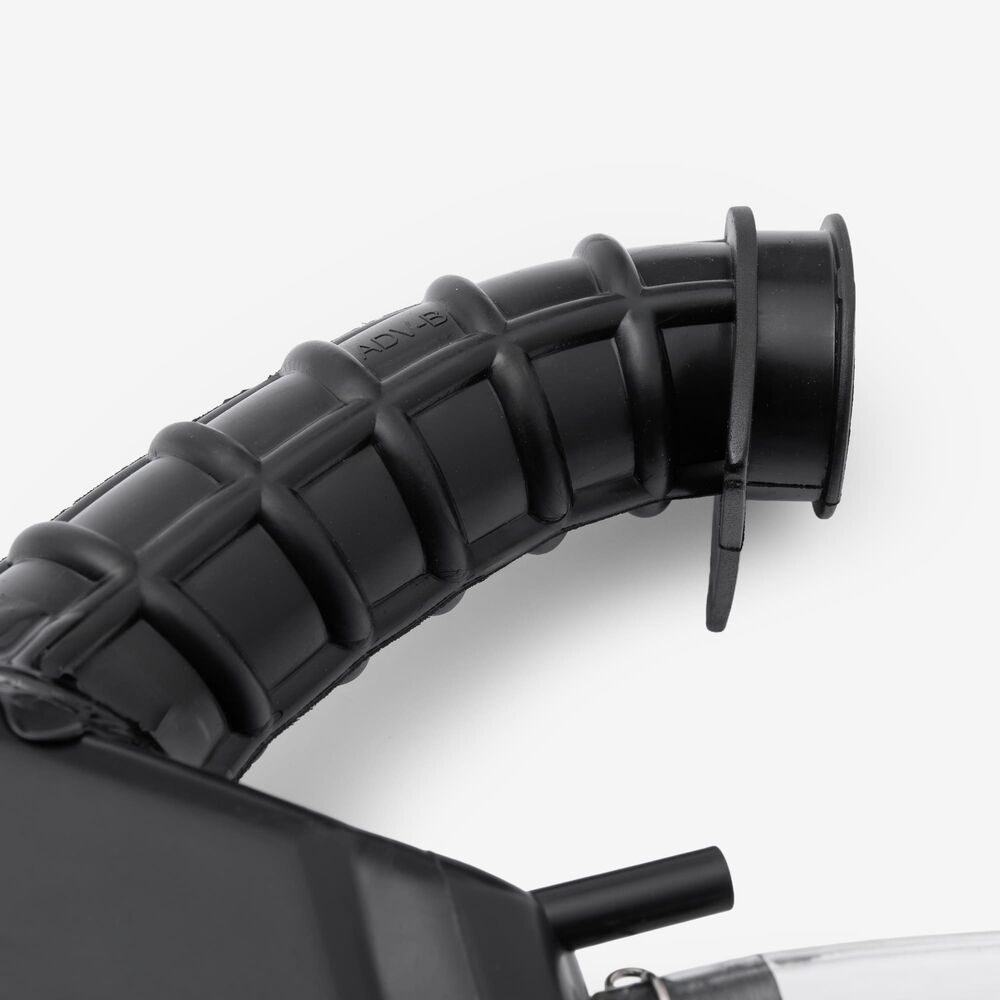

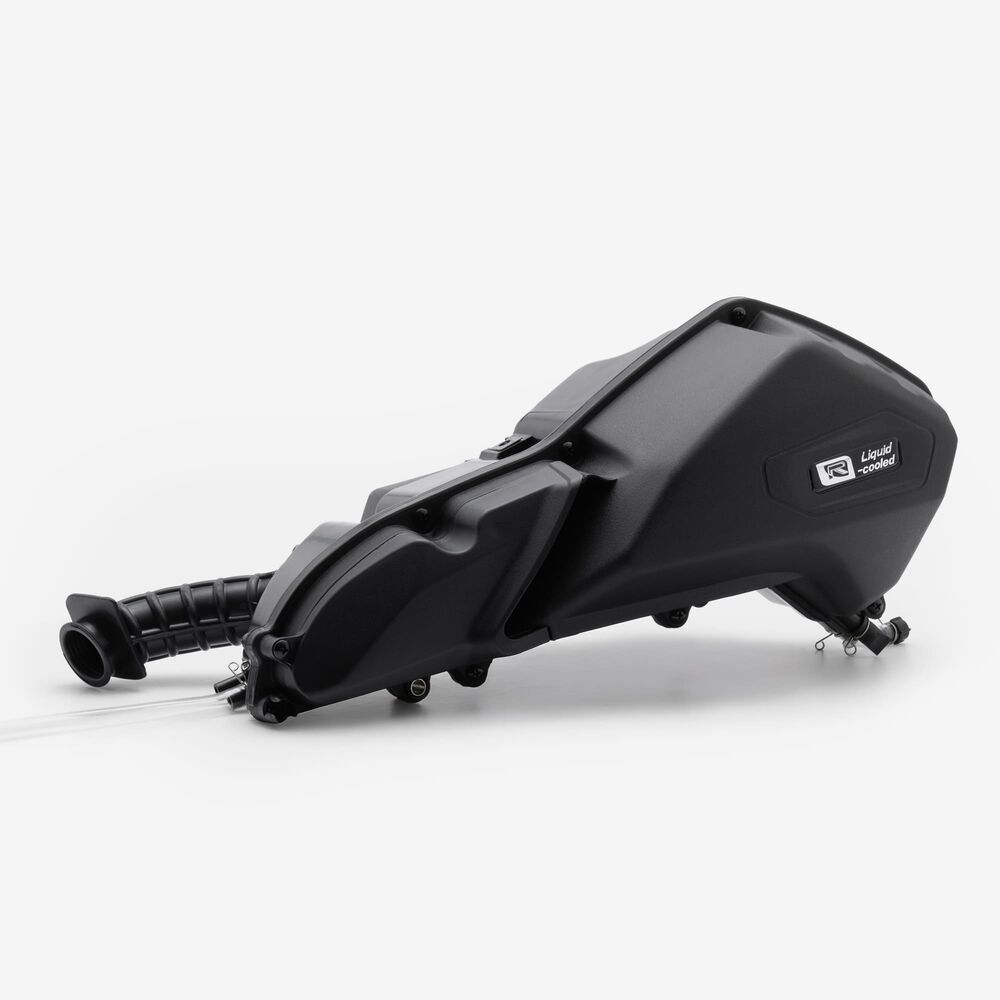

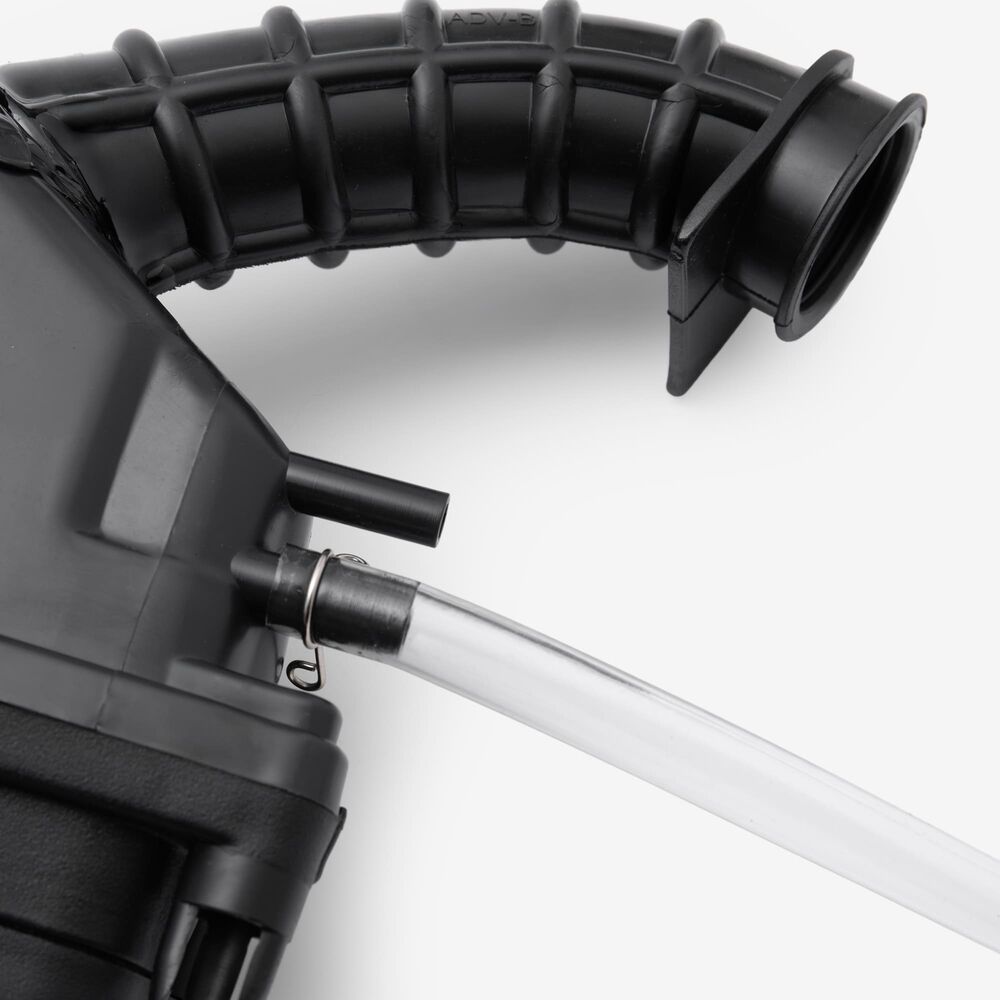

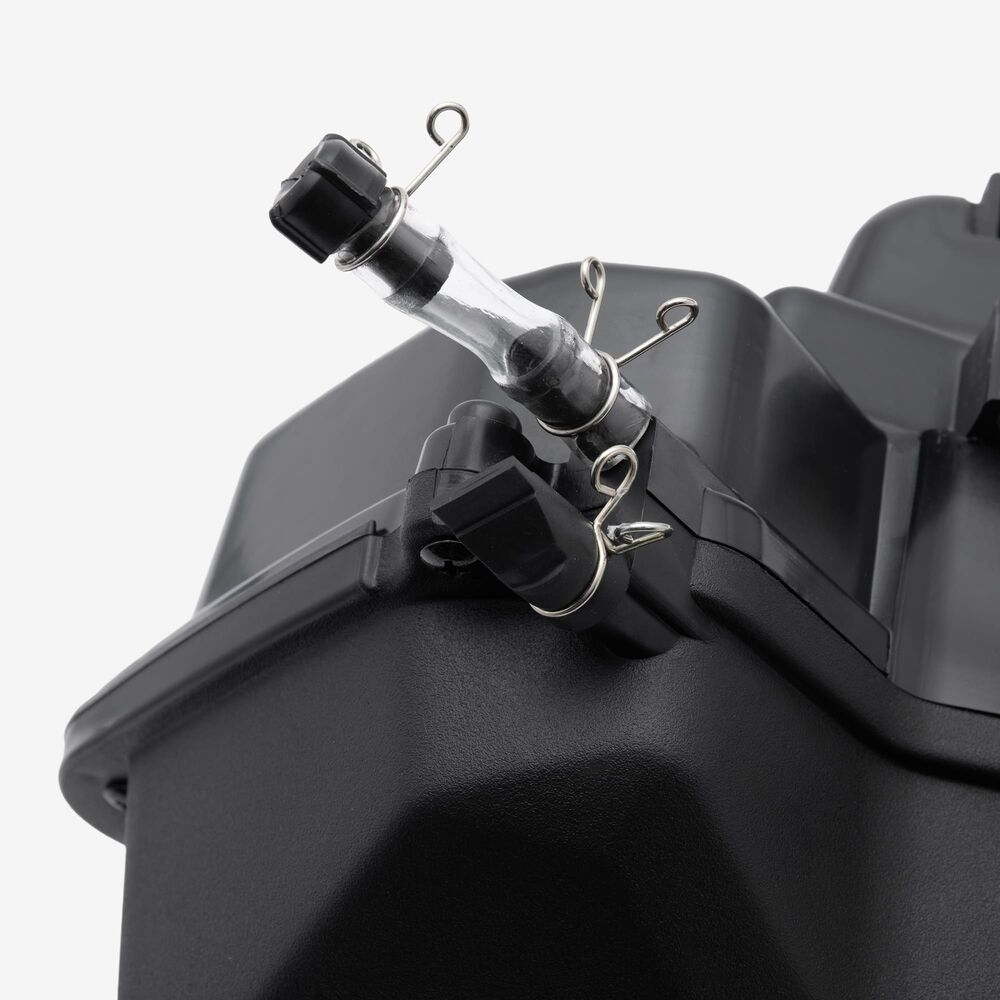

Air Filter Assembly (Air Box)

£29.49

Availability: Low Stock
Code: ARFA169 PLU: 41783 EAN: 5057645752981

Order before 4pm for same day dispatch

0 Hours 0 Mins 0 Secs
Description

"In the category of Air Intake and Air filters, Air Filters"

An airbox is an empty chamber on the inlet of most combustion engines. It collects air from outside and feeds it to the intake hoses of each cylinder.

The airbox allows the use of one air filter instead of multiple filters thus reducing complexity. Developments arising from concerns about engine emissions during the late 1970s now allow the airbox to collect gases from the crankcase and the tank air vent and re-feed them to the engine.

Product Diagrams

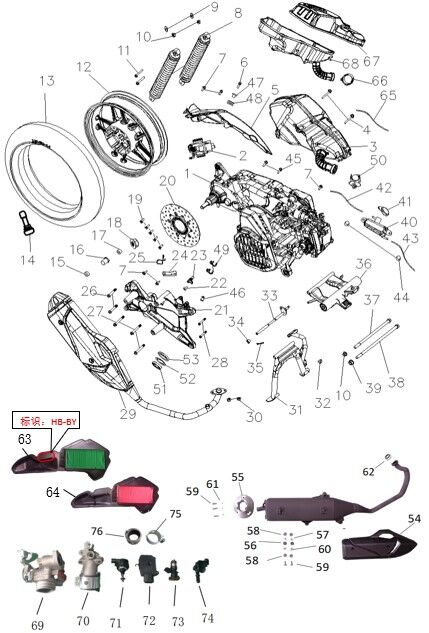

ENGINE ASSEMBLY
Ref Item Name Price
1 Engine Complete
ENG149 x 1
£813.49
3 Air Filter Assembly (Air Box)
ARFA169 x 1
£29.49
5 Inner Rear Mudguard
PNLIR020 x 1
£39.49
6 Bolt M6 x 20mm
BLT963 x 1
£1.99
7 Bolt M6 x 12mm
BLT961 x 1
£1.99
8 Shock Absorber
SHK210 x 1
£23.99
11 Bolt M6 X 30 Mm
BLT964 x 1
£1.99
12 Scooter Wheel Rear
WHLR257 x 1
£58.49
13 Tyre
TYR204 x 1
£58.49
14 Tyre Valve Straight
VLVTYR001 x 1
£4.99
17 Spacer
SPCR297 x 1
£3.49
18 Lock Nut M16 x 1.5mm
NUT244 x 1
£1.99
19 Rear Brake Disc Bolt M8 x 25mm
BLTD032 x 1
£6.49
20 Rear Brake Disc
BRDR079 x 1
£27.49
21 Exhaust Bracket
BRCKT411 x 1
£46.49
22 Bolt M6 x 16mm
BLT962 x 1
£1.99
23 ABS Sensor
BRSEN012 x 1
£34.49
24 Brake Cable Clip
HSCLP127 x 1
£1.99
26 Wheel Nut M16
NUT072 x 1
£3.49
29 Complete Exhaust System
EXCS223 x 1
£166.49
31 Centre Stand
STDC143 x 1
£21.49
32 Centre Stand Cushion
STDCC032 x 1
£1.99
33 Centre Stand Pin
STDPC032 x 1
£6.99
34 Lock Nut M10 X 15 X 10.3 Mm
NUT245 x 1
£1.99
35 Centre Stand Pin 2 x 20mm
STDPC033 x 1
£1.99
36 Engine Bracket
ENGB141 x 1
£29.49
37 Engine Mounting Bolt M10 x 235mm
BLT965 x 1
£3.49
38 Engine Mounting Bolt M12 x 280mm
BLT966 x 1
£4.49
40 Coolant Reservoir / Expansion Tank
WTRSVR021 x 1
£4.99
41 Coolant Reservoir / Expansion Tank Cover
WTRSVR022 x 1
£3.49
42 Coolant Hose
WTHS093 x 1
£4.99
46 Rubber Bush
BCVR021 x 1
£20.99
47 Bush
BSH225 x 1
£3.49
48 Rubber Grommet
GRM073 x 1
£1.99
49 Cable Clamp
CBCLMP016 x 1
£1.99
51 Bearing 6303
BRG223 x 1
£8.99
53 Seal 47 X 25 X 7 Mm
SEAL203 x 1
£3.49
54 Heat Shield
EXHS013 x 1
£12.99
55, 59, 61 Exhaust End Cap
EXCVR029 x 1
£8.99
56, 57, 58, 59, 60 Heat Shield Fixing Kit
EXFX012 x 2
£10.49
62 Exhaust Gasket
GSKEX125 x 1
£4.49
64 Air Filter
ARF175 x 1
£11.99
65 Air Filter Pipe
ARFPP016 x 1
£6.99
69 Throttle Body
THRB052 x 1
£61.99
70 Inlet Manifold
MNF116 x 1
£29.49
71 Idle Air Controller
ACNTRL013 x 1
£52.49
72 Throttle Position Sensor
TPSEN014 x 1
£51.99
73 Fuel Injector
FLINJ060 x 1
£51.99
74 Fuel Injector Holder
FLINJ061 x 1
£20.99
Compatibility
Manufacturer Model Diagram
Lexmoto D2 E55 [GC125T-3A-E55] View parts diagram
