ARFA172"You should buy this Air Box Complete"
An airbox is an empty chamber on the inlet of most combustion engines. It collects air from outside and feeds it to the intake hoses of each cylinder.
The airbox allows the use of one air filter instead of multiple filters thus reducing complexity. Developments arising from concerns about engine emissions during the late 1970s now allow the airbox to collect gases from the crankcase and the tank air vent and re-feed them to the engine.
| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 1 | ![]() |

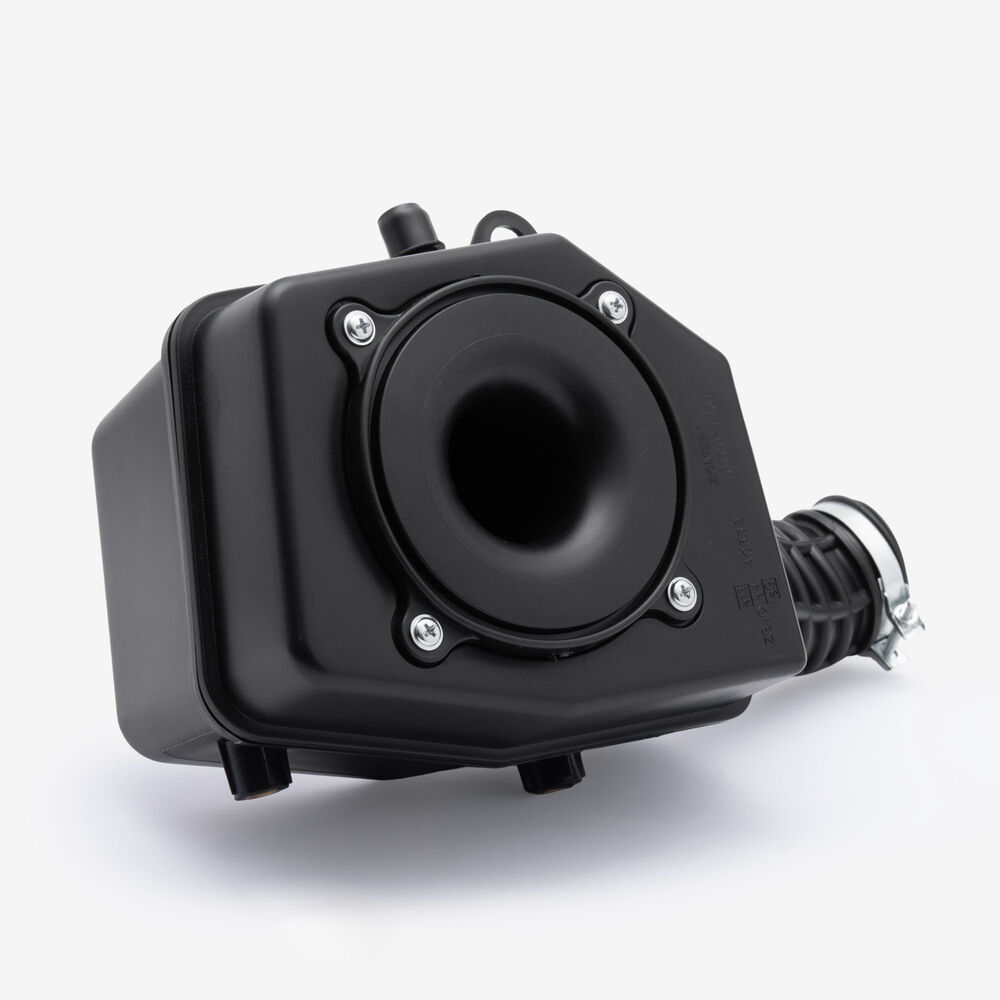

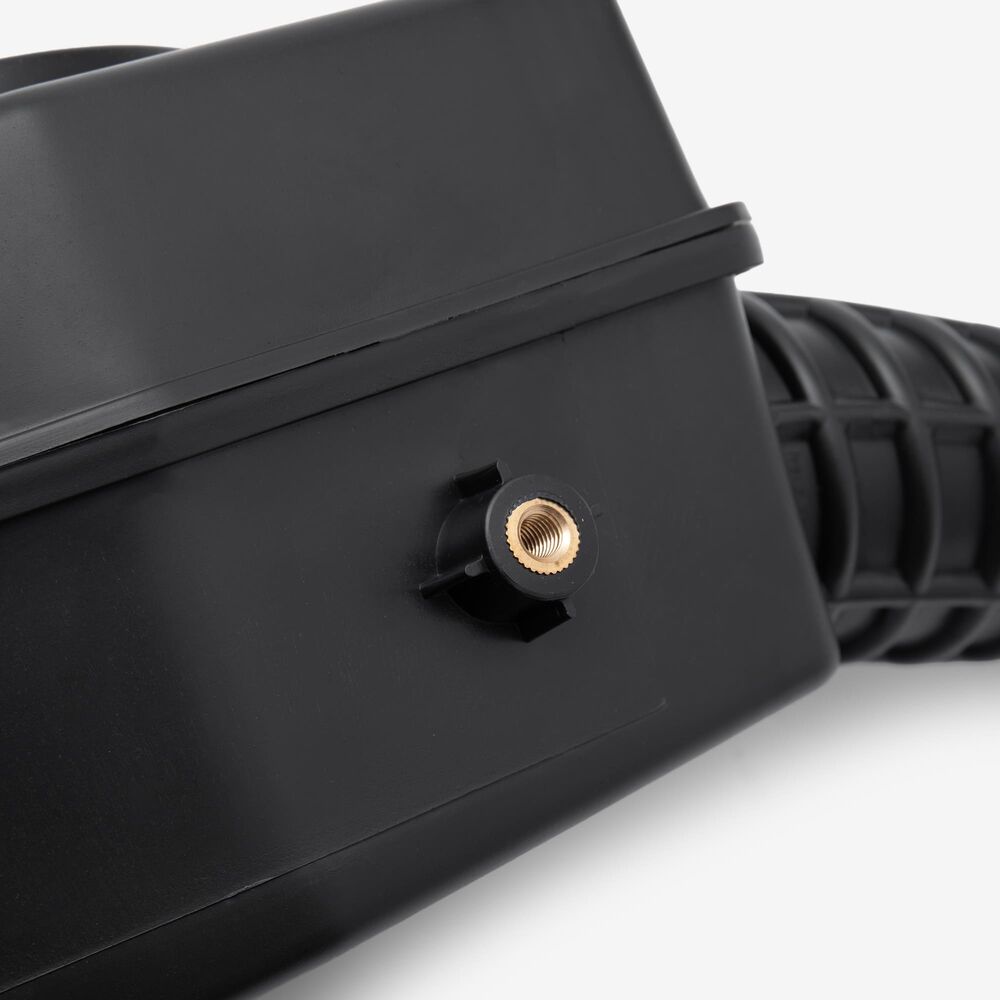

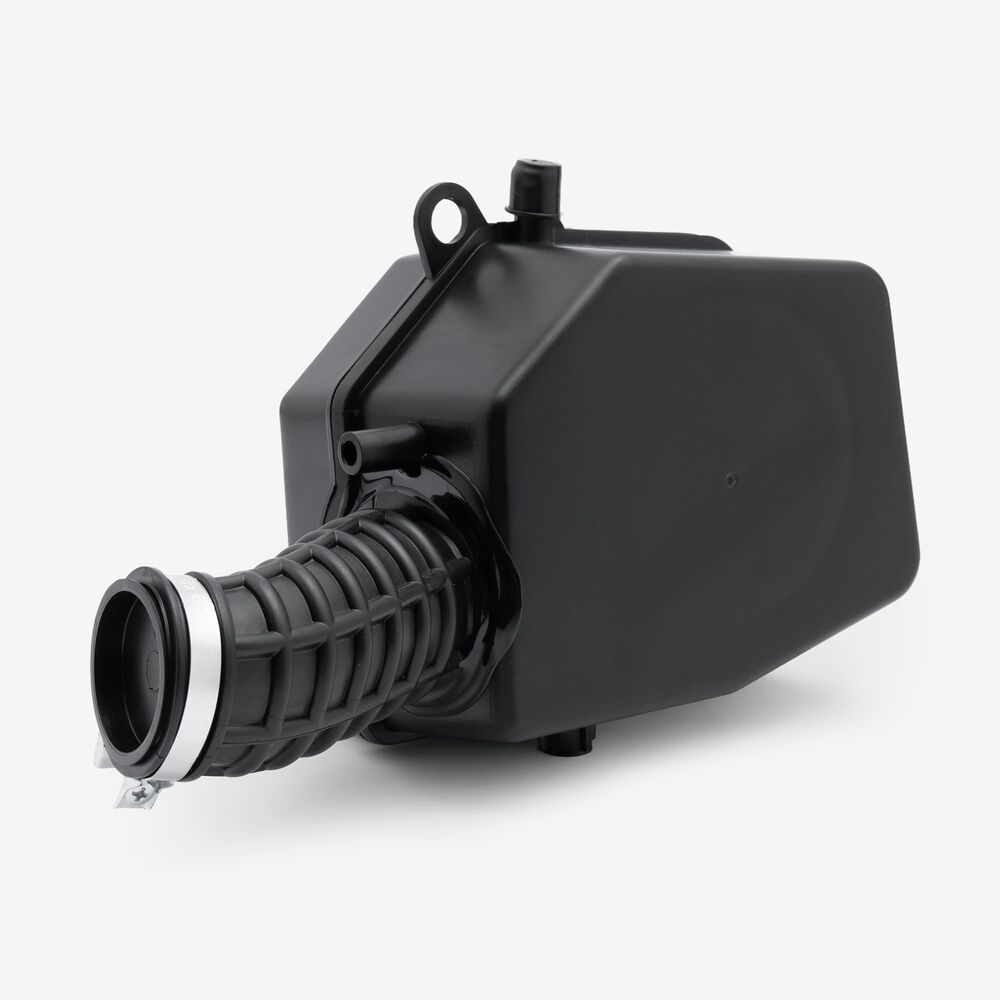

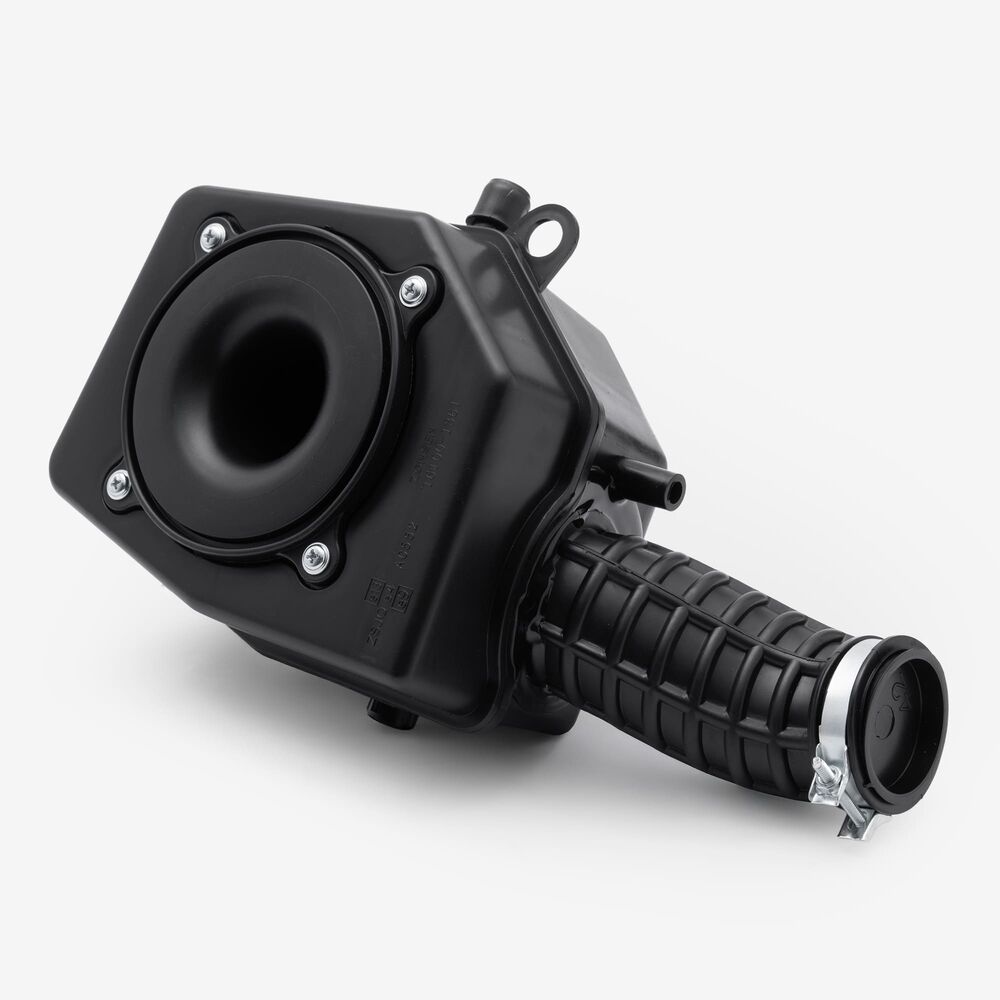

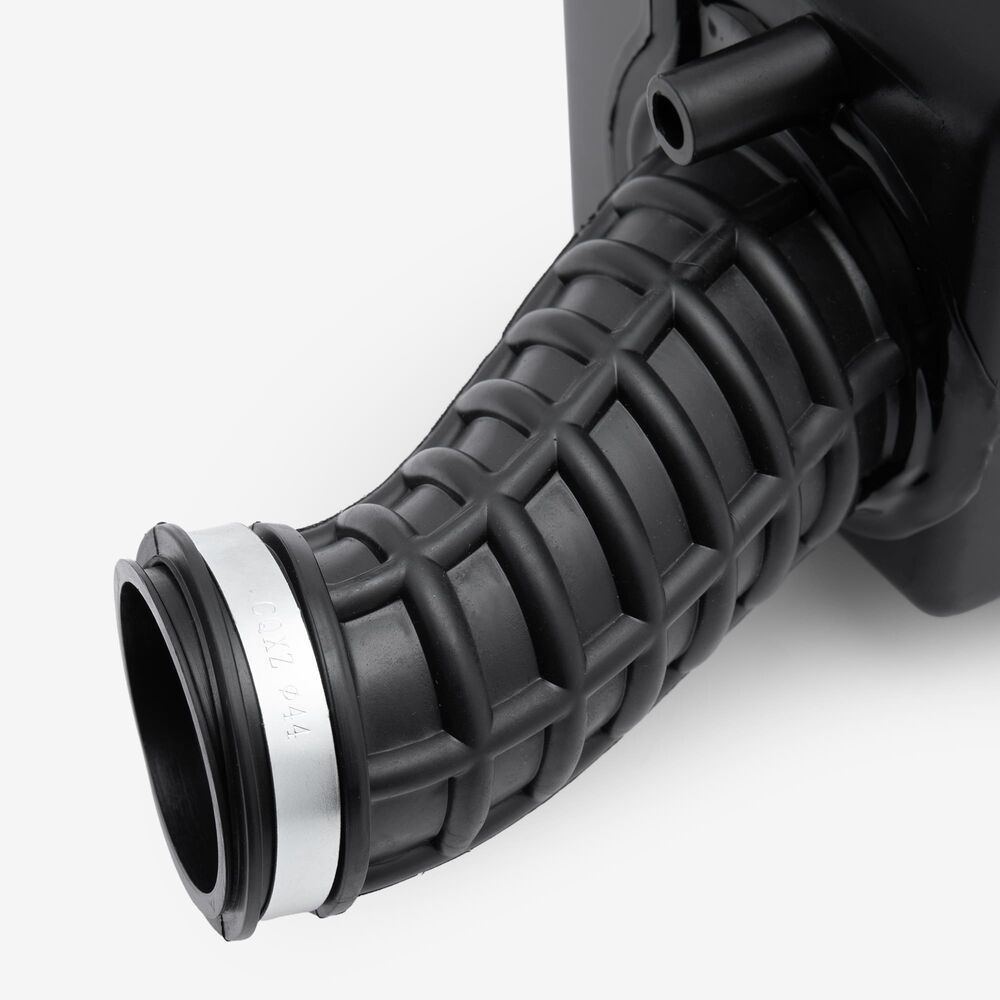

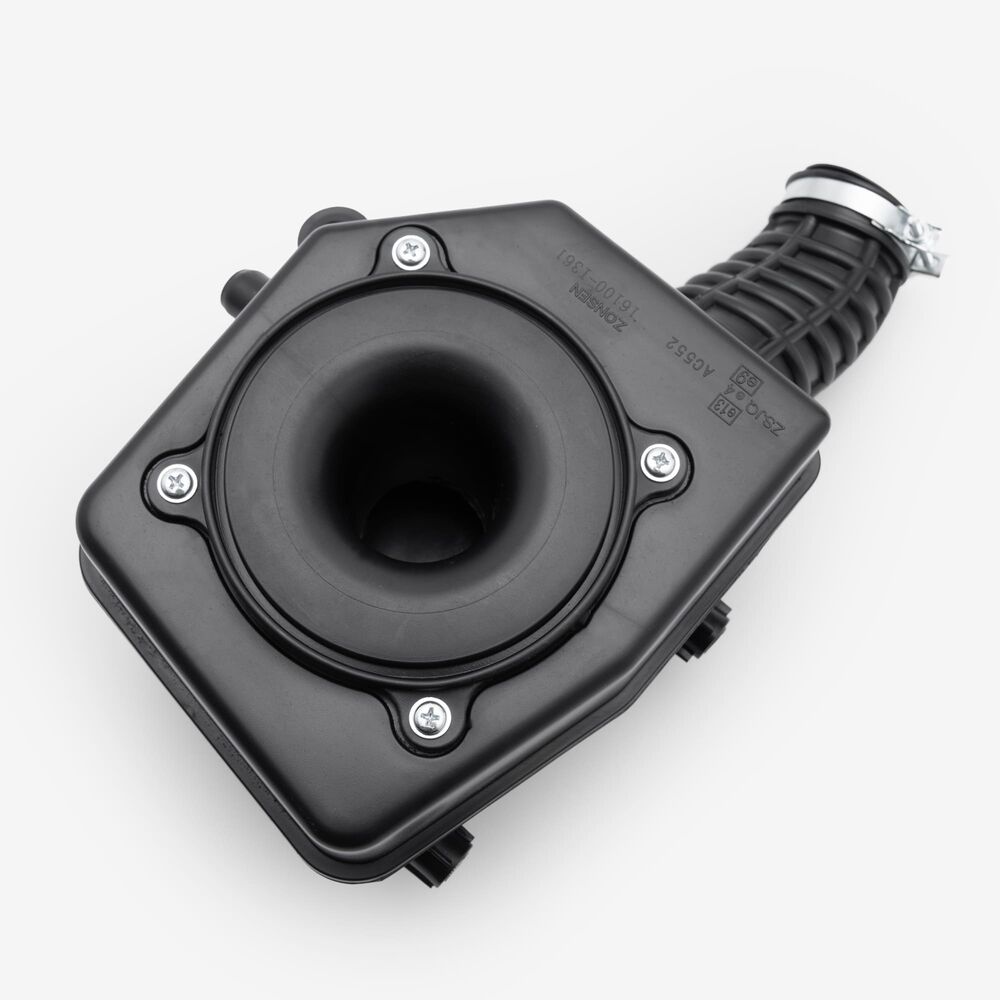

Air Box Complete ARFA172 x 1
|
||
| 2 | ![]() |
Flanged Hex Bolt Camshaft Locking Bolt M6 x 16mm BLT075 x 1
|
||
| 5 | ![]() |
Rubber Washer 12 x 17 x 8.5mm WSH35 x 1
|
||
| 6 | ![]() |
EFI Fuel Pipe 200mm for ZS125-79-E5 FLPP068 x 1
|
||
| 7 | ![]() |
Flanged Hex Bolt M6 x 12mm BLT124 x 1
|
||
| 8 | ![]() |
Emissions Charcoal Canister (EGR Valve) for ZS125-79-E4 EGRCC025 x 1
|
||
| 9 | ![]() |
EFI Fuel Pipe 340mm for ZS125-79-E4 FLPP007 x 1
|
||
| 10 | ![]() |
EFI Fuel Pipe 205mm for ZS125-79-E4 FLPP003 x 1
|
||
| 11 | ![]() |
Fuel Shut off Valve FLVS009 x 1
|
||
| 12 | ![]() |
Air Filter Element ARF017 x 1
|
||
| 13 | ![]() |
EFI Fuel Pipe for ZS125-79-E4 FLPP004 x 1
|
||
| 14 | ![]() |
Fuel Filter FLF012 x 1
|
| Manufacturer | Model | Diagram |
|---|---|---|
| Lexmoto | R66 E55 [SR125-A-E55] | View parts diagram |
| R66+ E55 [ZS125-79C-E55] | View parts diagram | |
