ARFA173"Another great Air Filter"
An airbox is an empty chamber on the inlet of most combustion engines. It collects air from outside and feeds it to the intake hoses of each cylinder.
The airbox allows the use of one air filter instead of multiple filters thus reducing complexity. Developments arising from concerns about engine emissions during the late 1970s now allow the airbox to collect gases from the crankcase and the tank air vent and re-feed them to the engine.
| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 1 | ![]() |
Throttle Body THRB055 x 1
|
||
| 2 | ![]() |
Fuel Injector Bracket BRCKT438 x 1
|
||
| 3 | ![]() |
Fuel Injector Round Connector FLINJ026 x 1
|
||
| 4 | ![]() |
Air/Intake Pressure Sensor APSEN008 x 1
|
||
| 5 | ![]() |
Idle Air Control Valve & Throttle Position Sensor ACNTRL014 x 1
|
||
| 7 | ![]() |

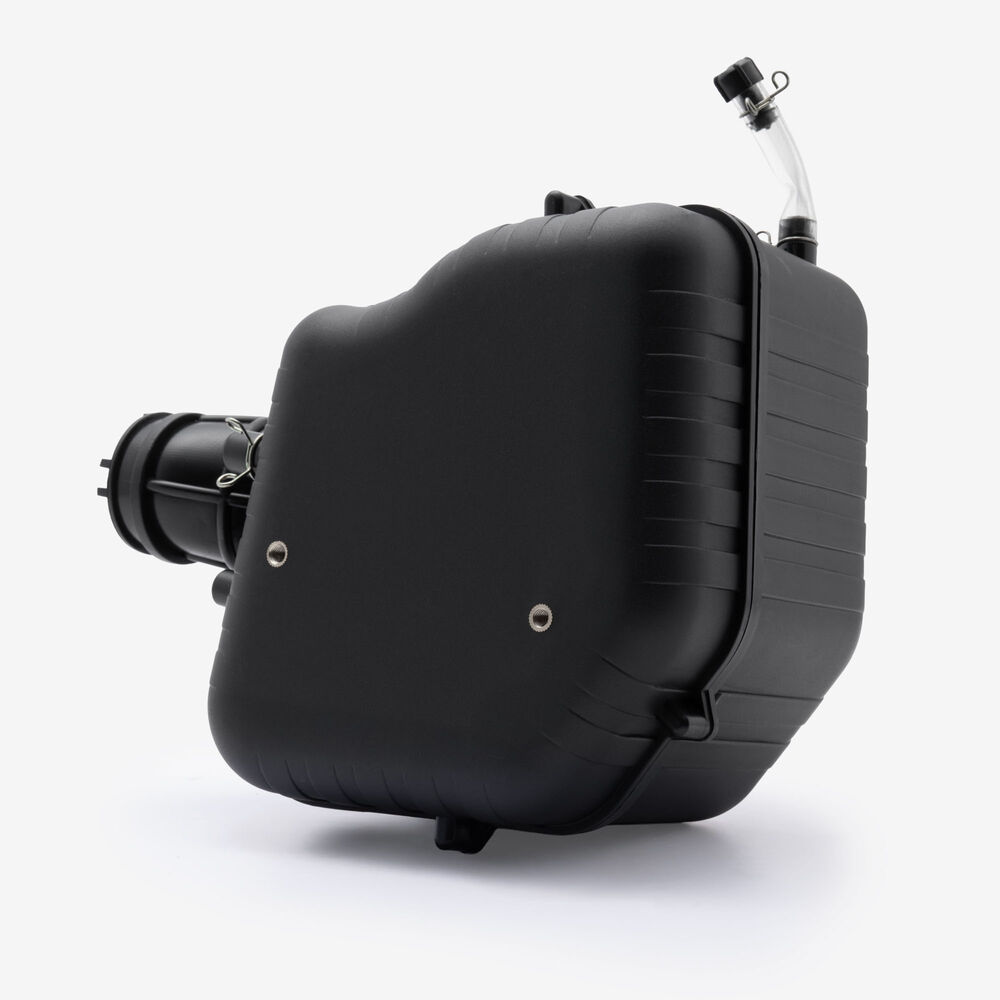

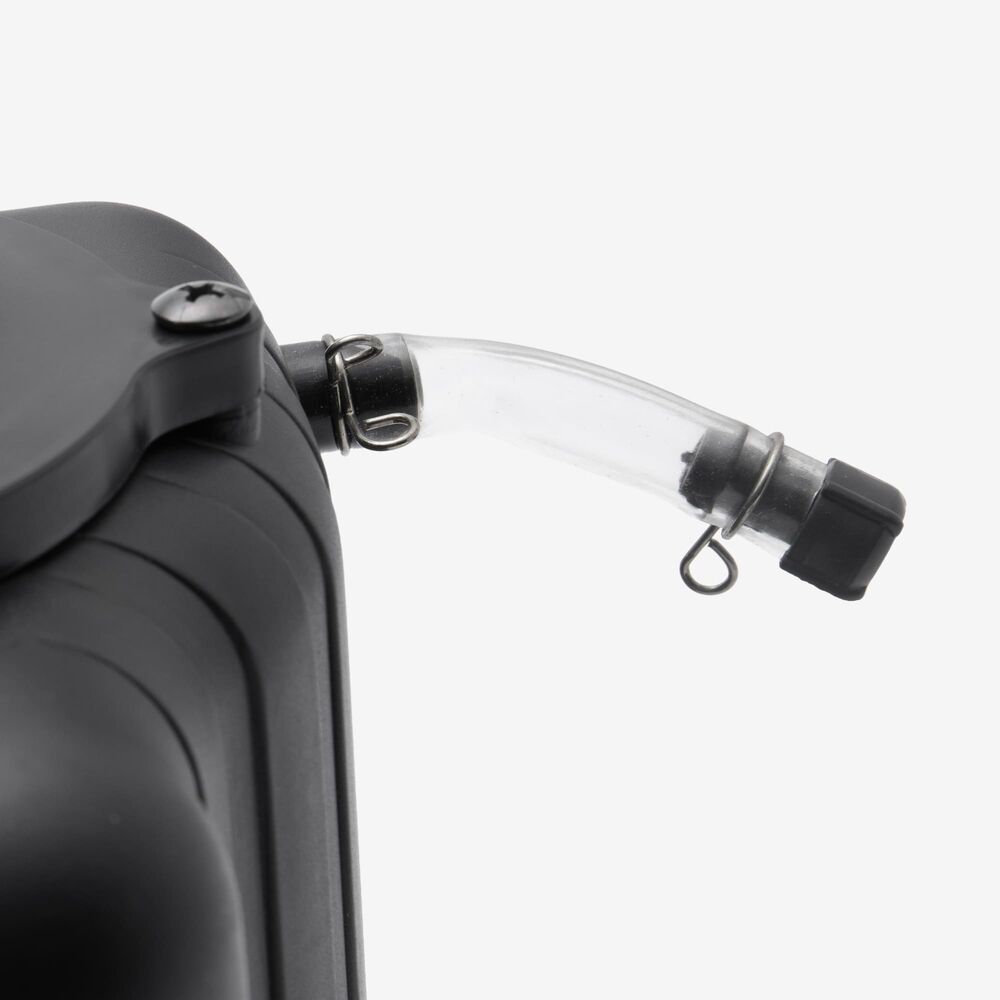

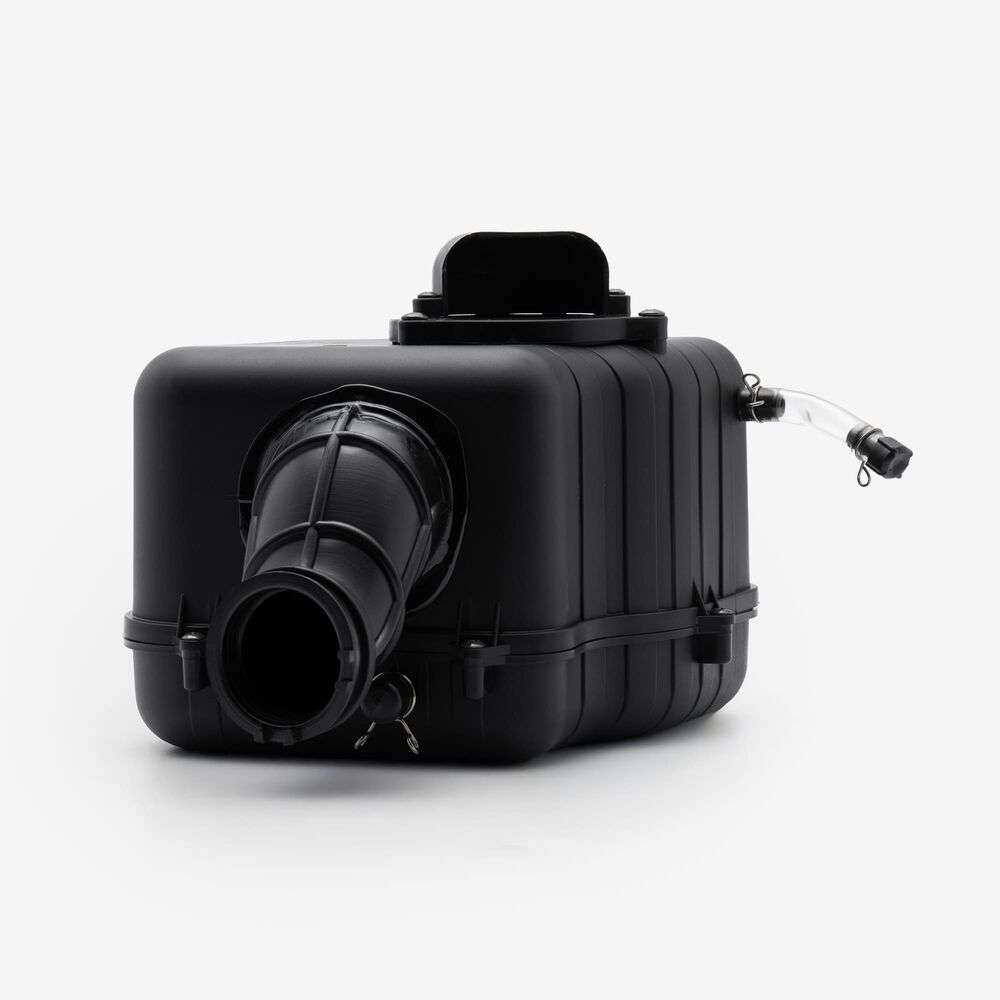

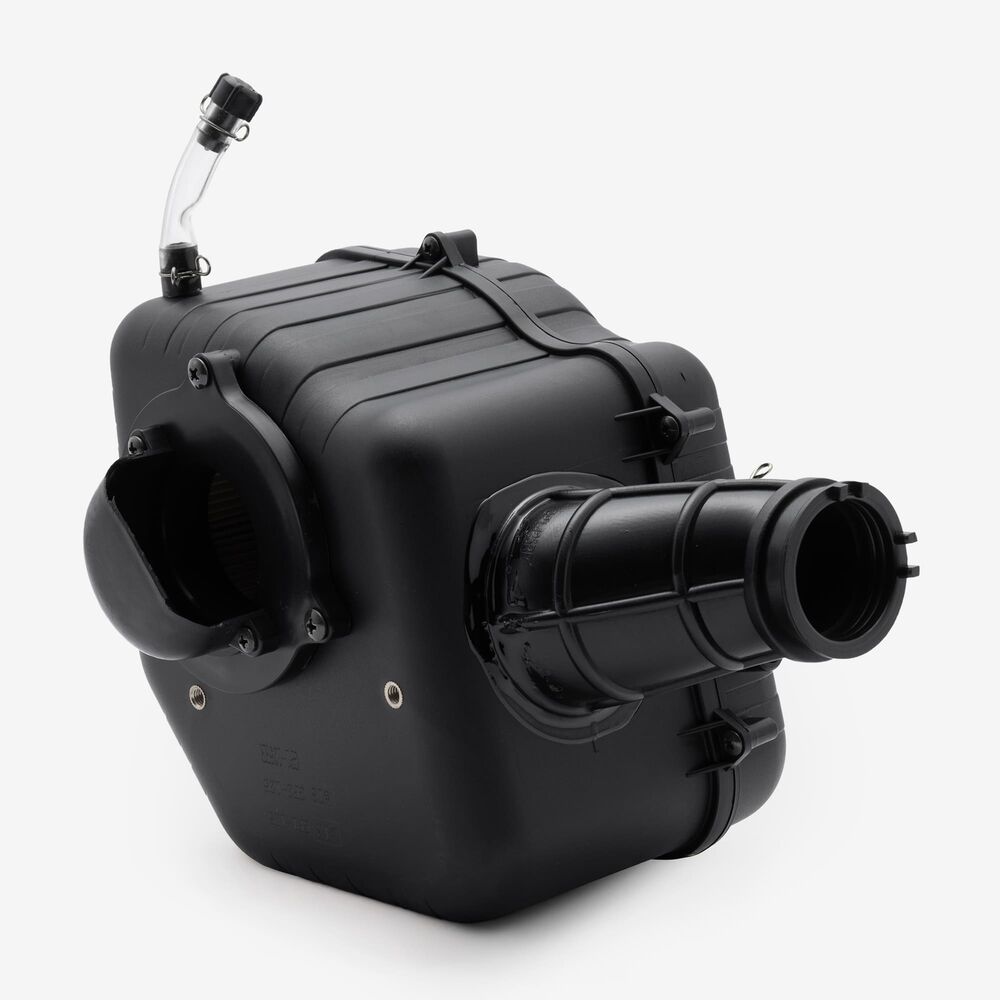

Air Box Complete ARFA173 x 1
|
||
| 12 | ![]() |
Air Filter Element ARF037 x 1
|
||
| 14 | ![]() |
Bolt M6 x 12mm BLT961 x 1
|
| Manufacturer | Model | Diagram |
|---|---|---|
| Lexmoto | LXR 125 E55 [SY125-10-E55] | View parts diagram |
| LXR 125 SE E55 [SY125-10-SE-E55] | View parts diagram | |
