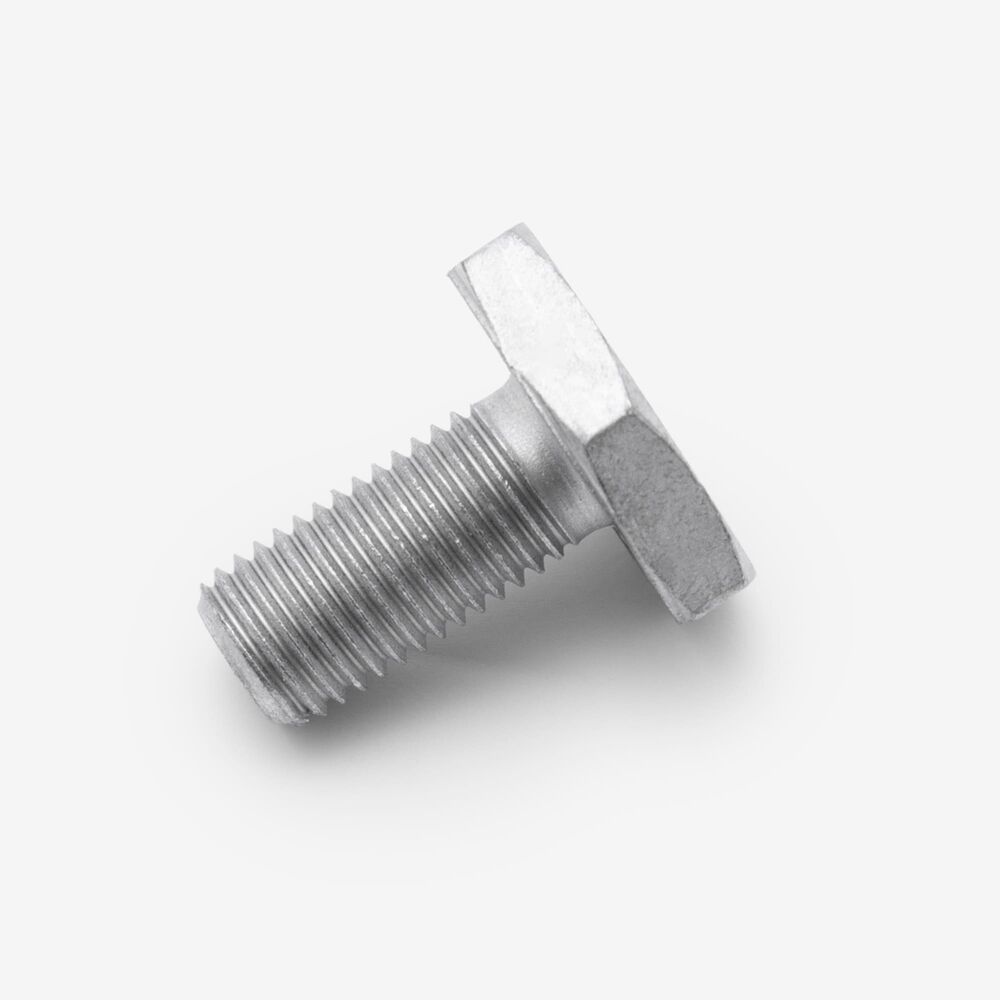

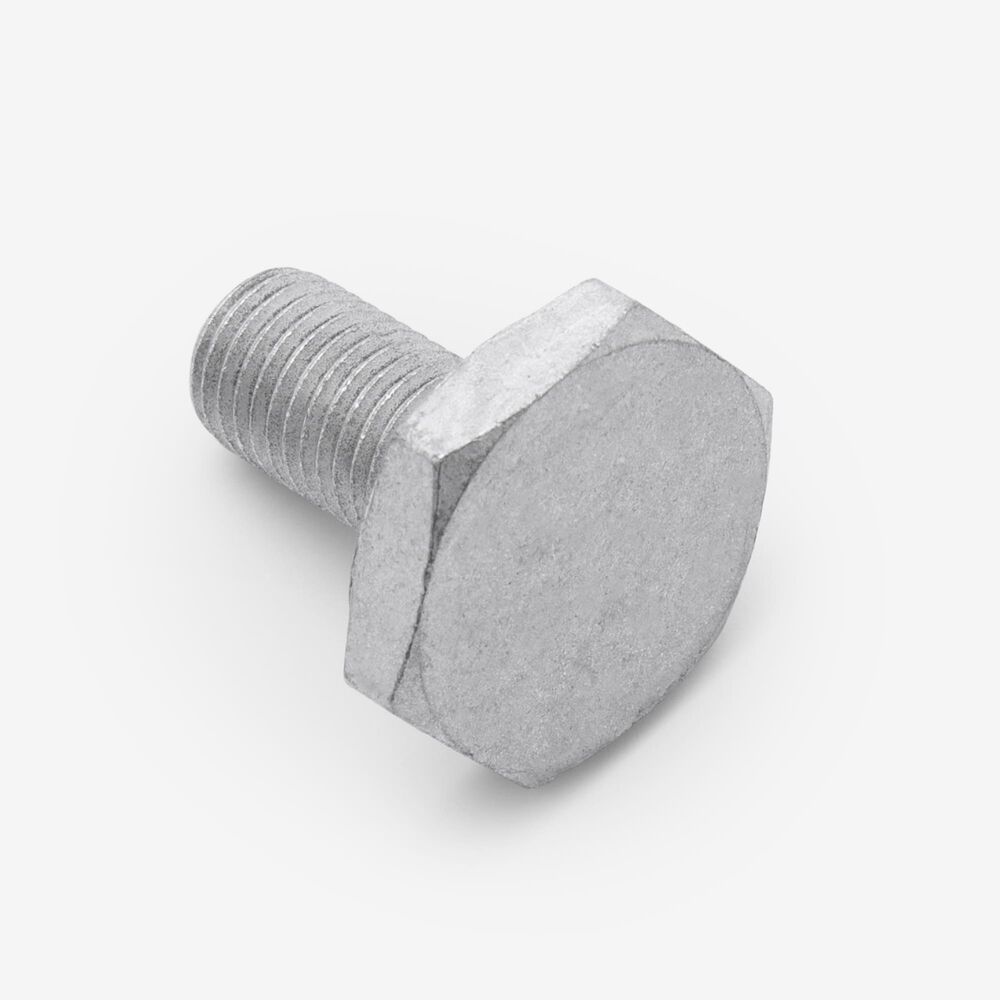

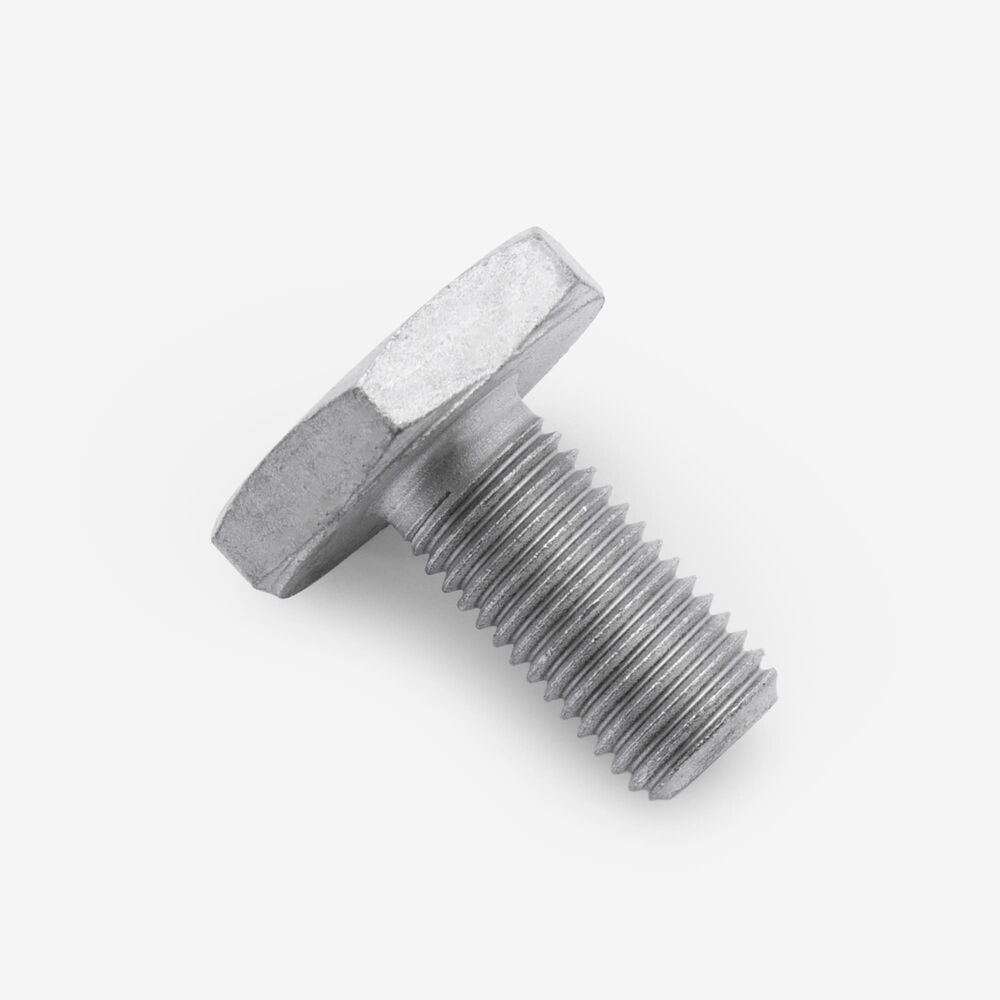

BLT1012"In the category of Fixtures and Fittings, Bolts"
A bolt in a motorcycle is a threaded fastener used to join or secure components together. It typically consists of a head and a shaft with external threads that engage with a corresponding nut or threaded hole. Bolts are used in various applications, including assembling engine parts, mounting accessories, and securing frame components.

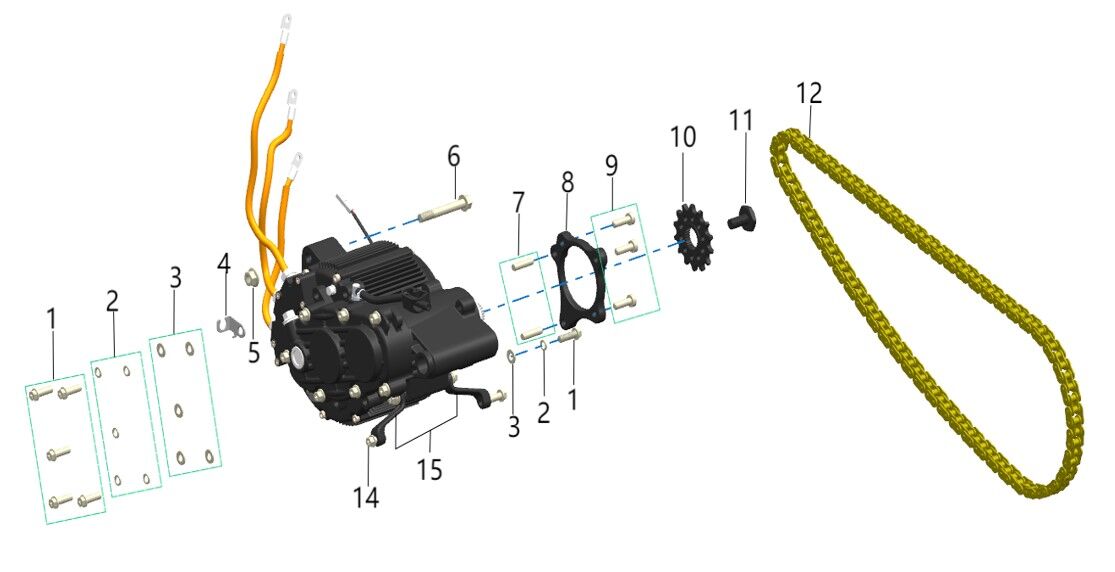

| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 1 | ![]() |
Bolt M8 x 25mm BLT1040 x 1
|
Soon | |
| 3 | ![]() |
Washer M8 WSH0138 x 1
|
Soon | |
| 4 | ![]() |
Oil Hose Clip HSCLP136 x 1
|
Soon | |
| 5 | ![]() |
Nut M10 x 1.25mm NUT252 x 1
|
Soon | |
| 8 | ![]() |
Gearbox Reinforcing Bracket BRCKT446 x 1
|
||
| 10 | ![]() |
Front Sprocket 520 SPKF078 x 1
|
||
| 11 | ![]() |
Gearbox Hex Bolt M12 x 22 x 1.5mm BLT1012 x 1
|
||
| 12 | ![]() |
Standard O-ring Chain 520-108 CHN120 x 1
|
| Manufacturer | Model | Diagram |
|---|---|---|
| Talaria | Komodo L3e [TL65] | View parts diagram |
| Komodo [TL6000] | View parts diagram | |
