Hex Bolt with Shank M8 x 55mm
Secure your components with confidence using this robust M8 x 55mm Hex Bolt.
Key Features:
- Size: M8 diameter, 55mm length.
- Head Type: Standard hexagonal head fo... view more
£1.99 £1.59 Sale
Availability: In Stock
Order before 4pm for same day dispatch
0
Hours
0
Mins
0
Secs
Description
"In the category of Fixtures and Fittings, Bolts"
Secure your components with confidence using this robust M8 x 55mm Hex Bolt.
Key Features:
- Size: M8 diameter, 55mm length.
- Head Type: Standard hexagonal head for easy wrenching.
- Material: High-quality construction ensures durability and strength.
- Application: Ideal for a wide range of motorcycle and scooter applications requiring a secure fastening solution.
This bolt offers a reliable and long-lasting connection for your valuable parts.
Product Diagram

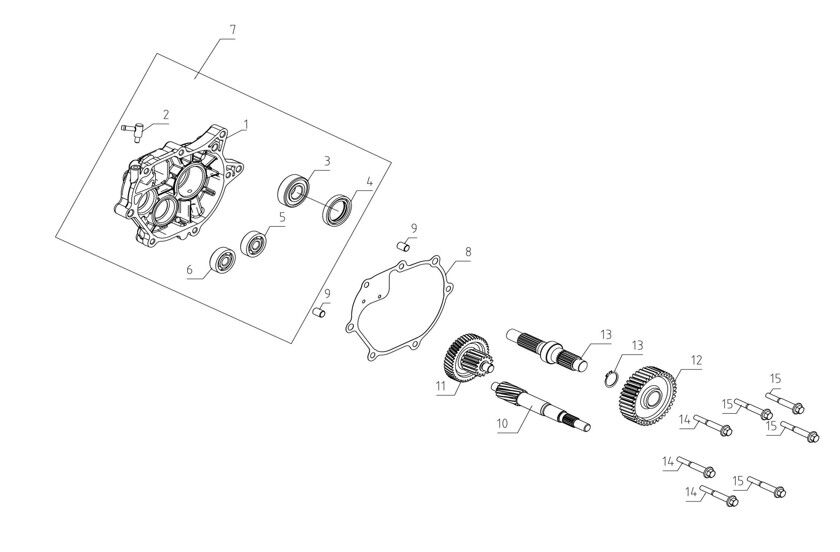

DRIVE SHAFT AND CASING diagram - Lexmoto Diablo 125 E55 - LJ125T-9M-E55
| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 1, 7 |  |

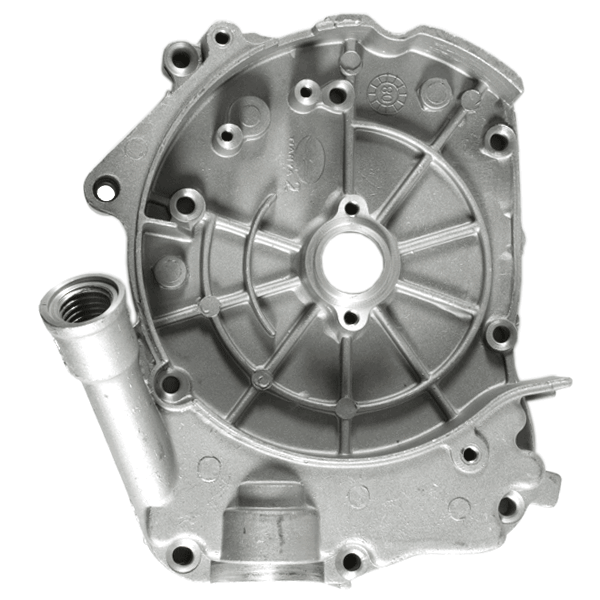

125cc Gearbox Casing GRBC006 x 1
|
||
| 2 | |
Cam Cover Breather Outlet PPB024 x 1
|
||
| 3 | |
Single Wheel Bearing 6204 2RS 20 x 47 x 14mm BRG110 x 1
|
||
| 4 | |
Oil Seal 32 x 47 x 7mm OLSL077 x 1
|
||
| 5 | |
Open Bearing 6301 37 x 12 x 12mm BRG153 x 1
|
||
| 6 | |
Bearing 6301 TPI BRG221 x 1
|
||
| 8 | |
125cc Scooter Gearbox Gasket LJ1P52QMI GSKGB004 x 1
|
||
| 9 | |
Engine Dowel 10 x 4mm DWL003 x 1
|
||
| 10 | |
125cc Scooter Gearbox Input Shaft LJ1P52QMI INSH010 x 1
|
||
| 11 | |
Gearbox Reduction Gear LJ1P52QMI GRRD037 x 1
|
||
| 12 | |
Final Drive Gear LJ1P52QMI GRFD007 x 1
|
||
| 13 | |
Gearbox Output Shaft LJ1P52QMI OTSH014 x 1
|
||
| 14 | |
Hex Bolt with Shank M8 x 55mm BLT108 x 1
|
||
| 15 | |
Bolt M8 x 65mm BLT395 x 1
|
More Product Diagrams
This part appears on 8 other diagrams
Compatibility
| Manufacturer | Model | Fitment | Diagram |
|---|---|---|---|
| AJS | Modena 50 [ZN50QT-27] | ||
| Modena 125 [ZN125T-27] | |||
| Lexmoto | Adrenaline 125 EFI [XFLM125GY-2B-E4] | View parts diagram | |
| Adrenaline 125 [XFLM125GY-2B] | View parts diagram | ||
| Aura 125 E55 [LJ125T-18D-E55] | View parts diagram | ||
| Aura 125 Euro 5 [LJ125T-18-E5] | View parts diagram | ||
| Aura 125 [LJ125T-18] | View parts diagram | ||
| Diablo 125 E55 [LJ125T-9M-E55] | View parts diagram | ||
| Diablo 125 EFI [LJ125T-8M-E4] | View parts diagram | ||
| Diablo 125 Euro 5 [LJ125T-9M-E5] | View parts diagram | ||
| Enigma 125 [ZS125T-48] | View parts diagram | ||
| FMS 125 [ZN125T-7H] | Lower Exhaust Mounting Bolt | View parts diagram | |
| FMX 125 EFI [WY125T-108-E4] | View parts diagram | ||
| FMX 125 [WY125T-108] | View parts diagram | ||
| Milano 50 [FT50QT-27] | View parts diagram | ||
| Milano 125 EFI [FT125T-27-E4] | View parts diagram | ||
| Milano 125 [FT125T-27] | View parts diagram | ||
| Monza 125 [ZN125T-34] | View parts diagram | ||
| Riviera 125 [LJ125T-V] | View parts diagram | ||
| SRT 125 Euro 5 [LJ125T-X-E5] | View parts diagram | ||
| Titan 125 [ZN125T-8F] | View parts diagram | ||
| Longjia | LJ125T-9M | ||
| LJ125T-X | |||
| Pulse | Adrenaline 125 [XF125GY-2B] | View parts diagram | |
| Romet | RXL 125 [RXL125] | ||
| SFM | ZX125 | ||
| ZZ125 | |||
| Sinnis | Apache 125 | ||
| Apache [QM125GY-2B] | |||
| Apache SMR [QM125GY-G] | |||
| Harrier EFI [ZN125T-22E] | |||
| Shuttle 125 EFI [ZN125T-7S] | |||
| Zen 125 EFI [ZN125T-F10] | |||
| Superbyke | RMR 125 [RMR125] | ||
| UM | Scrambler Classic 125 [UM125-SC] | View parts diagram | |
