Flanged Hex Bolt M6 x 70mm

Flanged Hex Bolt

This high-quality bolt is designed for secure fastening in various applications.

Size: M6 x 70mm
Head Type: Hex Flange
Material: Durable metal c... view more

£3.49 £2.79 Easter Sale

Availability: In Stock

Add to wishlist

Code: BLT191 PLU: 22886 EAN: 5057645193418 Length of Outer Cable: 76mm Head Height: 6mm Head Size: 10mm Thread Length: 20mm Thread Diameter: M6 Thread Pitch: 1mm Flange Diameter: 13mm Shank Length: 50mm Thread Length and Shank in Total: 70mm Brand: CMPO Classic Part: No Colour: Black Features: Easy Installation Items included: Bolt Machine Type: Street Motorcycle Manufacturer Part Number: BLT191 Manufacturer Warranty: 1 Year Performance Part: No Placement on Vehicle: Front Reference OE/OEM Number: 130900178 Type: Bolt Unit Quantity: 1 Universal Fitment: No

Order now for dispatch on Tuesday

Description

"In the category of Fixtures and Fittings, Bolts"

Flanged Hex Bolt

This high-quality bolt is designed for secure fastening in various applications.

Size: M6 x 70mm
Head Type: Hex Flange
Material: Durable metal construction for longevity.
Application: Ideal for use in engine components such as the crankcase and valve train.

Ensure a reliable connection with this essential hardware component.

Product Diagram

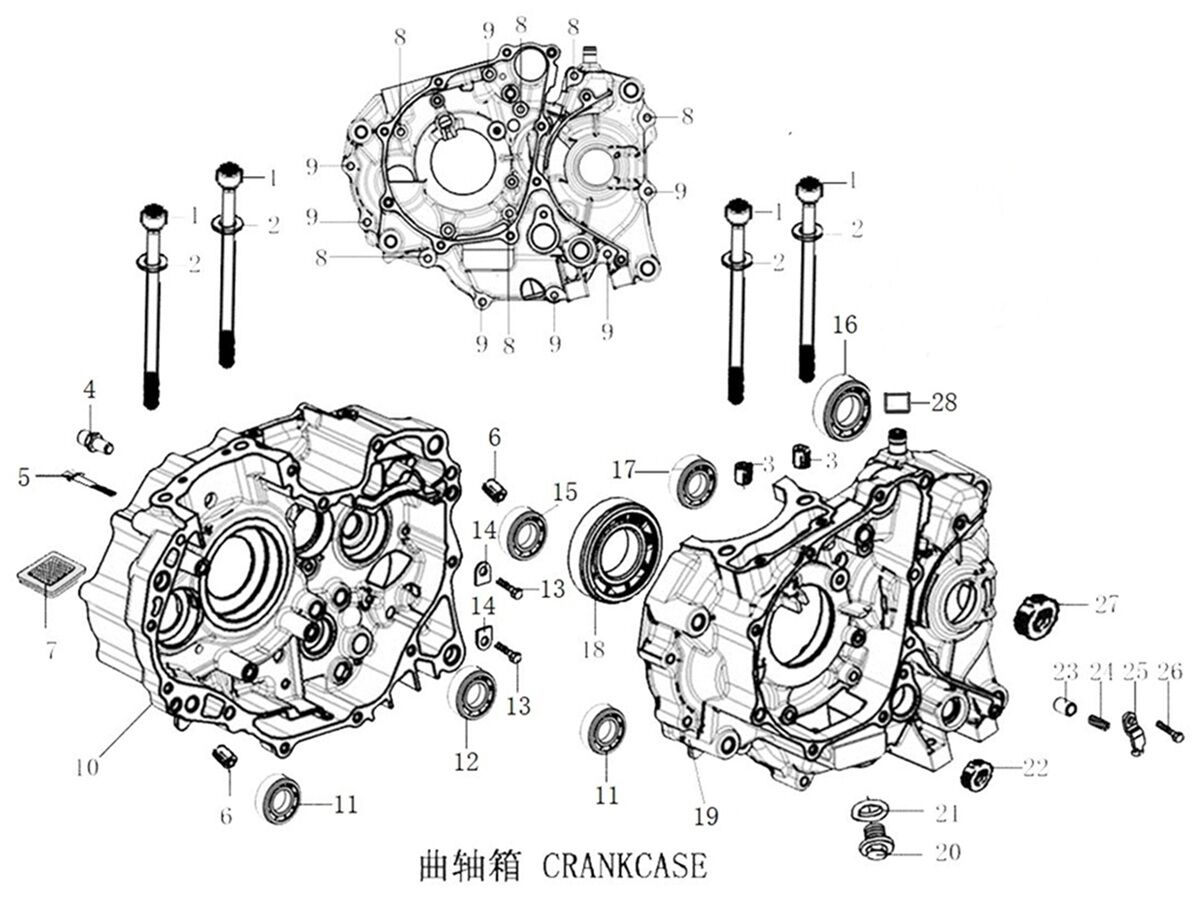

CRANKCASE diagram - Lexmoto RX2 125 E55 - SR125-3-E55

Ref	Item Name	Price
1	Cylinder Bolt `BLTCH012 x 1`	~~£7.49~~ £5.99
2	Washer 16 x 8.5 x 1.5mm for SY125-10-SE-E5, ZS125-39-E5 `WSH0047 x 1`	~~£2.49~~ £1.99
3	Engine Dowel 10 x 14mm `DWL048 x 1`	~~£1.99~~ £1.59
4	Bolt M8 x 30mm `BLT560 x 1`	~~£2.49~~ £1.99
6	Engine Dowel 8 x 14mm `DWL001 x 1`	~~£4.99~~ £3.99
7	Oil Strainer/Filter for ZY125 `OLST008 x 1`	~~£2.99~~ £2.39
8	Flanged Hex Bolt M6 x 70mm `BLT191 x 1`	~~£3.49~~ £2.79
9	Flanged Hex Bolt with Shank M6 x 40mm `BLT207 x 1`	~~£0.99~~ £0.79
11	Crankcase Bearing 6302 `BRG033 x 1`	~~£10.49~~ £8.39
12	Crankcase Bearing 6203 `BRG034 x 1`	~~£7.99~~ £6.39
13	Flanged Hex Bolt M6 x 16mm `BLT188 x 1`	~~£2.49~~ £1.99
14	Bearing Pressure Plate `BRG012 x 1`	~~£1.99~~ £1.59
15	Bearing 6303 X3-RS 42 x 17 x 12mm `BRG023 x 1`	~~£7.49~~ £5.99
16	Open Bearing 6204 P5 47 x 20 x 14mm `BRG150 x 1`	~~£9.49~~ £7.59
17	Bearing 6201 RS `BRG037 x 1`	~~£3.99~~ £3.19
18	Crankshaft Bearing 63/28 X2H 68 x 28 x 17mm `BRG073 x 1`	~~£17.49~~ £13.99
20	Oil Plug `OLP006 x 1`	~~£10.49~~ £8.39
21	Sump Plug Washer 12.4 x 20 x 2mm `WSH15 x 1`	~~£1.99~~ £1.59
22	Oil Seal 14 x 22 x 5mm `OLSL136 x 1`	~~£3.49~~ £2.79
23	Crank Bearing Pressure Pin for ZY125-E4 `DWL022 x 1`	~~£1.99~~ £1.59
24	Pressure Spring - Crank Bearing Pin `SPLPN025 x 1`	~~£1.99~~ £1.59
25	Crank Bearing Pressure Pin Retaining Plate for ZY125-E4 `CBCLP032 x 1`	~~£2.49~~ £1.99
26	Flanged Hex Bolt M6 x 16mm `BLT206 x 1`	~~£3.99~~ £3.19
27	Oil Seal 20 x 34 x 7mm `OLSL037 x 1`	~~£7.49~~ £5.99

More Product Diagrams

This part appears on 8 other diagrams

Lexmoto RX2 125 E55 - SR125-3-E55
CAM SHAFT / VALVE

Lexmoto Carrera 125 E55 - ZS125GY-13-E55
CRANKCASE

Lexmoto Carrera 125 E55 - ZS125GY-13-E55
CAM SHAFT / VALVE

Lexmoto R66S E55 - SR125-2-E55
CRANKCASE

Lexmoto R66 E55 - SR125-A-E55
CRANKCASE

Lexmoto R66 E55 - SR125-A-E55
CAM SHAFT/VALVE

Lexmoto R66+ E55 - ZS125-79C-E55
CRANKCASE

Lexmoto R66+ E55 - ZS125-79C-E55
CAM SHAFT / VALVE

Compatibility

Manufacturer	Model	Diagram
Lexmoto	Carrera 125 E55 [ZS125GY-13-E55]	View parts diagram
	Detroit 125 Euro 5 [SR125-E5]	View parts diagram
	LS-Z E55 [ZS125-39-E55]	View parts diagram
	LS-Z Euro 5 [ZS125-39-E5]	View parts diagram
	LXR 125 E55 [SY125-10-E55]	View parts diagram
	LXR 125 Euro 5 [SY125-10-E5]	View parts diagram
	LXR 125 SE E55 [SY125-10-SE-E55]	View parts diagram
	LXR 125 [SY125-10]	View parts diagram
	LXR SE 125 Euro 5 [SY125-10-SE-E5]	View parts diagram
	LXR SE 125 Euro 5 [SY125-10-SE-V2]	View parts diagram
	LXR SE 125 [SY125-10-SE]	View parts diagram
	LXS 125 E55 [TR125-GP2-E55]	View parts diagram
	Michigan 125 EFI [ZS125-79-E4]	View parts diagram
	Michigan 125 Euro 5 [ZS125-79-E5]	View parts diagram
	R66 E55 [SR125-A-E55]	View parts diagram
	R66+ E55 [ZS125-79C-E55]	View parts diagram
	RSS 125 Euro 5 [TR125-3-E5]	View parts diagram
	RSS 125 Scrambler Euro 5 [TR125-3-S-E5]	View parts diagram
	RX1 125 E55 [ZS125-86C-E55]	View parts diagram
	Tempest 125 Euro 5 [LJ125-9A-E5]
	Tempest 125 [LJ125-9A]	View parts diagram
	Tempest GT 125 Euro 5 [LJ125-9A-GT-E5]	View parts diagram
	Tempest GT 125 [LJ125-9A-GT]	View parts diagram
	ZSX-F 125 EFI [ZS125-48E-E4]	View parts diagram
	ZSX-R 125 EFI [ZS125-48F-E4]	View parts diagram

Taro	TR125-3

Zongshen	ZS125-39
