Description
"You should buy this Bolt"

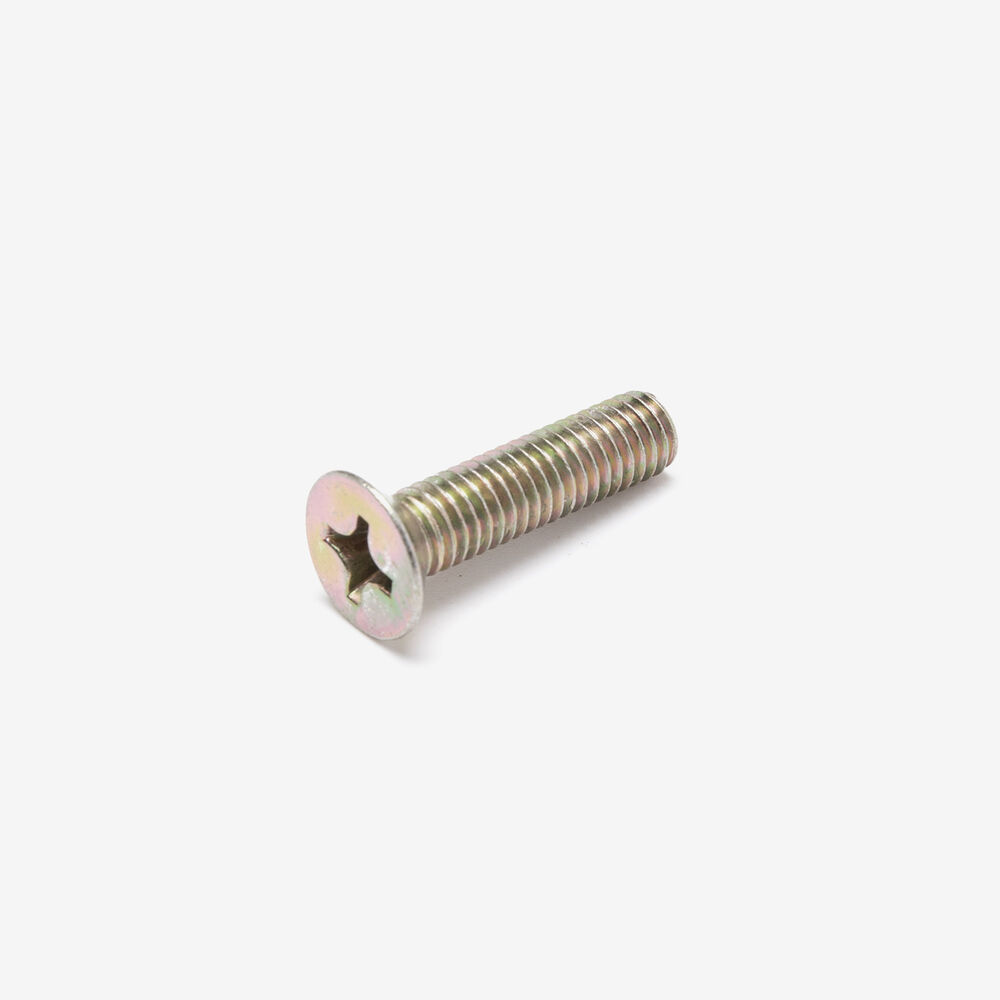

Heavy Head Screw M6 x 25mm
Ensure secure and reliable connections with this high-quality M6 x 25mm heavy head screw.
Key Features:
- Size: M6 thread diameter, 25mm length.
- Head Style: Heavy head design for increased surface contact and grip.
- Material: Durable construction for long-lasting performance.
- Versatile Application: Ideal for use in various motorcycle and scooter applications, including oil pump/starter clutch assemblies and right crankcase fittings.
Product Diagram
OIL PUMP/STARTER CLUTCH diagram - Lexmoto Diablo 125 E55 - LJ125T-9M-E55
| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 1 |  |
125cc Scooter Centre Engine Casing LJ1P52QMI ENGCR041 x 1
|
||
| 2 | |
Engine Crankcase Mounting Bush SHKB009 x 1
|
||
| 3 | |
Spacer 16 x 20 x 25mm SPCR096 x 1
|
||
| 5 | |
LJ125T-8M-E4 Flanged Hex Bolt M6 x 45mm BLT196 x 1
|
||
| 6 | |
Flanged Hex Bolt with Shank M6 x 55mm BLT197 x 1
|
||
| 7 | |
125cc Scooter Oil Pump LJ1P52QMI OLPMP041 x 1
|
||
| 8 | |
Bolt M6 x 25mm BLT882 x 1
|
||
| 9 | |
Right Engine Casing - Oil Pump ENGCR088 x 1
|
||
| 10 | |
Flange Bolt M6 x 12mm BLT958 x 1
|
||
| 11 | |
Reduction Gear GRRD008 x 1
|
||
| 12 | |
Reduction Gear Shaft 46 x 10 for LJ125T-8M-E4 GRRD010 x 1
|
||
| 14 | |
Needle Bearing 28 x 32 x 17mm BRGN015 x 1
|
||
| 15 | |
Starter Clutch STC040 x 1
|
||
| 16 | |
125cc Scooter Starter Clutch LJ1P52QMI STC018 x 1
|
||
| 17 | |
Washer 31 x 22 x 2mm WSH0120 x 1
|
||
| 18 | |
Starter Clutch Lock Nut M22 M22 x 1mm NUT061 x 1
|
||
| 19 | |
Oil Seal 19.8 x 30 x 5mm OLSL026 x 1
|
More Product Diagrams
This part appears on 2 other diagrams
Compatibility
| Manufacturer | Model | Diagram |
|---|---|---|
| Lexmoto | Aura 125 E55 [LJ125T-18D-E55] | View parts diagram |
| Diablo 125 E55 [LJ125T-9M-E55] | View parts diagram | |
| SRT 125 Euro 5 [LJ125T-X-E5] | View parts diagram | |
| Longjia | LJ125T-X | |
