BRG221"In the category of Transmissions and Gearing, Gearboxes"
The engine bearing in a motorcycle is a critical component that supports and allows the smooth rotation of the engine's moving parts, such as the crankshaft and camshaft. It reduces friction between these rotating elements and the engine block, ensuring efficient operation, reducing wear, and prolonging the engine's life. Engine bearings are typically made from durable materials like steel or bronze and are designed to withstand high temperatures and pressures.
| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 1, 7 | ![]() |
125cc Gearbox Casing GRBC006 x 1
|
||
| 2 | ![]() |
Cam Cover Breather Outlet PPB024 x 1
|
||
| 3 | ![]() |
Single Wheel Bearing 6204 2RS 20 x 47 x 14mm BRG110 x 1
|
||
| 4 | ![]() |
Oil Seal 32 x 47 x 7mm OLSL077 x 1
|
||
| 5 | ![]() |
Open Bearing 6301 37 x 12 x 12mm BRG153 x 1
|
||
| 6 | ![]() |

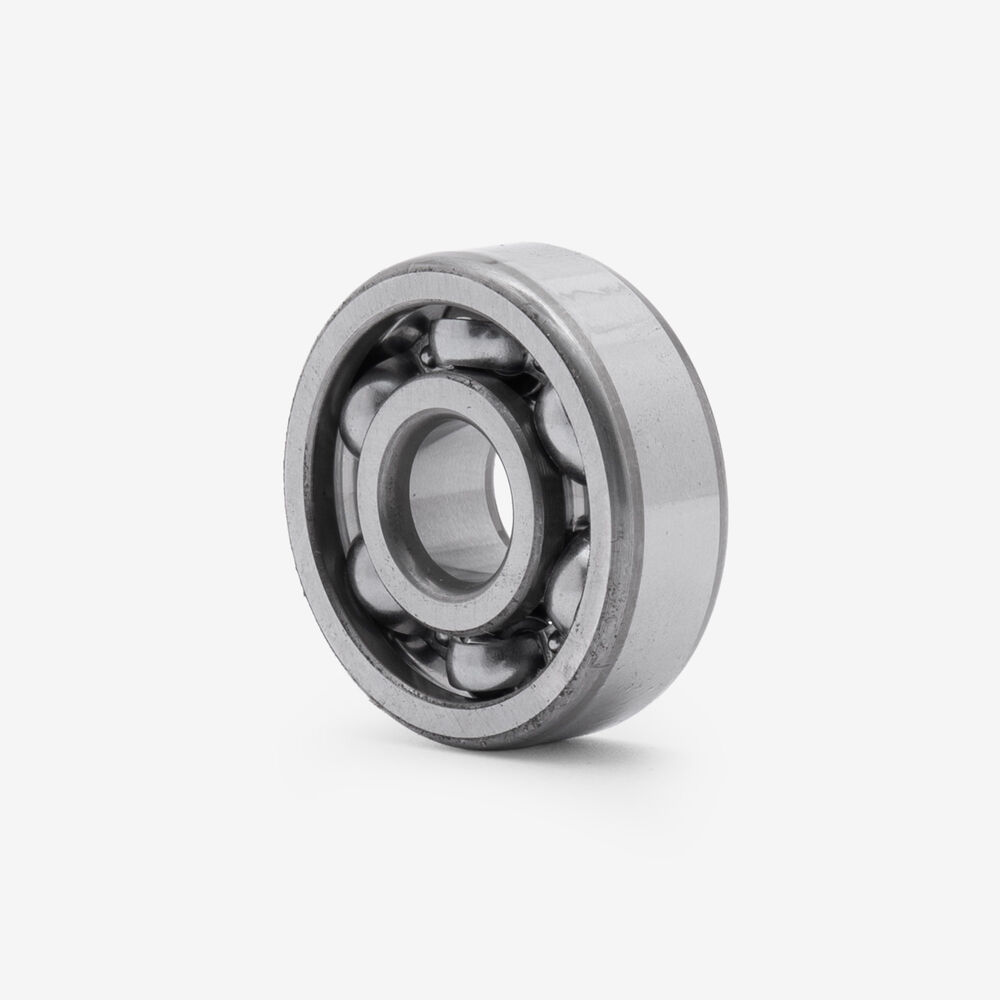

Bearing 6301 TPI BRG221 x 1
|
||
| 8 | ![]() |
125cc Scooter Gearbox Gasket LJ1P52QMI GSKGB004 x 1
|
||
| 9 | ![]() |
Engine Dowel 10 x 4mm DWL003 x 1
|
||
| 10 | ![]() |
125cc Scooter Gearbox Input Shaft LJ1P52QMI INSH010 x 1
|
||
| 11 | ![]() |
Gearbox Reduction Gear LJ1P52QMI GRRD037 x 1
|
||
| 12 | ![]() |
Final Drive Gear LJ1P52QMI GRFD007 x 1
|
||
| 13 | ![]() |
Gearbox Output Shaft LJ1P52QMI OTSH014 x 1
|
||
| 14 | ![]() |
Hex Bolt with Shank M8 x 55mm BLT108 x 1
|
||
| 15 | ![]() |
Bolt M8 x 65mm BLT395 x 1
|
| Manufacturer | Model | Diagram |
|---|---|---|
| Lexmoto | Aura 125 E55 [LJ125T-18D-E55] | View parts diagram |
| Diablo 125 E55 [LJ125T-9M-E55] | View parts diagram | |
