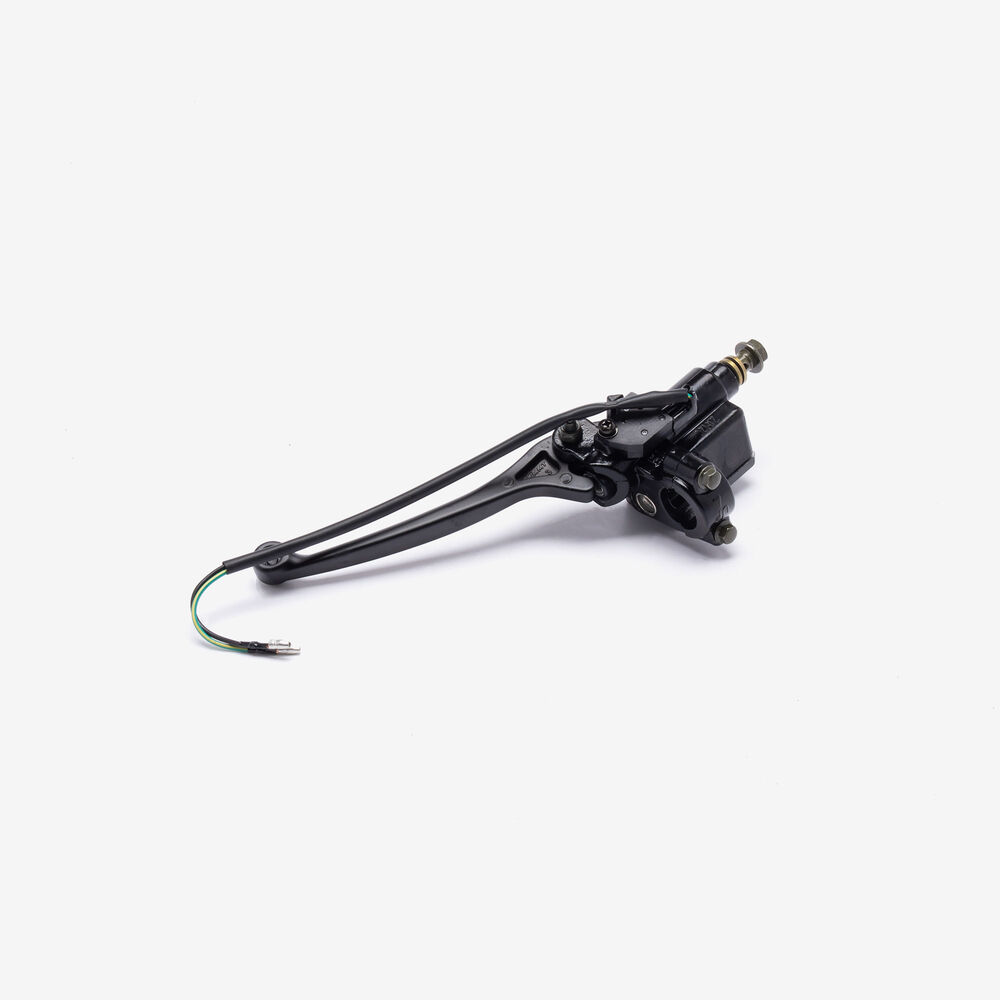

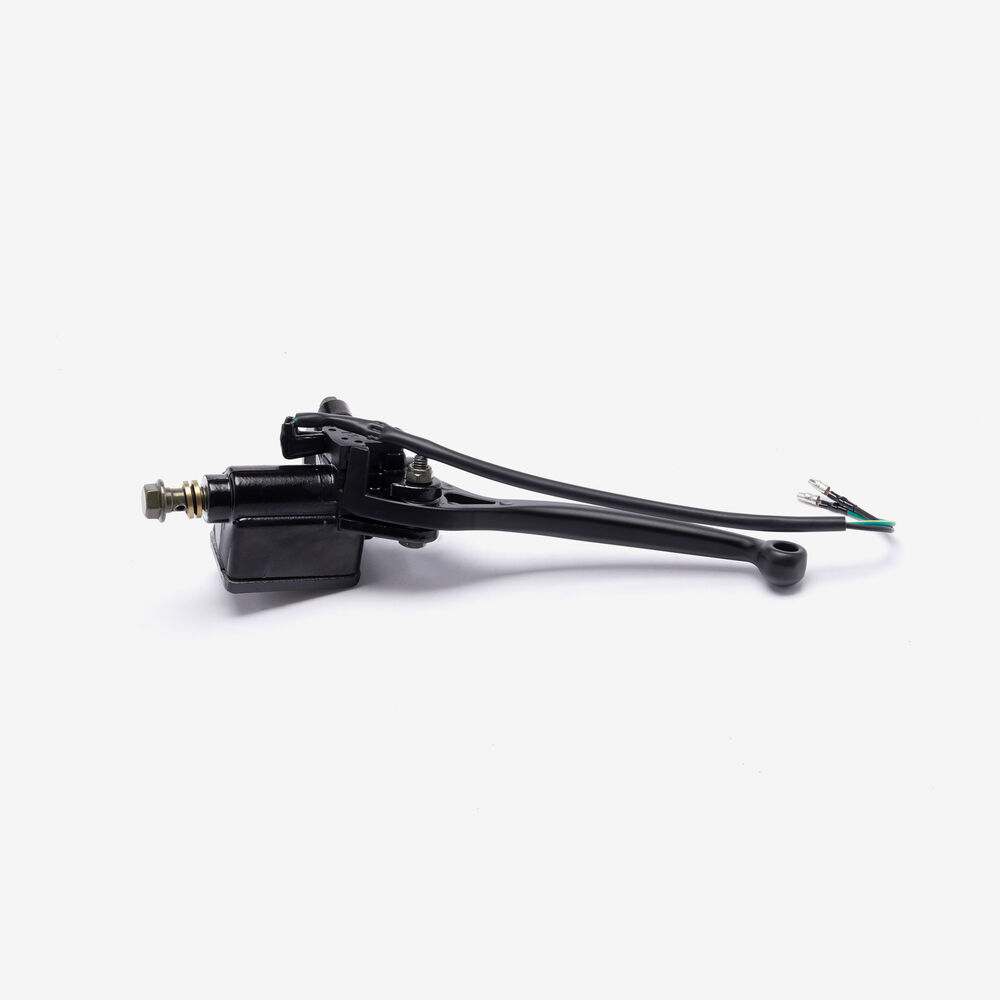

BRMCF028"You should buy this Brake Master Cylinder"
The master cylinders on both the front and the rear of the bike are basically the same – a piston that pushes brake fluid down the lines to the caliper (the slave), in turn forcing the pistons out to press the brake pads against the disc.
| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 3 | ![]() |
Front Brake Pads for LJ50QT-6L, LJ50QT-6L-E5 BPF135 x 1
|
||
| 5 | ![]() |
Front Brake Master Cylinder for LJ50QT-3L(LJ), LJ50QT-3L, LJ50QT-5L, LJ50QT-6L, LJ BRMCF028 x 1
|
||
| 6 | ![]() |
Front Brake Hose for LJ50QT-3L, LJ50QT-5L, LJ50QT-6L, LJ50QT-9L-E5 BRHSF025 x 1
|
||
| 7 | ![]() |
Front Brake Caliper for LJ50QT-6L, LJ50QT-6L-E5 BRCF121 x 1
|
||
| 9 | ![]() |
Front Brake Switch BRSWF007 x 1
|
| Manufacturer | Model | Diagram |
|---|---|---|
| Lexmoto | Echo 50 E4 [LJ50QT-5L] | View parts diagram |
| Echo 50 Euro 5 [LJ50QT-9L-E5] | View parts diagram | |
| Echo 50 [LJ50QT-3L] | View parts diagram | |
| Echo+ 50 [LJ50QT-6L] | View parts diagram | |
| Longjia | LJ50QT-3L | |
| LJ50QT-9L | ||
