BRMCR023"You should buy this Brake Master Cylinder"
The master cylinders on both the front and the rear of the bike are basically the same – a piston that pushes brake fluid down the lines to the caliper (the slave), in turn forcing the pistons out to press the brake pads against the disc.
| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 1, 2, 3, 4, 5, 6, 7 | ![]() |

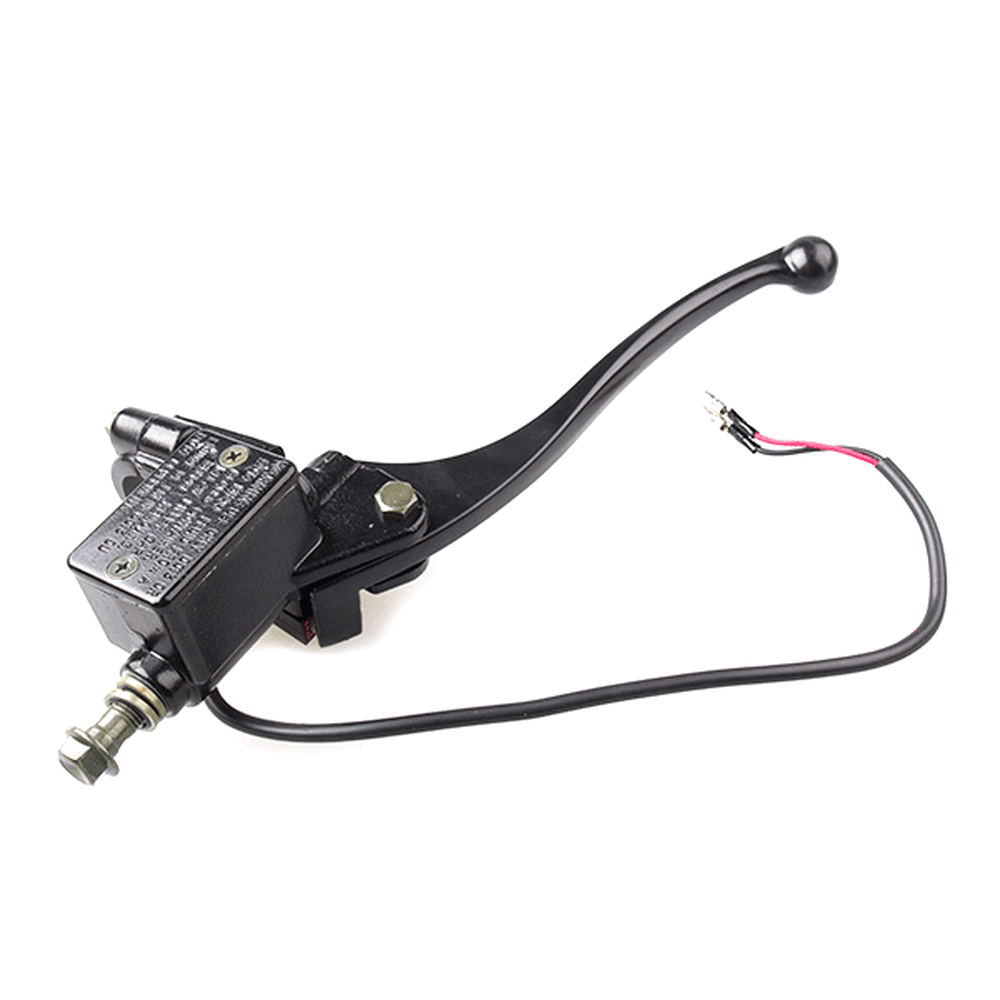

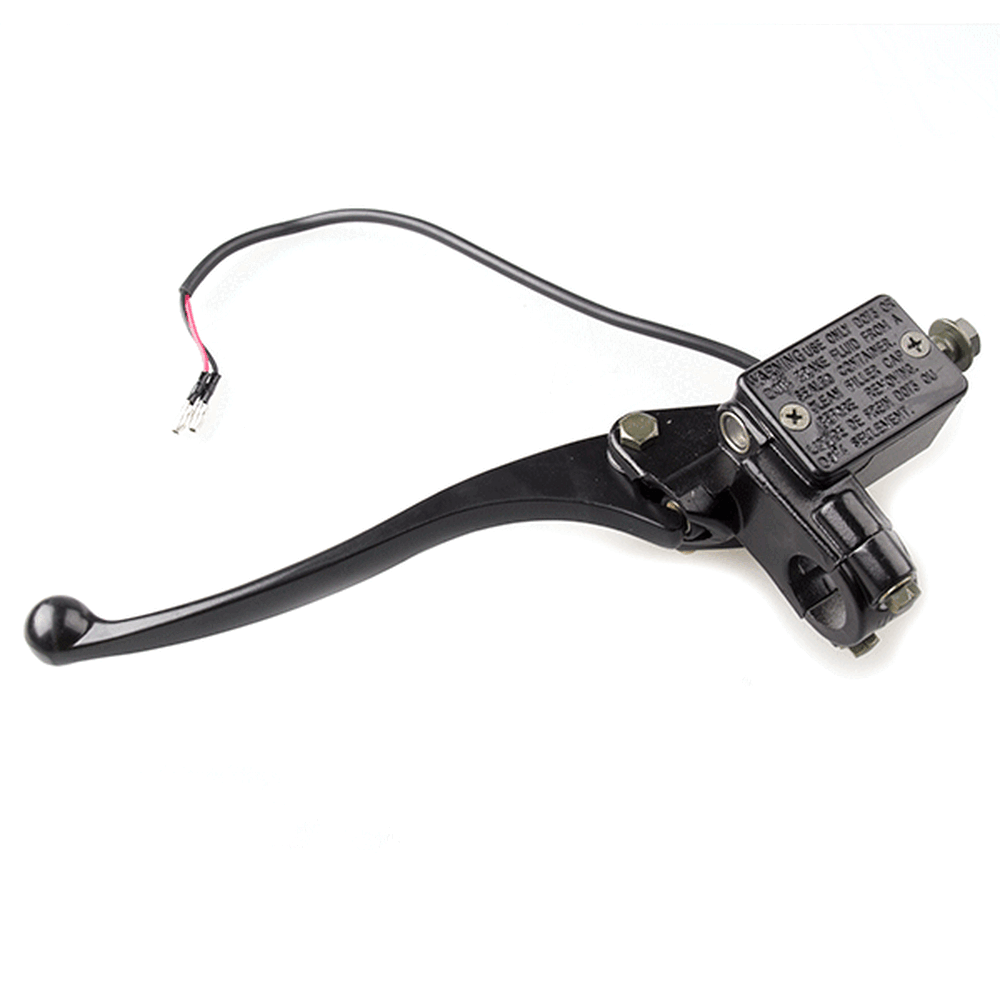

Front Brake Master Cylinder for WY125T-74R-E4 BRMCF080 x 1
|
||
| 2, 4, 6, 7, 16, 17, 18 | ![]() |
Rear Brake Master Cylinder for WY125T-74R-E4 BRMCR023 x 1
|
||
| 5 | ![]() |
Front Brake Switch BRSWF007 x 1
|
||
| 8, 19, 20 | ![]() |
Combined Braking Hose Kit for WY125T-74R-E4 BRHSC005 x 1
|
||
| 9, 10, 11, 12, 13, 14, 15 | ![]() |
Front Red Brake Caliper Twin Pot BRCF014 x 1
|
||
| 11 | ![]() |
Brake Pads BPF079 x 1
|
||
| 16 | ![]() |
Rear Brake Lever for WY125T-74R-E4 BRLVR061 x 1
|
||
| 21, 22, 23, 24, 25 | ![]() |
Rear Brake Caliper for WY125T-74R-E4 BRCR020 x 1
|
||
| 23 | ![]() |
CMPO Brake Pads FA197 FDB664 VD156/2/3 7.5mm BPF124 x 1
|
| Manufacturer | Model | Diagram |
|---|---|---|
| Lexmoto | FMR 125 EFI [WY125T-74R-E4] | View parts diagram |
