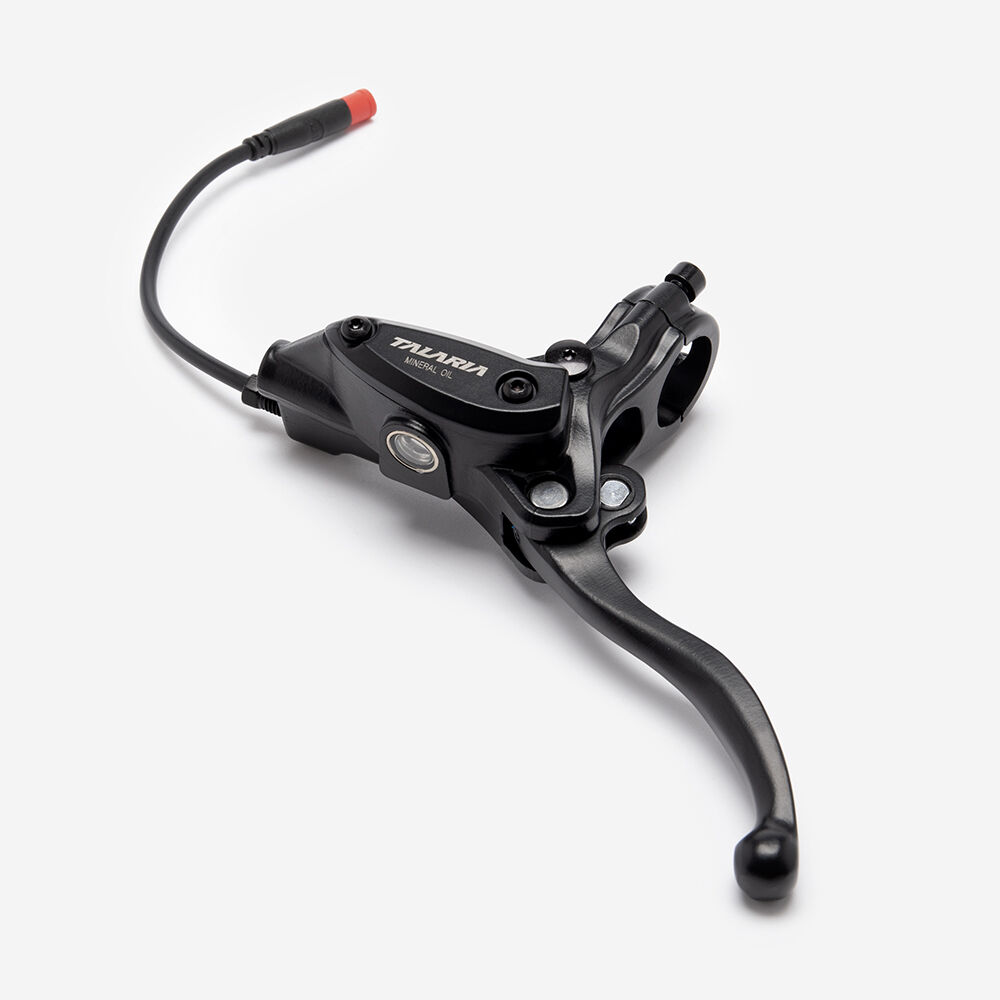

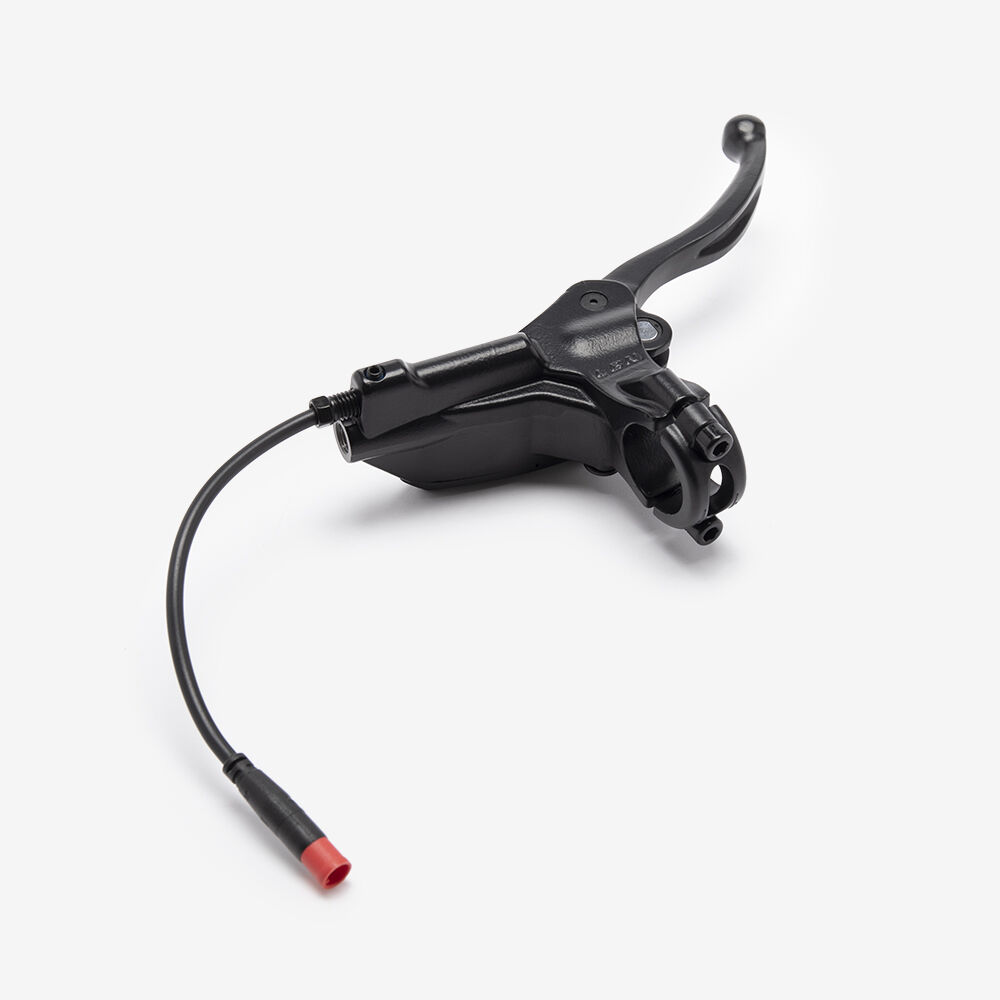

BRMCR071"Another great Master Cylinder"
The master cylinders on both the front and the rear of the bike are basically the same – a piston that pushes brake fluid down the lines to the caliper (the slave), in turn forcing the pistons out to press the brake pads against the disc.

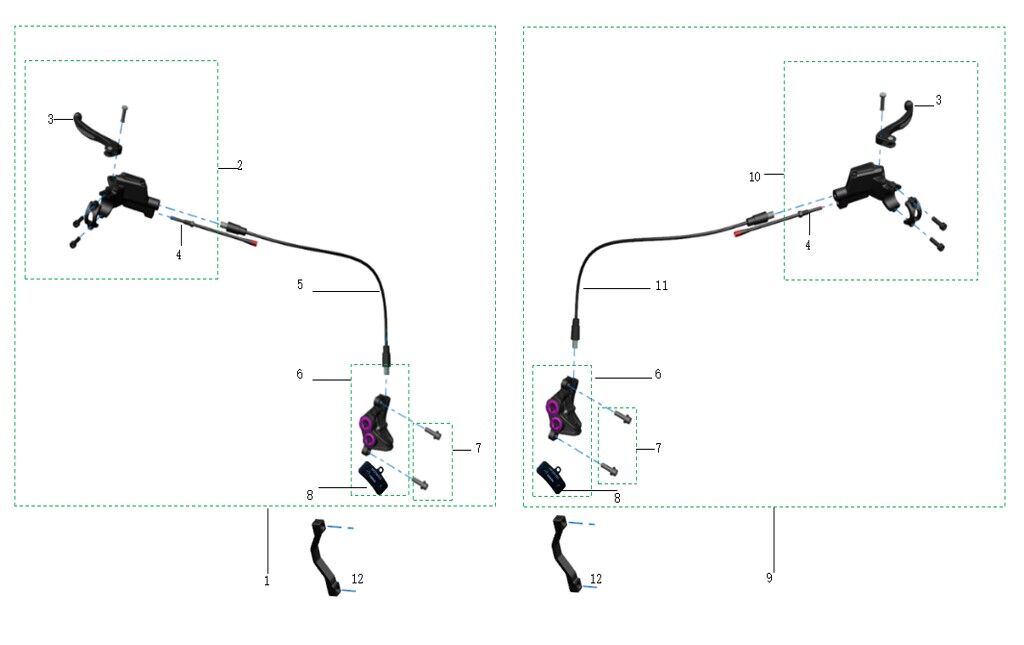

| Manufacturer | Model | Diagram |
|---|---|---|
| Talaria | Sting R Road Legal [TL50] | View parts diagram |
| Sting R [TL60] | View parts diagram | |
| Sting R [TL4000] | View parts diagram | |
| Sting Road Legal [TL45] | View parts diagram | |
| X3 MX [TL2500] | View parts diagram | |
| X3 Pro MX [TL2500-V2] | View parts diagram | |
| X3 Pro Road Legal [TL25-V2] | View parts diagram | |
| X3 Road Legal [TL25] | View parts diagram | |
