CMCG061"In the category of Valves and Rockers, Rocker Arms"

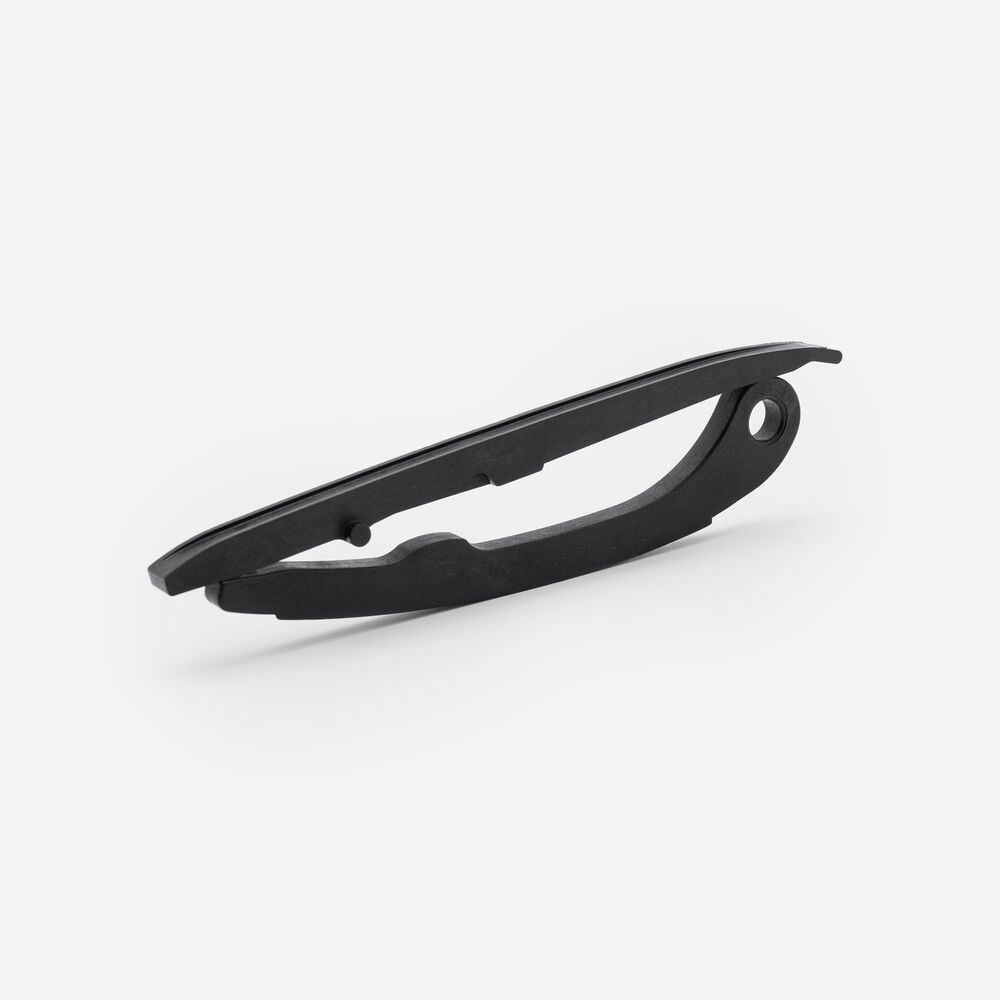

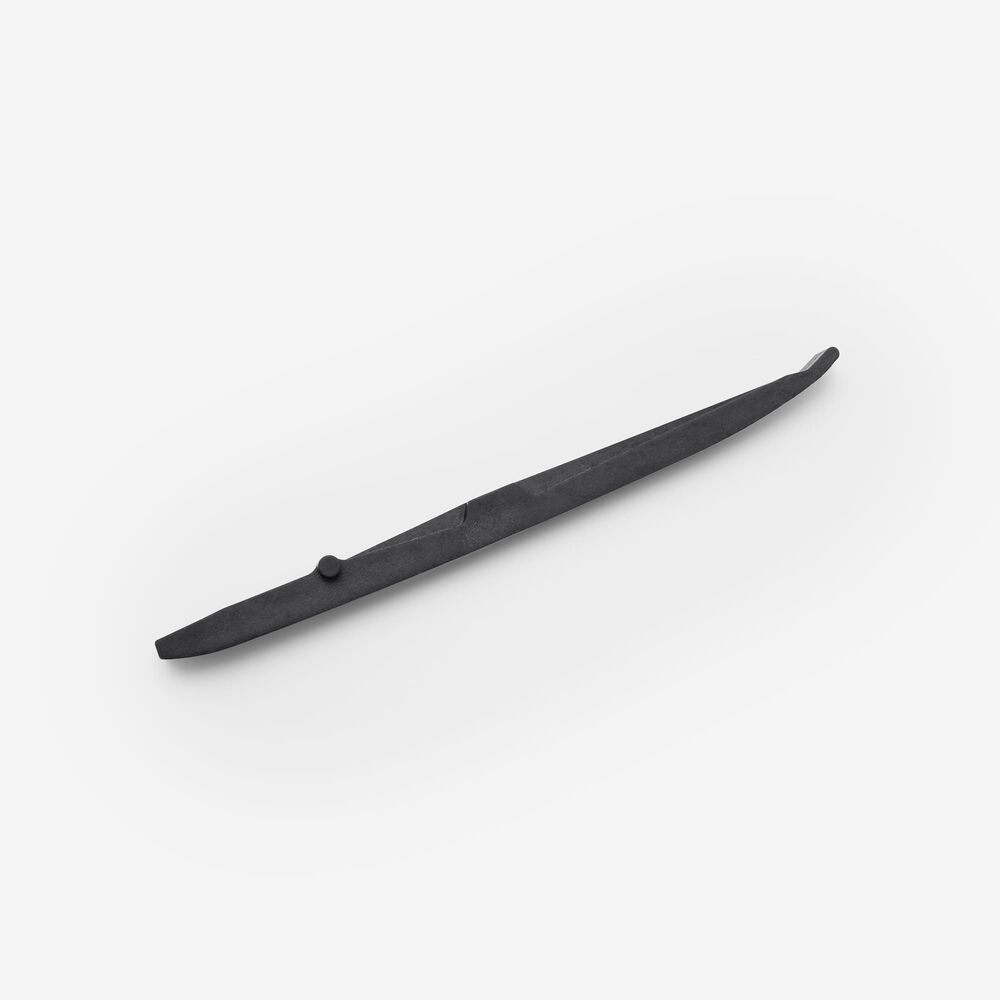

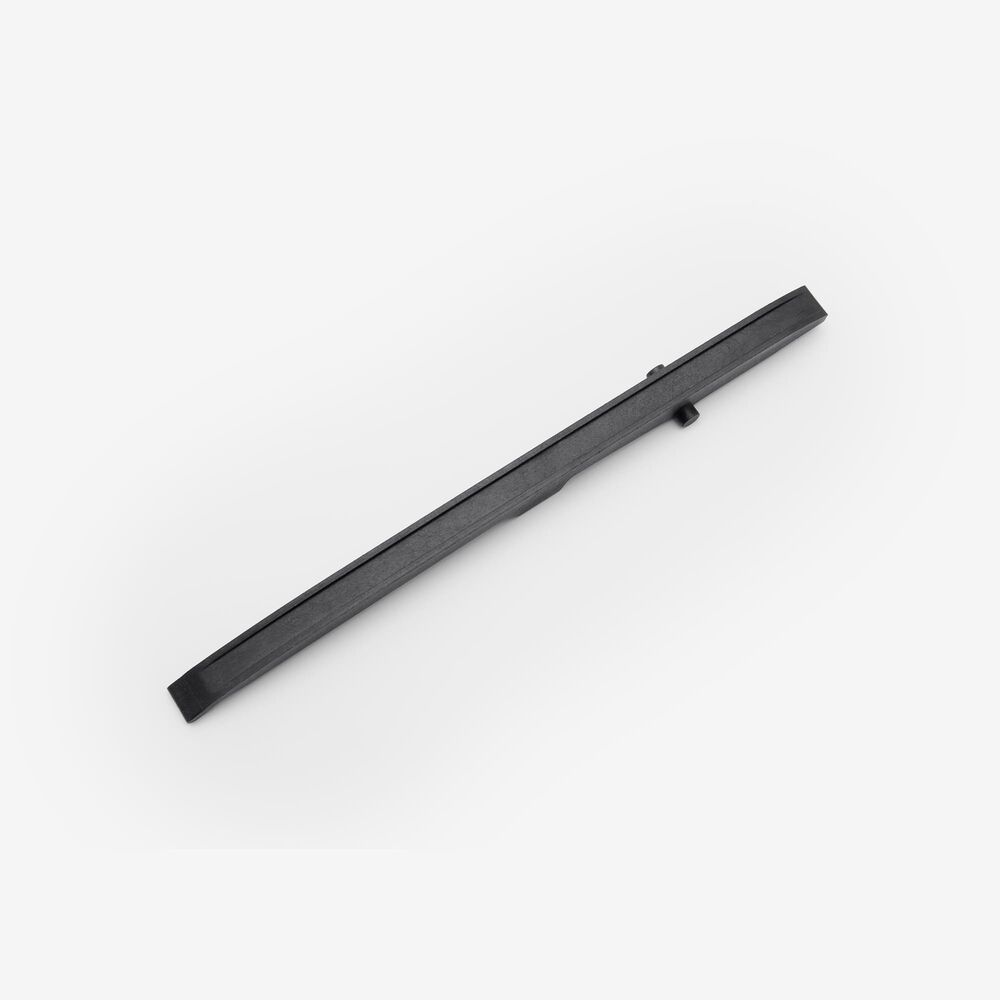

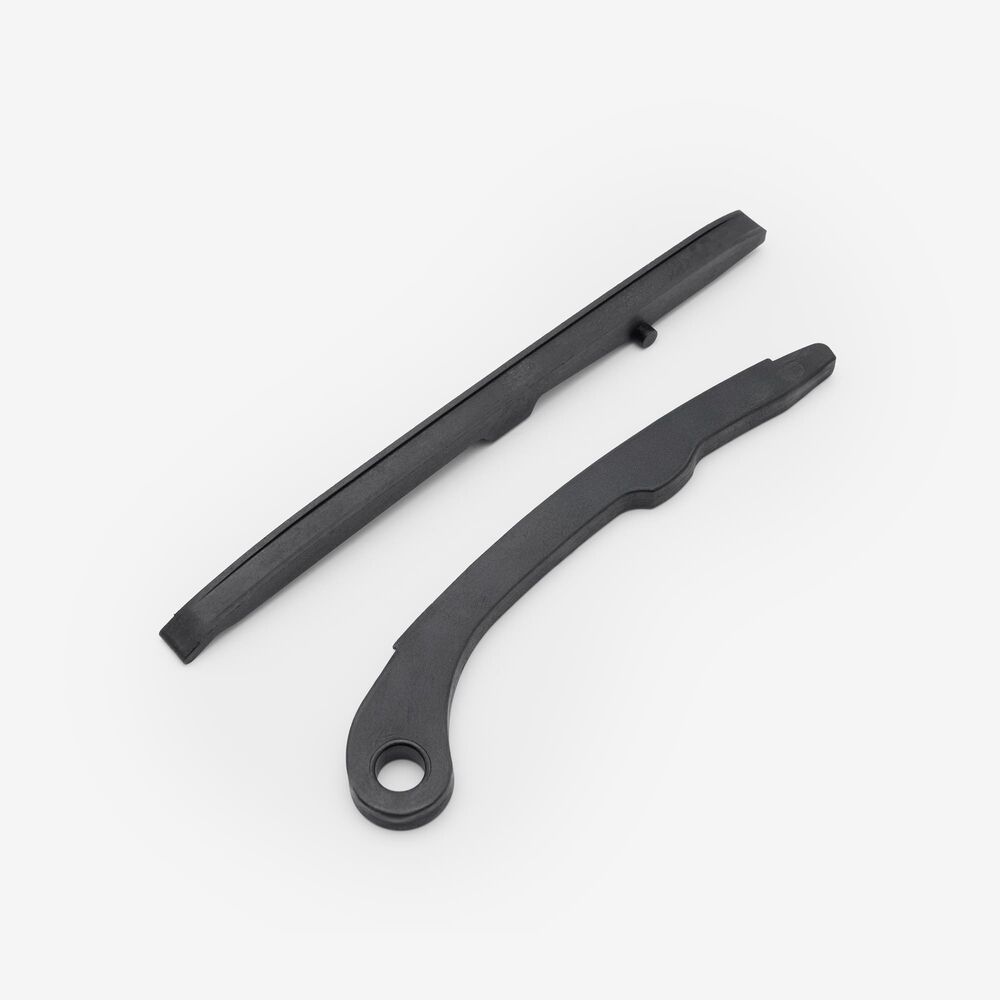

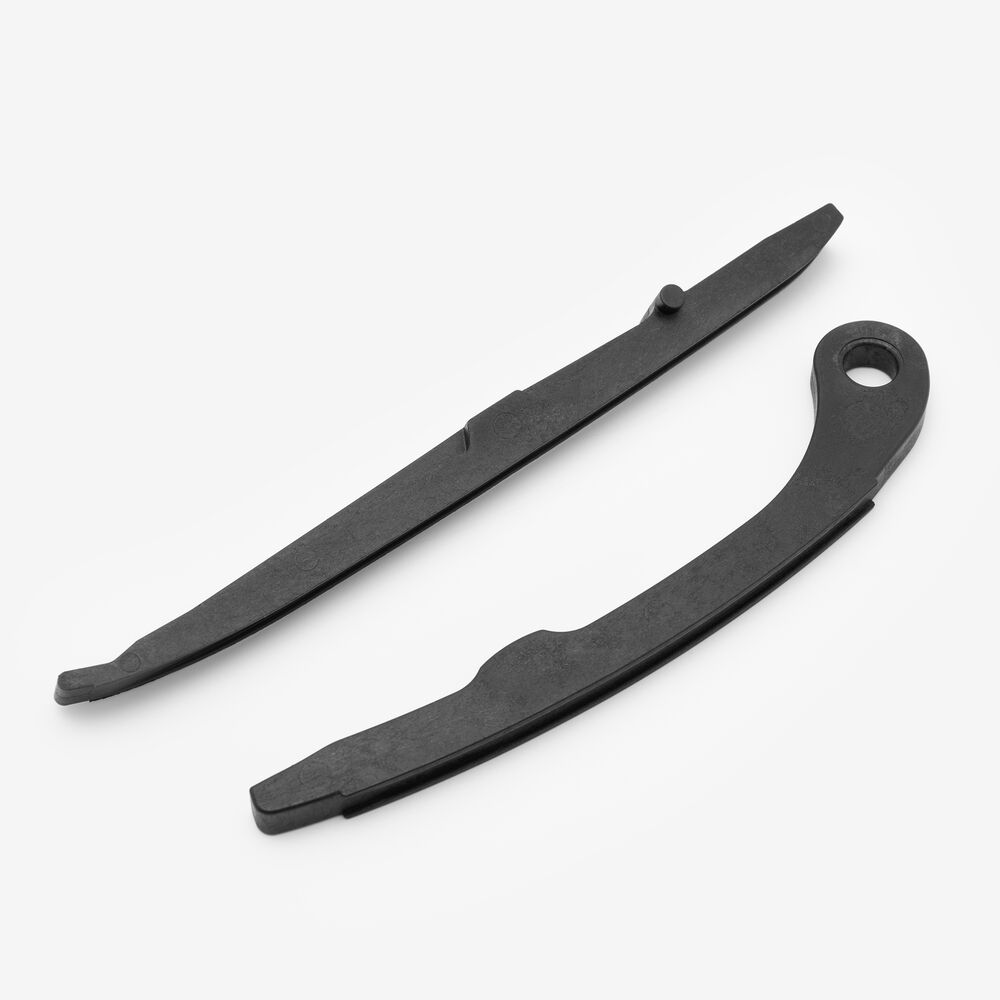

Cam chain guides in a motorcycle direct and support the cam chain as it moves between the camshaft and crankshaft. They help maintain proper alignment and tension of the chain, reducing noise and preventing wear or damage to both the chain and engine components.
| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 3 | ![]() |
Intake Rocker Arm Assembly RKASM014 x 1
|
||
| 4 | ![]() |
Exhaust Rocker Arm Assembly RKASM015 x 1
|
||
| 5 | ![]() |
Rocker Arm Shaft RKAS049 x 1
|
||
| 8 | ![]() |
Exhaust Valve VLVEX052 x 1
|
||
| 9 | ![]() |
Inlet Valve VLVIN059 x 1
|
||
| 10 | ![]() |
Inlet/Exhaust Valve Spring Retainer for TR380-GP1, MITT400GPR VLVSR024 x 1
|
||
| 11 | ![]() |
Valve Stem Oil Seal (Each) for TR380-GP1, MITT400GPR VLVOS023 x 1
|
||
| 12 | ![]() |
Valve Spring VLVS057 x 1
|
||
| 13 | ![]() |
Inlet/Exhaust Valve Spring Seats (Each) for TR380-GP1, MITT400GPR VLVSS022 x 1
|
||
| 14 | ![]() |
Valve Collets (1 Pair) for TR380-GP1, MITT400GPR VLVC014 x 1
|
||
| 15 | ![]() |
Timing Chain for ZY125-E4 CMCHN034 x 1
|
||
| 16, 17 | ![]() |
Cam Chain Guides CMCG061 x 1
|
||
| 18 | ![]() |
Camshaft Sprocket CMSPK010 x 1
|
||
| 19 | ![]() |
Bolt M6 x 12mm BLT976 x 1
|
||
| 20 | ![]() |
Camshaft CMS073 x 1
|
||
| 21 | ![]() |
Camshaft Lock Washer CMLW006 x 1
|
||
| 23 | ![]() |
Cam Chain Guide Plate CMCG021 x 1
|
||
| 24 | ![]() |
Flanged Hex Bolt M6 x 16mm BLT188 x 1
|
||
| 25 | ![]() |
Flanged Hex Bolt M6 x 70mm BLT191 x 1
|
||
| 26 | ![]() |
Cam Chain Tensioner Gasket GSKCT016 x 1
|
||
| 27 | ![]() |
Cam Chain Tensioner CMCT059 x 1
|
||
| 28 | ![]() |
Flanged Hex Bolt Inlet Manifold Bolt M6 x 20mm BLT070 x 1
|
| Manufacturer | Model | Diagram |
|---|---|---|
| Lexmoto | Carrera 125 E55 [ZS125GY-13-E55] | View parts diagram |
| R66 E55 [SR125-A-E55] | View parts diagram | |
| R66+ E55 [ZS125-79C-E55] | View parts diagram | |
