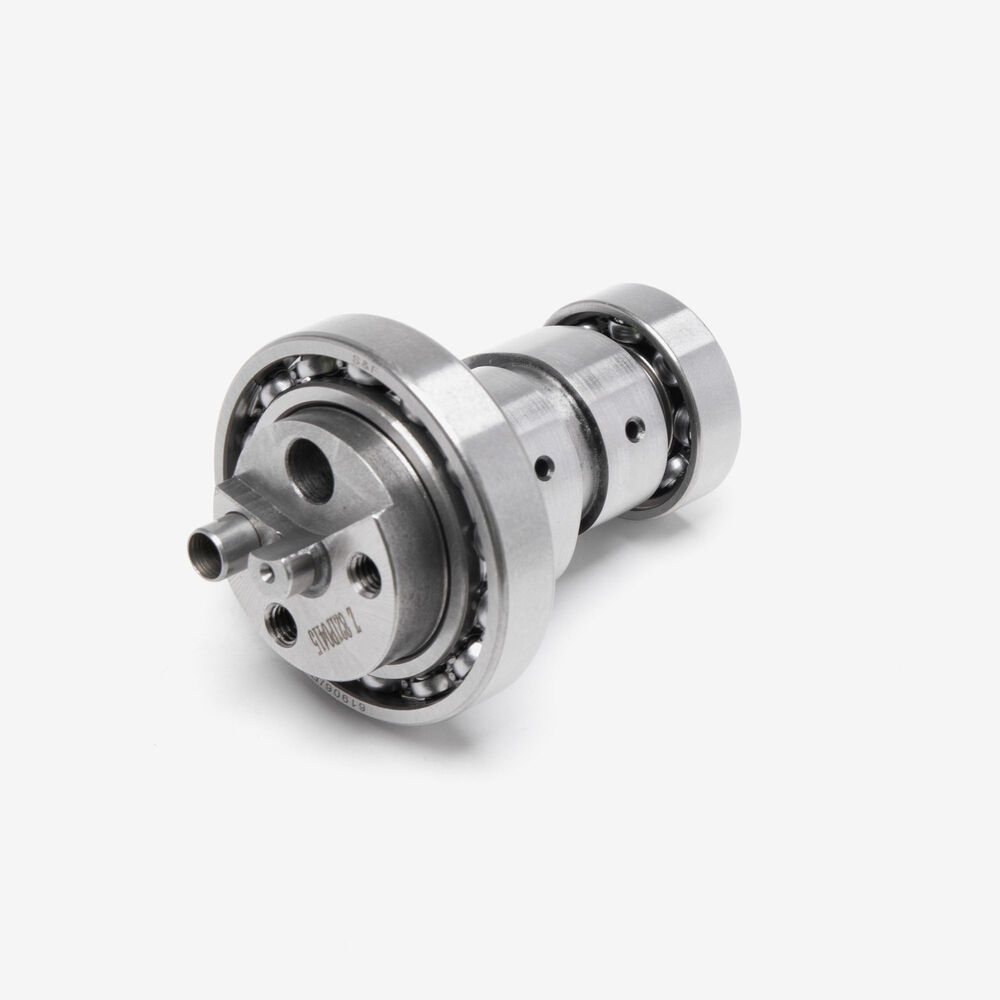

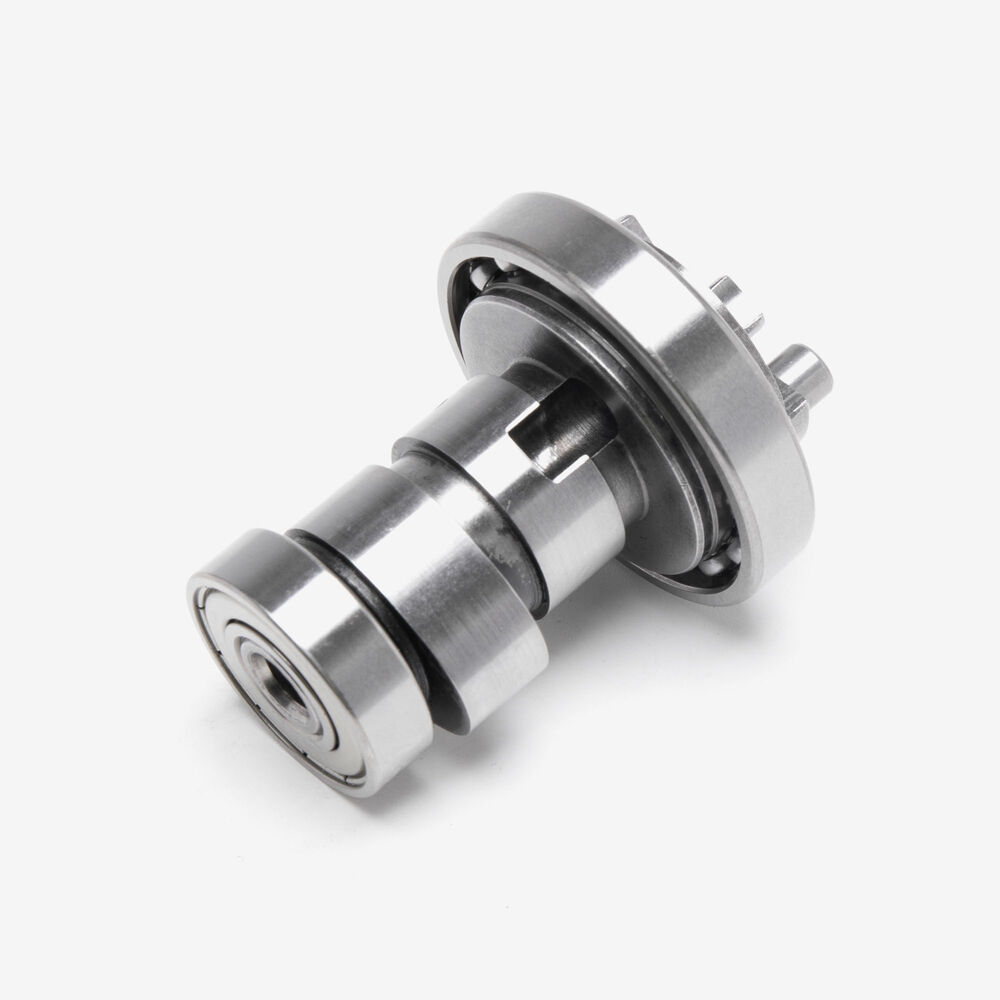

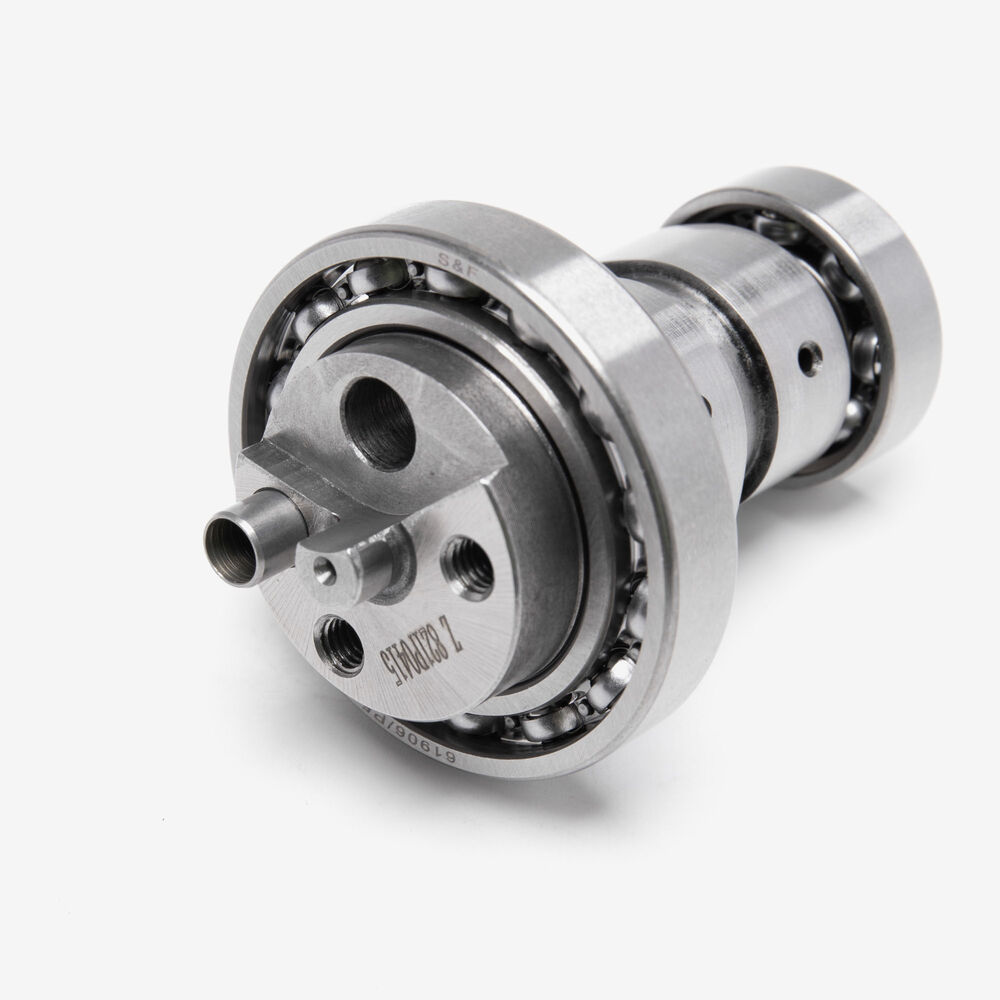

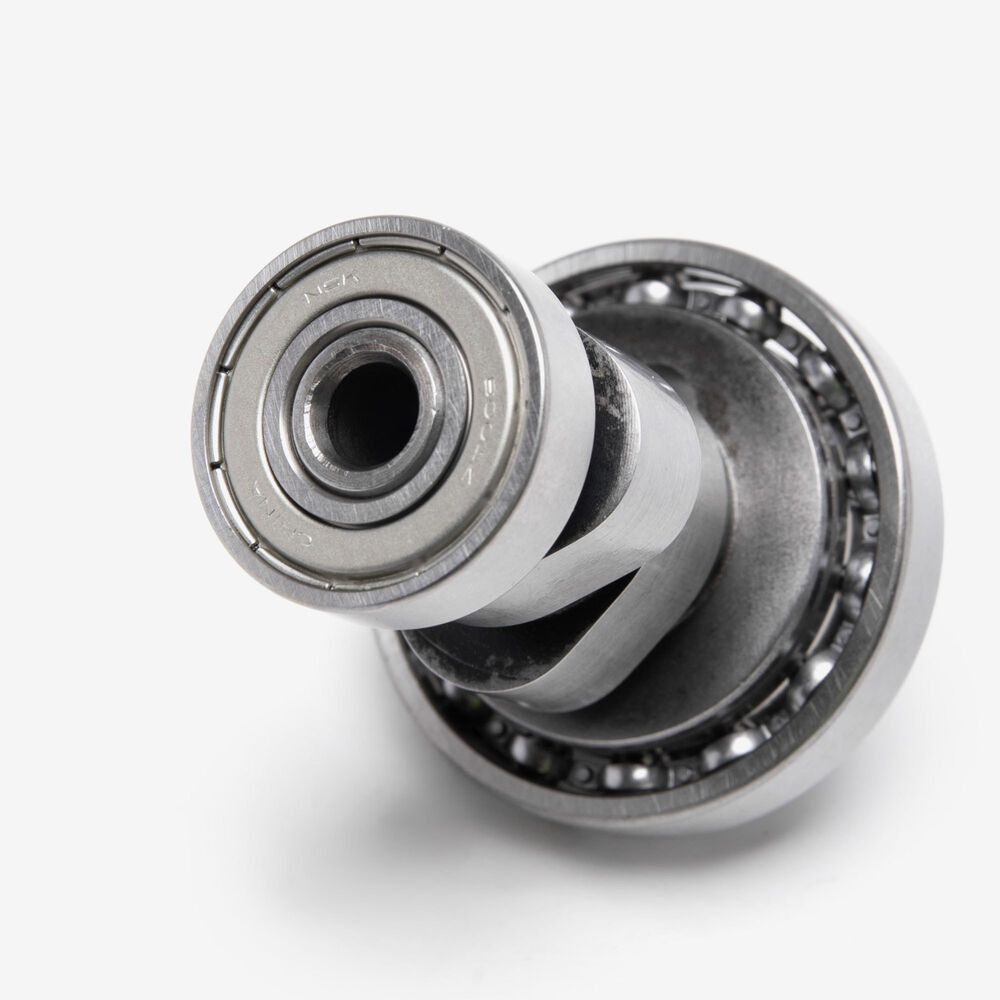

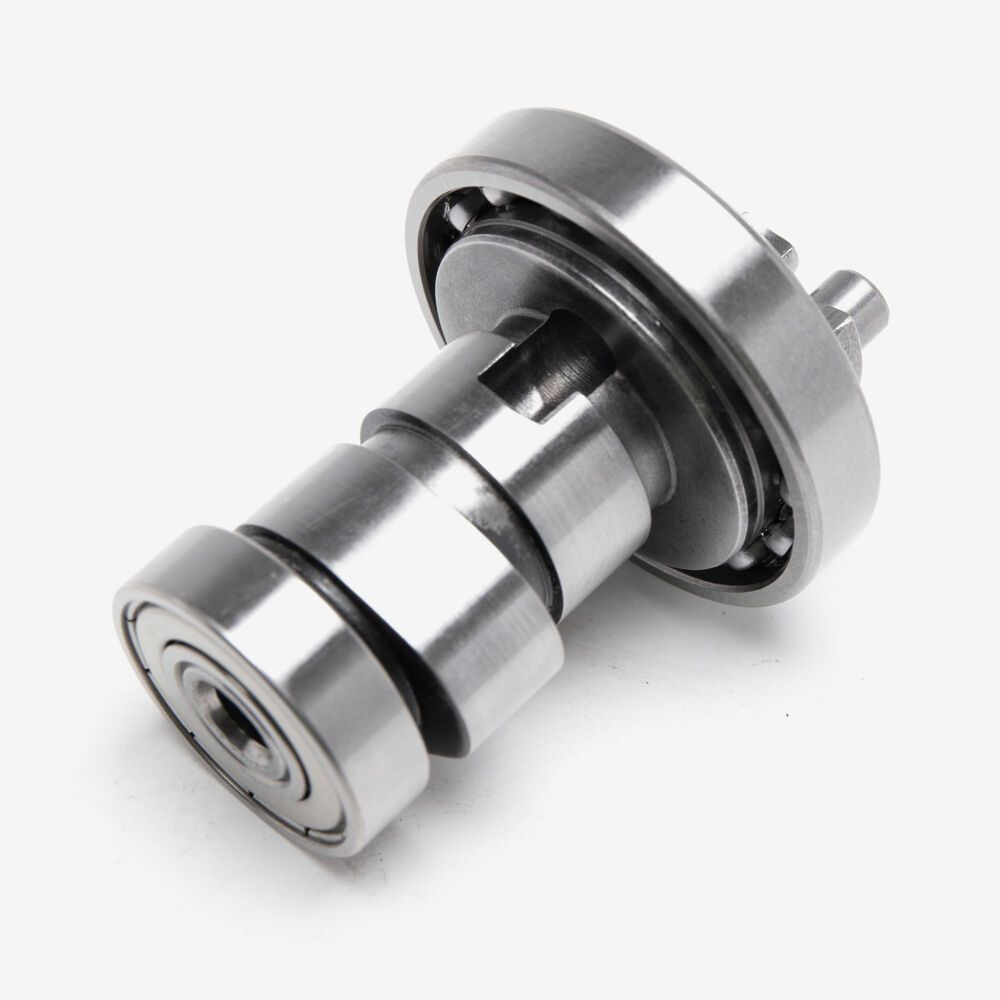

CMS070"In the category of Valves and Rockers, Rocker Arms"
"A camshaft is a shaft that contains a row of pointed cams, in order to convert rotational motion to reciprocating motion. Camshafts are used in piston engines (to operate the intake and exhaust valves), mechanically controlled ignition systems and early electric motor speed controllers.
Camshafts in piston engines are usually made from steel or cast iron, and the shape of the cams greatly affects the engine's characteristics."
| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 1 | ![]() |
Cylinder Head CYLH118 x 1
|
||
| 2 | ![]() |
Cylinder Head Gasket GSKH064 x 1
|
||
| 3 | ![]() |
Camshaft CMS070 x 1
|
||
| 4 | ![]() |
Camshaft Lock Washer CMLW003 x 1
|
||
| 6 | ![]() |
Cylinder head Stud M8 x 40mm BLT860 x 1
|
||
| 7 | ![]() |
Inlet Valve VLVIN054 x 1
|
||
| 8 | ![]() |
Exhaust Valve VLVEX049 x 1
|
||
| 9 | ![]() |
Rocker Arm Shaft RKAS045 x 1
|
||
| 10 | ![]() |
Rocker Arm RKA054 x 1
|
||
| 11 | ![]() |
Rocker Arm RKA055 x 1
|
||
| 12 | ![]() |
Spark Plug SPRK053 x 1
|
||
| 13 | ![]() |
Washer 6.2 x 1.5 x 13mm WSH0095 x 1
|
||
| 14 | ![]() |
Bolt M6 x 12mm BLT861 x 1
|
||
| 15 | ![]() |
Valve Spring VLVS053 x 1
|
||
| 16 | ![]() |
Inlet/Exhaust Valve Spring Seat VLVSS027 x 1
|
||
| 17 | ![]() |
Inlet/Exhaust Valve Spring Retainer VLVSR031 x 1
|
||
| 18 | ![]() |
Valve Collets VLVC032 x 1
|
||
| 19 | ![]() |
Thermostat THMST017 x 1
|
||
| 20 | ![]() |
Thermostat Housing/Cover THMSH008 x 1
|
||
| 21 | ![]() |
Bolt M6 x 20mm BLT862 x 1
|
||
| 22 | ![]() |
Engine Temperature Sensor TMPSEN043 x 1
|
||
| 23 | ![]() |
Rocker Cover RKC066 x 1
|
||
| 24 | ![]() |
Rocker Cover Gasket GSKRC045 x 1
|
||
| 25 | ![]() |
Nut M8 NUT220 x 1
|
||
| 26 | ![]() |
Washer 8 x 2.5 x 18mm WSH0096 x 1
|
||
| 27 | ![]() |
Timing / Camshaft Sprocket CMCSPK003 x 1
|
||
| 28, 30 | ![]() |
Decompression Lever And Locking Plate CMLW004 x 1
|
||
| 29 | ![]() |
Spring VLVS054 x 1
|
||
| 32 | ![]() |
Cylinder Head Stud M8 x 199mm STDCH042 x 1
|
||
| 33 | ![]() |
O-Ring 16.8 x 1.9mm ORNG115 x 1
|
||
| 34 | ![]() |
Cylinder Head Stud 190mm STDCH043 x 1
|
||
| 35 | ![]() |
Fuel Line Protector FLFX005 x 1
|
| Manufacturer | Model | Diagram |
|---|---|---|
| Lexmoto | XDV 125 Euro 5 [LJ125T-18A-E5] | View parts diagram |
| Longjia | LJ125T-18A | |
