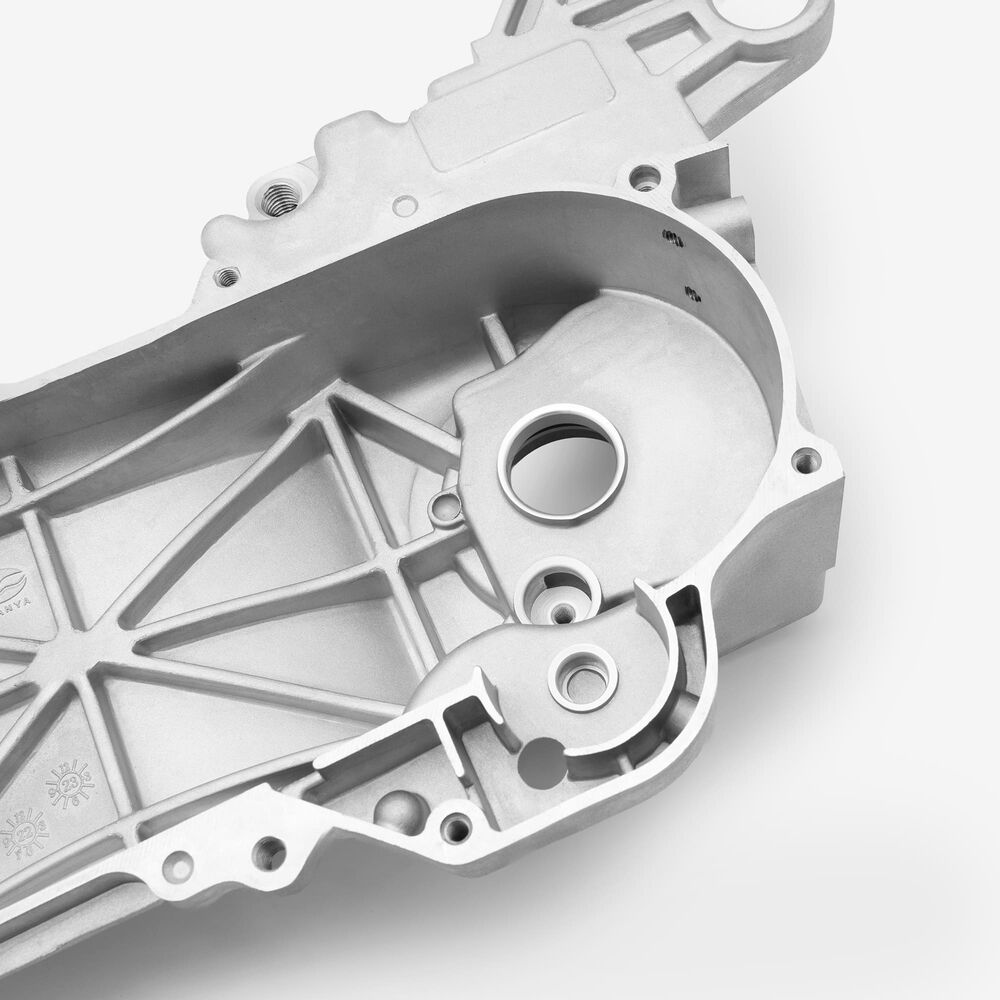

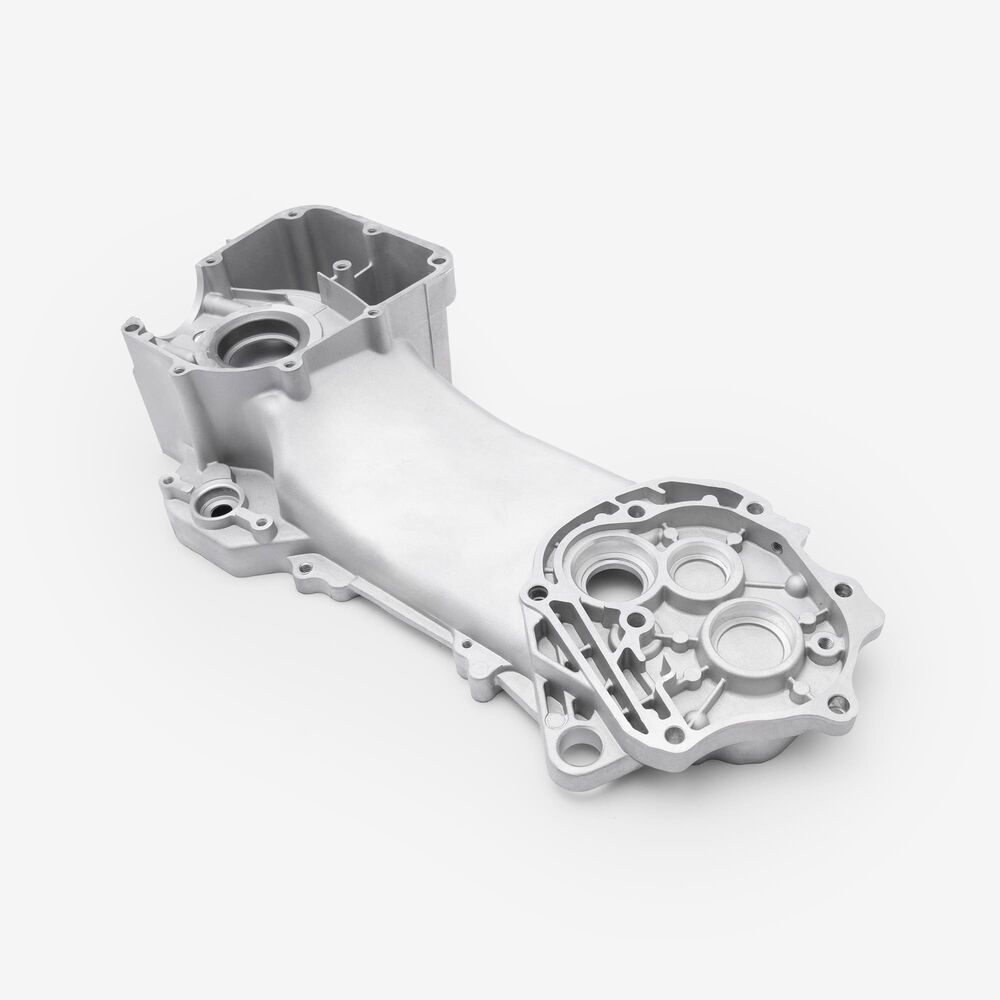

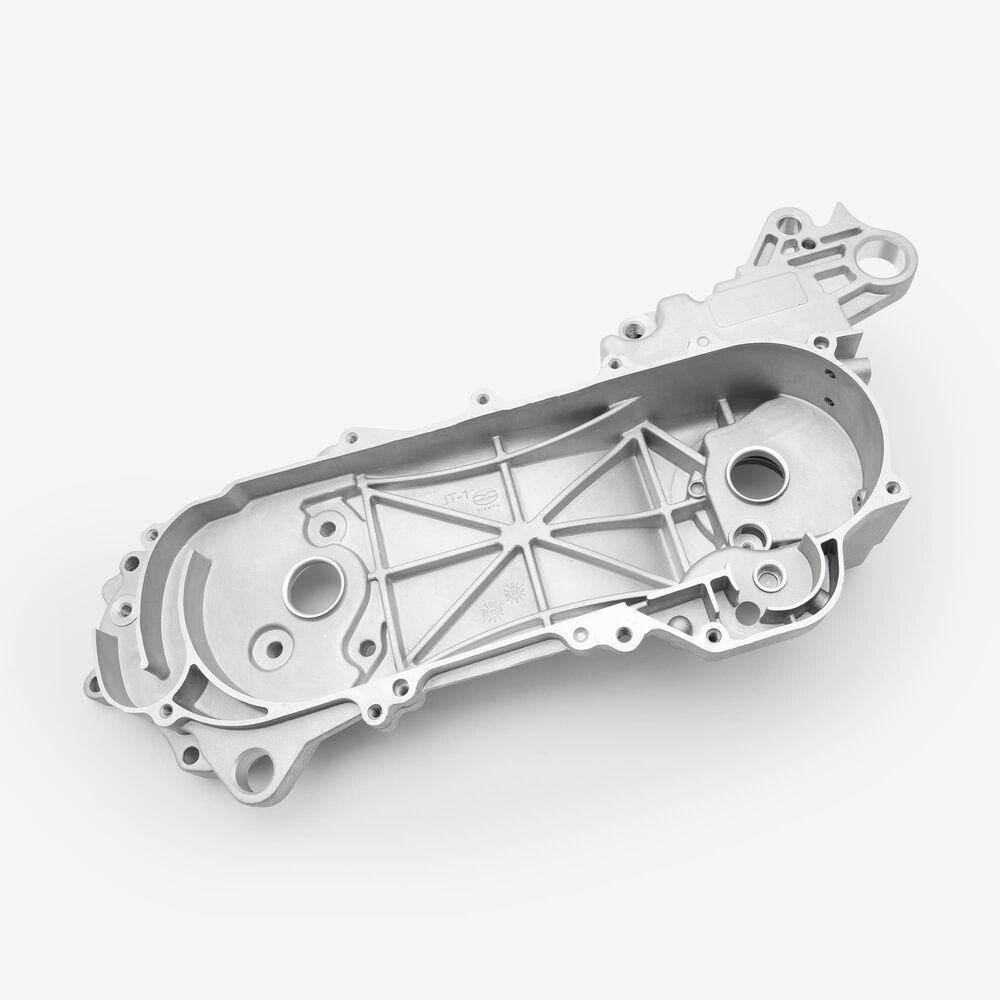

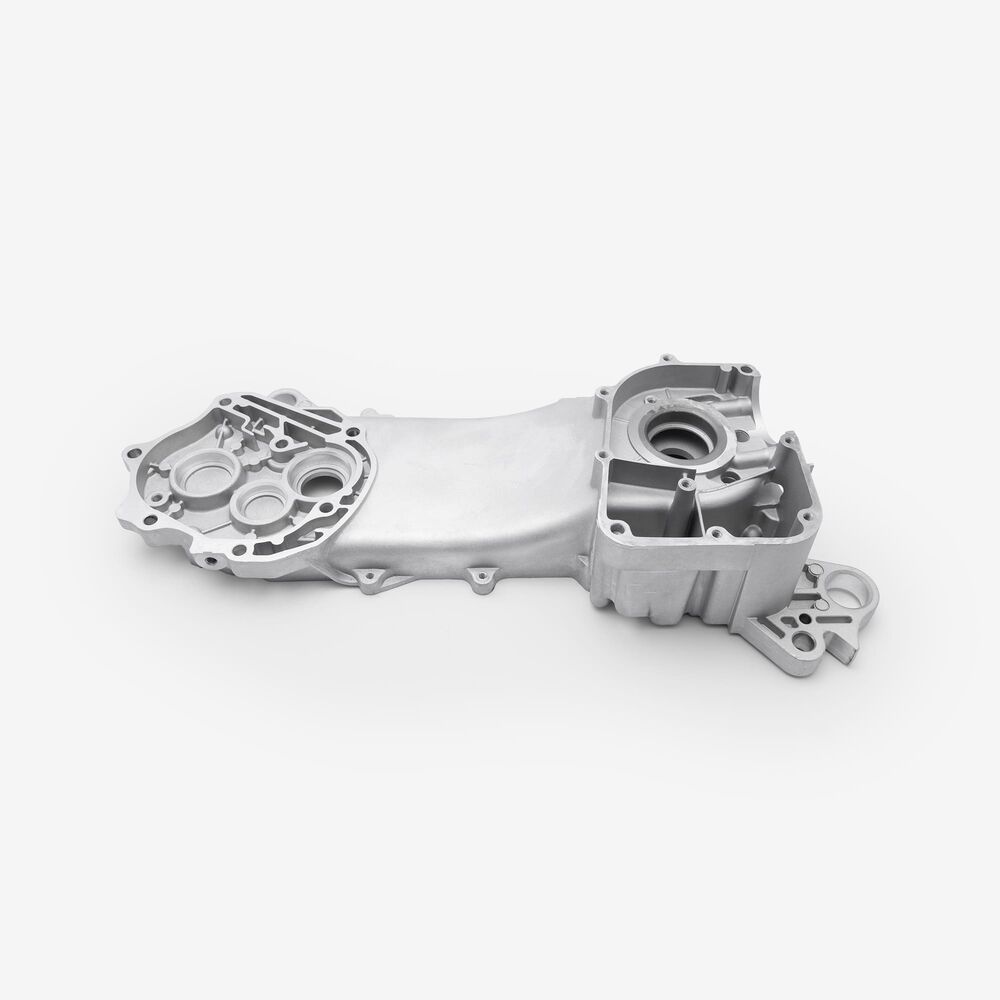

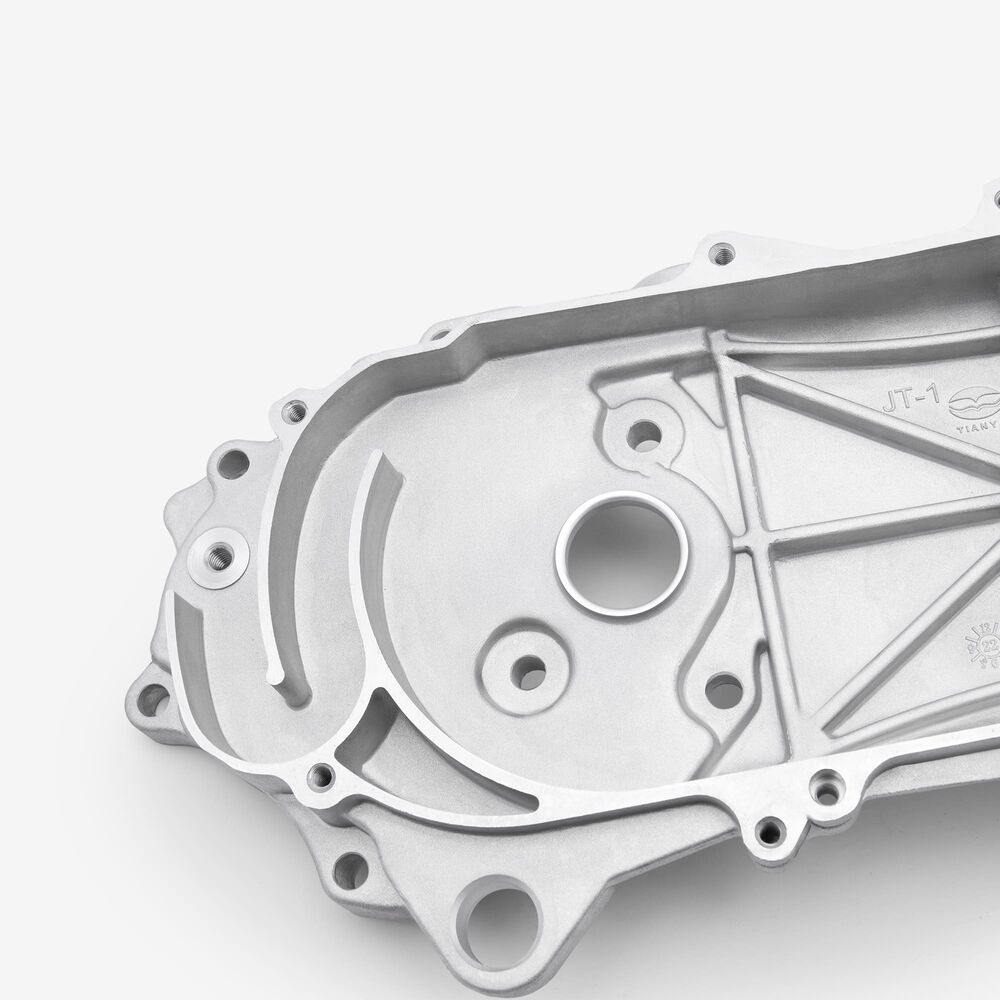

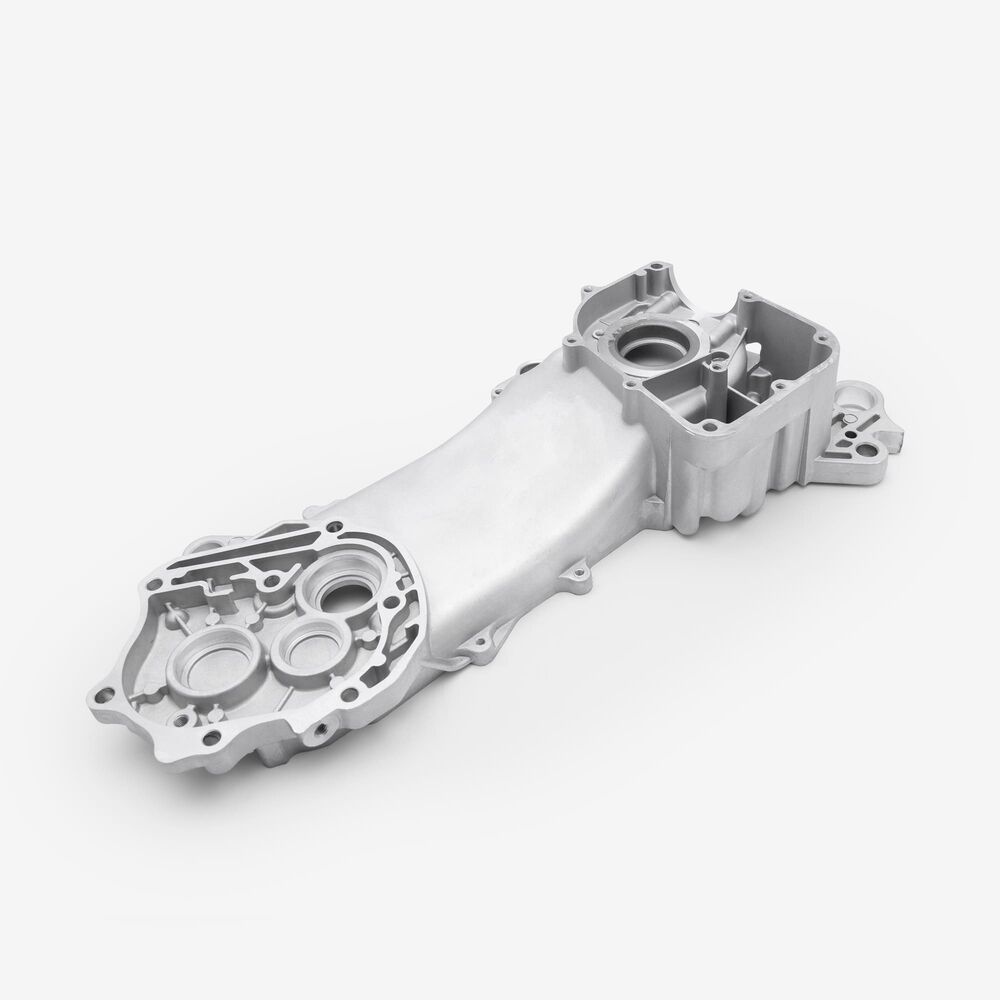

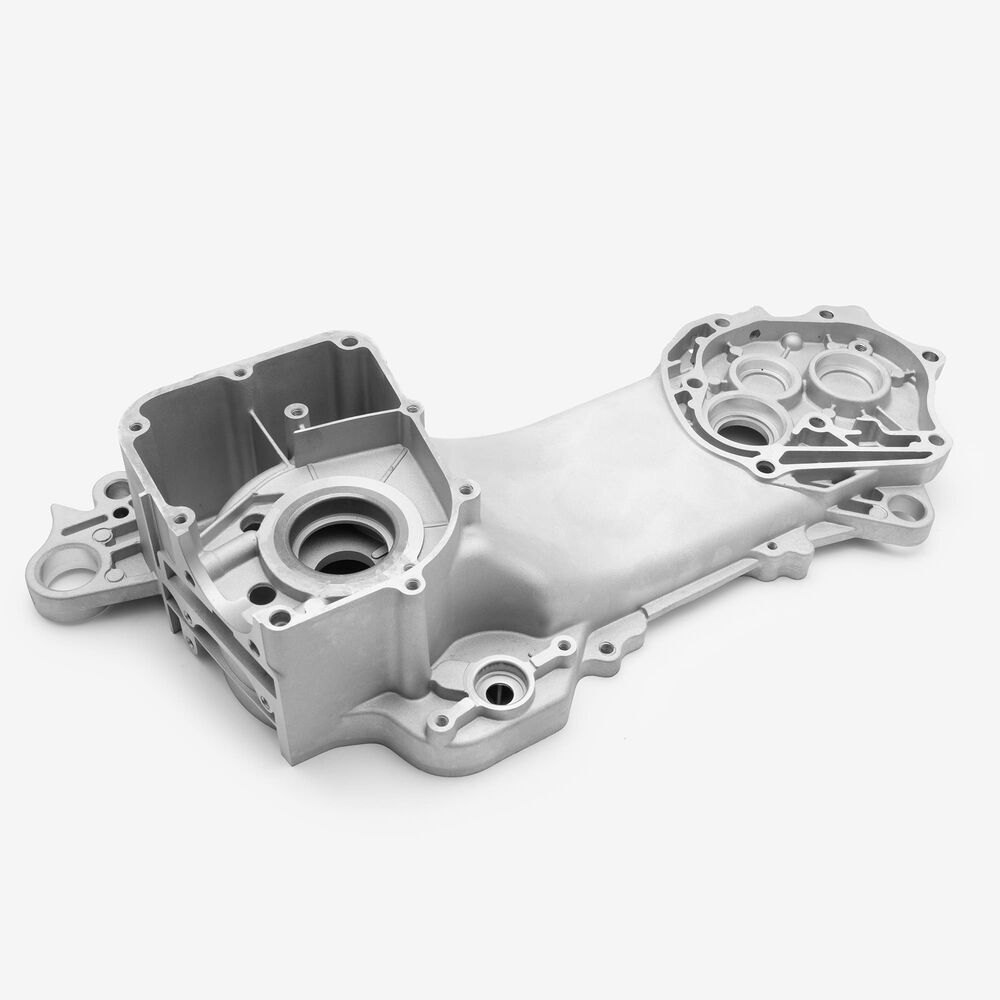

Crankcase Left
CRL035
Description
"In the category of Engine Casings, Engine Casings"
The crankcase in a motorcycle houses the engine's internal components on the side, including parts of the crankshaft, transmission, and oil pump. It provides structural support, protects these components, and ensures proper alignment and lubrication within the engine.
Product Diagrams
| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 2 |  |
Starter Motor STM077 x 1
|
||
| 3 | |
Crankcase Left CRL035 x 1
|
||
| 4 |  |
Bush 24.5 x 14 x 8mm BSH218 x 1
|
||
| 5 |  |
Engine Crankcase Mounting Bush SHKB009 x 1
|
||
| 6 |  |
Centre Stand Pin STDPC031 x 1
|
||
| 7 |  |
Engine Dowel 8 x 14mm DWL001 x 1
|
||
| 9 |  |
Sump Plug SMPP030 x 1
|
||
| 10 |  |
Oil Seal 19.8 x 30 x 5mm OLSL026 x 1
|
||
| 11 |  |
Bush M10 BSH220 x 1
|
||
| 12 |  |
Starter Motor Bendix 139QMA 139QMB STMB001 x 1
|
||
| 13 |  |
Bush 9mm BSH212 x 1
|
||
| 14 |  |
Oil Seal 17 x 30 x 6mm OLSL034 x 1
|
||
| 15 |  |
Bolt M8 x 12mm BLT931 x 1
|
||
| 17 |  |
Rear Shock To Engine Bush 20 x 19 x 8mm BSH004 x 1
|
||
| 18 |  |
Open Bearing 6303-2/P6 42 x 17 x 12mm BRG093 x 1
|
||
| 19 |  |
Open Bearing 6201 32 x 12 x 10mm BRG146 x 1
|
||
| 20 |  |
Open Bearing 6203 P5 17 x 40 x 12mm BRG149 x 1
|
||
| 21 |  |
Bolt M8 x 35mm BLT950 x 1
|
||
| 22 |  |
Flange Bolt M8 x 40mm BLT954 x 1
|
||
| 23 |  |
Oil Hose Bracket BRCKT397 x 1
|
Compatibility
| Manufacturer | Model | Diagram |
|---|---|---|
| Lexmoto | Diablo 50 E55 [LJ50QT-9M-E55] | View parts diagram |
