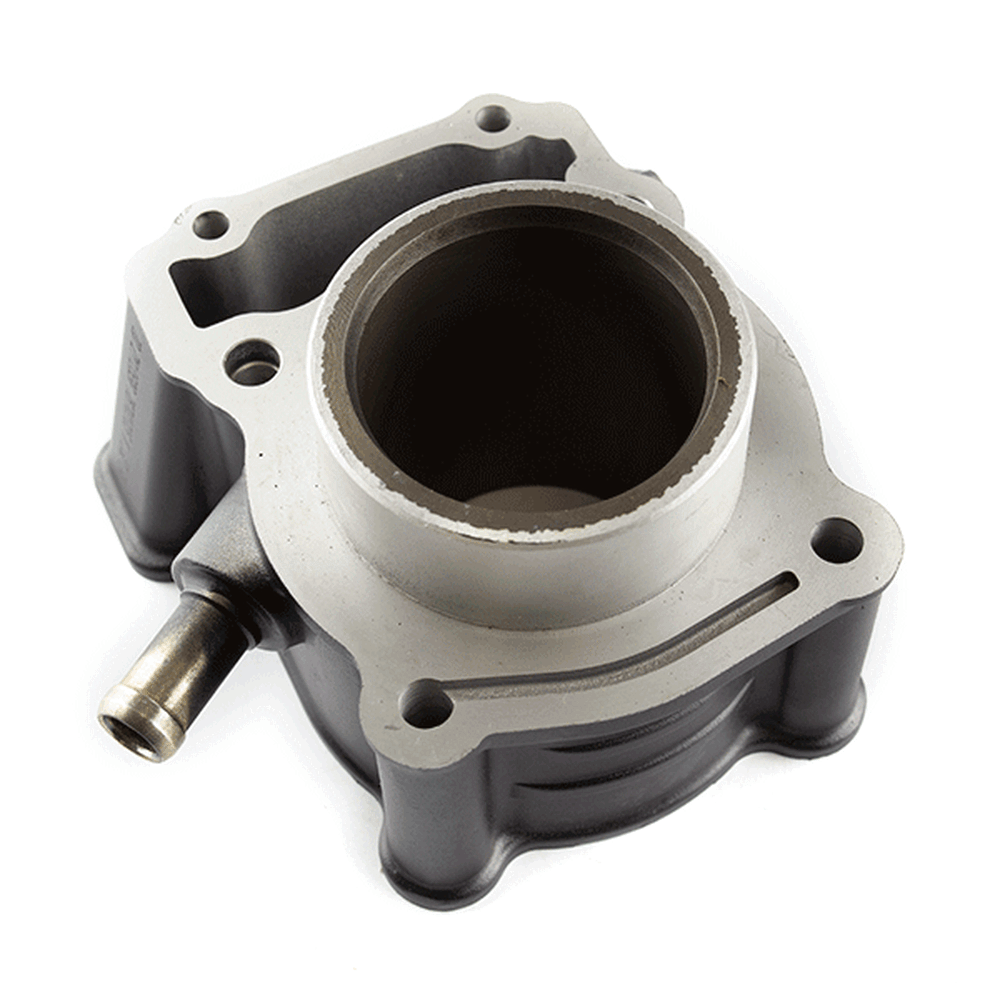

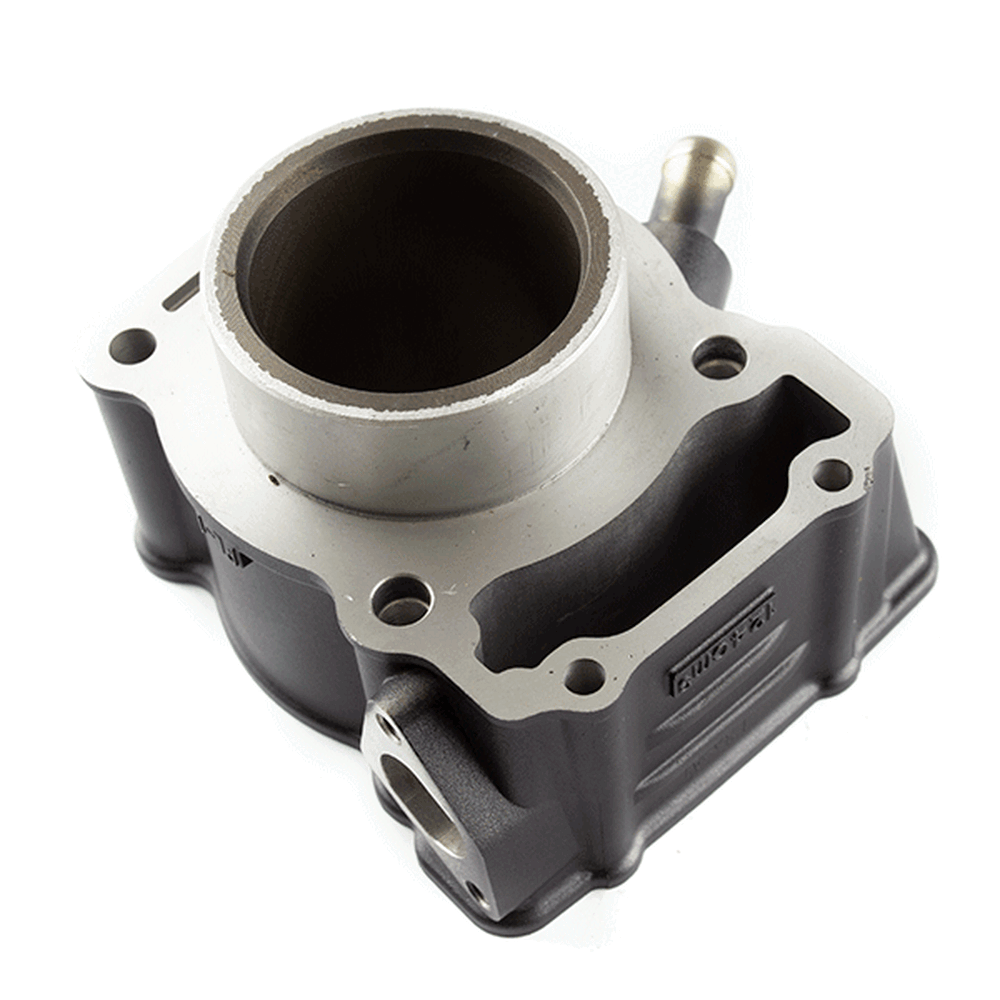

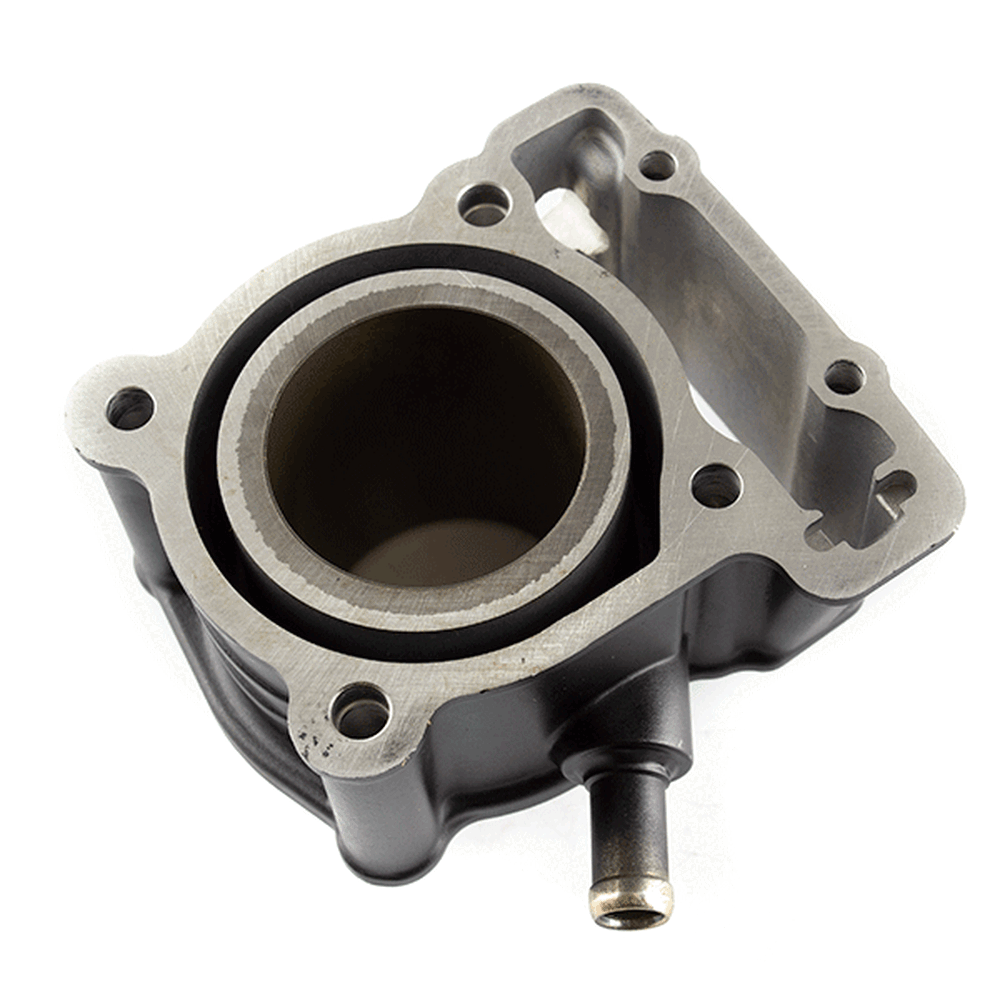

Cylinder
CYL064
Description
"Another great Cylinder"
The cylinder is the space through which the piston travels, propelled to the energy generated from the combustion of the air/fuel mixture in the combustion chamber. In an air-cooled engine, the walls of the cylinders are exposed to the airflow, to provide the primary method of cooling to the engine.
Product Diagrams
| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 1 |  |
Rocker Cover Bolt M6 BLT374 x 1
|
||
| 2 |  |
Rocker Cover Bolt Washer WSH0039 x 1
|
||
| 3 |  |
Rocker Cover RKC051 x 1
|
||
| 4 |  |
Spark Plug Seal GSKRC014 x 1
|
||
| 5 |  |
Rocker Cover Gasket GSKRC015 x 1
|
||
| 6 |  |
NGK CR9E Spark Plug 6263 SPRK015 x 1
|
||
| 7 |  |
Cylinder Head CYLH067 x 1
|
||
| 8 |  |
Exhaust Stud M8 x 40mm STD018 x 1
|
||
| 9 |  |
Flanged Hex Bolt M6 x 16mm BLT206 x 1
|
||
| 10 |  |
EGR Blanking Plate EGRB003 x 1
|
||
| 11 |  |
EGR Blanking Plate Gasket EGRB004 x 1
|
||
| 12 |  |
Cylinder Head Bolt M6 x 120mm BLTCH011 x 1
|
||
| 13 |  |
Head Gasket GSKH048 x 1
|
||
| 14 |  |
Dowel 10 x 12mm DWL047 x 1
|
||
| 15 | |
Cylinder CYL064 x 1
|
||
| 16 |  |
Base Gasket GSKB026 x 1
|
||
| 17 |  |
Flanged Hex Bolt with Shank M6 x 35mm BLT100 x 1
|
Compatibility
| Manufacturer | Model | Diagram |
|---|---|---|
| Lexmoto | LS-Z Euro 5 [ZS125-39-E5] | View parts diagram |
| LXR 125 Euro 5 [SY125-10-E5] | View parts diagram | |
| LXR SE 125 Euro 5 [SY125-10-SE-E5] | View parts diagram | |
| LXR SE 125 Euro 5 [SY125-10-SE-V2] | View parts diagram | |
| LXS 125 Euro 5 [TR125-GP2-E5] | View parts diagram | |
| RSS 125 Euro 5 [TR125-3-E5] | View parts diagram | |
| RSS 125 Scrambler Euro 5 [TR125-3-S-E5] | View parts diagram | |
| Mitt | MITT 125 GP 2 [MITT125GP2] | |
| Mutt | Stravaig 125cc [STRAVAIG] | |
| Sinnis | Terrain T125 [ZS125-86(T125)] | |
| Taro | TR125-3 | |
| Zongshen | ZS125-39 | |
