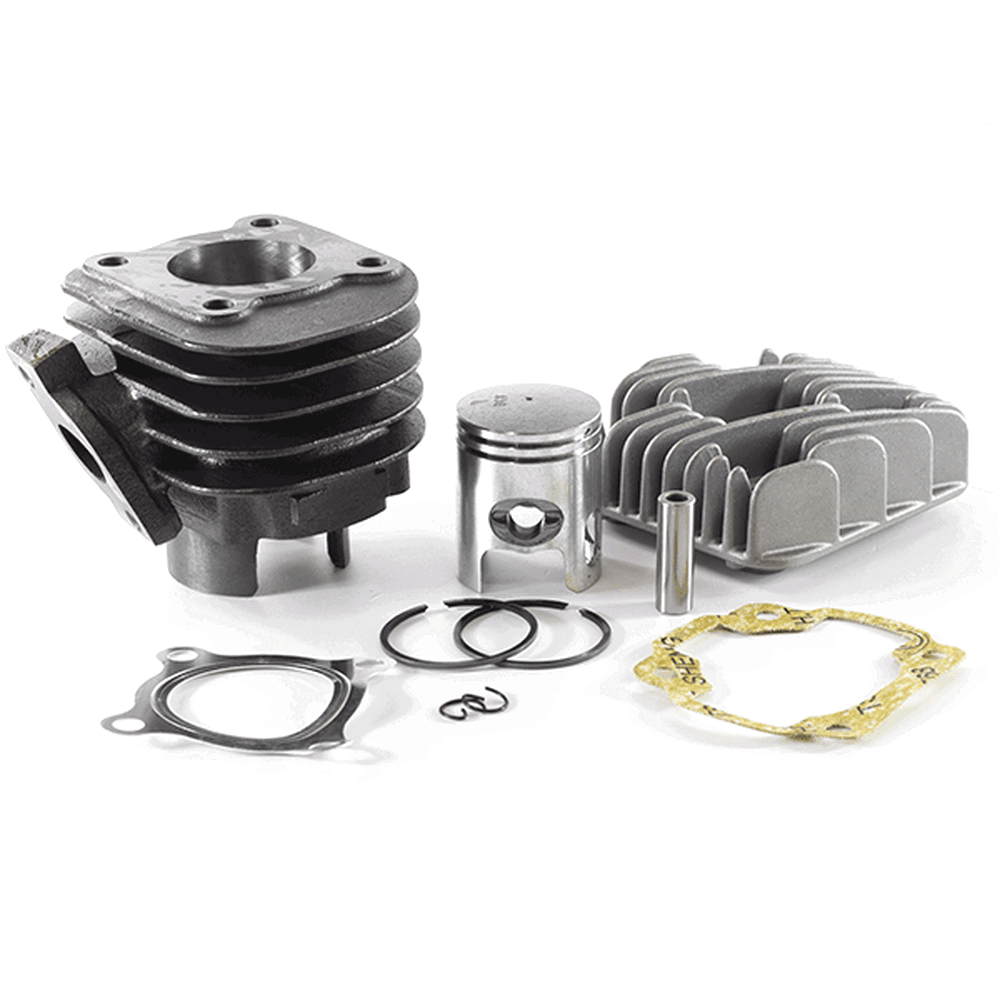

"You should buy this Cylinder Kit Complete"

Contents

40mm Piston

Piston Rings

Head Gasket

Base Gasket

Cylinder

Cylinder Head

Gudgeon Pin

Gudgeon Pin Clips (Pair)

Cylinder Head

PSTR007 Description 50cc 2T Scooter Piston Rings 1PE40QMB

Piston rings are critical components in a motorcycle engine, located on the outer surface of the piston. They serve several key functions:

Sealing: Piston rings create a seal between the piston and the cylinder wall, preventing the escape of combustion gases into the crankcase and ensuring efficient power generation.

Compression: By sealing the combustion chamber, piston rings help maintain the necessary compression pressure for engine performance.

Oil Control: They manage the oil flow between the piston and cylinder wall, ensuring that the correct amount of oil is present for lubrication and reducing oil consumption and emissions.

Typically made from high-strength materials like cast iron or steel, piston rings are designed to withstand high temperatures and pressures. Proper maintenance and timely replacement of piston rings are essential for maintaining engine performance, efficiency, and longevity.

Specifications

Classic Part: No
Cylinder Bore Diameter: 40 mm
Engine Type: 4-stroke
Item Thickness: N/A
Items included: Piston Ring
Machine Type: Scooter
Manufacturer Warranty: 1 year
Material: Steel
Performance Part: No
Pin Diameter: N/A
Piston Diameter: 40 mm
Reference OE/OEM Number: 121000027
Type: Piston Ring

GDP005 Description 10mm Gudgeon Pin

The gudgeon pin in a motorcycle connects the piston to the connecting rod.

Specifications

Length : 32.95mm
Inside Diameter: 6.15mm
Outside Diameter: 9.95mm
Brand: CMPO
Classic Part: No
Cylinder Bore Diameter: 39 mm
Engine Type: 2-stroke
Item Thickness: 10 mm
Items included: Wrist Pin
Machine Type: Scooter
Manufacturer Part Number: GDP005
Manufacturer Warranty: 1 Year
Material: Steel
Mounting Style: Screw-In
Performance Part: No
Pin Diameter: 10 mm
Piston Diameter: 39 mm
Reference OE/OEM Number: 121000044
Type: Wrist Pin
Universal Fitment: No

BRGN006 Description 50cc 2T Scooter Small End Bearing 1PE40QMB

Needle bearings are a small cylindrical type of roller bearings which are used to prevent friction between moving surfaces which have low rotational speeds. Needle roller bearings are usually used when space is at a premium as needle bearings are much more compact than ball bearings.

Specifications

Width: 12.40mm
External Diameter: 13.71mm
Internal Diamter: 10mm

GSKH021 Description 50cc 2T Scooter Head Gasket 1E40QMA 1PE40QMB

The head gasket in a motorcycle seals the engine block and cylinder head, preventing coolant and oil from mixing while maintaining compression within the combustion chamber. It is essential for engine integrity, ensuring efficient performance and preventing leaks.

Specifications

Bolt Hole Quantity: 4
Brand: CMPO
Classic Part: No
Colour: Gold
Items included: Head Gasket
Machine Type: Scooter
Manufacturer Part Number: GSKH021
Manufacturer Warranty: 1 Year
Material: Paper
Number in Pack: 1
Performance Part: No
Placement on Vehicle: Engine
Reference OE/OEM Number: 149900063
Type: Head Gasket
Unit Quantity: 1
Unit Type: Unit
Universal Fitment: No

GSKEX001 Description Exhaust Gasket 30 x 24mm

The exhaust gasket in a motorcycle seals the connection between the exhaust manifold and the engine head, preventing exhaust gas leaks and ensuring proper exhaust flow. It plays a vital role in maintaining engine efficiency, performance, and noise reduction.

Details

Reduce exhaust leaks and ensure a tight seal with this high quality exhaust gasket

Specifications

Outside Diameter: 30mm
Inside Diameter: 24mm
Height: 5mm
Bolt Hole Quantity: 1
Classic Part: No
Colour: White
Items included: Gasket
Manufacturer Warranty: 12 Months
Material: Foam
Number in Pack: 1
Performance Part: No
Placement on Vehicle: Exhaust
Reference OE/OEM Number: 145202002
Type: Exhaust Gasket
Unit Quantity: 1
Unit Type: Unit
Universal Fitment: No
