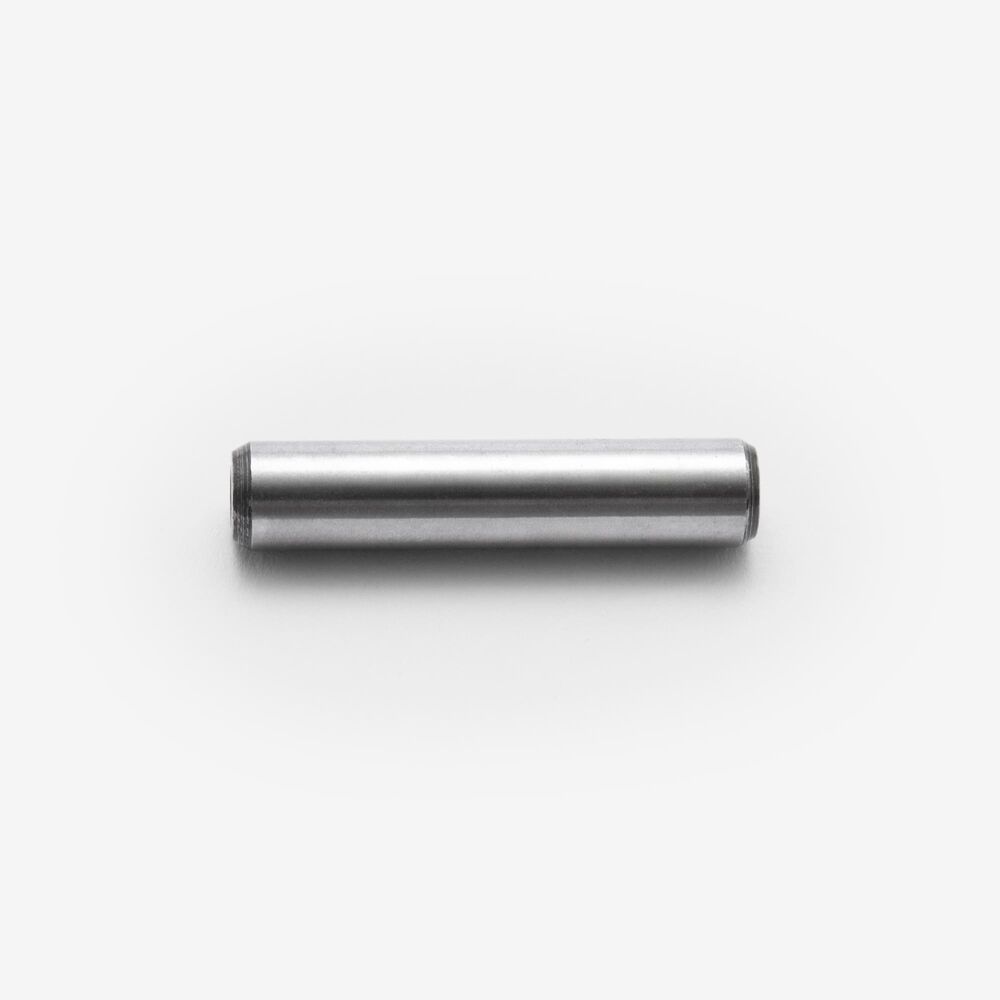

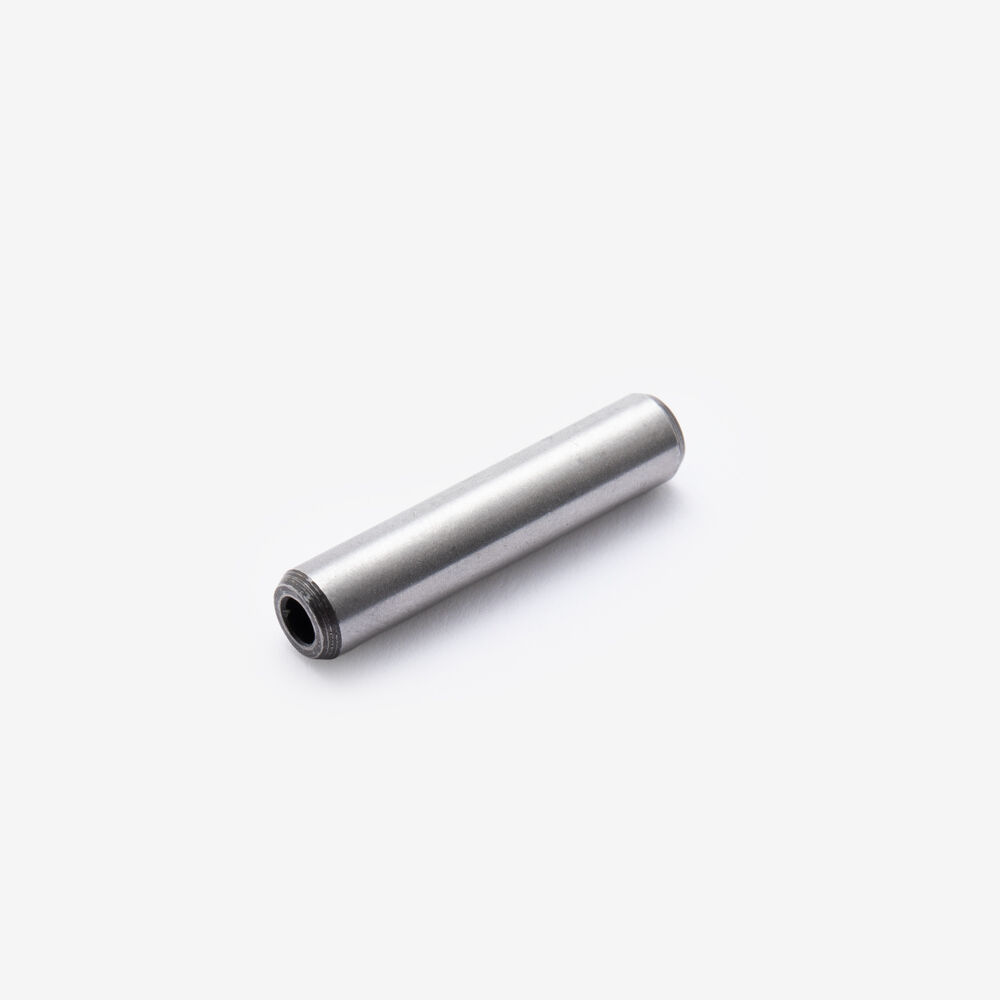

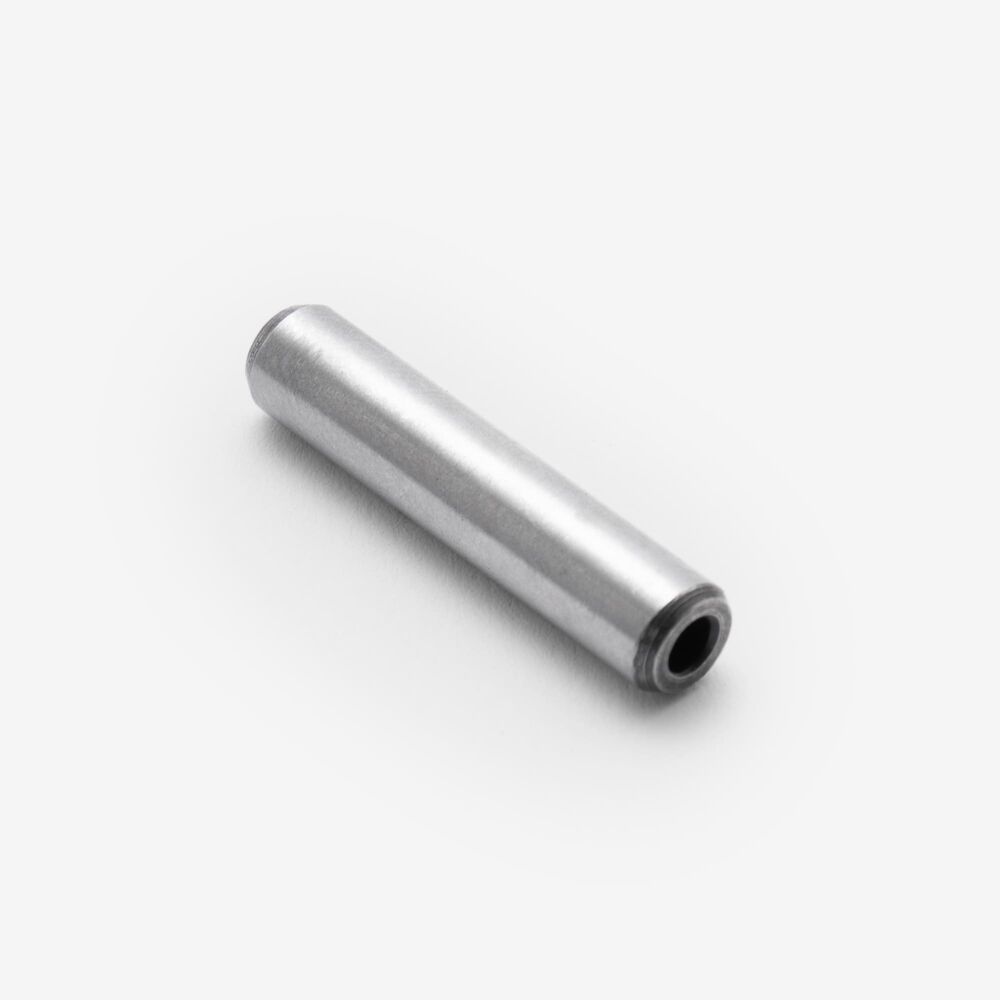

Dowel 28.5 x 10mm
DWL056
Description
"You should buy this Dowel 28.5 x 10mm"
The engine dowel in a motorcycle is a precision alignment pin used to correctly position and secure engine components, such as the engine block and cylinder head, ensuring accurate assembly and maintaining engine integrity.

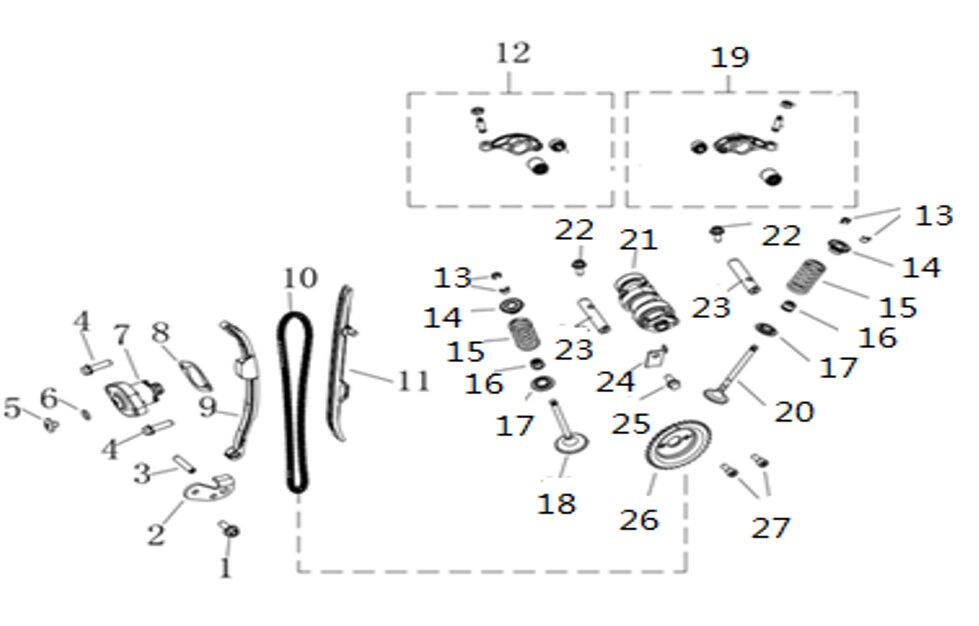

Product Diagrams
| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 1 |  |
Bolt M6 x 16mm BLT967 x 1
|
||
| 2 |  |
Cam Chain Guide Plate CMCG059 x 1
|
||
| 3 | |
Dowel 28.5 x 10mm DWL056 x 1
|
||
| 4 |  |
Bolt M6 x 22mm BLTCH026 x 1
|
||
| 5 |  |
Bolt M6 x 6mm BLT983 x 1
|
||
| 6 |  |
O-Ring D9.6 x 1.7mm ORNG134 x 1
|
||
| 7 |  |
Cam Chain Tensioner CMCT058 x 1
|
||
| 8 |  |
Cam Chain Tensioner Gasket GSKCT026 x 1
|
||
| 9, 11 |  |
Cam Chain Guides CMCG060 x 1
|
||
| 10 |  |
Timing / Cam Chain CMCHN064 x 1
|
||
| 12 |  |
Rocker Arm RKA058 x 1
|
||
| 13 |  |
Valve Shim/Bucket VLVSB161 x 1
|
||
| 14 |  |
Inlet/Exhaust Valve Spring Seat VLVSS028 x 1
|
||
| 15 |  |
Valve Spring VLVS056 x 1
|
||
| 17 |  |
Inlet/Exhaust Valve Spring Seat VLVSS029 x 1
|
||
| 18 |  |
Inlet Valve VLVIN058 x 1
|
||
| 19 |  |
Rocker Arm RKA059 x 1
|
||
| 20 |  |
Exhaust Valve VLVEX051 x 1
|
||
| 21 |  |
Camshaft CMS072 x 1
|
||
| 23 |  |
Rocker Arm Shaft RKAS048 x 1
|
||
| 24 |  |
Camshaft Bracket BRCKT412 x 1
|
||
| 25 |  |
Bolt M6 x 12mm BLT861 x 1
|
||
| 26 |  |
Timing / Camshaft Sprocket 34T CMCSPK005 x 1
|
Compatibility
| Manufacturer | Model | Diagram |
|---|---|---|
| Lexmoto | D2 E55 [GC125T-3A-E55] | View parts diagram |
| XDV 125 E55 [LJ125T-18A-E55] | View parts diagram | |
