CMPO | Right Crankcase Cover for ZY125-E4 | Specialist in Motorcycle and Scooter Parts for Chinese Bikes. Many models covered such as Baotian, Lifan, Lexmoto, Jinlun, Jailing and more, with everything from exhausts to engines, and tyres to fuel caps

Special Offer

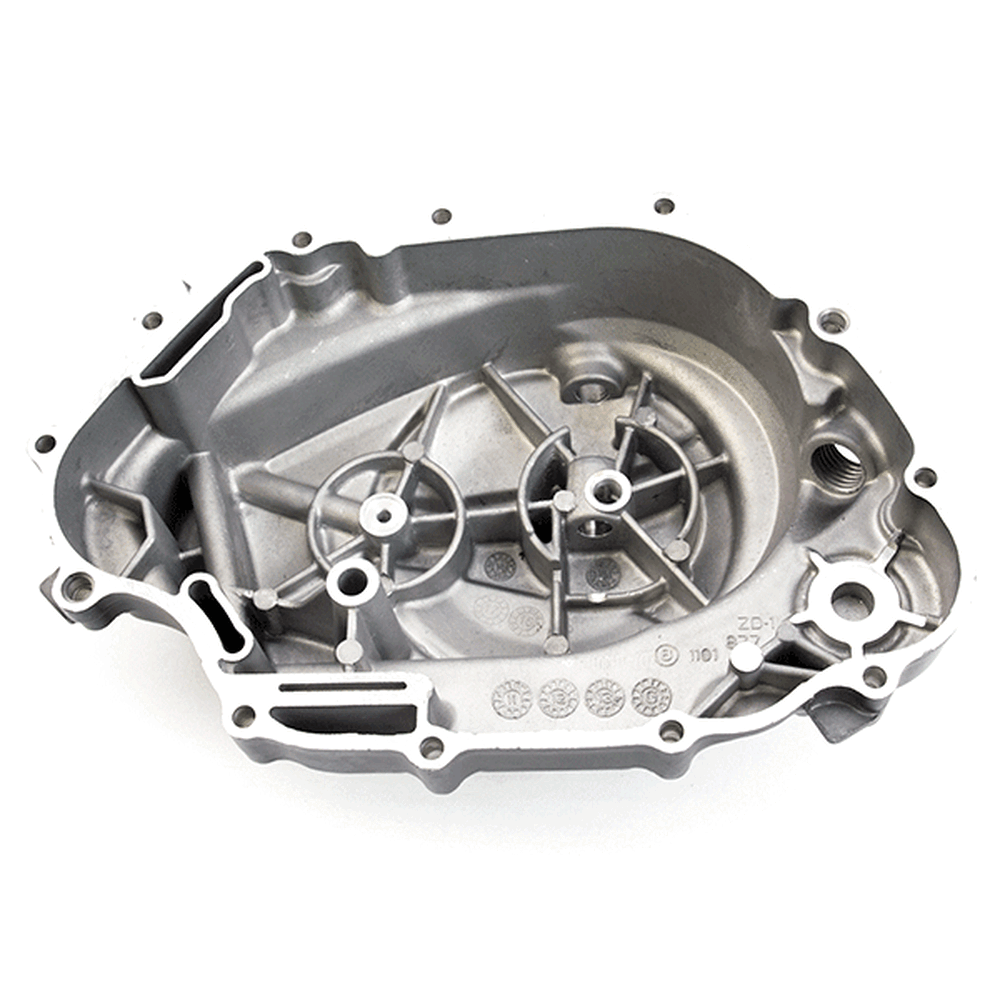

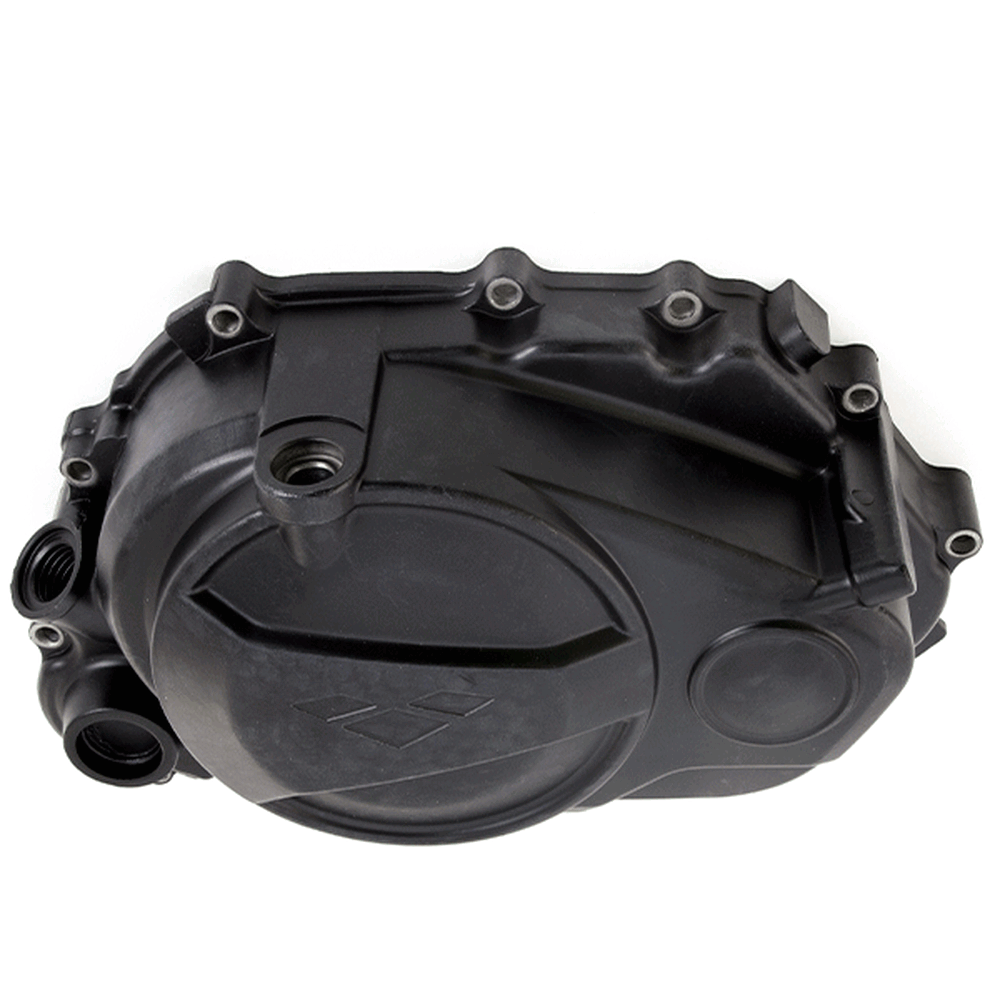

Right Crankcase Cover for ZY125-E4

£38.49 £30.79 Sale

Availability: Low Stock

Add to wishlist

Code: ENGCR079 PLU: 22918 EAN: 5057645199595 Brand: CMPO Classic Part: No Colour: Black Country/Region of Manufacture: China Machine Type: Steet Motorcycle Manufacturer Warranty: 1 Year Material: Alloy Reference OE/OEM Number: 120400102 Type: Engine Casing Unit Quantity: 1 Unit Type: Unit

Order before 4pm for same day dispatch

2 Hours 0 Mins 39 Secs

Description

"In the category of Engine Casings, Engine Casings"

The right engine casing in a motorcycle encloses and protects the engine's internal components on the right side, ensuring structural integrity and safeguarding against dirt, debris, and damage.

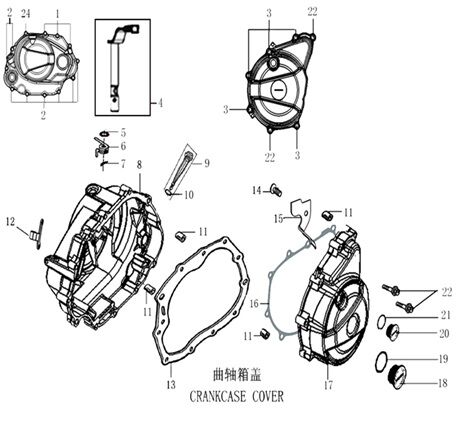

Product Diagrams

Ref	Item Name	Price
1	Flanged Hex Bolt M6 M6 x 30mm `BLT078 x 1`	~~£5.49~~ £4.39
2	Flanged Hex Bolt with Shank M6 x 40mm `BLT079 x 1`	~~£5.49~~ £4.39
3	Flanged Hex Bolt with Shank M6 x 35mm `BLT100 x 1`	~~£2.49~~ £1.99
4	Clutch Actuator Arm `CLAA029 x 1`	~~£14.49~~ £11.59
5	Oil Seal 12 x 18 x 5mm `OLSL074 x 1`	~~£3.49~~ £2.79
6	Clutch Arm Spring `SPNG250 x 1`	~~£3.49~~ £2.79
7	Clutch Actuator Arm Roll Pin ZY125 `SPLPN021 x 1`	~~£1.99~~ £1.59
8	Right Crankcase Cover for ZY125-E4 `ENGCR079 x 1`	~~£38.49~~ £30.79
9	Oil Dipstick `OLDP002 x 1`	~~£1.99~~ £1.59
10	Dipstick O Ring 18.7 x 25.7 x 3.5mm for ZY125-E4 `ORNG050 x 1`	~~£2.49~~ £1.99
11	Engine Dowel 8 x 14mm `DWL001 x 1`	~~£4.99~~ £3.99
12	Clutch Cable Bracket for ZS125-48F `CBB034 x 1`	~~£3.99~~ £3.19
13	Right Crankcase (Clutch) Cover Gasket ZY125 for ZS125-48F,ZS125-48E `GSKCR024 x 1`	~~£7.99~~ £6.39
14	ZY125-E4 Flanged Hex Bolt M6 x 15mm `BLT194 x 1`	~~£1.49~~ £1.19
15	Stator Cable Bracket `BRCKT102 x 1`	~~£1.99~~ £1.59
16	Left Crankcase Cover Gasket ZY125 `GSKCL019 x 1`	~~£7.49~~ £5.99
17	Left Engine Casing for ZS125-79 `ENGCL065 x 1`	~~£22.99~~ £18.39
18	Left Black Crankcase Plug ZY125 `CRCP015 x 1`	~~£3.49~~ £2.79
19	O-Ring 27.4 x 32.7 x 2.65mm `ORNG040 x 1`	~~£3.49~~ £2.79
20	Black Engine Timing Check Plug ZY125 `ENGTP005 x 1`	~~£2.99~~ £2.39
21	O-Ring 13.2 x 18.5 x 2.65mm `ORNG041 x 1`	~~£1.99~~ £1.59
22	Hex Bolt M6 x 45mm `BLT080 x 1`	~~£2.49~~ £1.99

Compatibility

Manufacturer	Model	Diagram
Lexmoto	Detroit 125 Euro 5 [SR125-E5]	View parts diagram
	Michigan 125 EFI [ZS125-79-E4]	View parts diagram
	Michigan 125 Euro 5 [ZS125-79-E5]	View parts diagram
	ZSX-F 125 EFI [ZS125-48E-E4]	View parts diagram
	ZSX-R 125 EFI [ZS125-48F-E4]	View parts diagram

Romet	Z-One S 125 [ZONES125]
Romet	Z-One T 125 [ZONET125]

Sinnis	Akuma [AKUMA]
	Hoodlum 125 [ZS125-79H]
	Outlaw 125 [SR125-S]
	RSX 125 [ZS125-80]
	Terrain 125 [ZS125-86]
