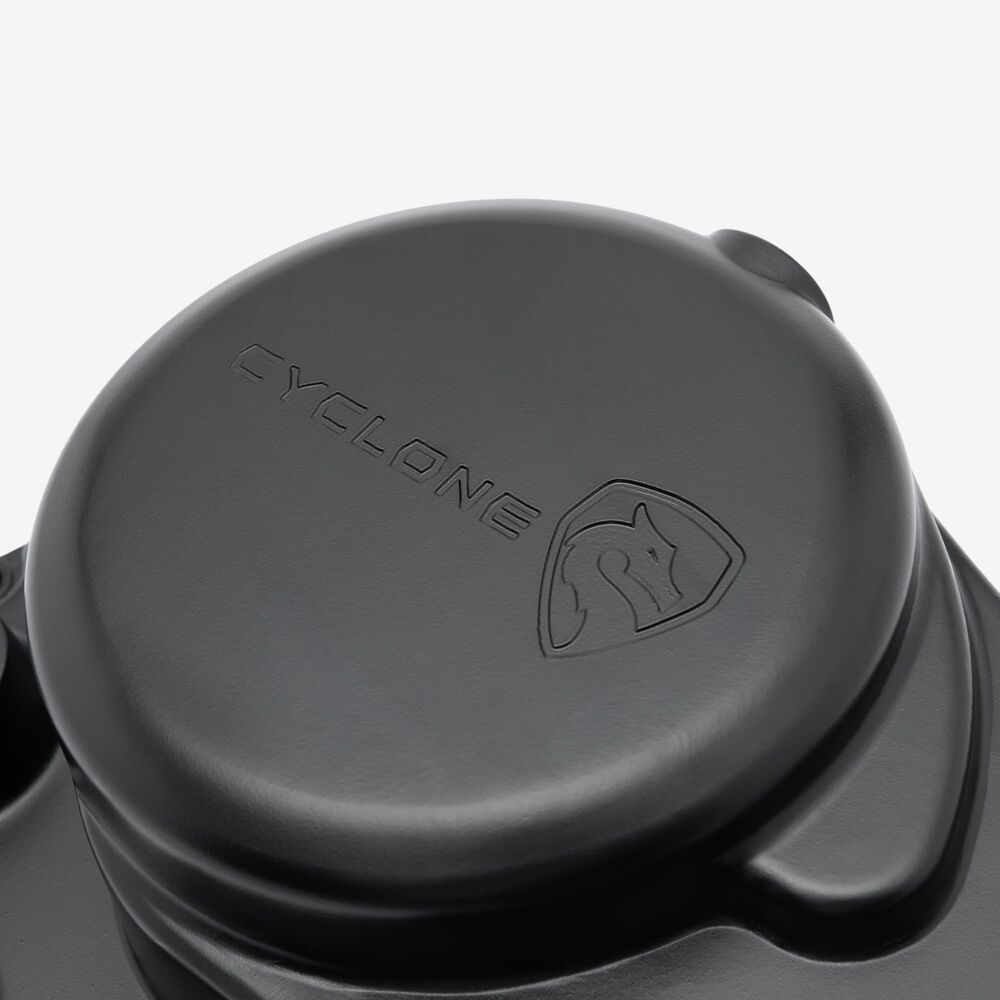

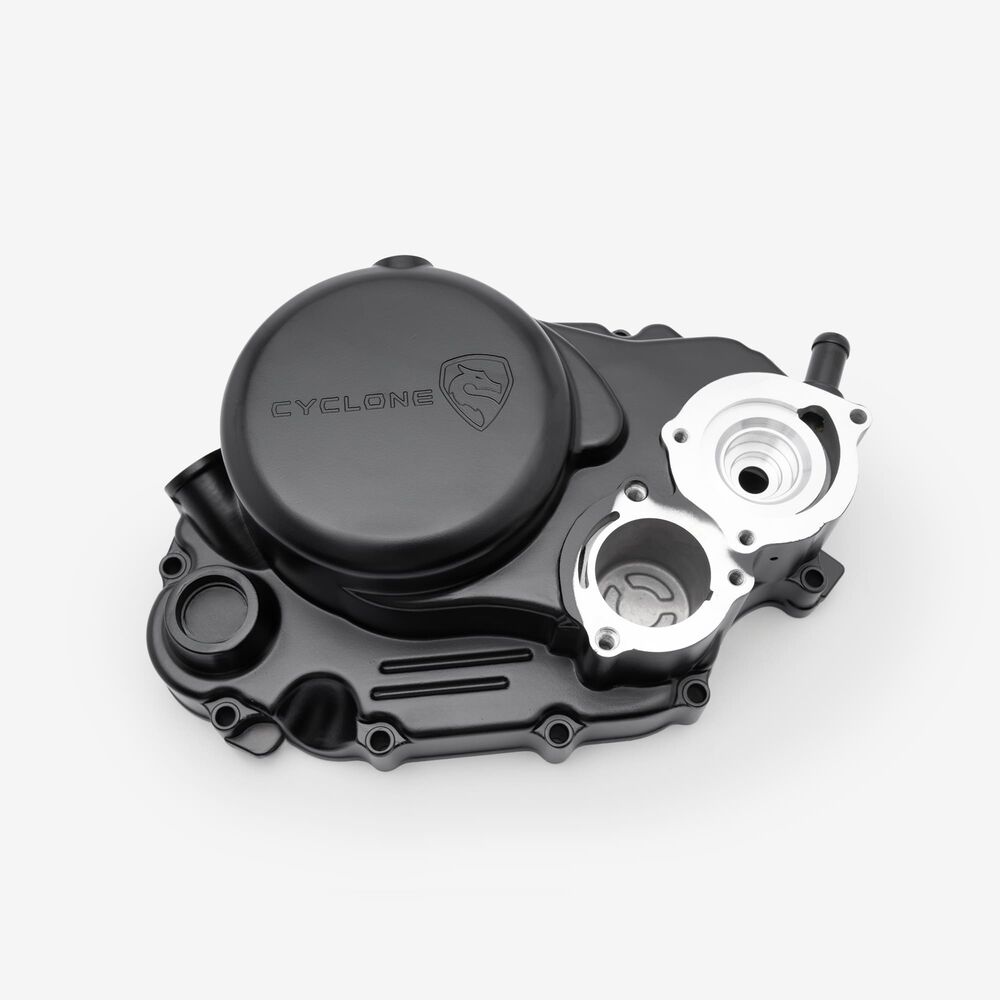

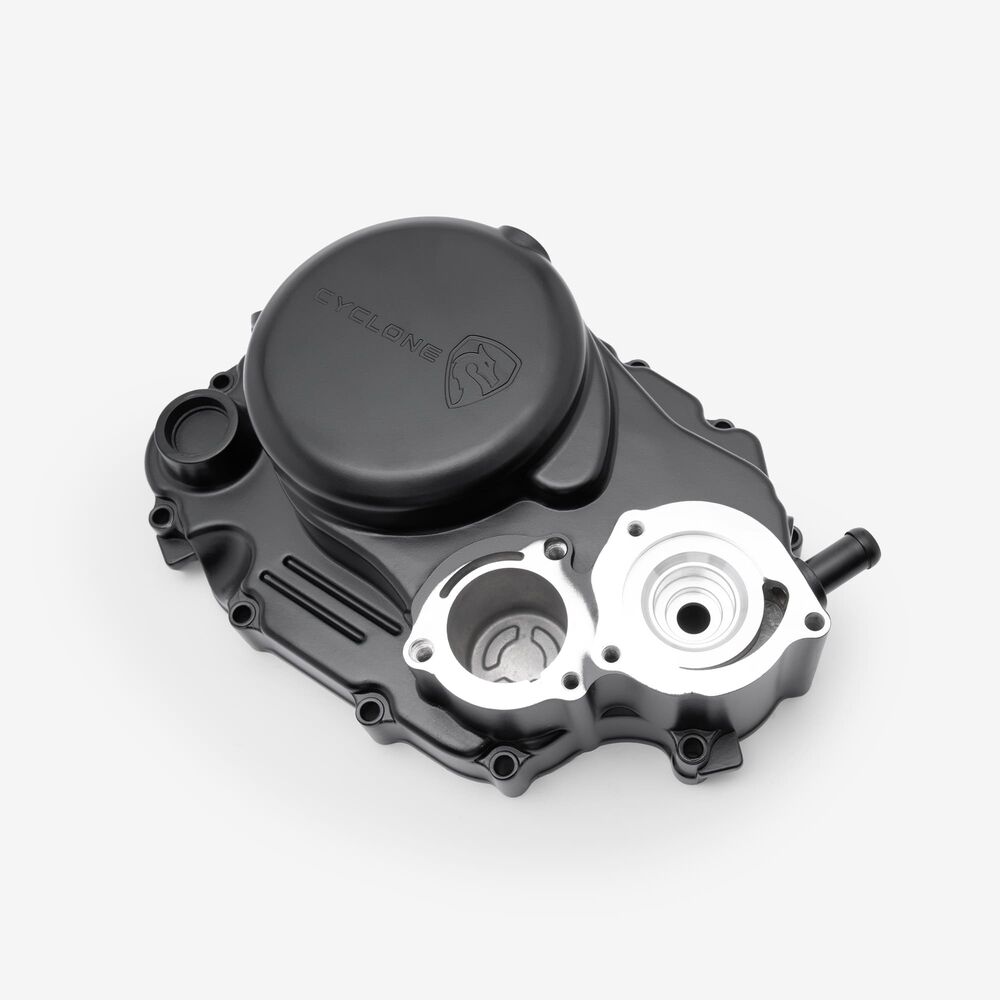

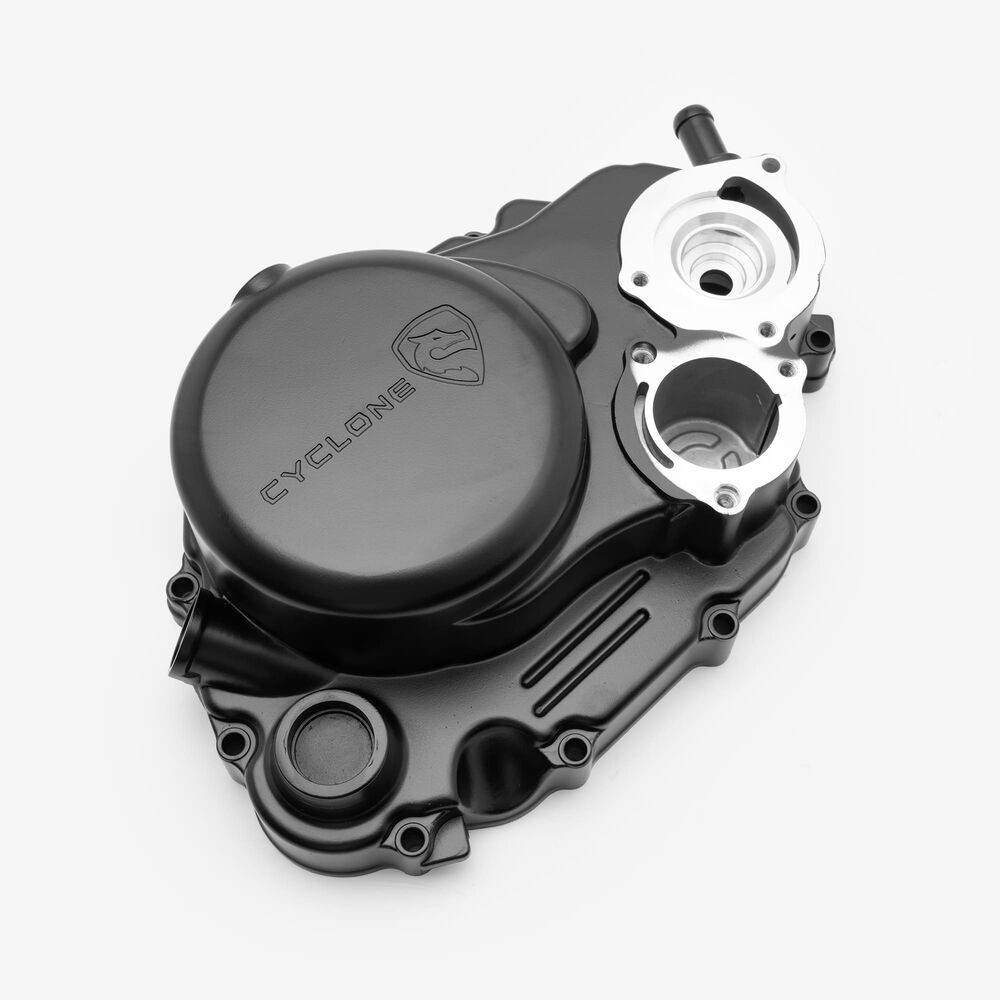

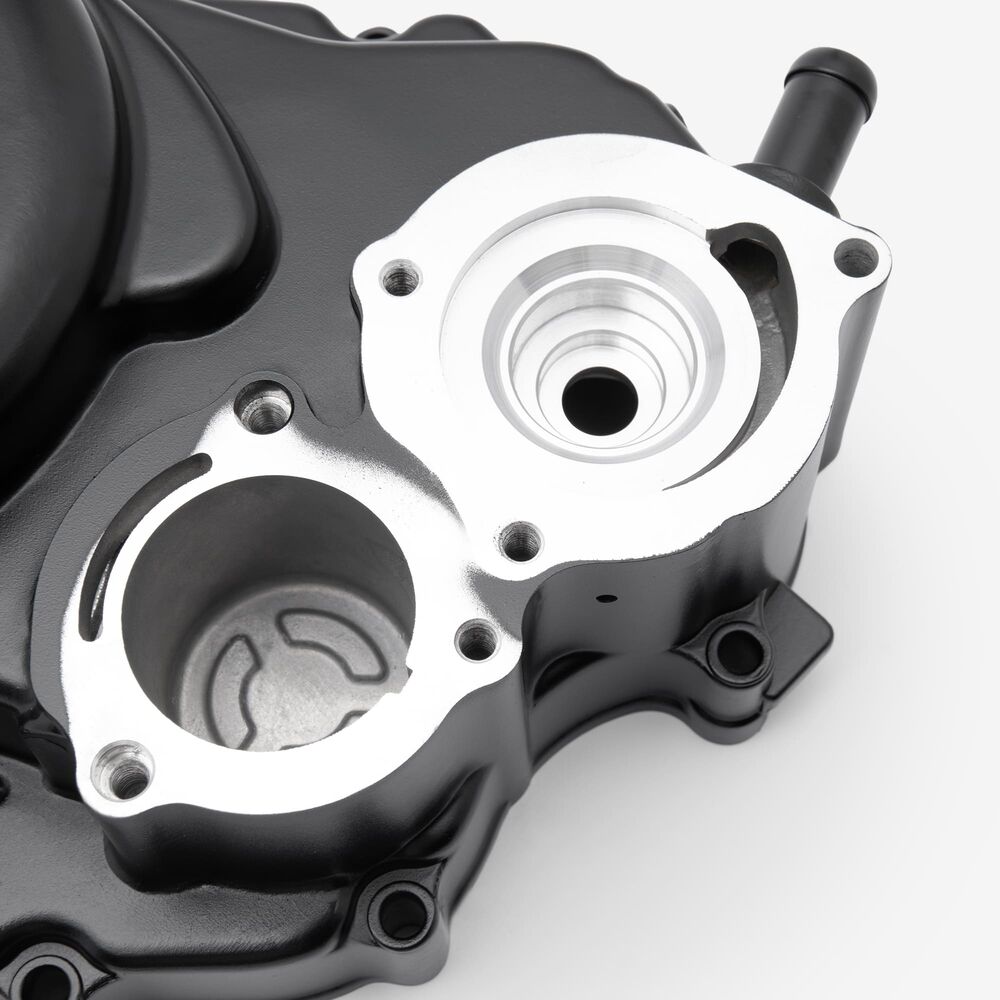

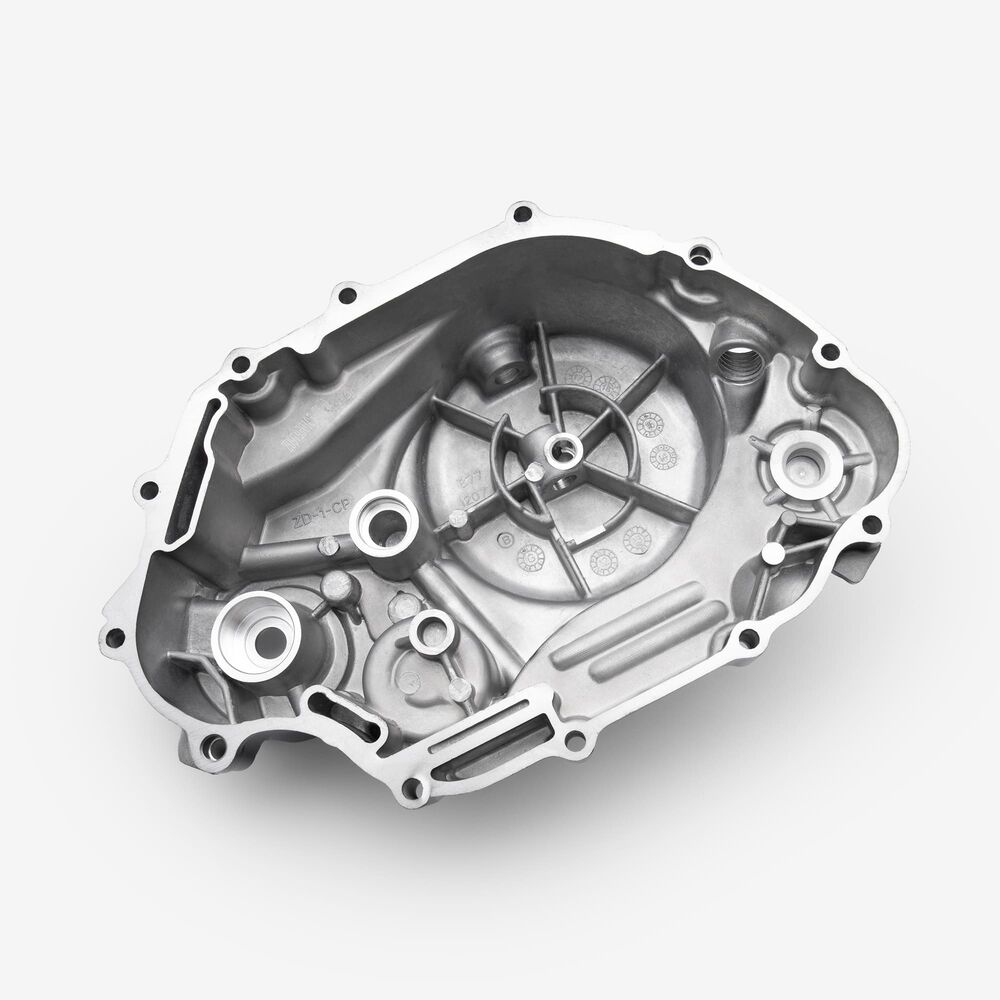

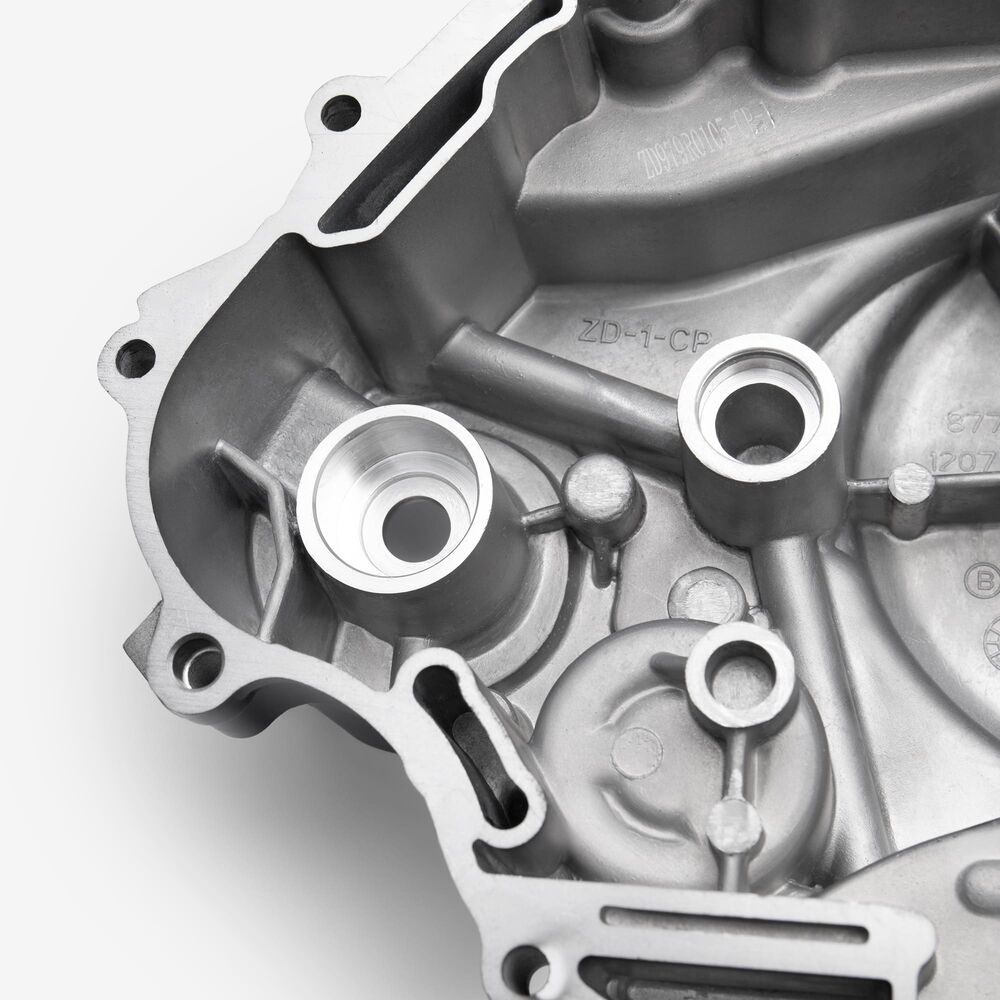

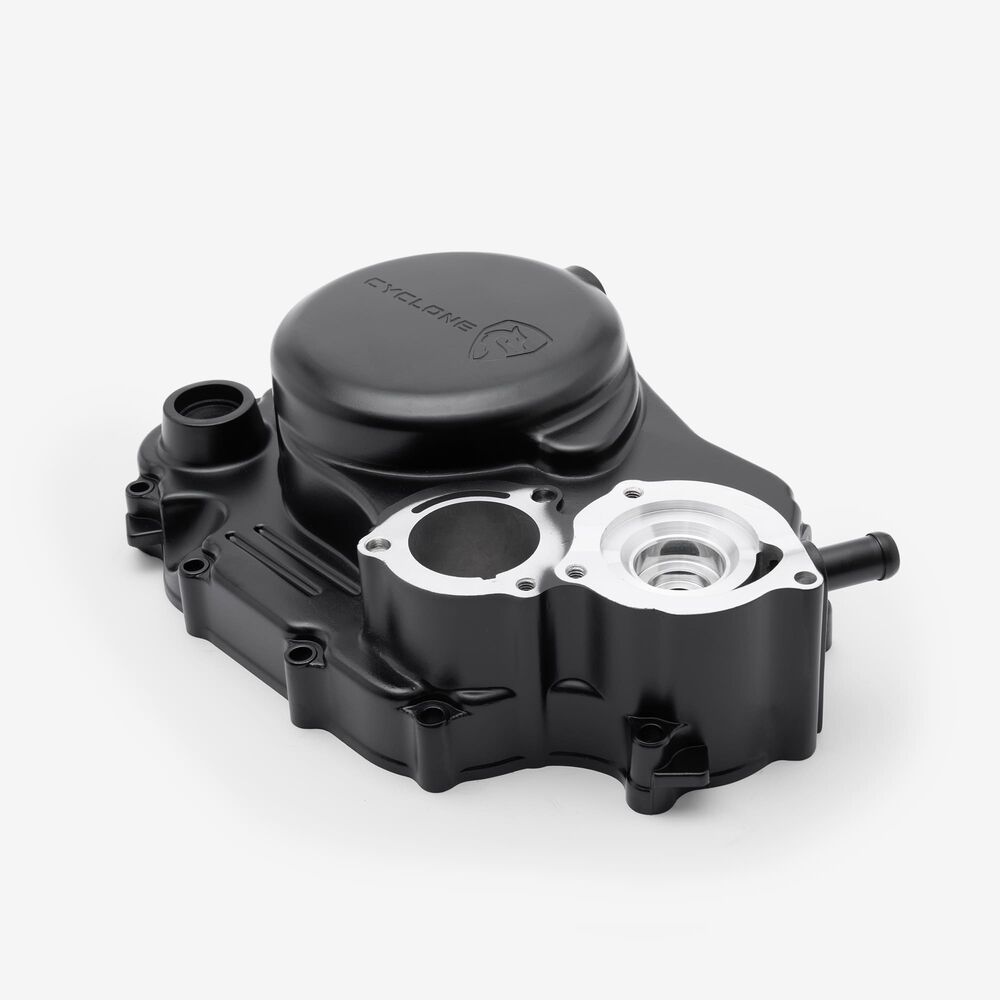

Right Engine Casing
ENGCR091
Description
"Another great Casing"
The right engine casing in a motorcycle encloses and protects the engine's internal components on the right side, ensuring structural integrity and safeguarding against dirt, debris, and damage.
Product Diagrams
| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 1 |  |
Flanged Hex Bolt M6 M6 x 30mm BLT078 x 1
|
||
| 2 |  |
Flanged Hex Bolt with Shank M6 x 40mm BLT079 x 1
|
||
| 4 |  |
Clutch Actuator Arm CLAA029 x 1
|
||
| 5 |  |
Oil Seal 18 x 12 x 5mm for SY125-10-SE-E5, ZS125-39-E5 OLSL110 x 1
|
||
| 6 |  |
Clutch Arm Spring SPNG250 x 1
|
||
| 7 |  |
Clutch Actuator Arm Roll Pin ZY125 SPLPN021 x 1
|
||
| 8 | |
Right Engine Casing ENGCR091 x 1
|
||
| 9 |  |
Oil Dipstick OLDP002 x 1
|
||
| 10 |  |
Dipstick O Ring 18.7 x 25.7 x 3.5mm for ZY125-E4 ORNG050 x 1
|
||
| 11 |  |
Engine Dowel 8 x 14mm DWL001 x 1
|
||
| 12 |  |
Clutch Cable Retaining Bracket BRCKT366 x 1
|
||
| 13 |  |
Right Crankcase (Clutch) Cover Gasket ZY125 for ZS125-48F,ZS125-48E GSKCR024 x 1
|
||
| 14 |  |
ZY125-E4 Flanged Hex Bolt M6 x 15mm BLT194 x 1
|
||
| 15 |  |
Stator Cable Bracket BRCKT102 x 1
|
||
| 16 |  |
Left Crankcase Cover Gasket ZY125 GSKCL019 x 1
|
||
| 17 |  |
Left Engine Casing for ZS125-79 ENGCL065 x 1
|
||
| 18 |  |
Left Black Crankcase Plug ZY125 CRCP015 x 1
|
||
| 19 |  |
O-Ring 27.4 x 32.7 x 2.65mm ORNG040 x 1
|
||
| 20 |  |
Black Engine Timing Check Plug ZY125 ENGTP005 x 1
|
||
| 21 |  |
O-Ring 13.2 x 18.5 x 2.65mm ORNG041 x 1
|
||
| 22 |  |
Hex Bolt M6 x 45mm BLT080 x 1
|
||
| 24 |  |
Flanged Hex Bolt with Shank M6 x 35mm BLT100 x 1
|
||
| 25 |  |
Left Engine Casing ENGCL102 x 1
|
||
| 26 |  |
Oil Filter OLF026 x 1
|
||
| 27 |  |
Oil Filter Housing O-Ring ORNG088 x 1
|
||
| 28 |  |
Oil Filter Cap OLFC032 x 1
|
||
| 29 |  |
Water Pump Gasket GSKWP002 x 1
|
||
| 30 |  |
Water Pump Cover WTPMP027 x 1
|
||
| 31 |  |
Dustproof Cap CPCVR058 x 1
|
Compatibility
| Manufacturer | Model | Diagram |
|---|---|---|
| Lexmoto | RX1 125 E55 [ZS125-86C-E55] | View parts diagram |
