Description
"Another great Casing"

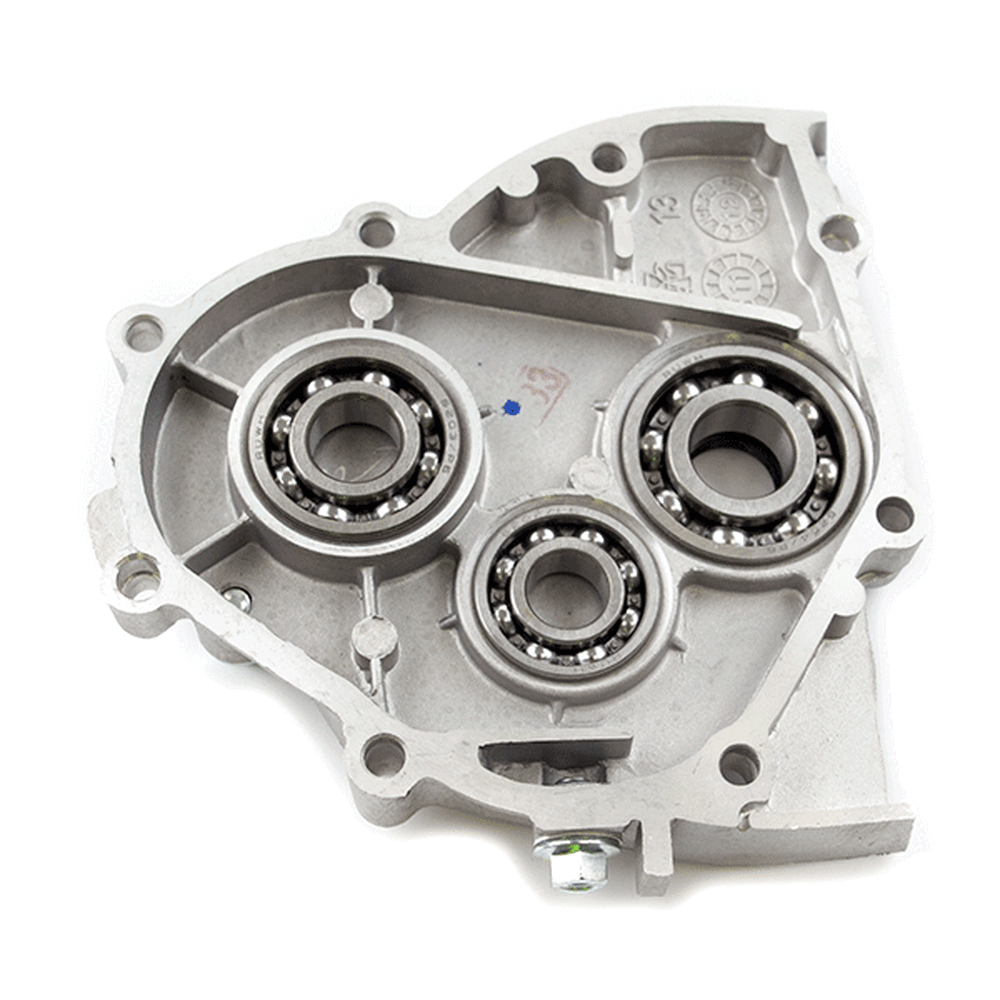

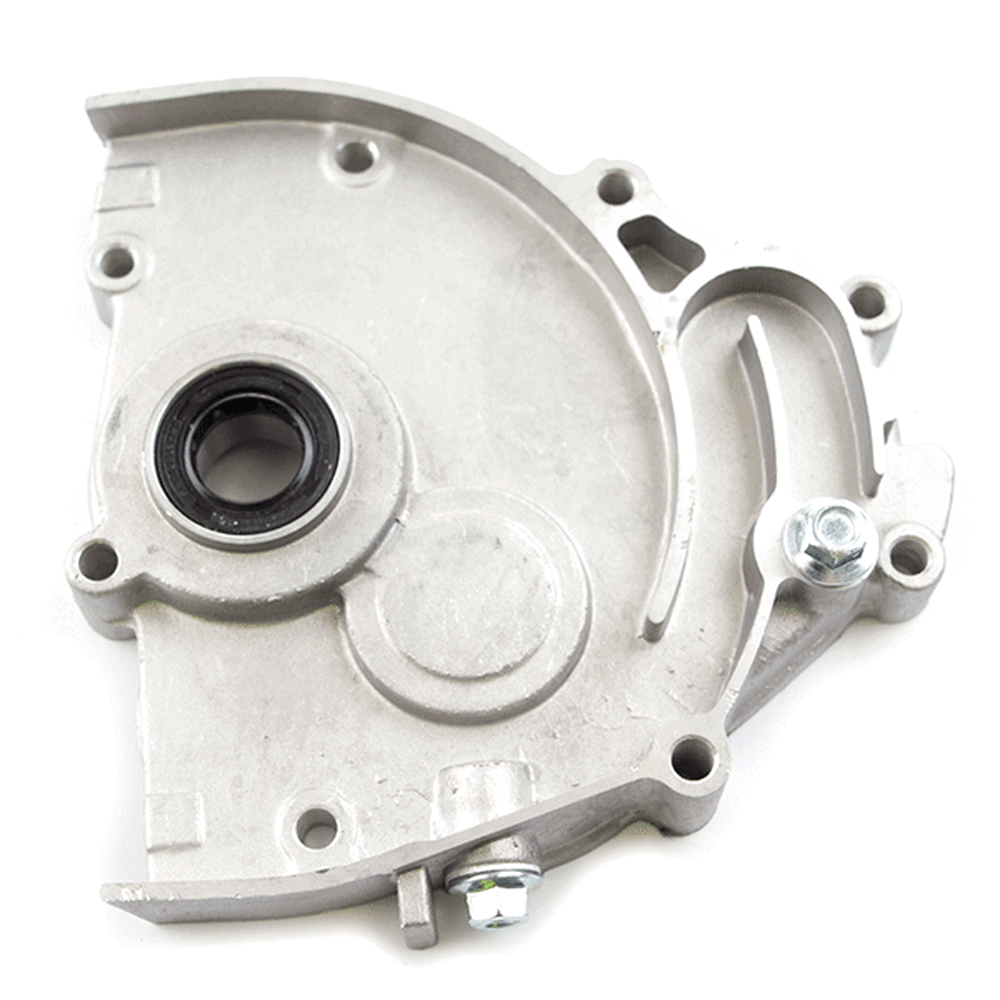

The gearbox casing in a scooter encloses and protects the gearbox components, housing the gears and shafts while ensuring proper lubrication and alignment for smooth transmission operation.
Product Diagrams
| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 1 |  |
Gearbox Casing TD125T-15 for TD125T-15, MITT125GTS GRBC007 x 1
|
£19.49 | |
| 2 | |
Crankcase Breather Pipe for TD125T-15, MITT125GTS PPB011 x 1
|
£1.99 | |
| 4 | |
Open Bearing 6204 P5 47 x 20 x 14mm BRG150 x 1
|
£9.49 | |
| 5 | |
Open Bearing 6202 35 x 15 x 11mm BRG147 x 1
|
£5.49 | |
| 6 | |
Open Bearing 6203 P5 17 x 40 x 12mm BRG149 x 1
|
£6.49 | |
| 7 | |
Final Drive Gear GRFD010 x 1
|
£15.49 | |
| 8 | |
Gearbox Input Shaft INSH018 x 1
|
£17.49 | |
| 9 | |
Gearbox Reduction Gear GRRD018 x 1
|
£21.49 | |
| 10 | |
Gearbox Output Shaft OTSH023 x 1
|
£21.99 | |
| 11 | |
Oil Seal 20 x 32 x 6mm OLSL036 x 1
|
£6.49 | |
| 12, 13 | |
Scooter Gearbox Oil Fill/Drain Plug & Washer M8 x 12mm SMPP004 x 1
|
£5.49 | |
| 18 | |
Gearbox Gasket 152QMI GSKGB008 x 1
|
£5.49 |
Compatibility
| Manufacturer | Model | Diagram |
|---|---|---|
| Lexmoto | Chieftain 125 [TD125T-15] | View parts diagram |
| Mitt | Mitt 125 GTS [MITT125GTS] | |
