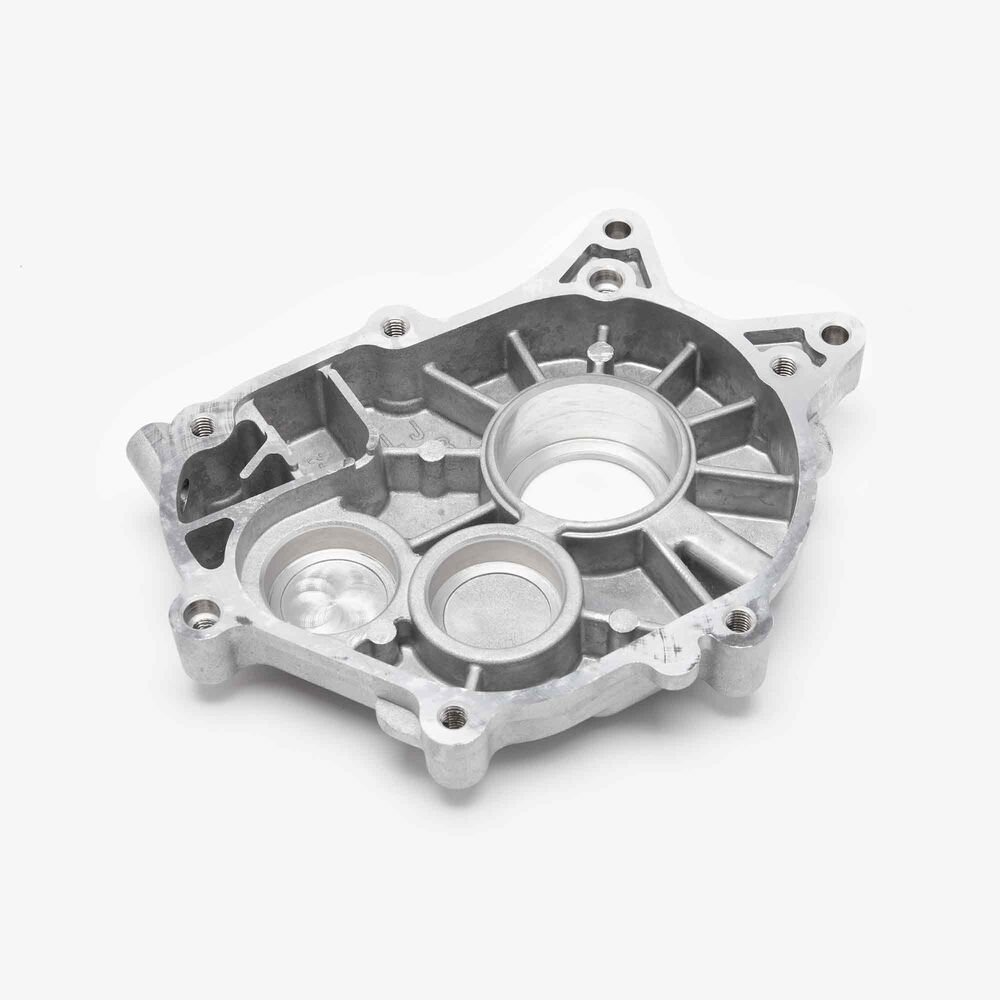

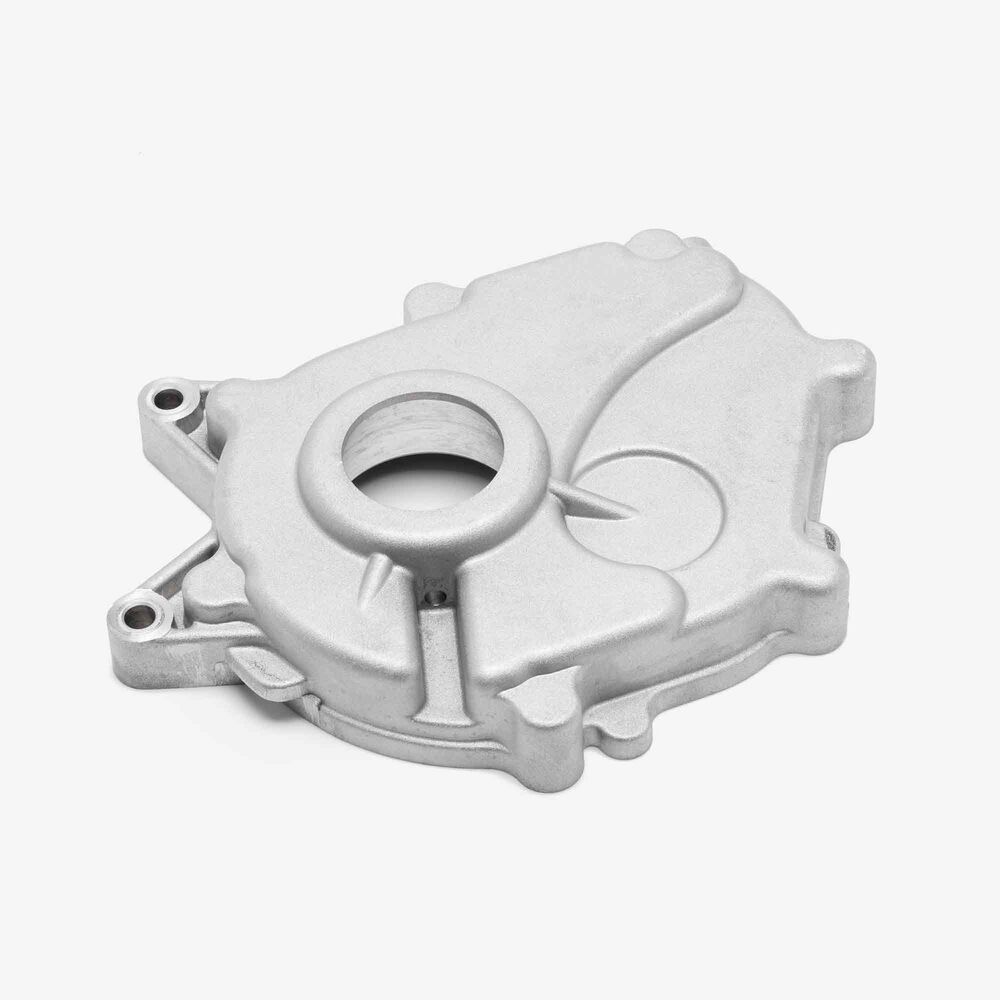

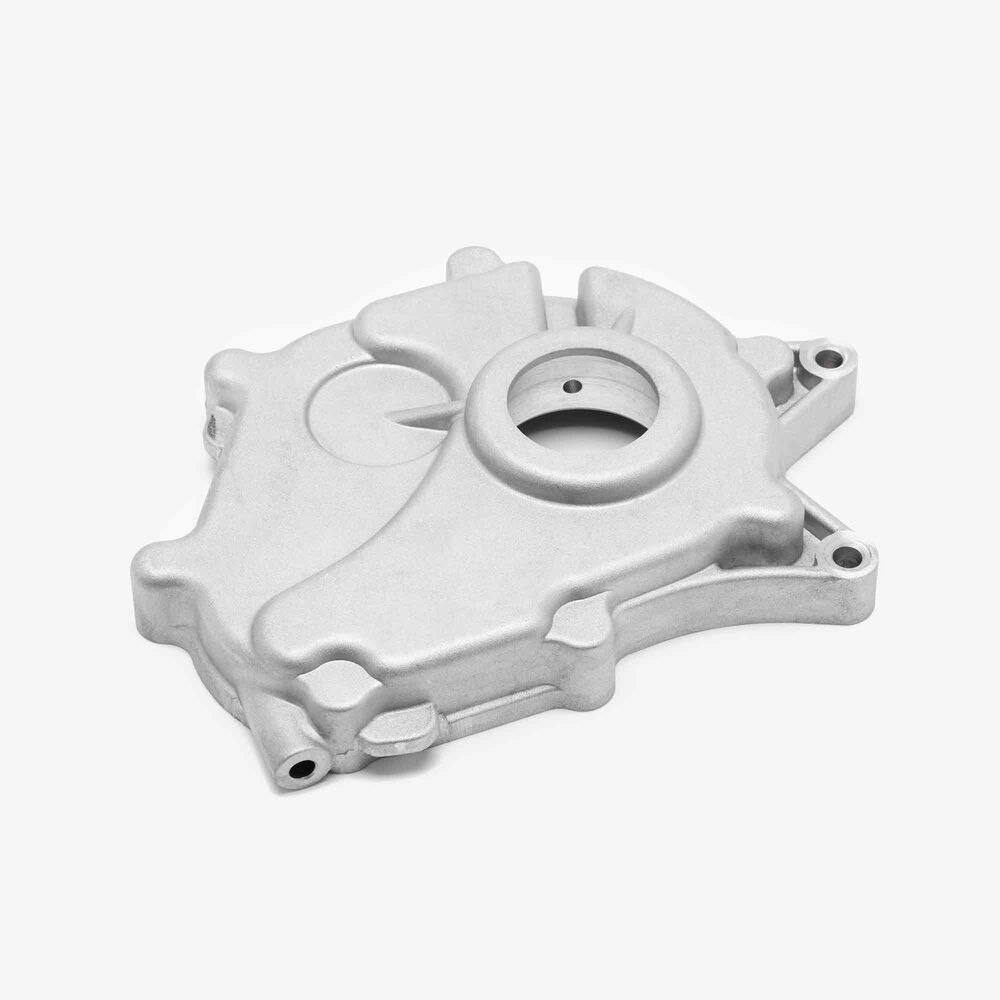

Gearbox Casing for LJ125T-18-E5
Durable Mission Case for Your Scooter
This high-quality mission case is designed to protect and house the vital components of your scooter's transmission system.
Key Features:
- Robu... view more
£23.49 £18.79 Sale
Availability: In Stock
Order before 4pm for same day dispatch
0
Hours
0
Mins
0
Secs
Description
"Another great Casing"
Durable Mission Case for Your Scooter
This high-quality mission case is designed to protect and house the vital components of your scooter's transmission system.
Key Features:
- Robust Construction: Built from strong materials for long-lasting durability and resistance to wear and tear.
- Precise Fitment: Engineered for a direct replacement, ensuring easy installation and proper alignment.
- Essential Protection: Safeguards your gearbox and related parts from external damage and debris.
Keep your scooter's drivetrain running smoothly and reliably with this essential replacement part.

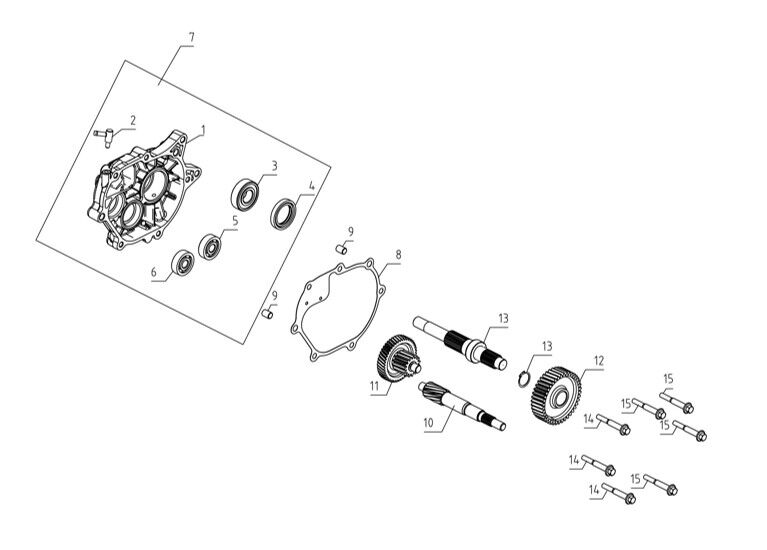

Product Diagram
DRIVESHAFT diagram - Lexmoto Aura 125 E55 - LJ125T-18D-E55
| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 1 |  |
Gearbox Casing for LJ125T-18-E5 GRBC013 x 1
|
||
| 2 | |
Cam Cover Breather Outlet PPB024 x 1
|
||
| 3 | |
Bearing 6205RSL BRG041 x 1
|
||
| 4 | |
Oil Seal 34 x 52 x 8mm for LJ125T-18, LJ125T-18-E5 OLSL096 x 1
|
||
| 5 | |
Open Bearing 6301 37 x 12 x 12mm BRG153 x 1
|
||
| 6 | |
Bearing 6301 TPI BRG221 x 1
|
||
| 7 | |
125cc Gearbox Casing GRBC006 x 1
|
||
| 8 | |
125cc Scooter Gearbox Gasket LJ1P52QMI GSKGB004 x 1
|
||
| 9 | |
Engine Dowel 10 x 4mm DWL003 x 1
|
||
| 10 | |
125cc Scooter Gearbox Input Shaft LJ1P52QMI INSH010 x 1
|
||
| 11 | |
Gearbox Reduction Gear LJ1P52QMI GRRD037 x 1
|
||
| 12 | |
Final Drive Gear LJ1P52QMI GRFD007 x 1
|
||
| 13 | |
Output Shaft LJ1P52QMI-B for LJ125T-18, LJ125T-18-E5 OTSH034 x 1
|
||
| 14 | |
Hex Bolt with Shank M8 x 55mm BLT108 x 1
|
||
| 15 | |
Bolt M8 x 65mm BLT395 x 1
|
More Product Diagrams
This part appears on 1 other diagram
Compatibility
| Manufacturer | Model | Diagram |
|---|---|---|
| Lexmoto | Aura 125 E55 [LJ125T-18D-E55] | View parts diagram |
| Aura 125 Euro 5 [LJ125T-18-E5] | View parts diagram | |
