GRBXC011"In the category of Transmissions and Gearing, Gearboxes"

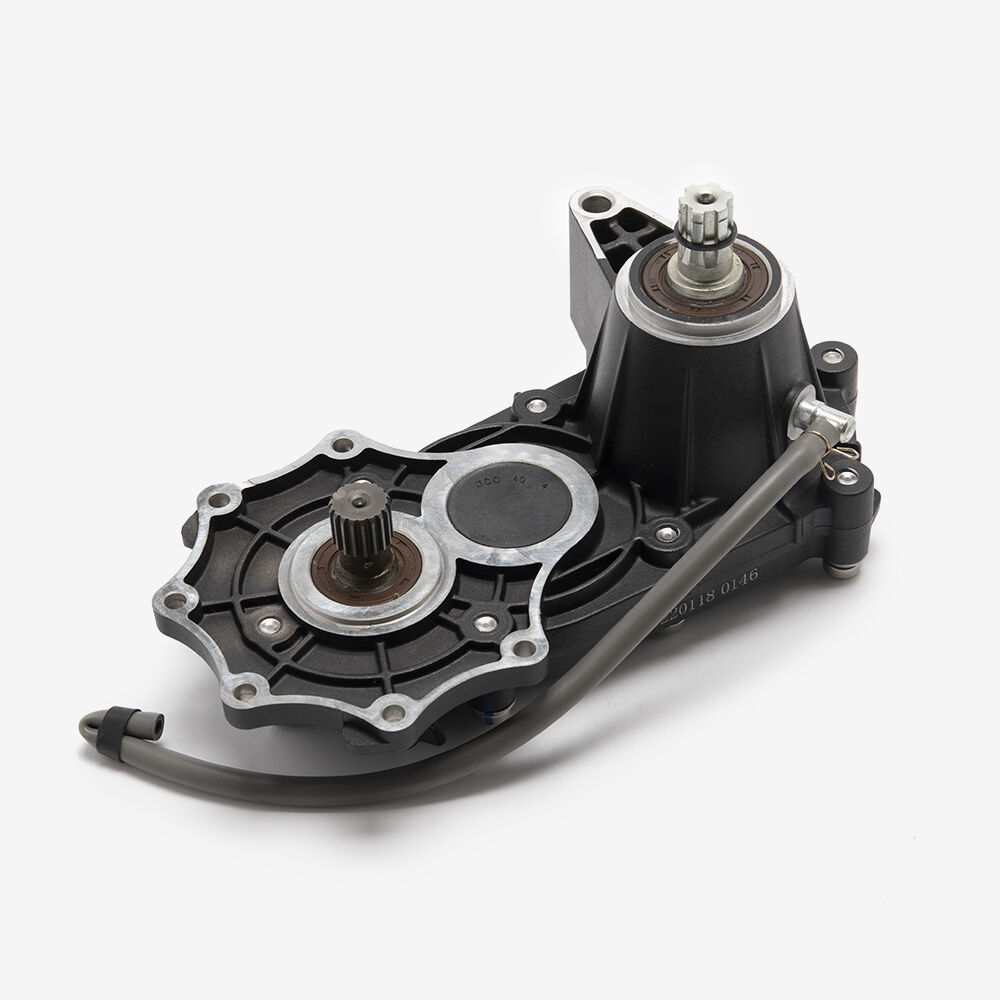

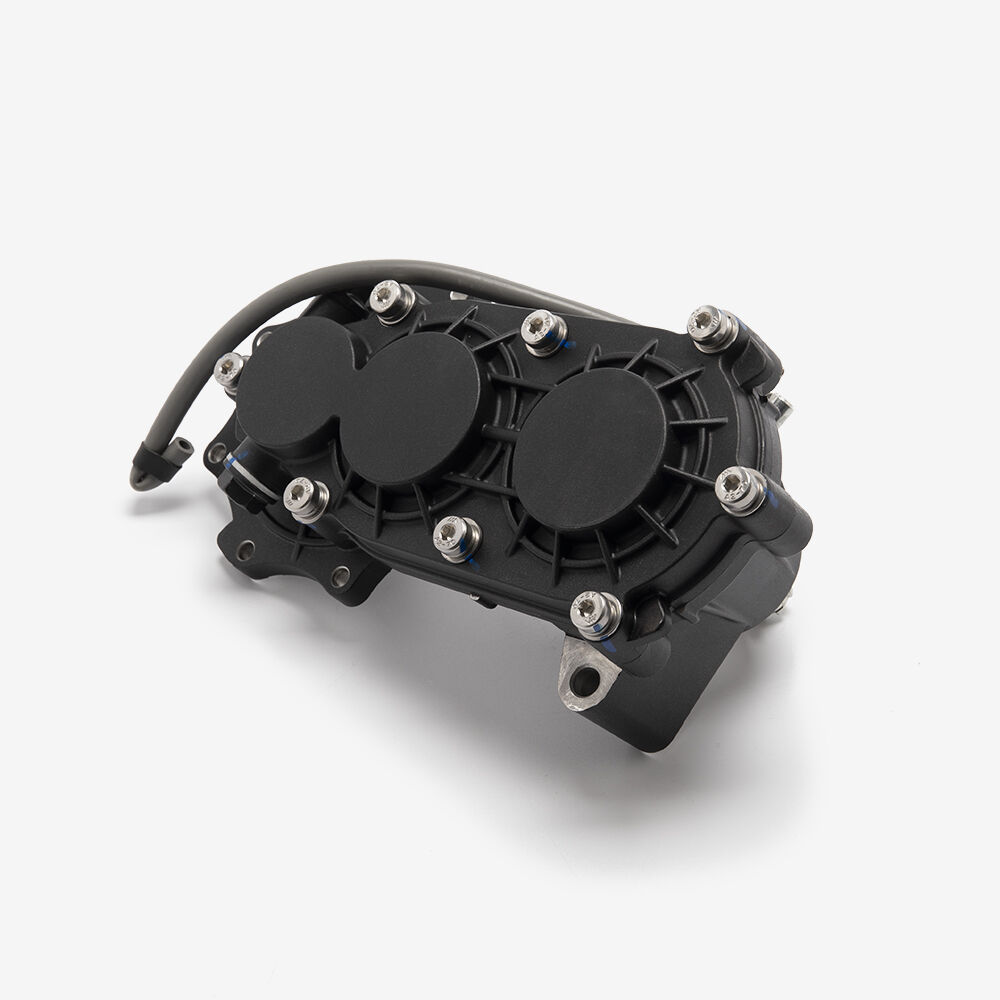

he complete gearbox in a motorcycle is the assembly responsible for shifting and controlling gears.

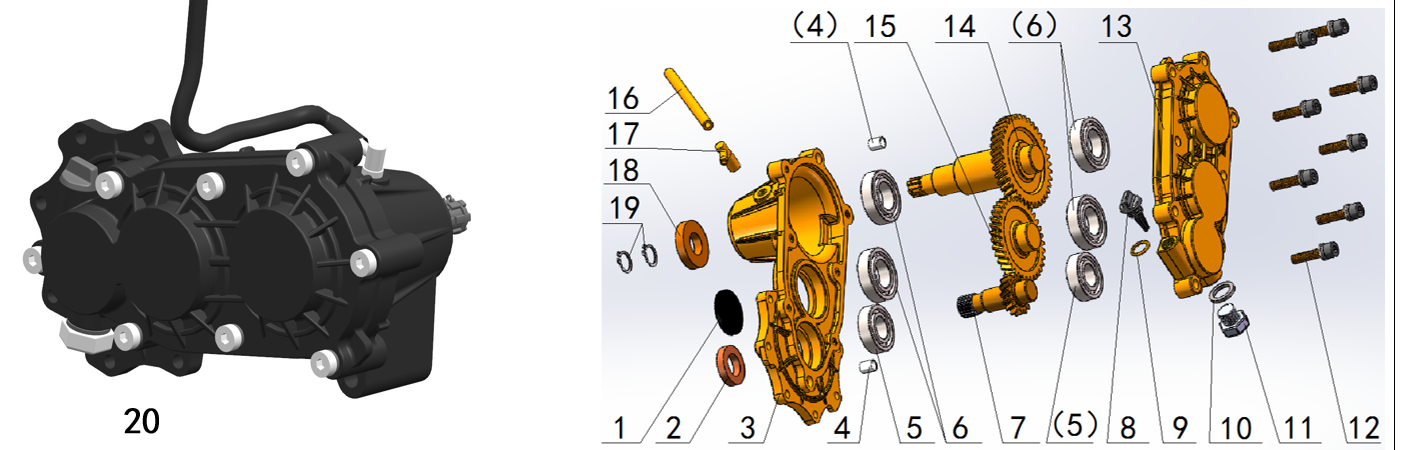

| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 8 | ![]() |
Oil Dipstick OLFC029 x 1
|
||
| 9 | ![]() |
Oil Filter Ring 13.2 x 18.5 x 2.65mm ORNG111 x 1
|
||
| 10 | ![]() |
Washer GB/97.1 M16 WSH0078 x 1
|
||
| 11 | ![]() |
Sump Plug for TL45, Sting, Sting R SMPP027 x 1
|
||
| 20 | ![]() |
Complete Gearbox GRBXC011 x 1
|
| Manufacturer | Model | Diagram |
|---|---|---|
| Talaria | Sting Offroad [TL3000] | View parts diagram |
| Sting R Road Legal [TL50] | View parts diagram | |
| Sting R [TL60] | View parts diagram | |
| Sting R [TL4000] | View parts diagram | |
| Sting Road Legal [TL45] | View parts diagram | |
