"Another great EV Motor"

The EBMX motor range has been specifically designed to surpass the performance of other motors in their classes. The XLB-60 RACE edition, designed for speed and maximum RPM, this is the fastest motor on the market!

Using our EBMX rotor design we have lengthened the torque band to create a constant pulling force from 0 to 13000RPM. The XLB60 RACE is aimed at the racer, from MX to trail or even the drag strip, designed to handle the heat and bring insane levels of RPM.

The EBMX motors have been custom built and are finely tuned to work with the EBMX X-9000 controller.

Harness and mount sets are available to use this motor with SurRon Light Bee or Eride Pro.

The motor has a larger stator that its little brother the XLB-60 going up from 60 to 65mm and a screaming 105kv wind.

More Power, More Speed, More Fun, More Savage!

Recommend X9000 Settings on a 400Amp BMS 20S22S

1000 Phase / 30KW

900 Phase / 25KW

800 Phase / 20KW

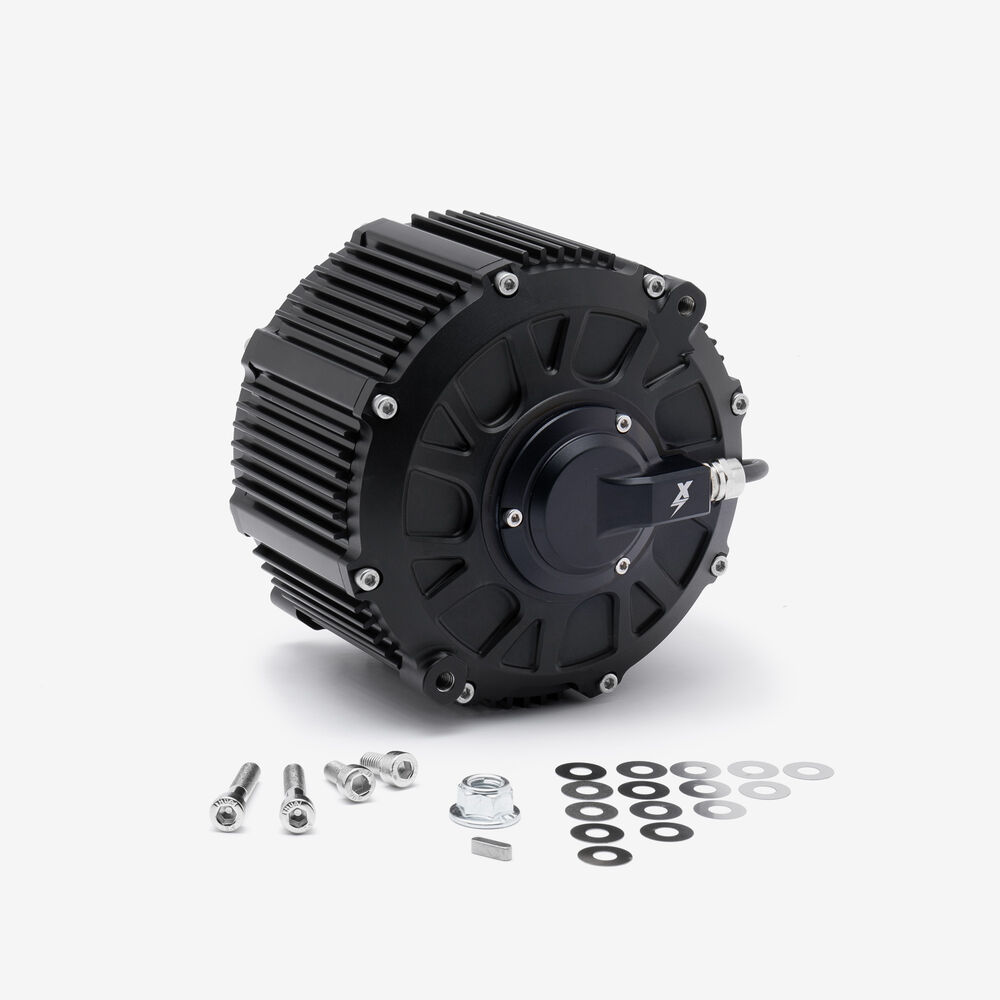

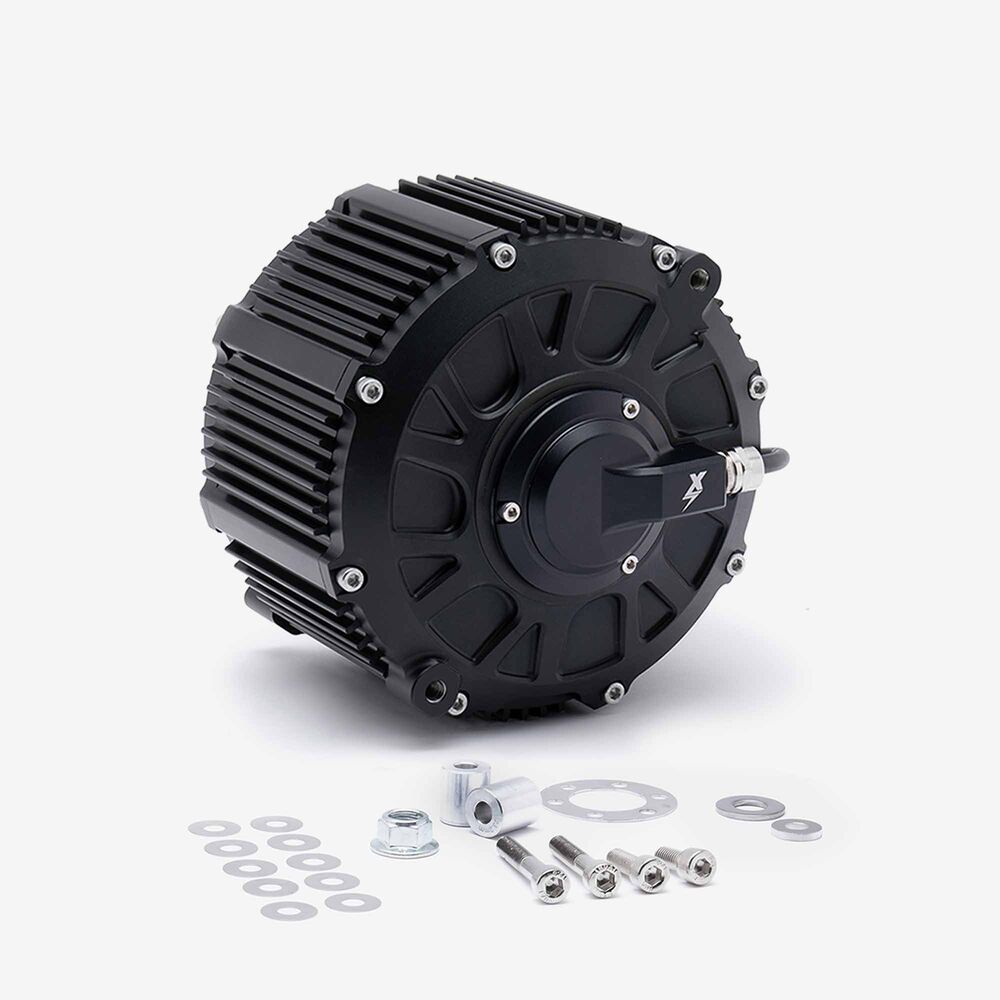

MTR028 Description EBMX XLB-60 Race Motor Black

The motor in an electric vehicle (EV) is the component that converts electrical energy from the battery into mechanical energy to drive the vehicle. It provides propulsion by generating torque, which turns the rear wheel.

Details

35KW rated and tested, designed from the ground up to handle the heat, 180C rated windings with U42H magnets

Custom IPM rotor design and industry leading 1mm rotor air gap revving out to rated 13000RPM. Encoder based motor control for increased low end torque response and smooth predicable power delivery.

Encoder sensors, on the other hand, are capable of tracking motor position at all speeds and do so more frequently than hall sensors. As a result they can deliver a smoother more responsive and controllable powerband and they do not generate the same type of current spikes that often cause controller issues. Furthermore, they contribute to improved low-end torque control and overall motor response.

EBMX motor have been custom built and are finely tuned to work with the EBMX X-9000 controller. These motors will work with many other types of controllers, however they may require you to do your own custom tuning.

In contrast to many of our competitors who utilise hall sensors we have opted to incorporate encoder sensors in our motors This decision stems from the fact that encoder sensors demonstrate greater stability under demanding riding conditions While hall sensors rely on estimated rotor positions encoder sensors consistently provide precise angle measurements of the rotors position Hall sensors are typically employed for tracking motor position during startup and up to approximately 2000 rpm after which the motor operates in a sensorless manner However during intense riding situations such as wheel spinning and sudden deceleration combined with rapid throttle adjustments hall sensors angle detection can result in substantial current spikes in the controller This can pose significant issues for many controllers leading to tripping and loss of throttle power although this is less prevalent in the X9000

In contrast to many of our competitors who utilise hall sensors, we have opted to incorporate encoder sensors in our motors. This decision stems from the fact that encoder sensors demonstrate greater stability under demanding riding conditions. While hall sensors rely on estimated rotor positions, encoder sensors consistently provide precise angle measurements of the rotor's position. Hall sensors are typically employed for tracking motor position during start-up and up to approximately 2000 rpm, after which the motor operates in a

In contrast to many of our competitors who utilise hall sensors, we have opted to incorporate encoder sensors in our motors. This decision stems from the fact that encoder sensors demonstrate greater stability under demanding riding conditions. While hall sensors rely on estimated rotor positions, encoder sensors consistently provide precise angle measurements of the rotor's position. Hall sensors are typically employed for tracking motor position during start-up and up to approximately 2000 rpm, after which the motor operates in a

IMPORTANT INFORMATION

A custom EBMX Bash Plate is included with your motor.

Specifications

Peak Power: 35000W
Voltage Range: 48v - 104v
Max Torque: 52Nm
Max Stable Rotor RPM: 13000RPM
Motor Configuration: 10 Poles and 12 Slots
Winding Type: Dual Y Parallel Connection
Stator and Rotor Stack Thickness: 60mm
Sensing Method: NJDC 605 Encoder
Kv Value: 95Kv
Rated Power: Air Cooled: 13600W (Continuous run for 28 mins)
Rated Power (cont): Water Cooled: 26000W (Continuous run for 4 mins 30 seconds)
Warranty: 2 Year
Max Phase Current: 900A
Rated Phane Current (continuous run): 500A (28Nm)
Waterproofing: IP67
Colour Options: Black/Red/Blue/Gold/Purple
Weight: 11.2kg
Brand: EBMX
Colour: Black
Country/Region of Manufacture: China
Current Type: DC
Features: Easy Installation
Item Weight: 11.2kg
Machine Type: Street Motorcycle
Manufacturer Part Number: MTR028
Manufacturer Warranty: 2 Year
Maximum Power: 35000W
Maximum RPM: 10001 RPM - 15000 R
Mounting Style: Bolted
Peak Torque: 0 Nm - 500 Nm
Performance Part: No
Type: Drivetrain Motor
Unit Quantity: 1
Unit Type: Unit
Universal Fitment: No
Voltage: 48V - 104V

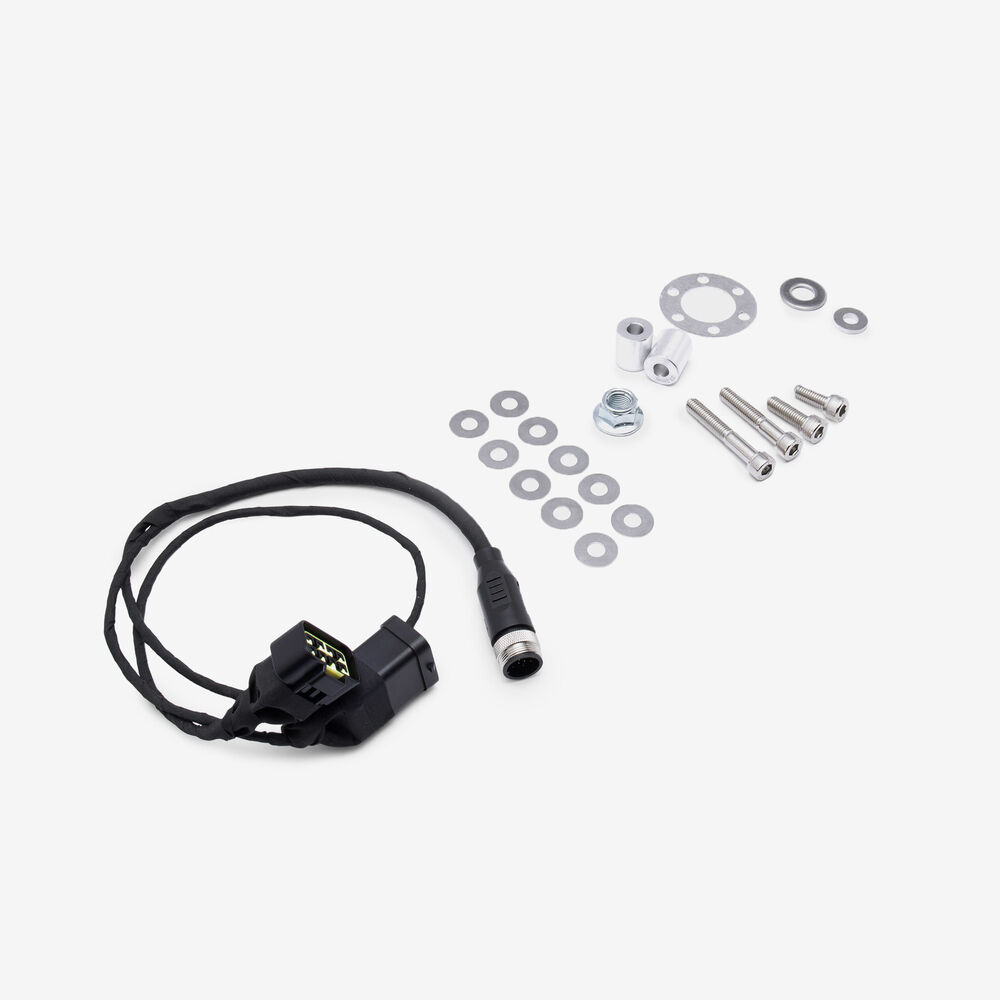

WRLM324 Description EBMX XLB-60 Harness and Fitting Kit for PRO-SS

Details

EBMX XLB-60 Harness and Fitting Kit for PRO-SS

Upgrade your PRO-SS with this comprehensive wiring loom and fitting kit. Designed for seamless integration, this kit provides all the necessary components for a reliable and organized electrical system.

• Durable Construction: Built with high-quality materials to withstand the demands of riding.
• Complete Solution: Includes all fittings and harness components for a straightforward installation.
• Optimized Performance: Ensures efficient and stable electrical connections for your PRO-SS.

Get your PRO-SS running smoothly with this essential upgrade.

Specifications

Brand: EBMX
Brand Type: EBMX
Classic Part: No
Features: Easy Installation
Items included: Wiring Loom
Machine Type: E-bike
Manufacturer Part Number: WRLM324
Manufacturer Warranty: 12 Months
Number in Pack: 1
Performance Part: No
Reference OE/OEM Number: 115900209
Type: Wiring Loom
Universal Fitment: No
Voltage: 12V
