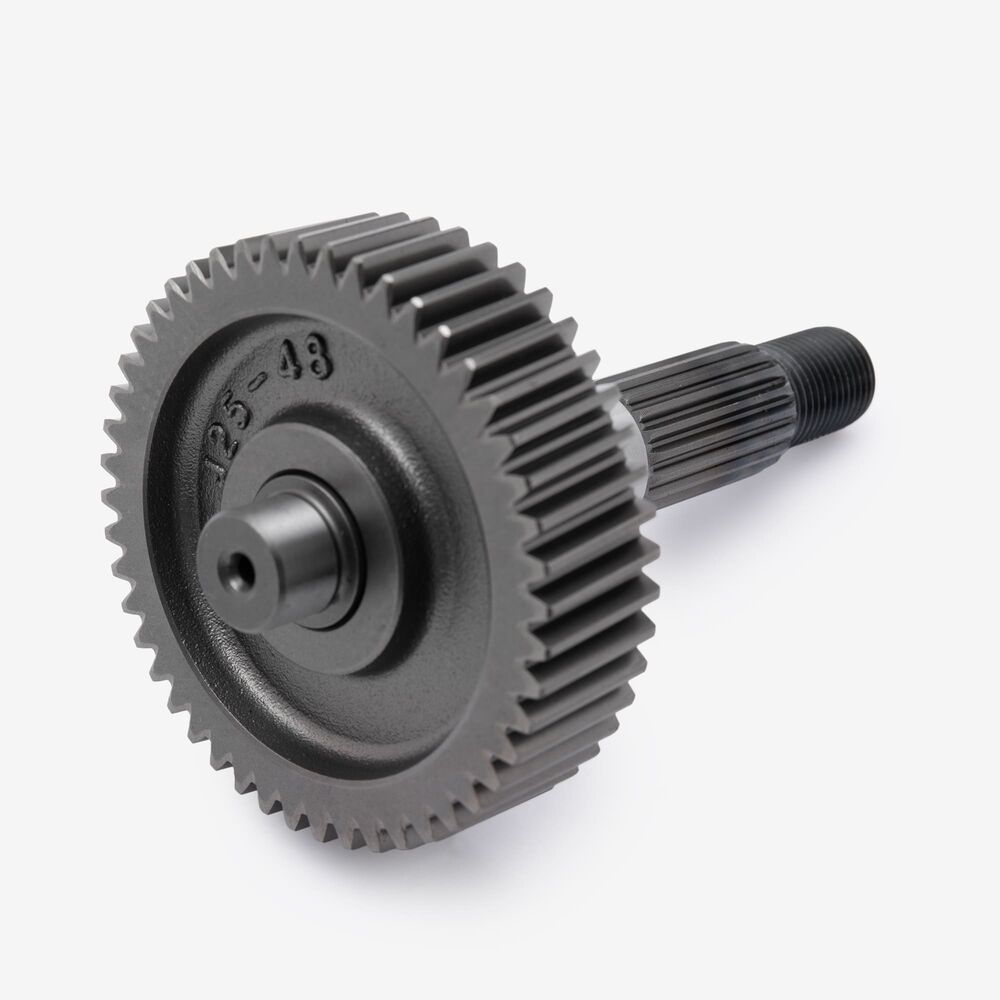

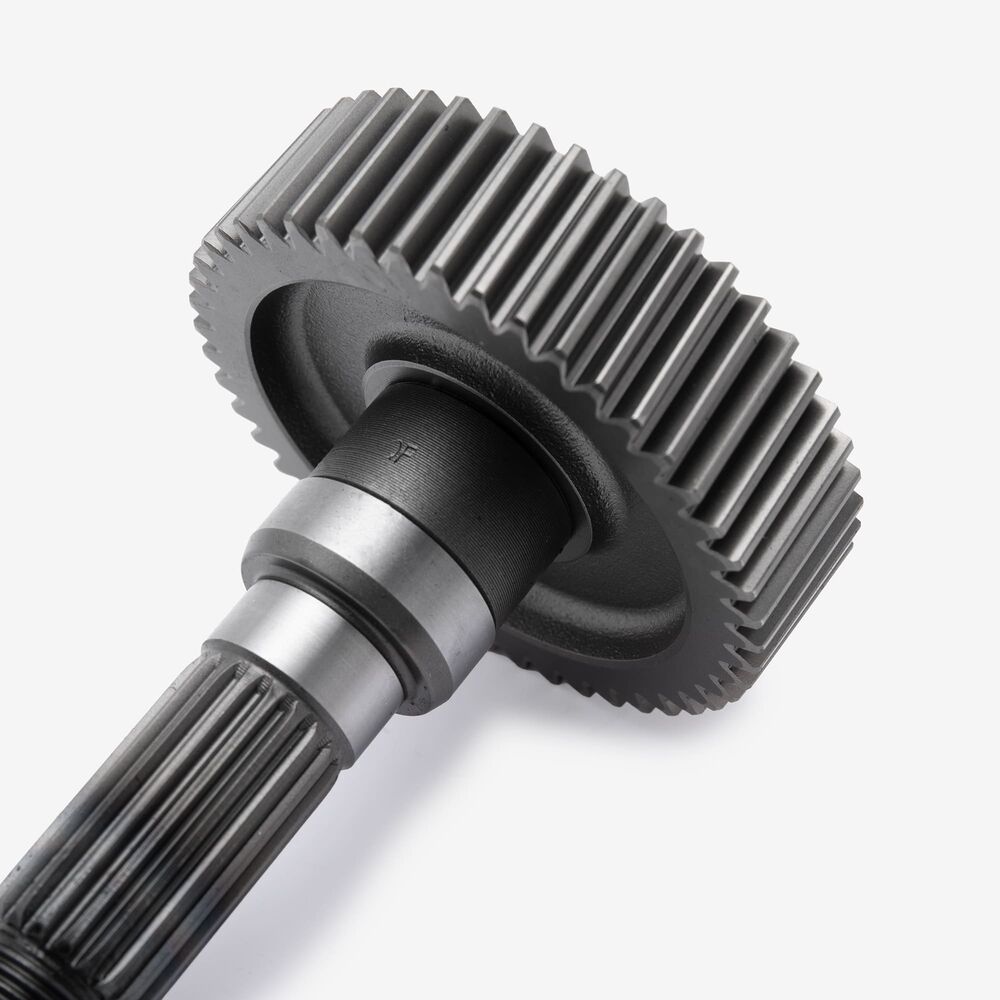

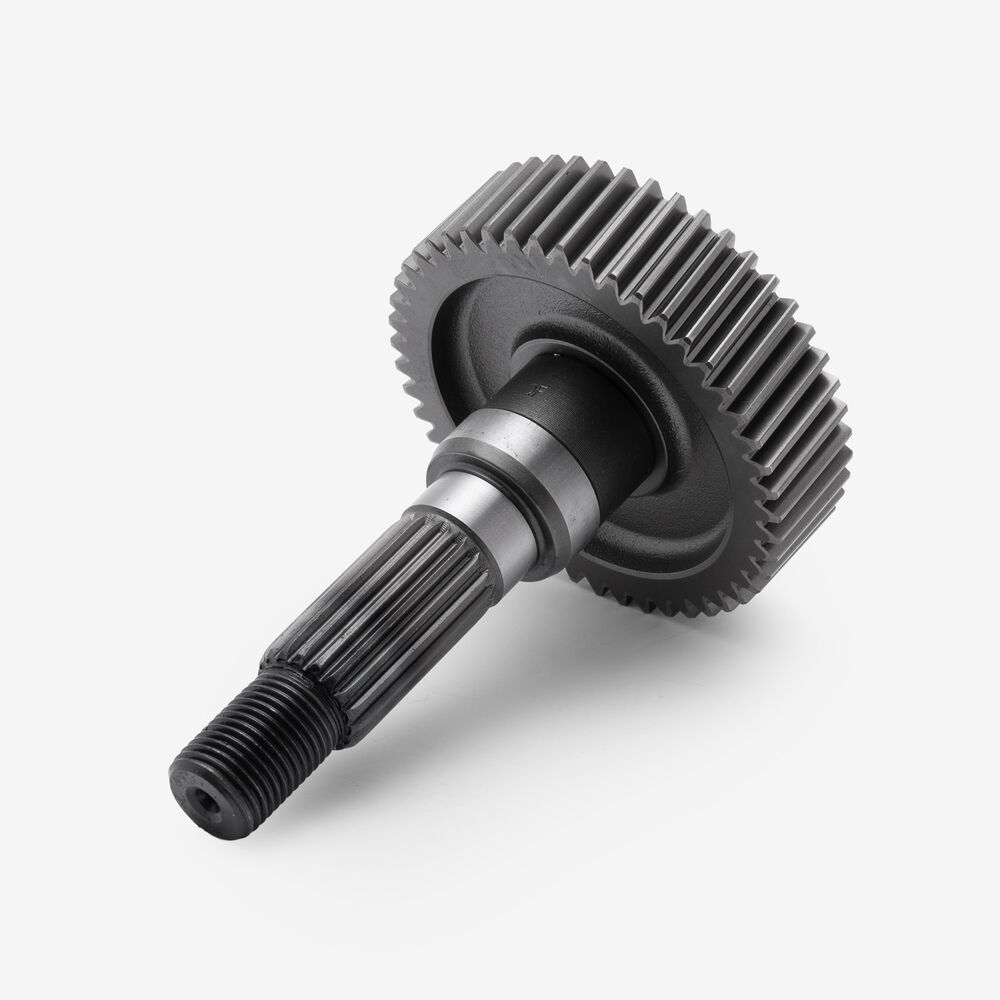

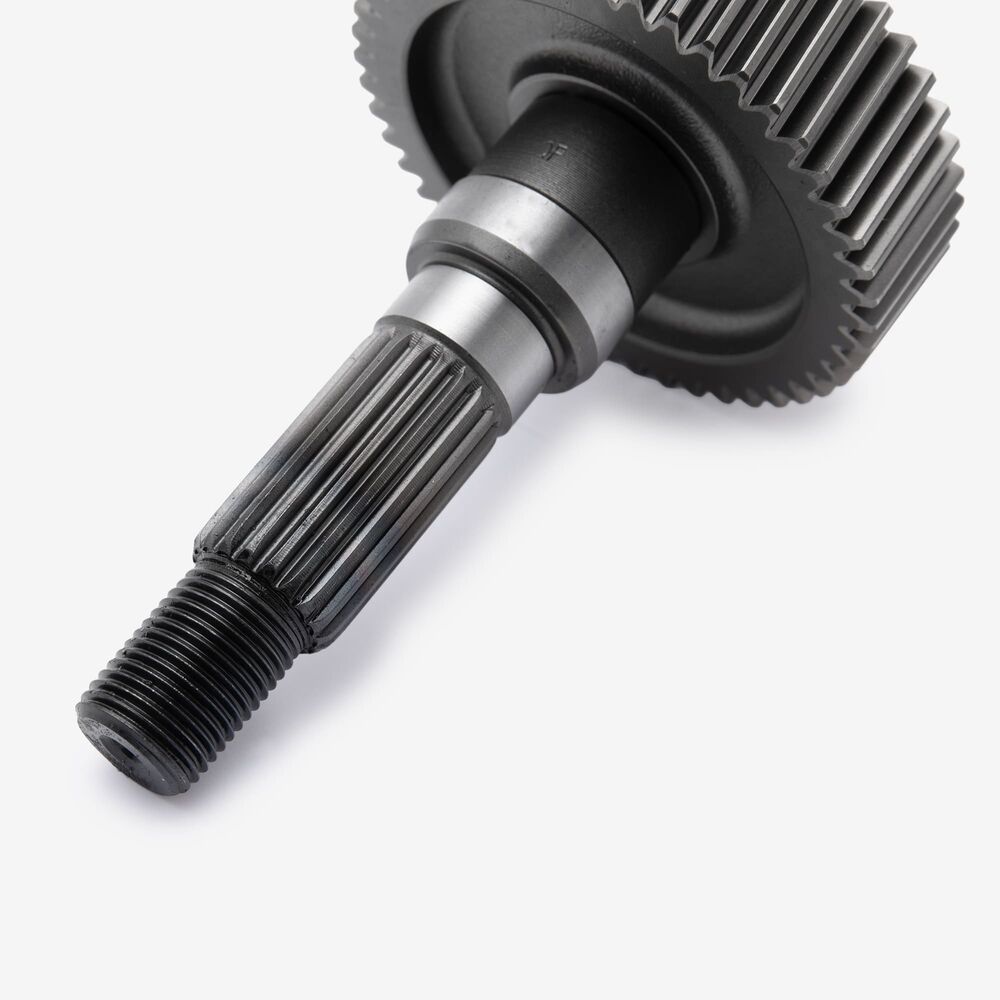

OTSH051"You should buy this Output Shaft (CVT Only)"
The output shaft on a motorcycle is a crucial component of the transmission system that transmits power from the engine to the rear wheel. It converts the rotational motion of the engine into the drive force necessary for propulsion. Typically made from hardened steel or alloy, the output shaft is designed to withstand high torque and stress while ensuring smooth and efficient power transfer.
| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 3 | ![]() |
Scooter Gearbox Casing GRBC016 x 1
|
||
| 6 | ![]() |
Bearing 6301 BRG214 x 1
|
||
| 7 | ![]() |
Bearing 6201 BRG215 x 1
|
||
| 8 | ![]() |
Input Shaft INSH039 x 1
|
||
| 9 | ![]() |
Transmission Gasket GSKGB012 x 1
|
||
| 11, 12 | ![]() |
Reduction Gear GRRD056 x 1
|
||
| 14 | ![]() |
Output Shaft (CVT Only) OTSH051 x 1
|
||
| 15 | ![]() |
Final Drive Gear GRFD020 x 1
|
||
| 16 | ![]() |
Bearing 6004-2RS BRG217 x 1
|
||
| 18 | ![]() |
Flange Bolt M6 x 32mm BLT926 x 1
|
||
| 19 | ![]() |
Oil Seal 20 X 14 X 3.2 Mm OLSL149 x 1
|
| Manufacturer | Model | Diagram |
|---|---|---|
| Lexmoto | OCR 125 E55 [WB125T-3B-E55] | View parts diagram |
