OTSH053"In the category of Transmissions and Gearing, Gearboxes"

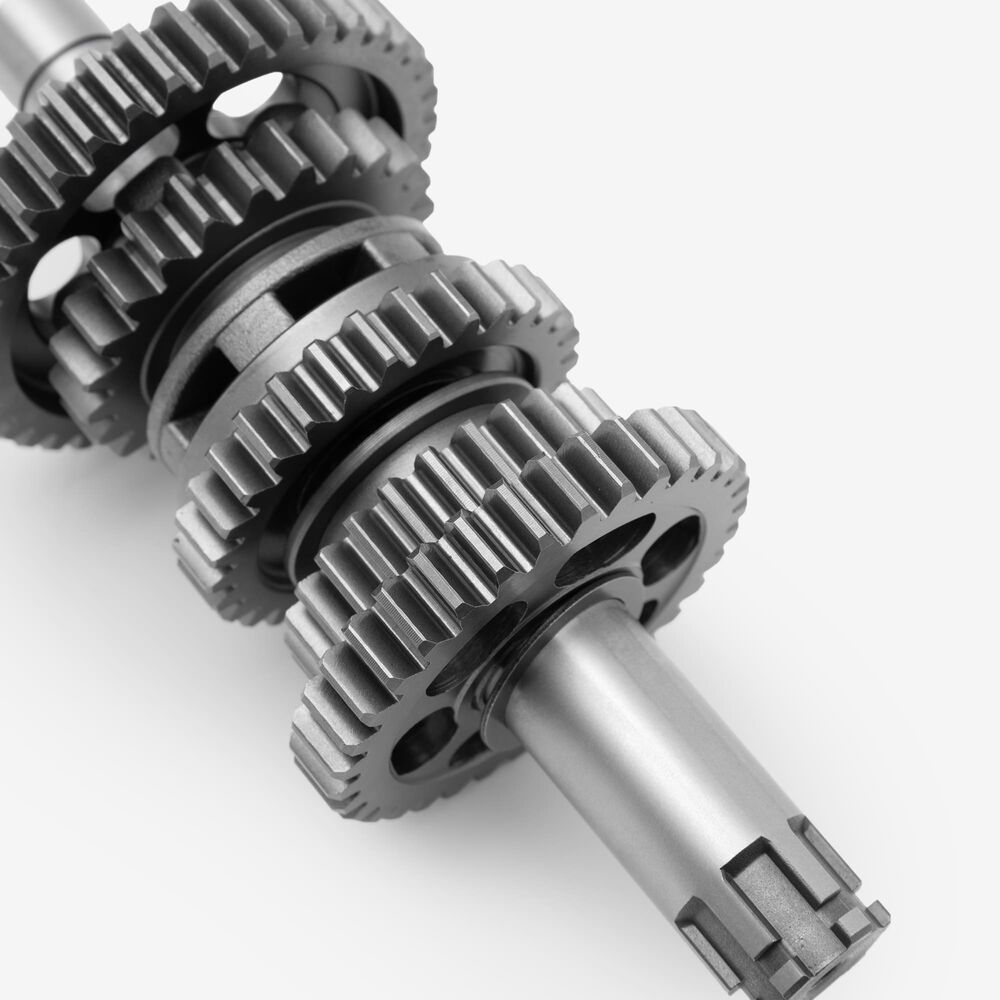

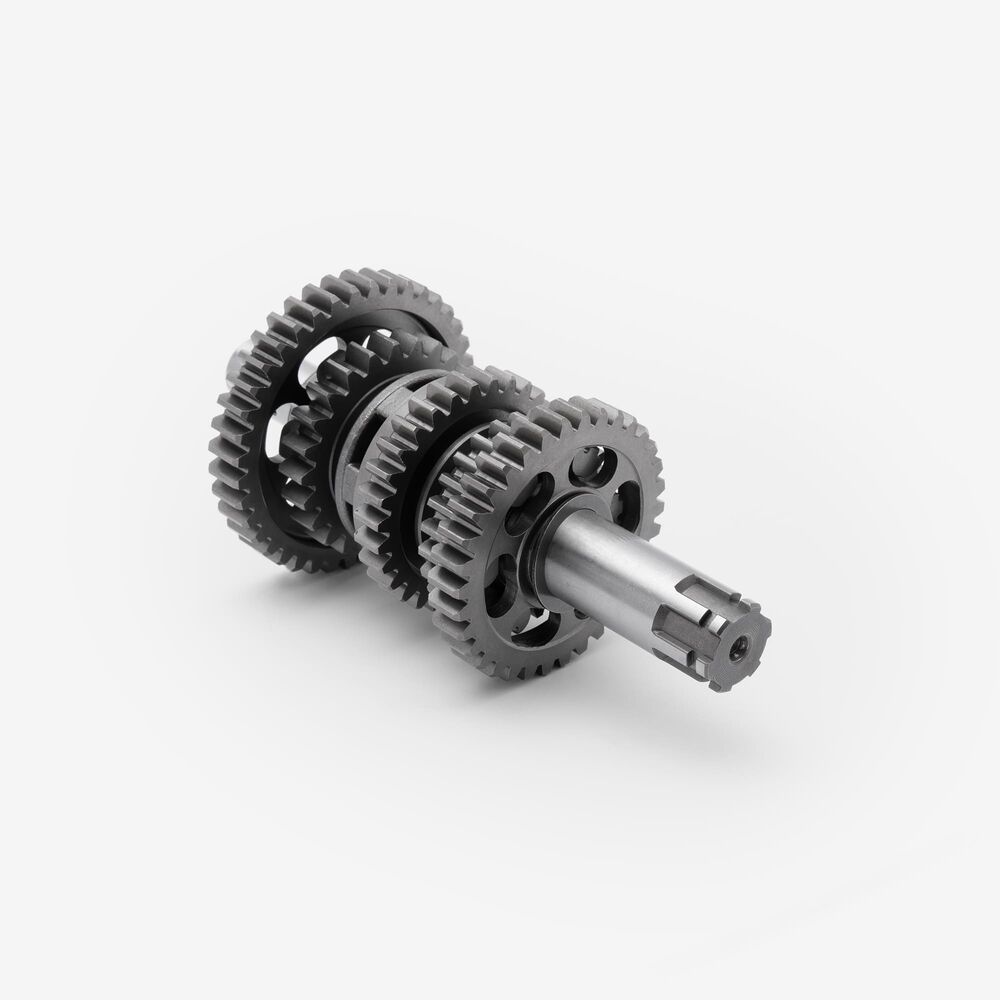

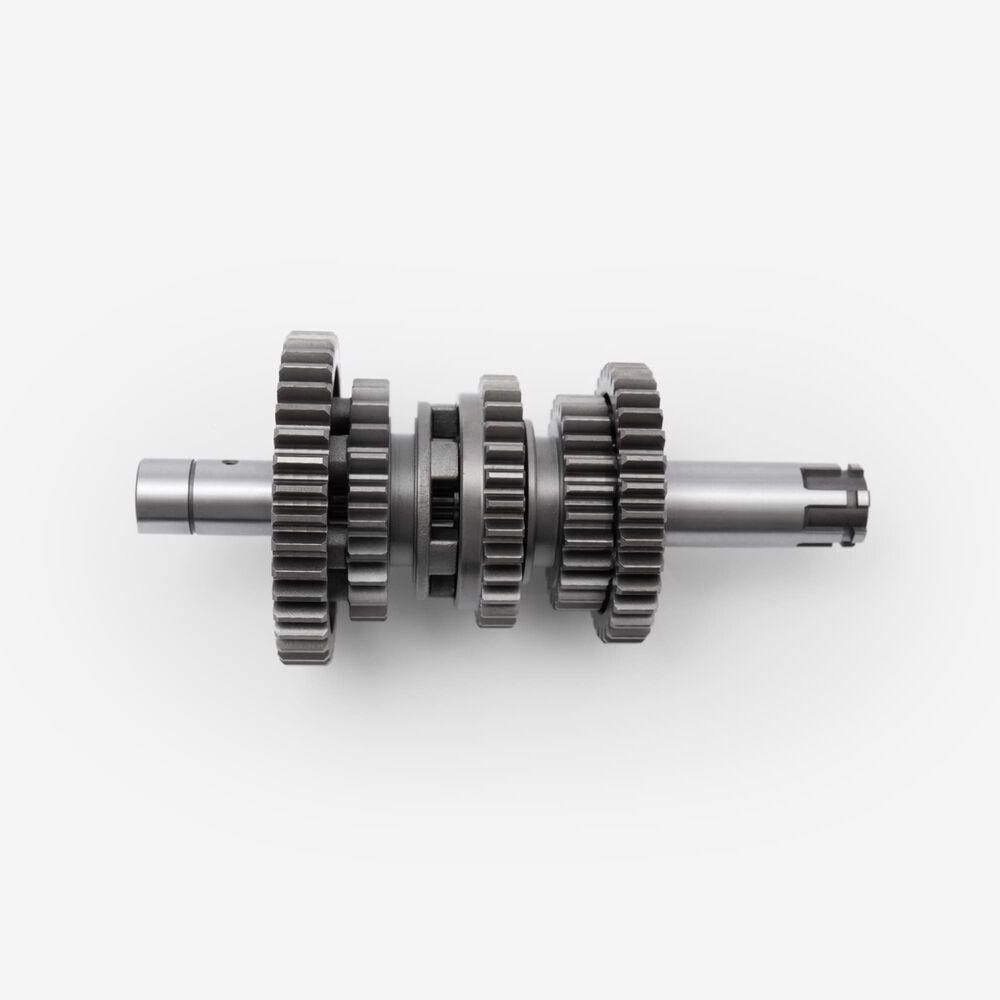

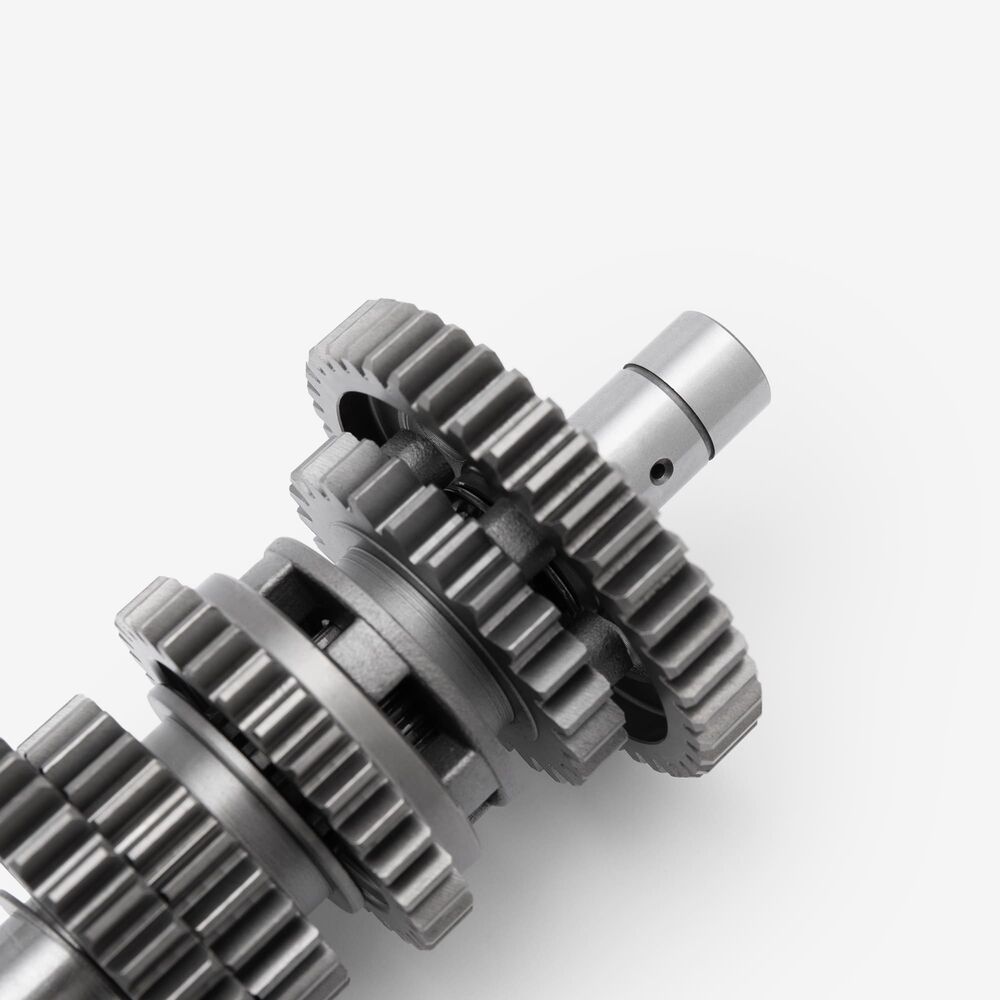

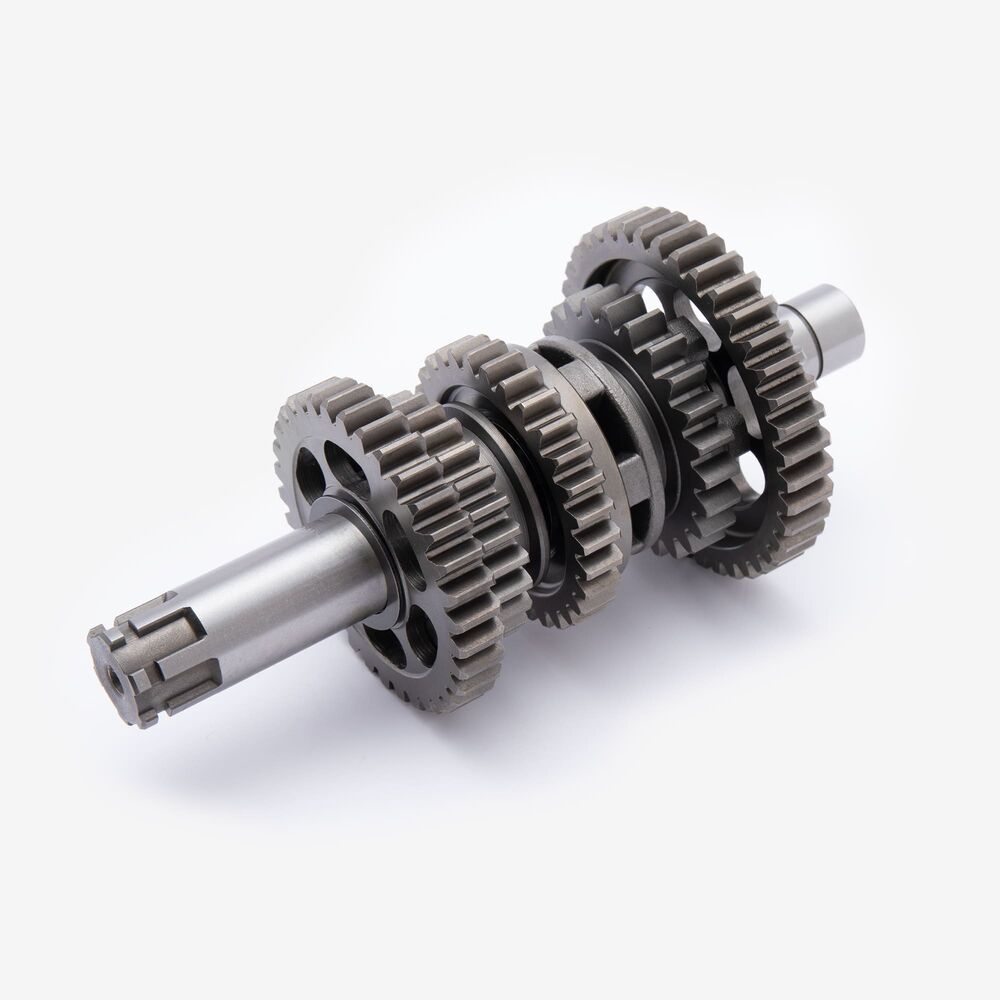

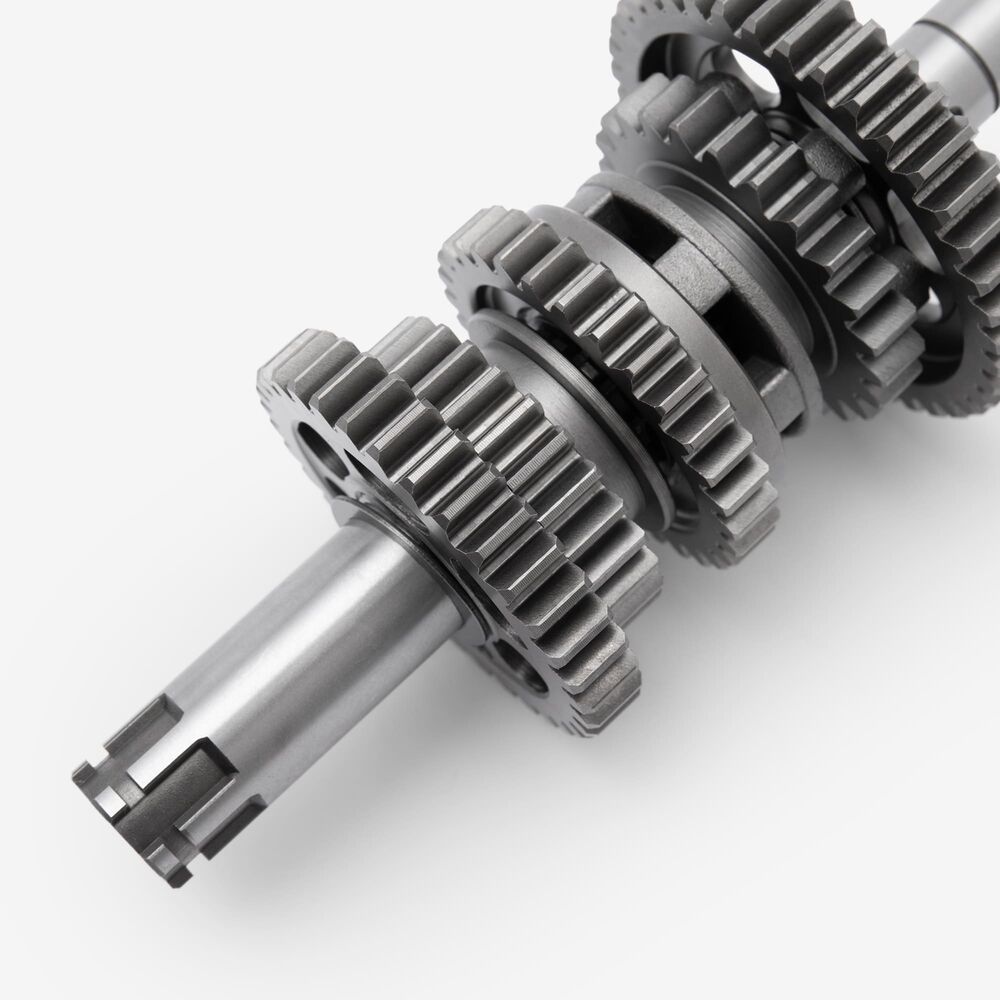

The output shaft on a motorcycle is a crucial component of the transmission system that transmits power from the engine to the rear wheel. It converts the rotational motion of the engine into the drive force necessary for propulsion. Typically made from hardened steel or alloy, the output shaft is designed to withstand high torque and stress while ensuring smooth and efficient power transfer.
| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 1 | ![]() |
Washer M12 x 1 x 22.5mm WSH94 x 1
|
||
| 27 | ![]() |
Front Sprocket Bolt M6 x 10mm for ZS125-79-E4, ZS125-79-E5, SR125-E5 BLT209 x 1
|
||
| 29 | ![]() |
Nut M14 x 1 x 9mm NUT247 x 1
|
||
| 30 | ![]() |
Input Shaft INSH043 x 1
|
||
| 31 | ![]() |
Output Shaft OTSH053 x 1
|
||
| 32 | ![]() |
Complete Gearbox Assembly GRBXC009 x 1
|
| Manufacturer | Model | Diagram |
|---|---|---|
| Lexmoto | Carrera 125 E55 [ZS125GY-13-E55] | View parts diagram |
| R66 E55 [SR125-A-E55] | View parts diagram | |
| R66+ E55 [ZS125-79C-E55] | View parts diagram | |
