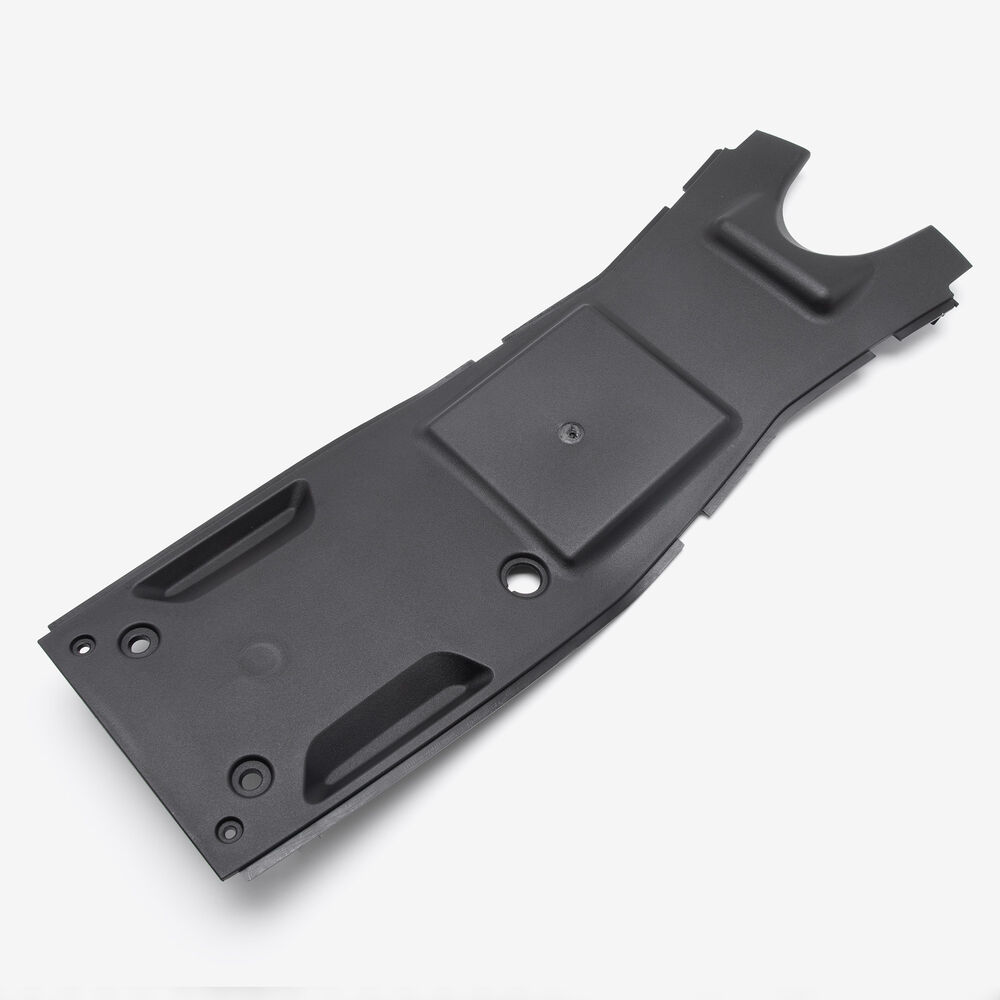

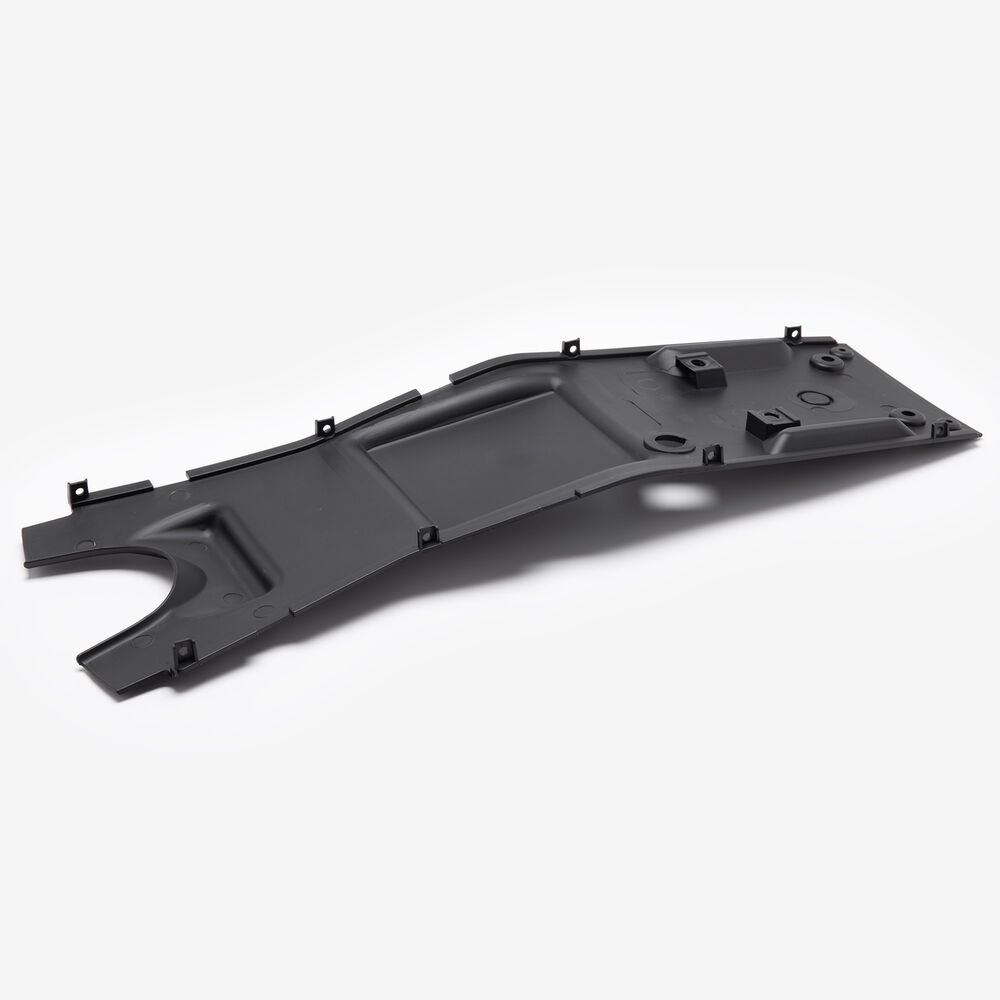

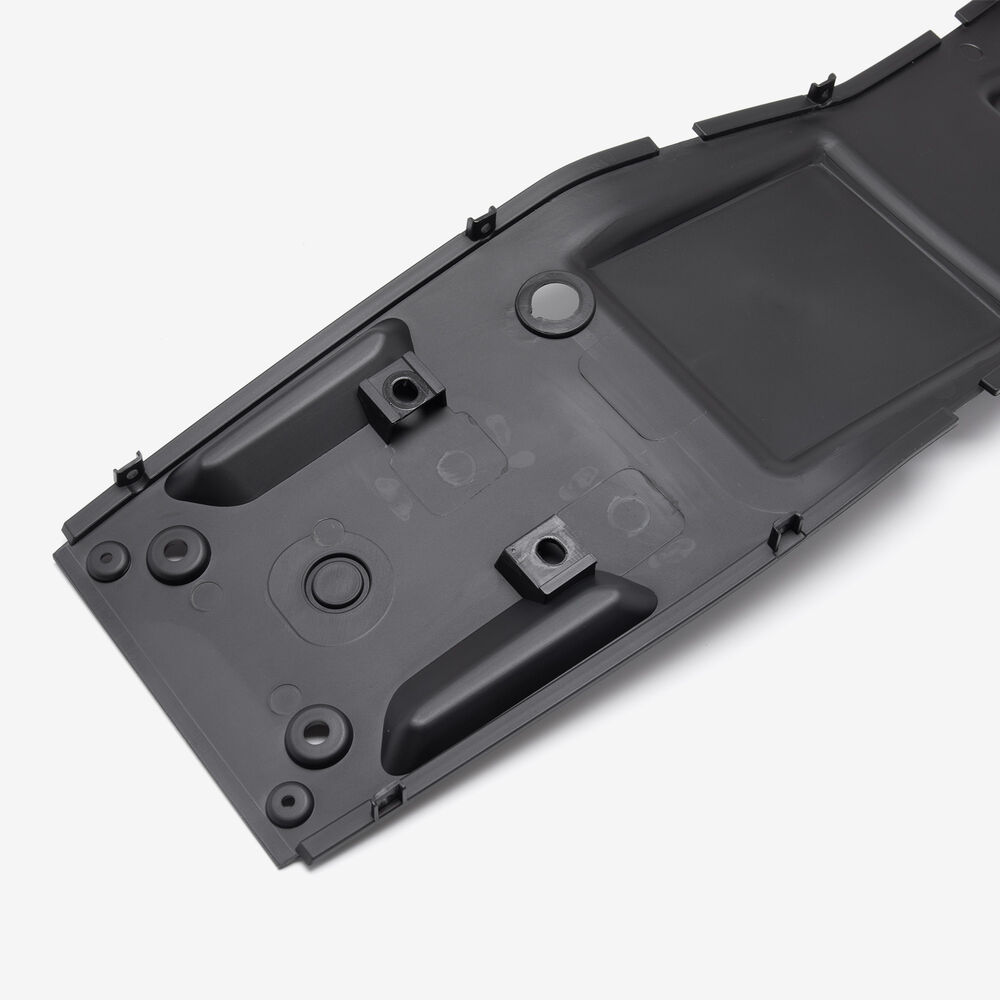

Undertray for TR125-3-E5
PNLU049
Description
"In the category of Undertrays and Storage Compartments, Undertray"
The undertray on a motorcycle is a panel or cover located underneath the rear section of the bike, often extending from the seat area to the tail.
Typically made from materials such as plastic, fiberglass, or carbon fiber, the undertray is designed to withstand environmental conditions and physical stresses.

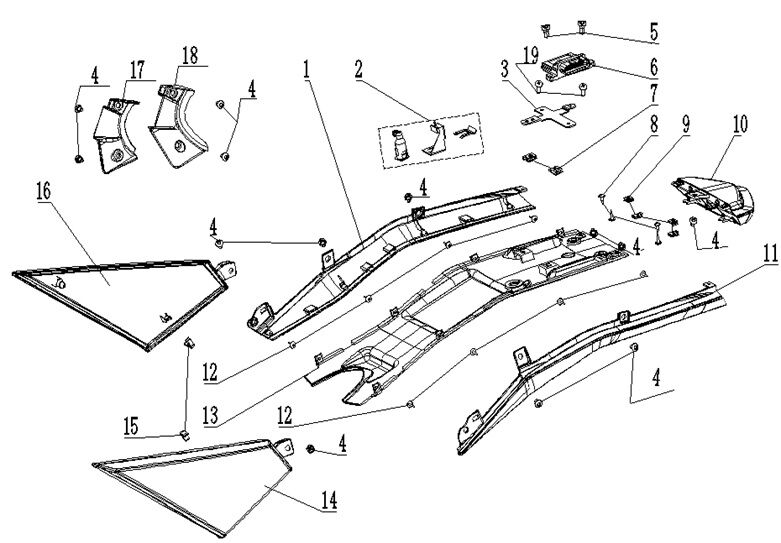

Product Diagrams
| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 1 |  |
Rear Right Black Panel for TR125-3-E5 PNLRL382 x 1
|
||
| 3 |  |
ECU Bracket for TR125-3-E5 BRCKT280 x 1
|
||
| 6 |  |
ECU for TR125-3-E5 ECU088 x 1
|
||
| 10 |  |
Tail Light Assembly for TR125-3-E5 LTT175 x 1
|
||
| 11 |  |
Rear Left Black Panel for TR125-3-E5 PNLRR370 x 1
|
||
| 13 | |
Undertray for TR125-3-E5 PNLU049 x 1
|
||
| 14 |  |
Left Black Side Panel for TR125-3-E5 PNLSL121 x 1
|
||
| 16 |  |
Right Black Side Panel for TR125-3-E5 PNLSR114 x 1
|
||
| 17 |  |
Front Left Cable Bracket for TR125-3-E5 BRCKT281 x 1
|
||
| 18 |  |
Front Right Cable Bracket for TR125-3-E5 BRCKT282 x 1
|
Compatibility
| Manufacturer | Model | Diagram |
|---|---|---|
| Lexmoto | RSS 125 Euro 5 [TR125-3-E5] | View parts diagram |
| Taro | TR125-3 | |
