PPB010"Another great Other Fixture"
The breather pipe on a motorcycle is a component that allows the engine to vent excess pressure and gases from the crankcase. It typically connects the engine's crankcase to the air intake or a separate breather system, helping to manage internal pressures and ensure proper engine operation.
| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 3, 10, 30 | ![]() |
Cylinder Head Bolt Kit for XGJ125-27B, XGJ125-28 BLTCH016 x 1
|
||
| 8 | ![]() |

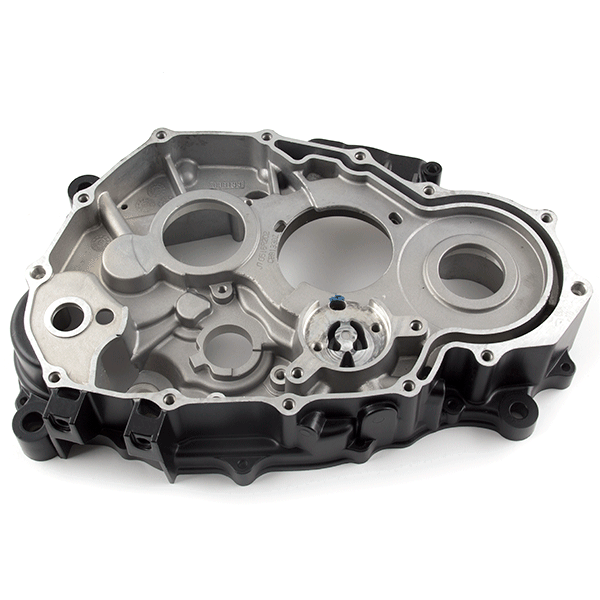

Right Crankcase for XGJ125-27B, XGJ125-28, TN12, MT125RR CRR010 x 1
|
||
| 9 | ![]() |
Engine Dowel 10 x 4mm DWL003 x 4
|
||
| 11 | ![]() |

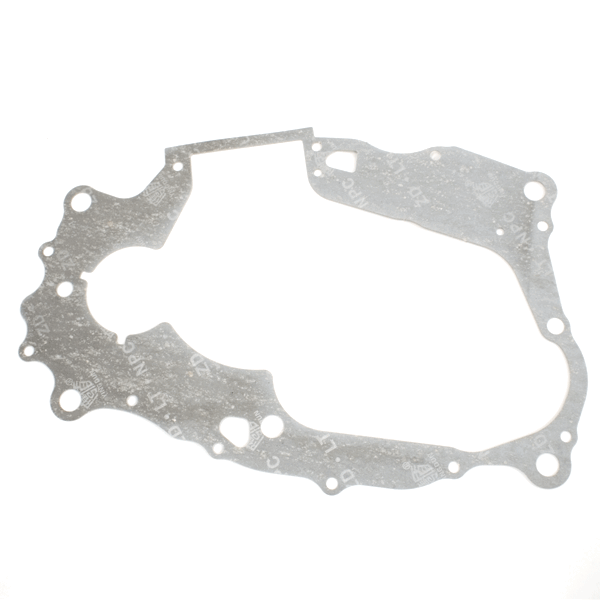

Centre Crankcase Gasket 156FMI(OHC) ZS156FMI-B ZS158FMI-B GSKCC008 x 1
|
||
| 13 | ![]() |
Oil Strainer/Filter Thimble Type OLST003 x 1
|
||
| 14 | ![]() |
Oil Filter Strainer Spring OLFSS005 x 1
|
||
| 15 | ![]() |
O-Ring 34 x 40 x 3mm ORNG011 x 1
|
||
| 18 | ![]() |
Gear Position Sensor Pin GRSEN030 x 1
|
||
| 26 | ![]() |
Washer 20mm x 12.2mm x 2mm WSH030 x 1
|
||
| 27 | ![]() |
ZY125 Sump Plug M12 SMPP005 x 1
|
||
| 29 | ![]() |

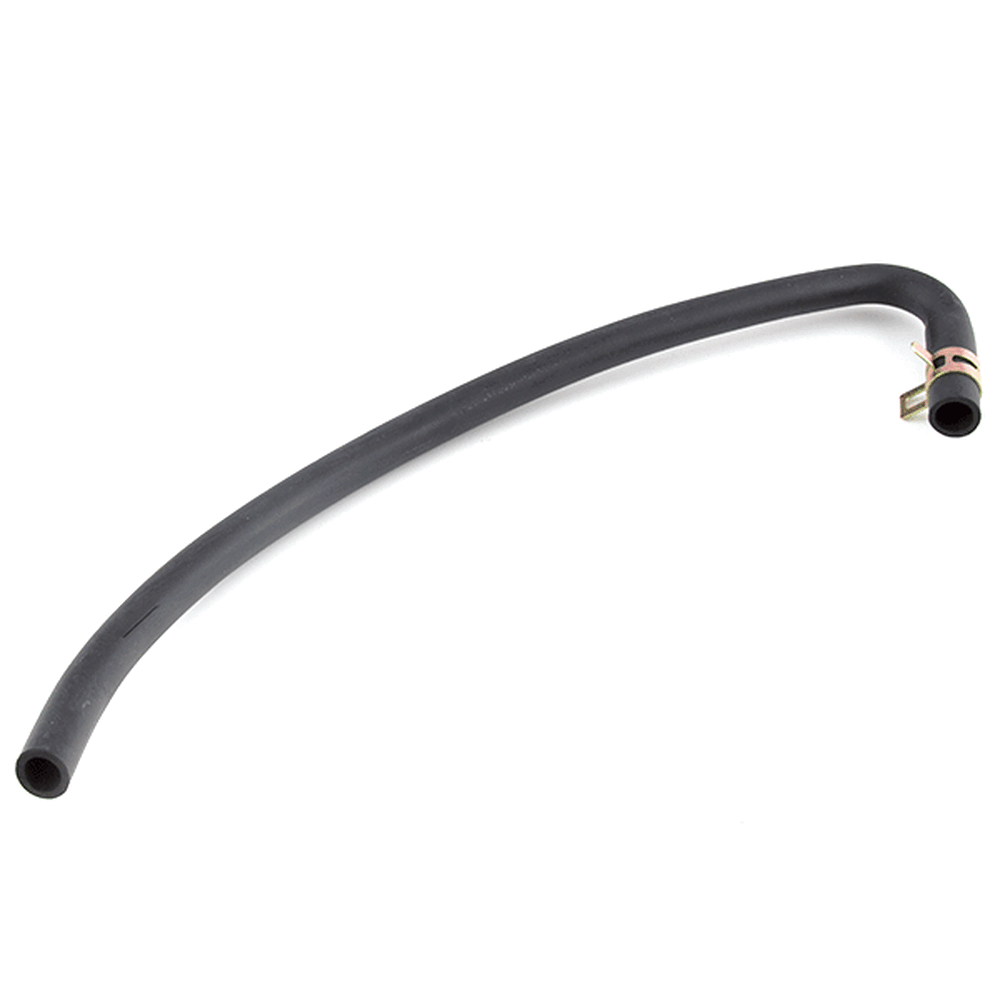

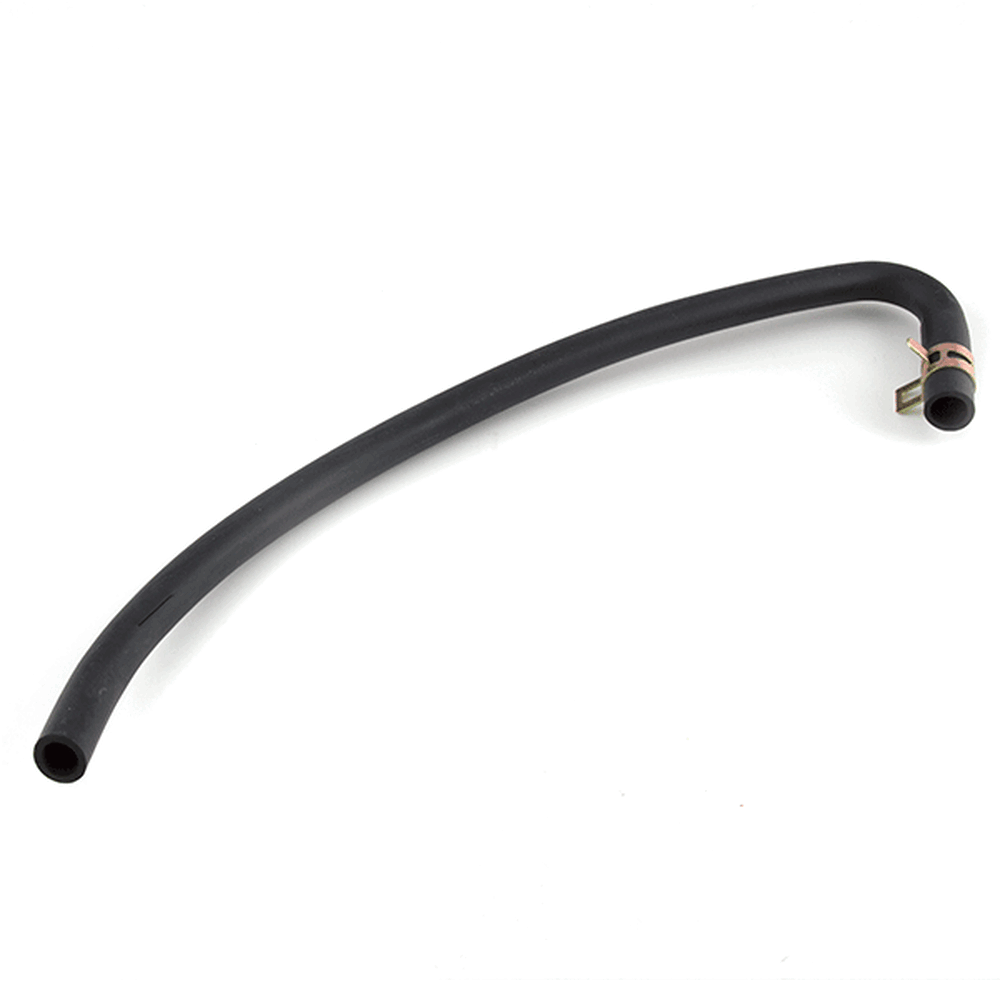

Crankcase Breather Pipe PPB010 x 1
|
||
| 31 | ![]() |
Needle Bearing HK1010 14 x 10mm BRGN002 x 1
|

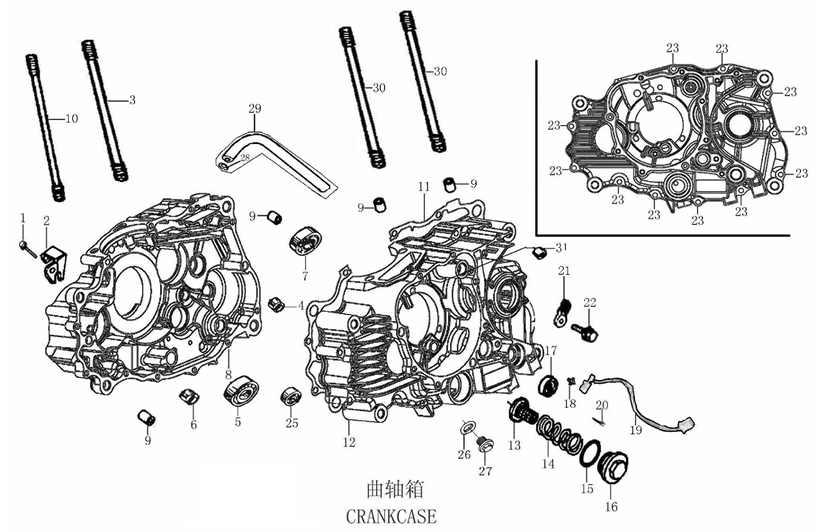

| Manufacturer | Model | Diagram |
|---|---|---|
| AJS | TN12 EFI | |
| Lexmoto | Falcon 125 [XGJ125-27B] | View parts diagram |
| Hawk 125 [XGJ125-28] | View parts diagram | |
| Motorini | MT125RRi | |
