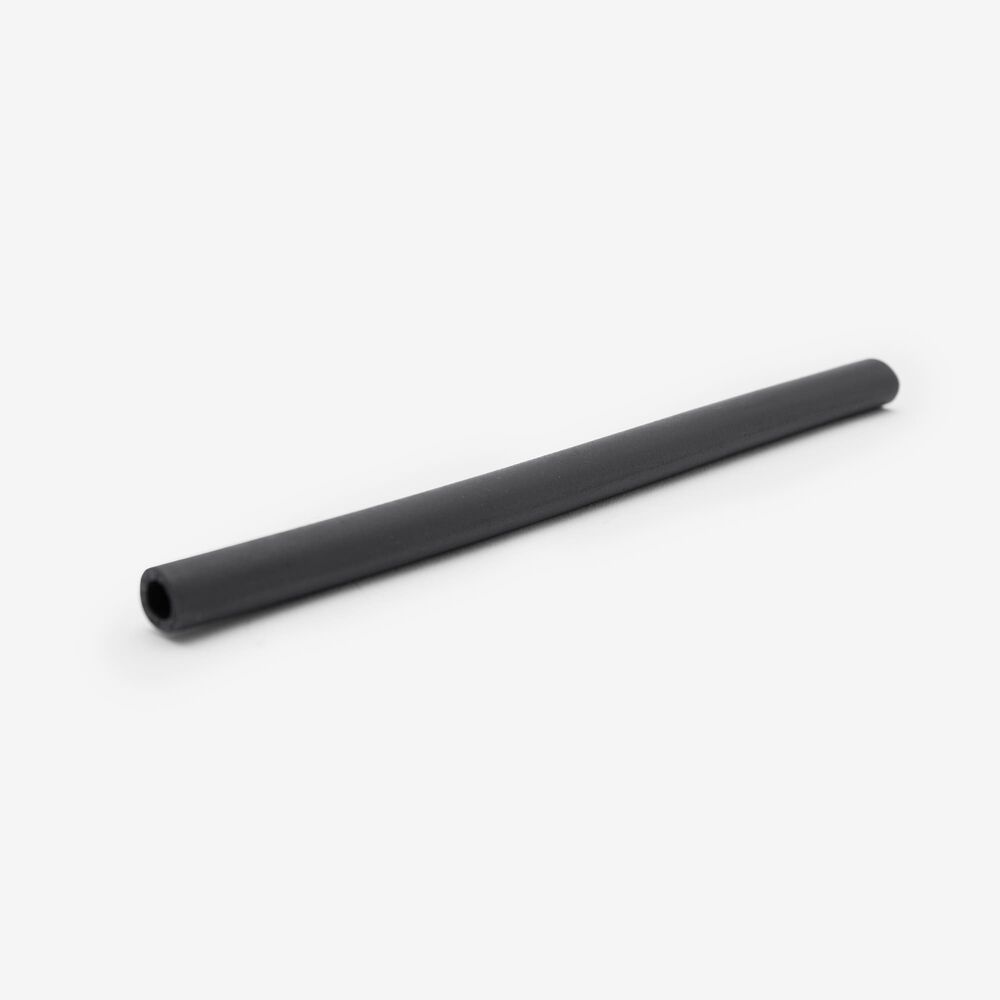

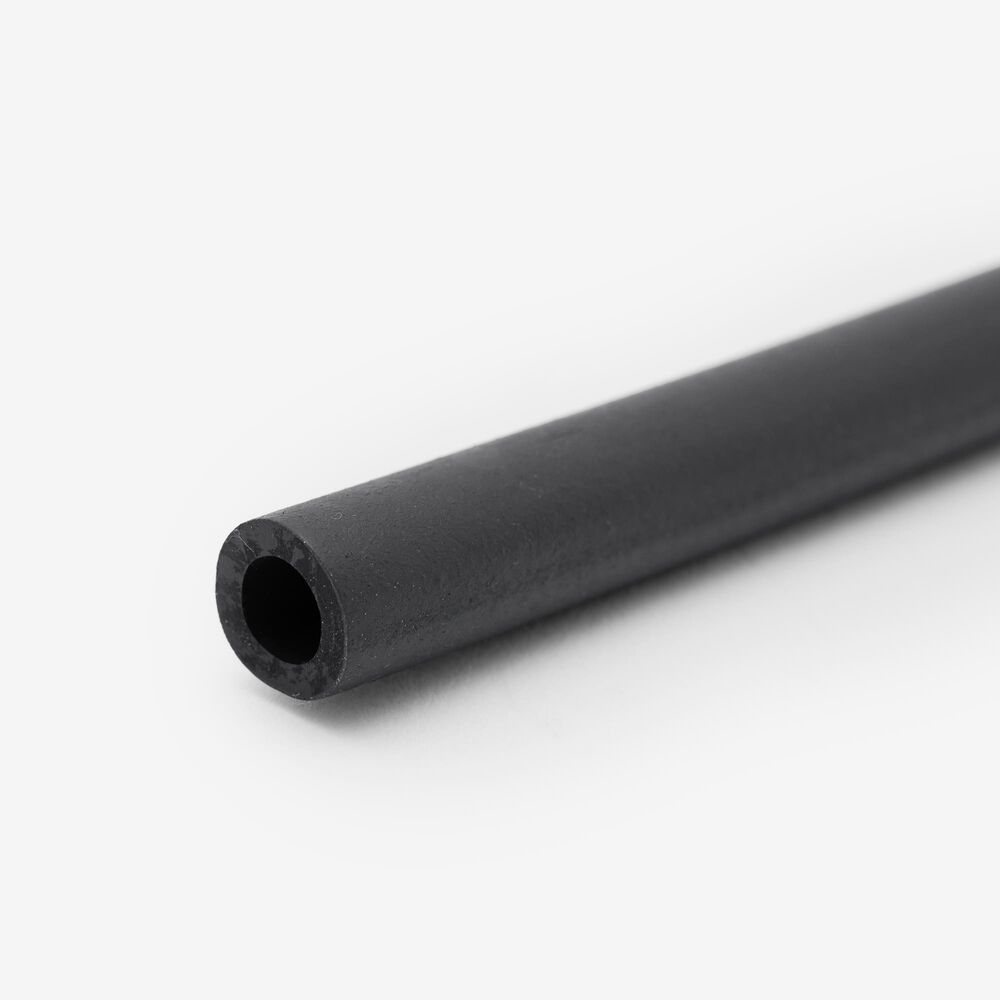

PPB060"Another great Gear Box"
The breather pipe on a motorcycle is a component that allows the engine to vent excess pressure and gases from the crankcase. It typically connects the engine's crankcase to the air intake or a separate breather system, helping to manage internal pressures and ensure proper engine operation.
| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 1 | ![]() |

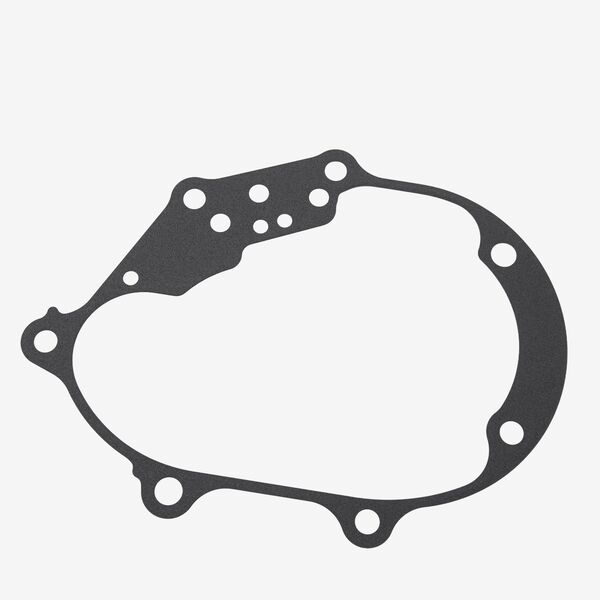

Gearbox Gasket GSKGB013 x 1
|
||
| 2 | ![]() |

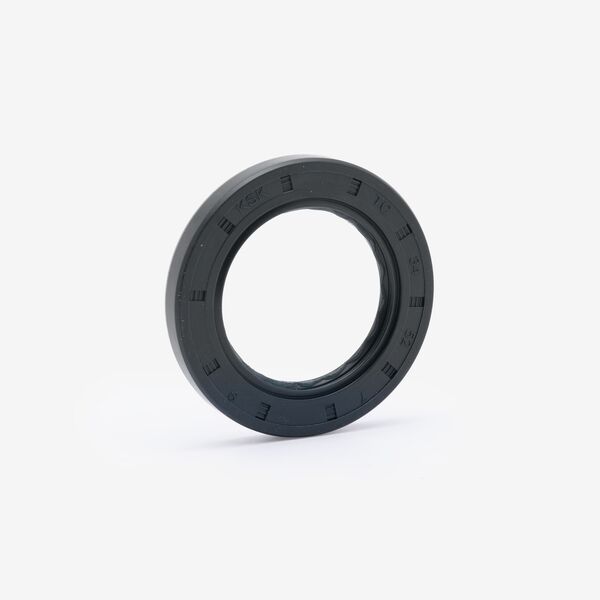

Oil Seal 52 x 34 x 7mm OLSL152 x 1
|
||
| 3 | ![]() |

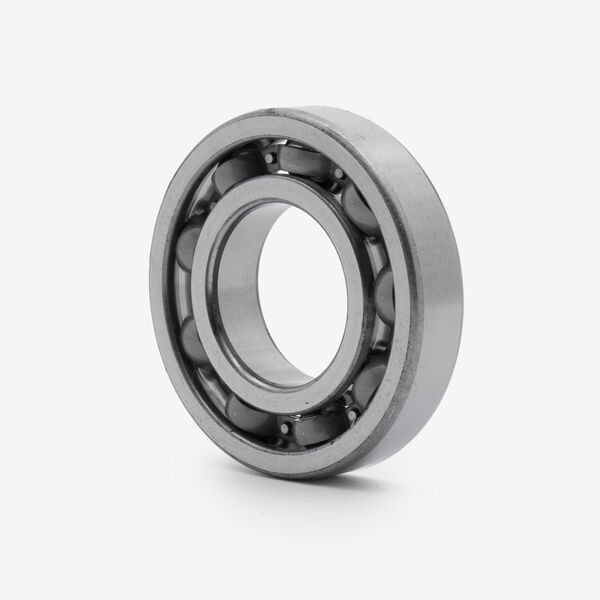

Crankcase Bearings BRG224 x 1
|
||
| 5 | ![]() |

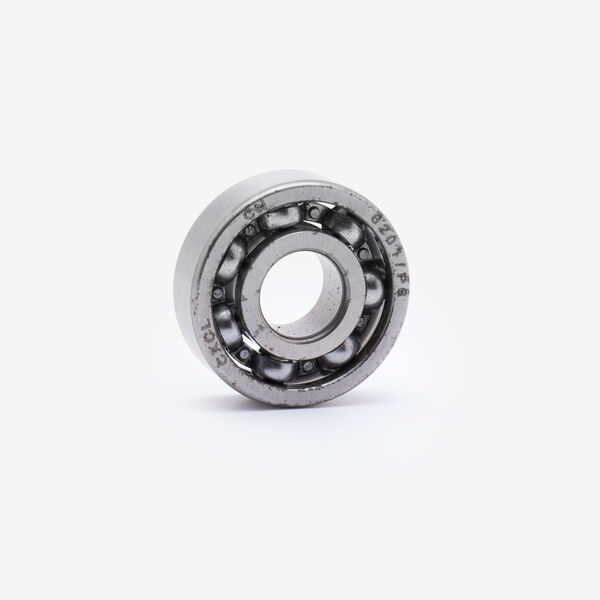

Crankshaft Bearing 6201/Z2 BRG225 x 1
|
||
| 6 | ![]() |

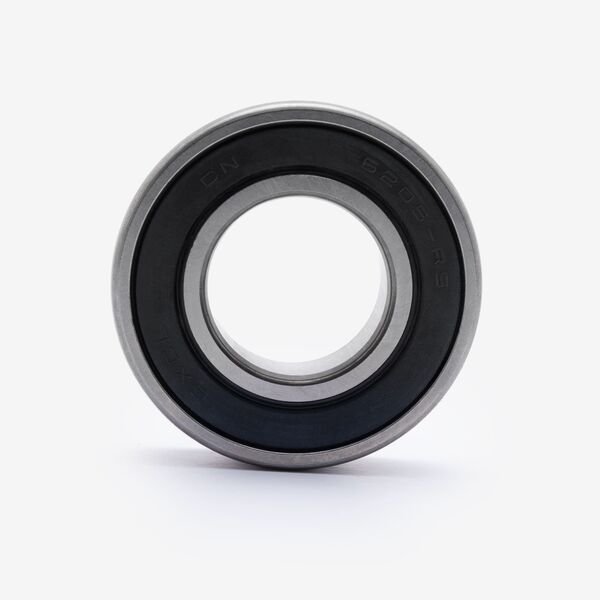

Crankcase Bearings 6205-2RS BRG226 x 1
|
||
| 7 | ![]() |

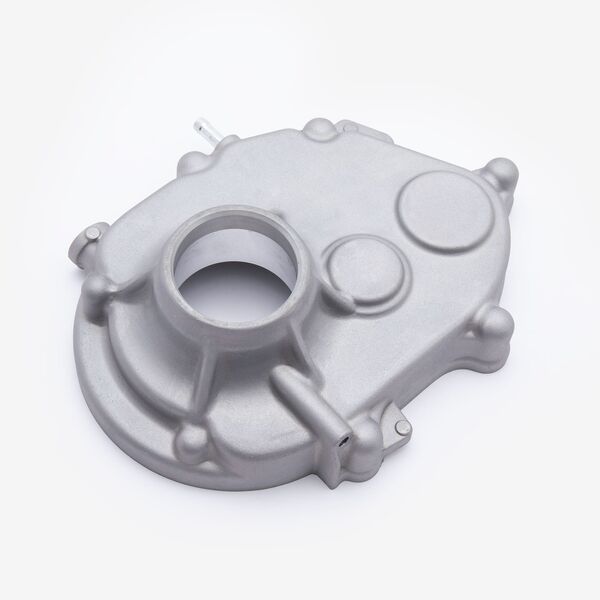

Gearbox Casing GRBC017 x 1
|
||
| 8 | ![]() |

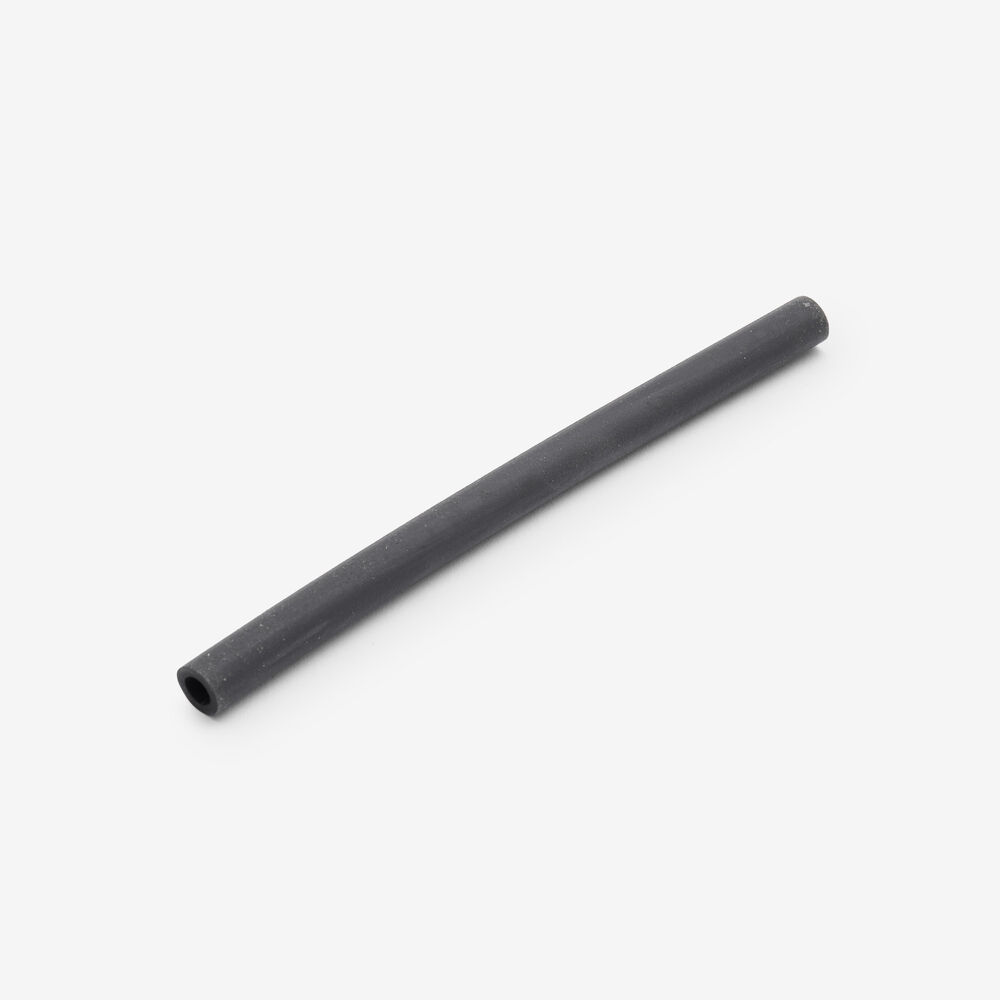

Breather Pipe 150 X 9 X 5 PPB060 x 1
|
||
| 10 | ![]() |

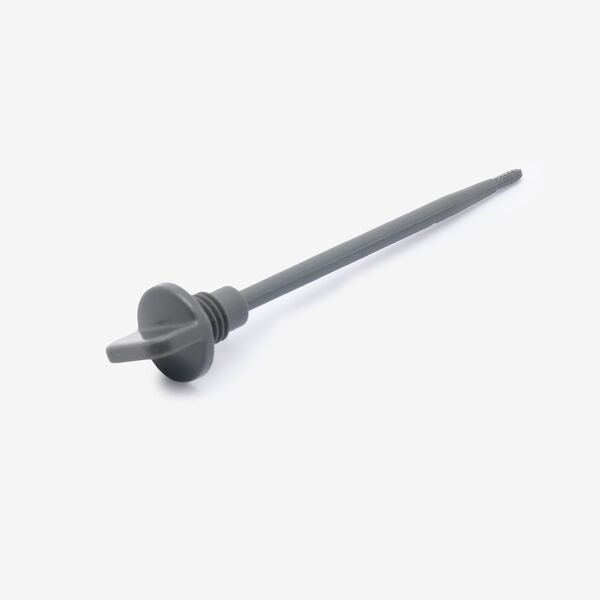

Oil Dipstick OLDP026 x 1
|
||
| 11 | ![]() |
Oil Seal 9.8 x 3.2 mm OLSL153 x 1
|
||
| 12 | ![]() |

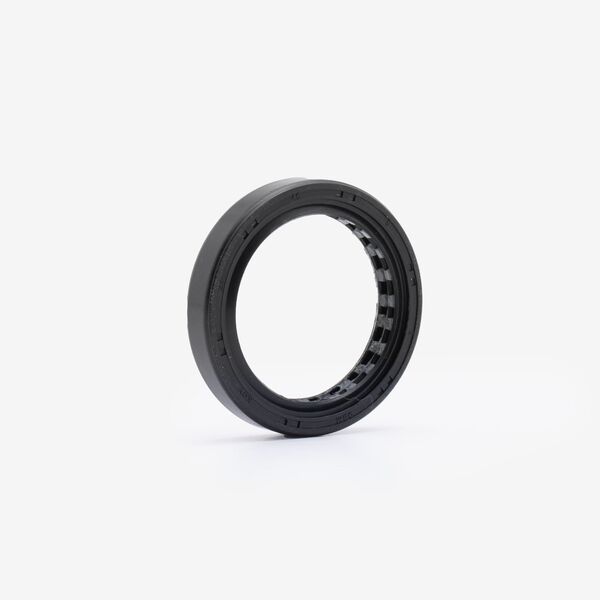

Oil Seal 34 x 46 x 8mm OLSL154 x 1
|
| Manufacturer | Model | Diagram |
|---|---|---|
| Lexmoto | D2 E55 [GC125T-3A-E55] | View parts diagram |
