RAD037"In the category of Radiators, Water pumps and Thermostats, Other Cooling"
The radiator on a motorcycle is a critical component of the engine’s cooling system. It is designed to dissipate heat from the engine coolant that has absorbed heat during operation. Typically made from aluminum or copper, the radiator consists of a series of fins and tubes that facilitate the transfer of heat from the coolant to the surrounding air.
| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 1 | ![]() |

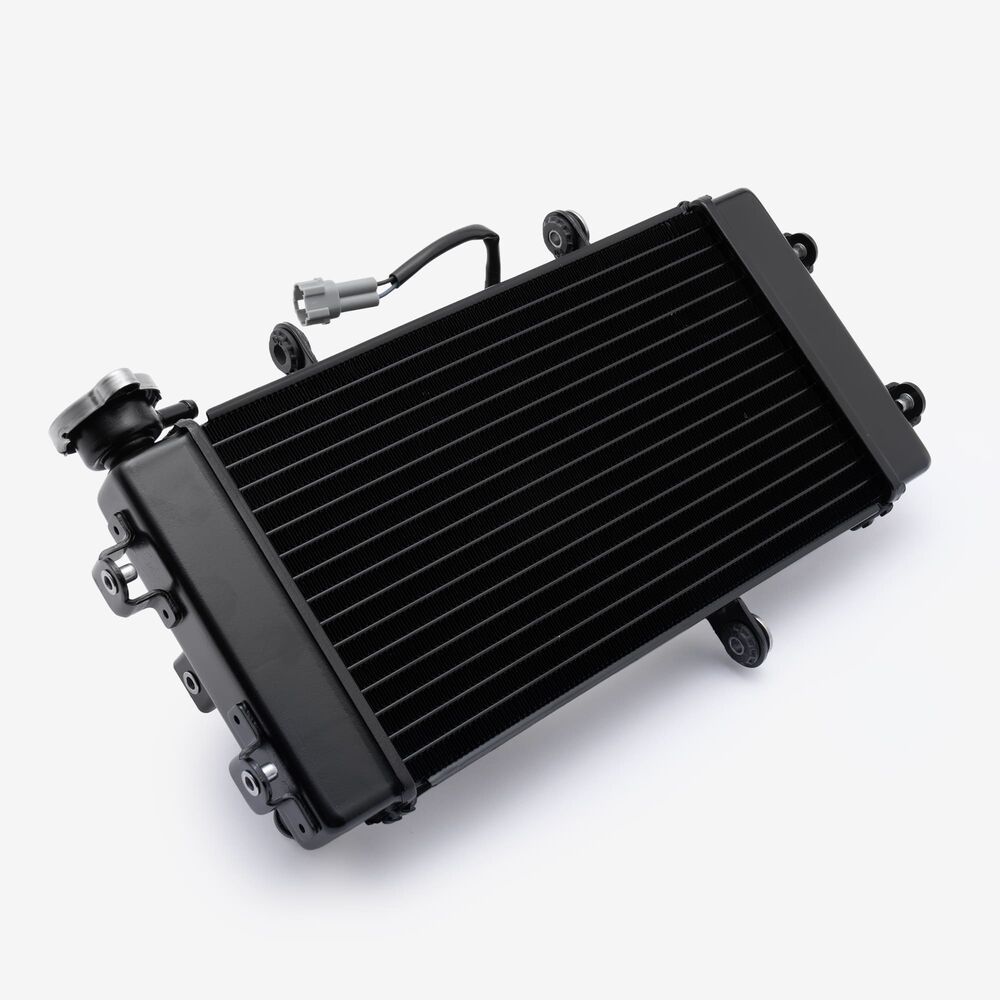

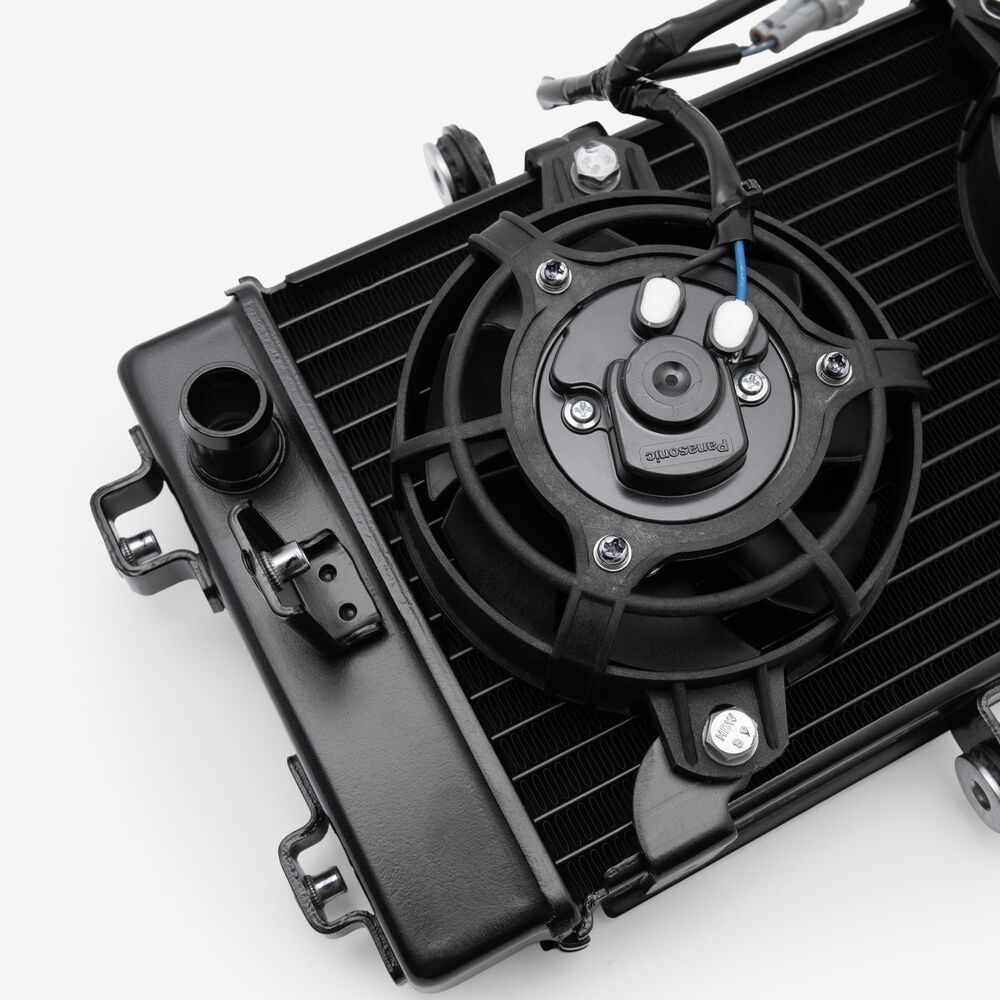

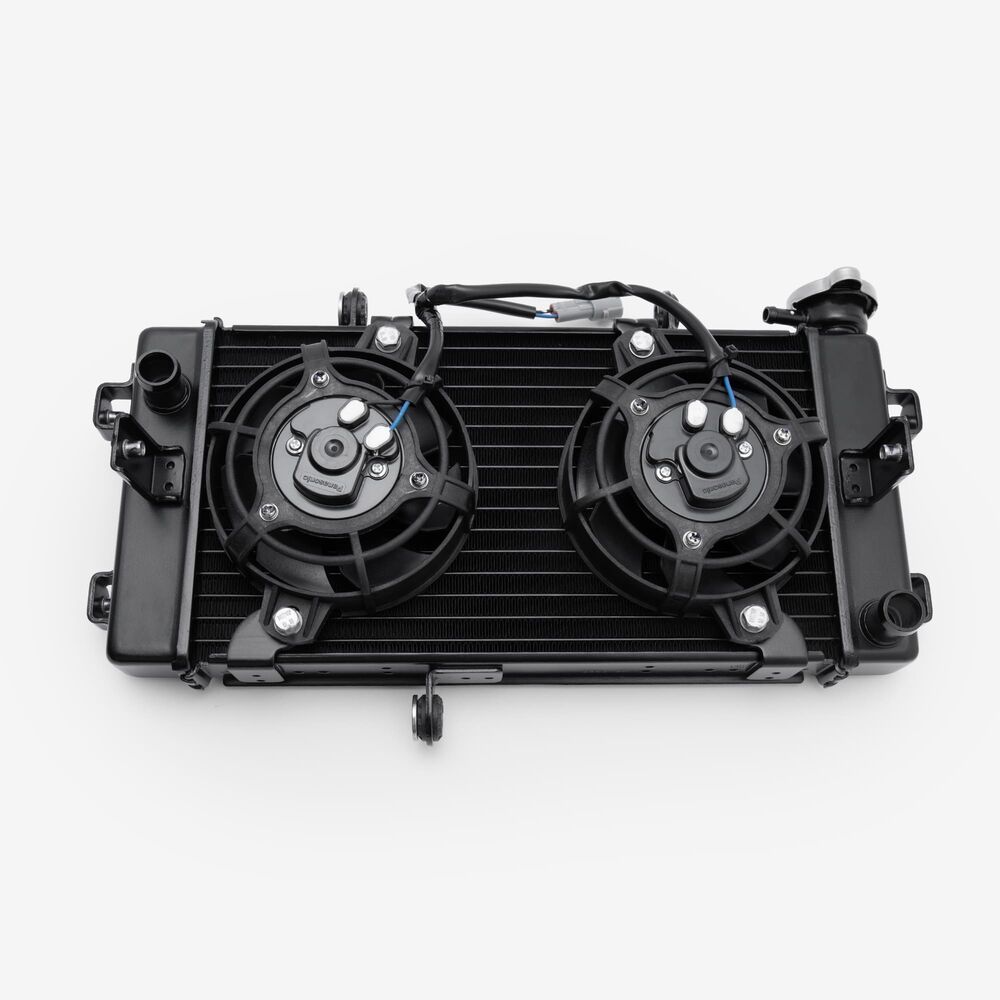

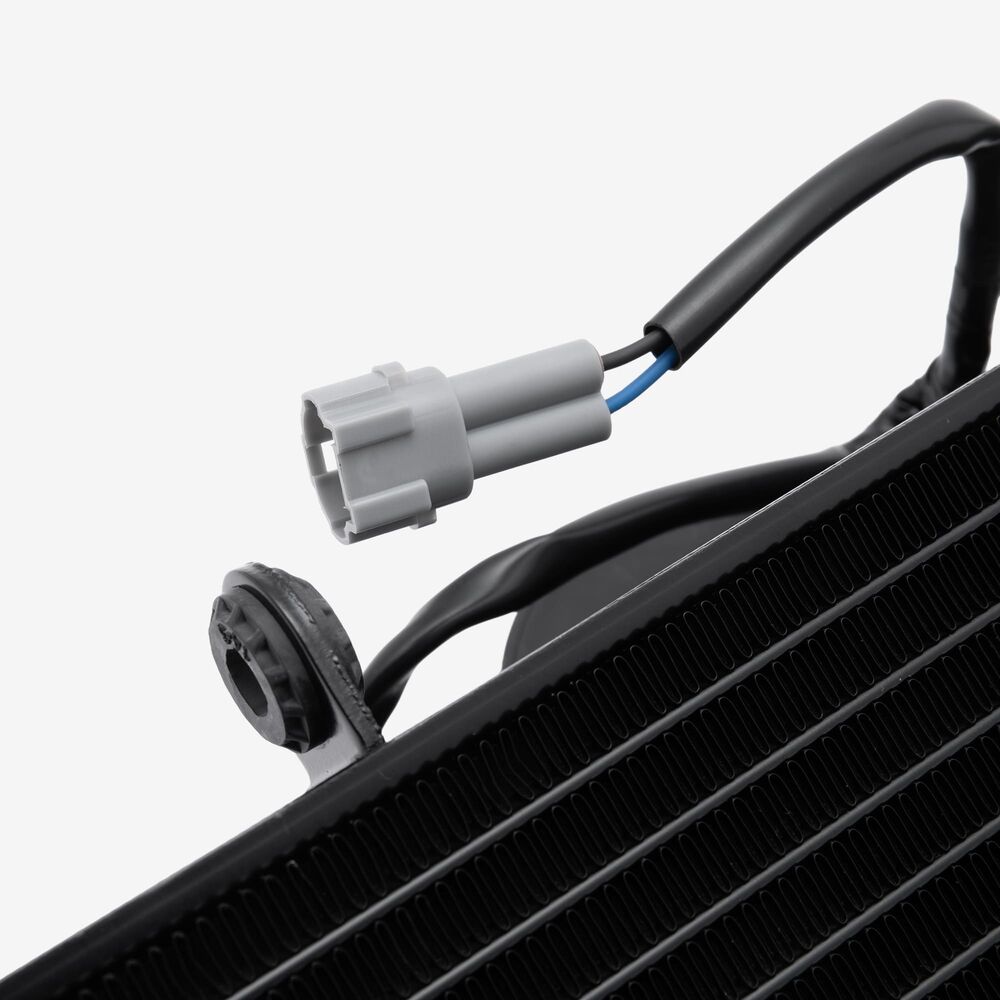

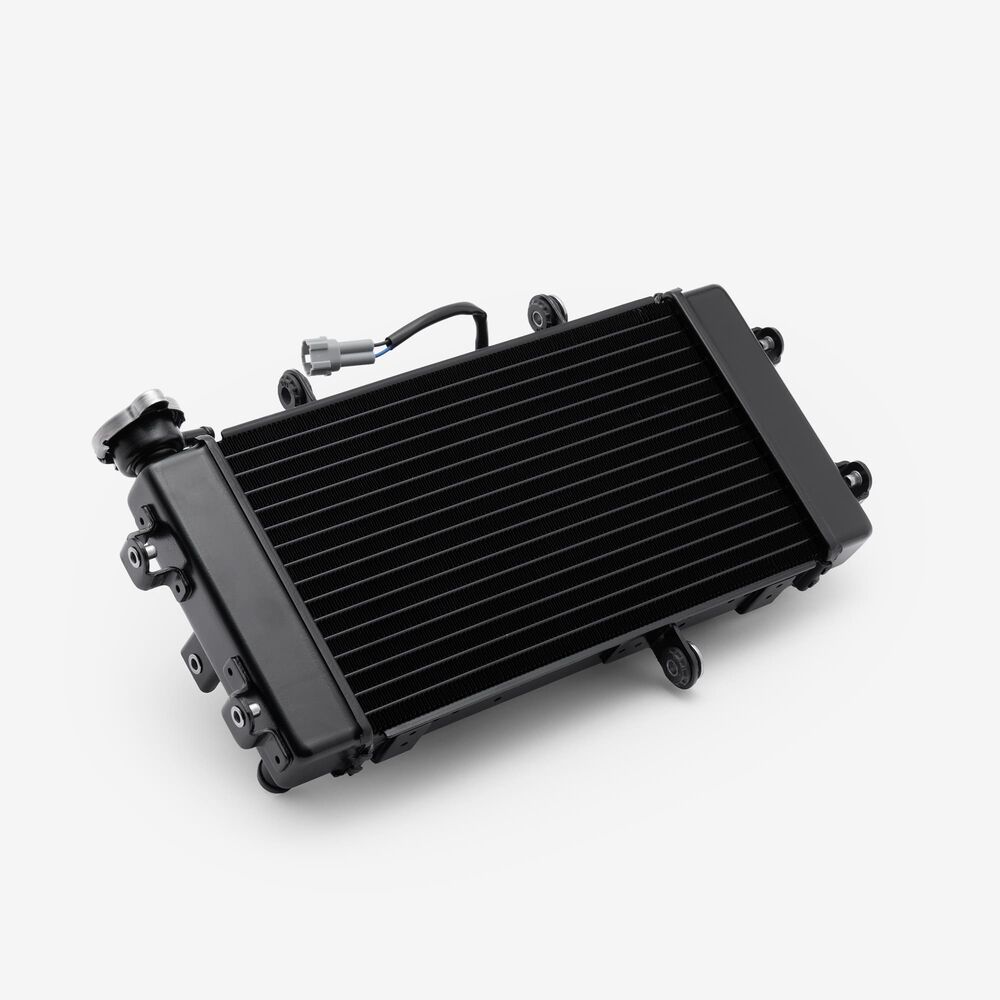

Radiator RAD037 x 1
|
||
| 2 | ![]() |
Flanged Hex Bolt M6 x 25mm BLT139 x 1
|
||
| 3 | ![]() |
Flanged Hex Bolt M6 x 20mm BLT129 x 1
|
||
| 4 | ![]() |

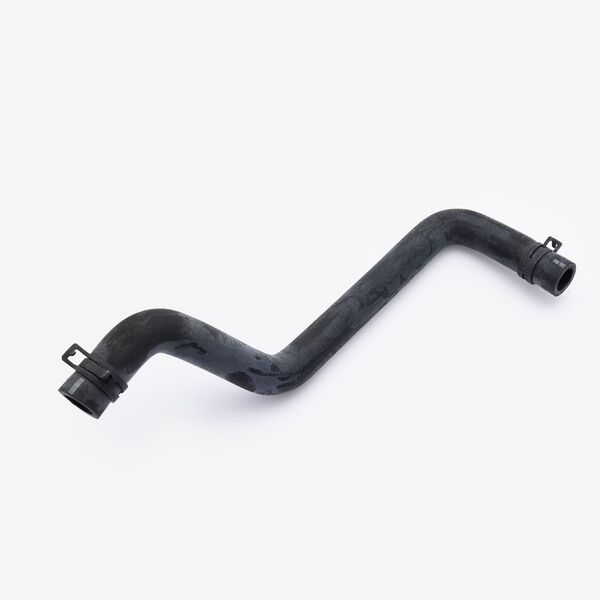

Water Pipe WTPP018 x 1
|
||
| 5 | ![]() |

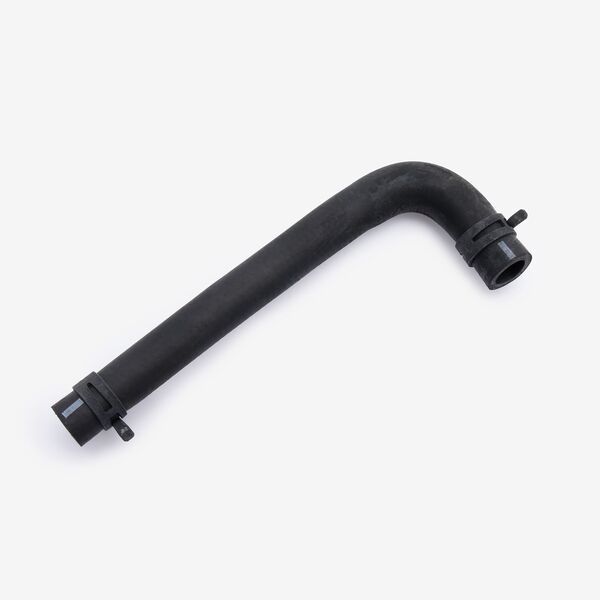

Water Pipe WTPP019 x 1
|
||
| 6 | ![]() |
Flanged Hex Bolt M6 x 12mm BLT124 x 1
|
||
| 7 | ![]() |

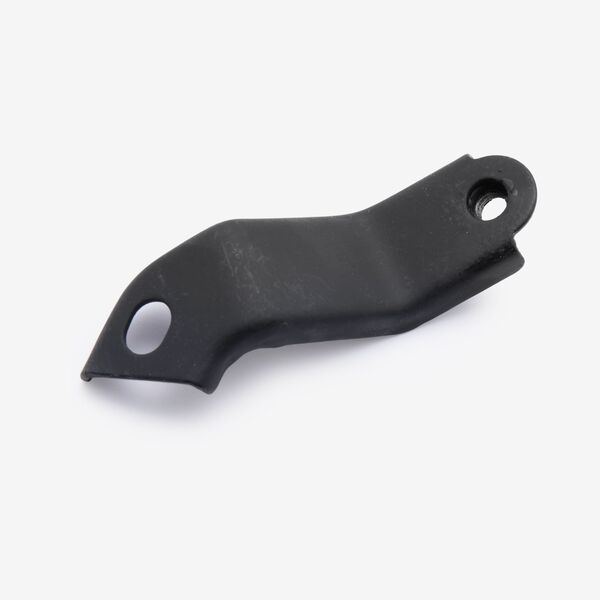

Radiator Bracket RADB013 x 1
|
||
| 8 | ![]() |

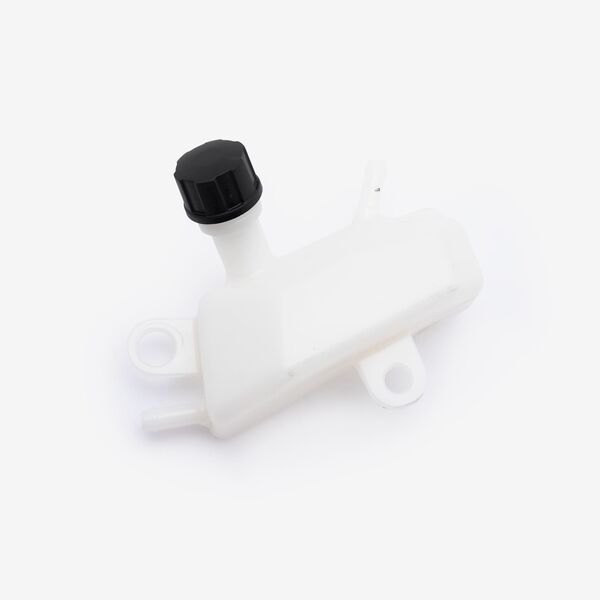

Coolant Reservoir / Expansion Tank WTRSVR023 x 1
|
||
| 9 | ![]() |
Radiator Bracket RADB014 x 1
|
||
| 10 | ![]() |

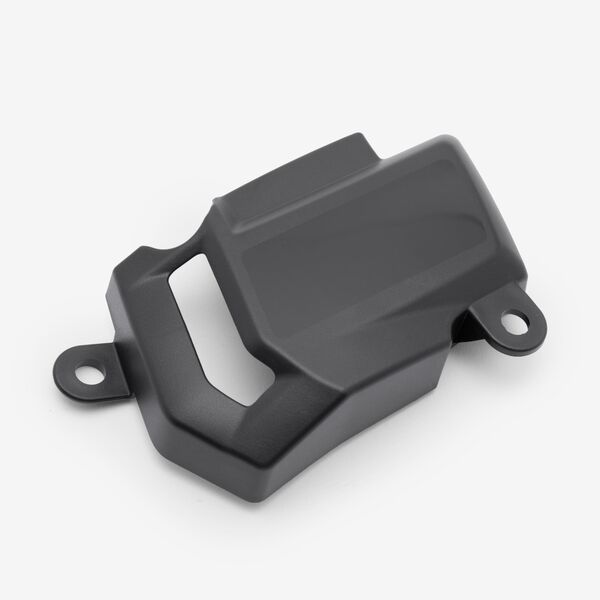

Decorative Cover Matt Black PNLDC084 x 1
|
||
| 11 | ![]() |
Screw M6 x 16mm SCRW121 x 1
|
||
| 12 | ![]() |

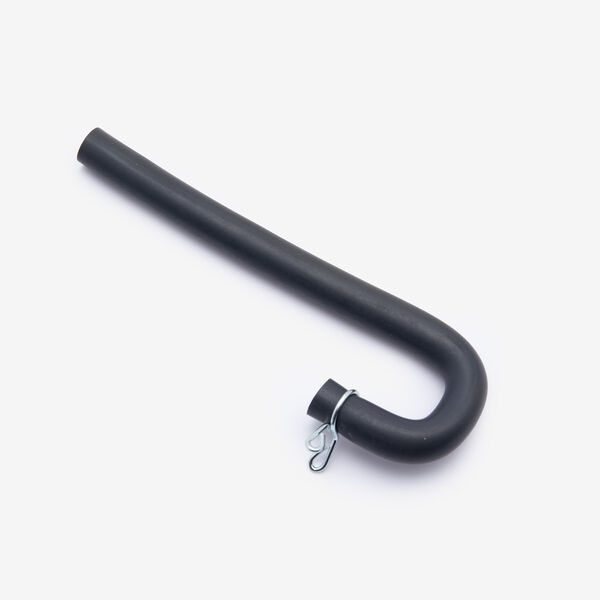

Pipe 7 x 11 x 180mm PPB062 x 1
|
||
| 13 | ![]() |

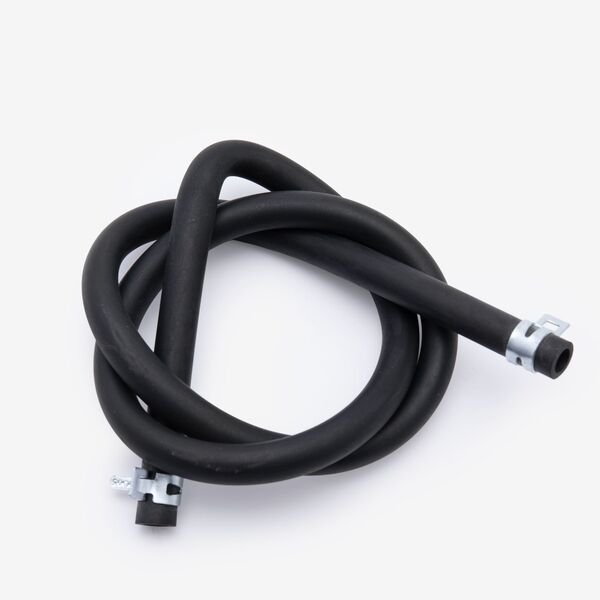

Water Pipe 640mm WTPP020 x 1
|

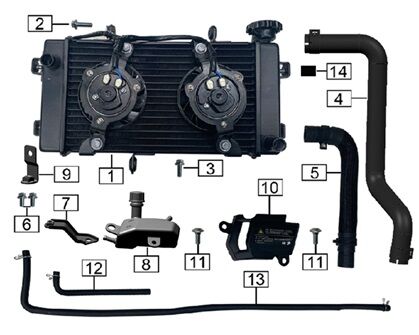

| Manufacturer | Model | Diagram |
|---|---|---|
| Lexmoto | R66S E55 [SR125-2-E55] | View parts diagram |
