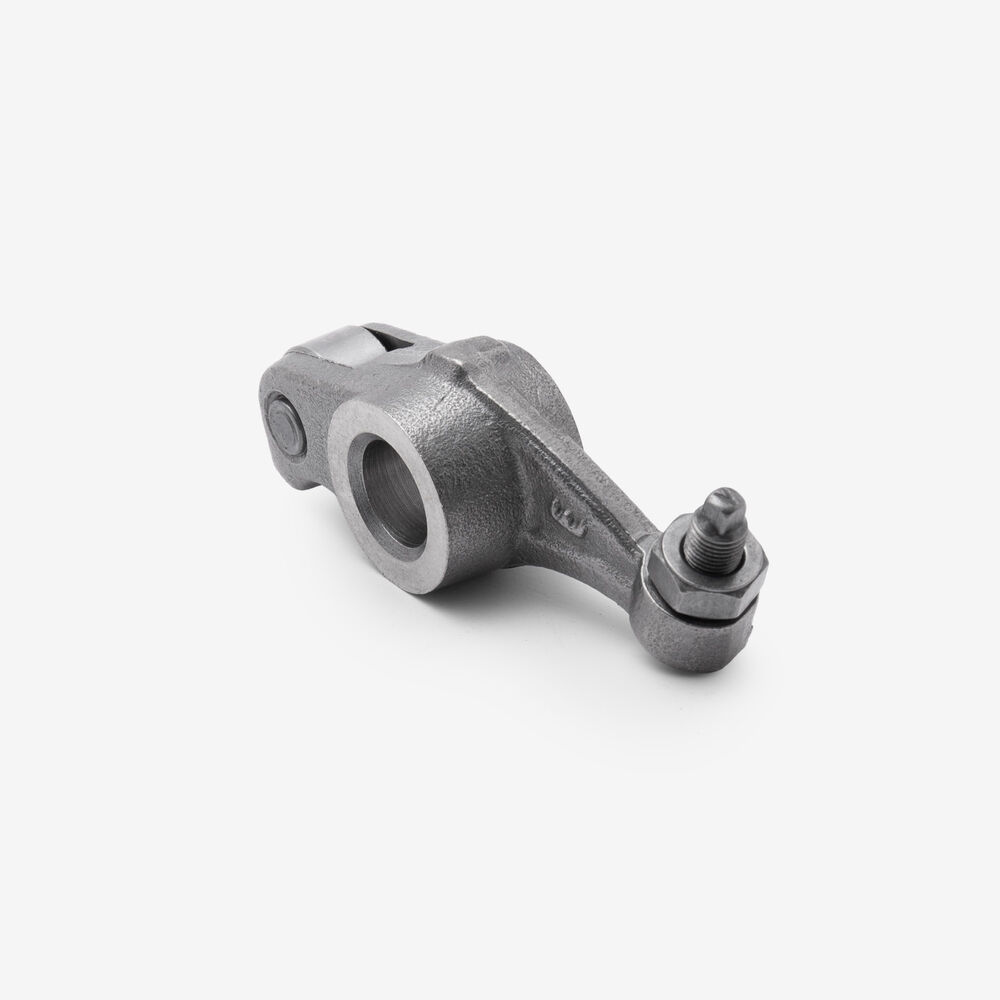

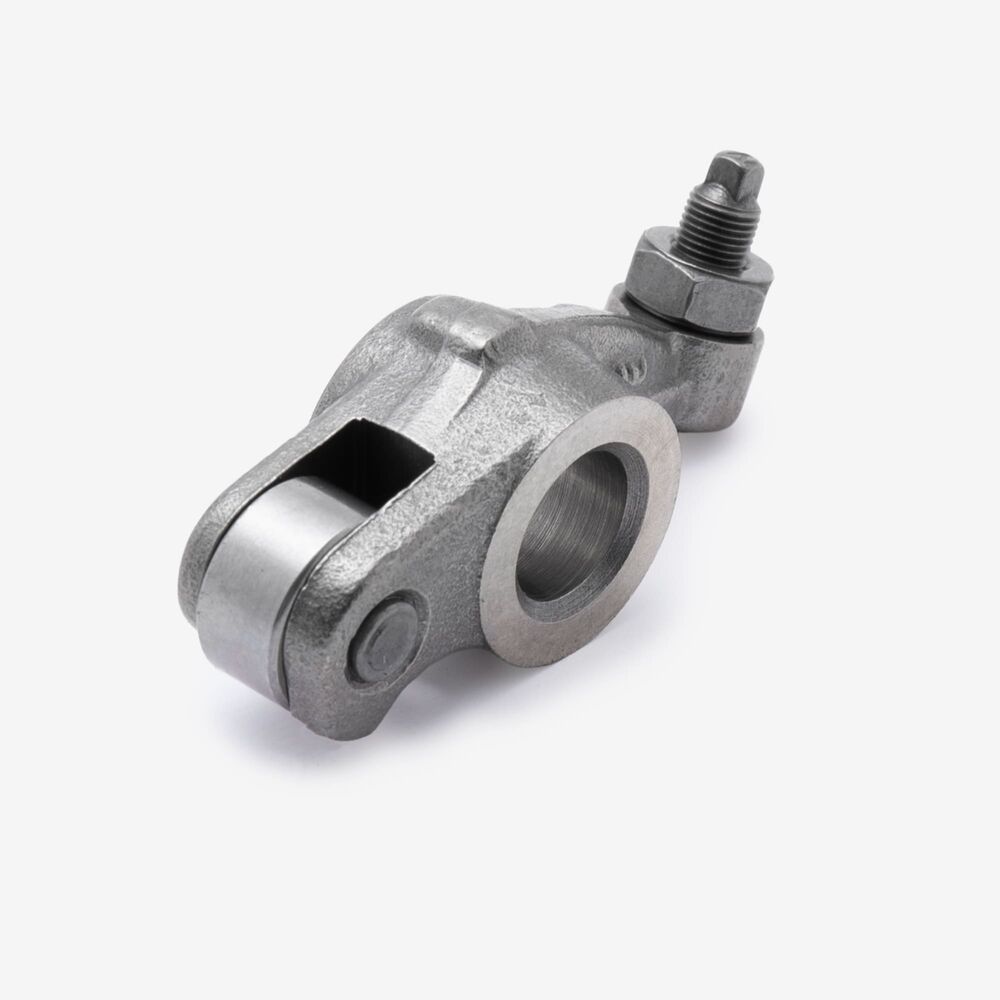

RKA056"Another great Valve Rocker"
The rocker arm is a pivotal component in a motorcycle’s engine valvetrain that transfers the motion from the camshaft to the engine's valves. It is typically a lever-like mechanism that pivots on a shaft or bearing, pushing the valve open and then allowing it to close as the camshaft rotates. By converting the rotational motion of the camshaft into the linear motion needed to operate the valves, the rocker arm plays a critical role in regulating the engine’s air-fuel intake and exhaust.
| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 1 | ![]() |
Inlet Exhaust Valve Collets VLVC051 x 1
|
||
| 2 | ![]() |
Inlet/Exhaust Valve Spring Retainer VLVSR032 x 1
|
||
| 3 | ![]() |
Valve Spring VLVS055 x 1
|
||
| 4 | ![]() |
Valve Stem Oil Seal VLVOS032 x 1
|
||
| 5 | ![]() |
Exhaust Valve Spring Retainer VLVSR033 x 1
|
||
| 6 | ![]() |
Inlet Valve VLVIN057 x 1
|
||
| 7 | ![]() |
Camchain Sprocket CMCSPK004 x 1
|
||
| 8 | ![]() |
Camchain Sprocket Bolt M5 x 12mm BLT909 x 1
|
||
| 9 | ![]() |
Exhaust Valve VLVEX050 x 1
|
||
| 10 | ![]() |
Camshaft CMS071 x 1
|
||
| 11 | ![]() |
Exhaust Rocker Arm RKA056 x 1
|
||
| 12 | ![]() |
Exhaust Rocker Arm Shaft RKAS046 x 1
|
||
| 13 | ![]() |
Inlet Rocker Arm Shaft RKAS047 x 1
|
||
| 14 | ![]() |
Inlet Rocker Arm RKA057 x 1
|
| Manufacturer | Model | Diagram |
|---|---|---|
| Lexmoto | OCR 125 E55 [WB125T-3B-E55] | View parts diagram |
