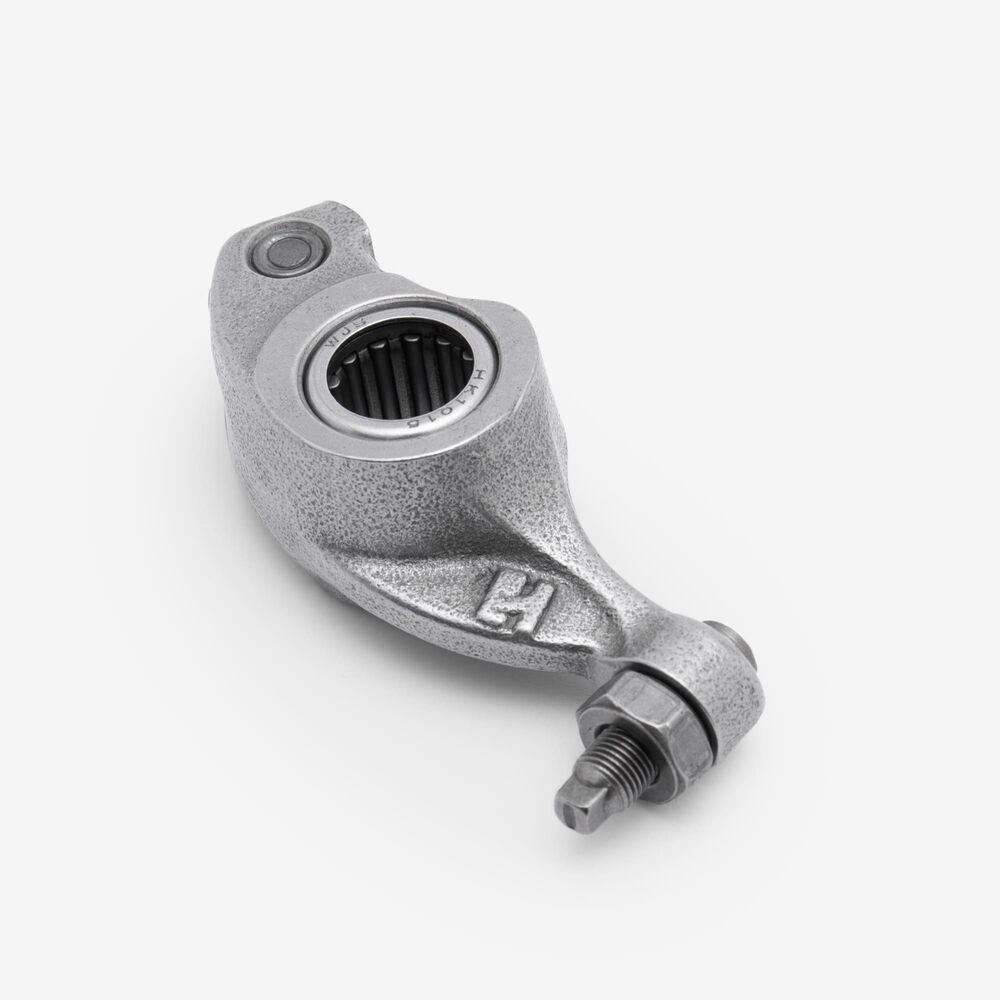

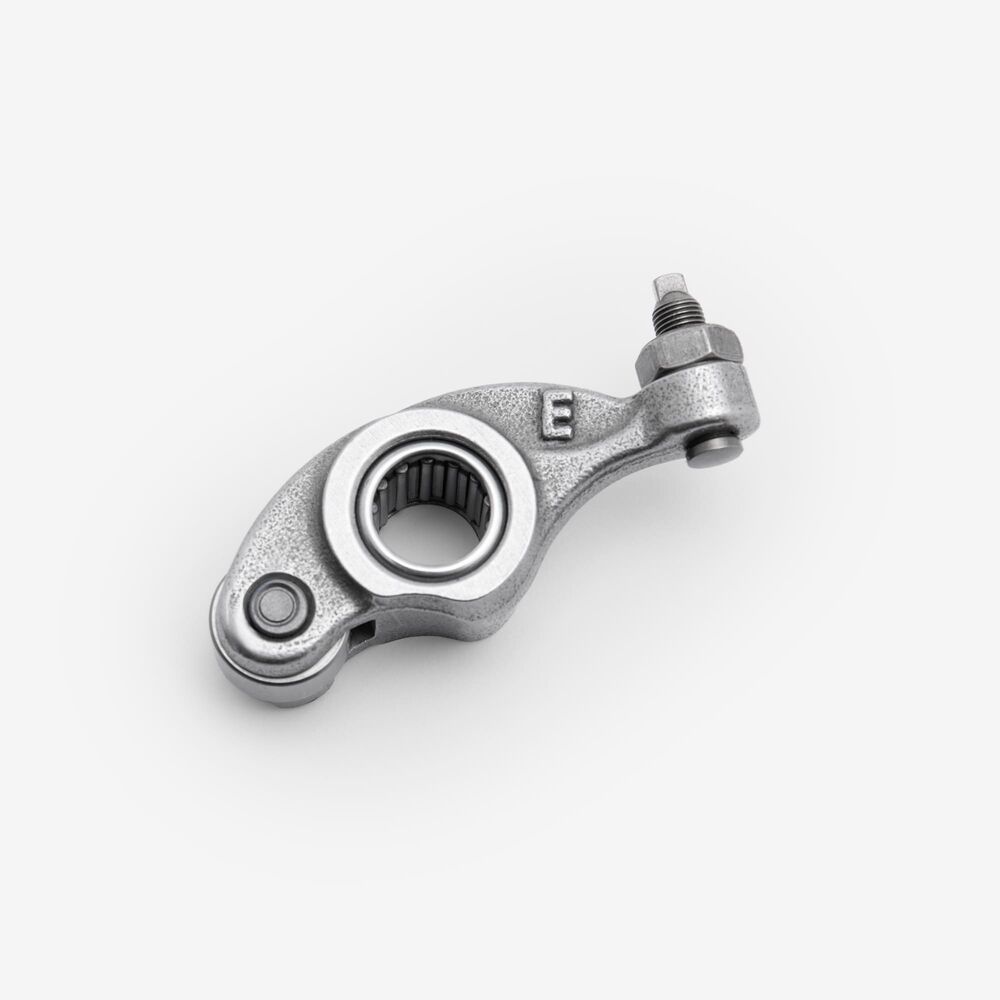

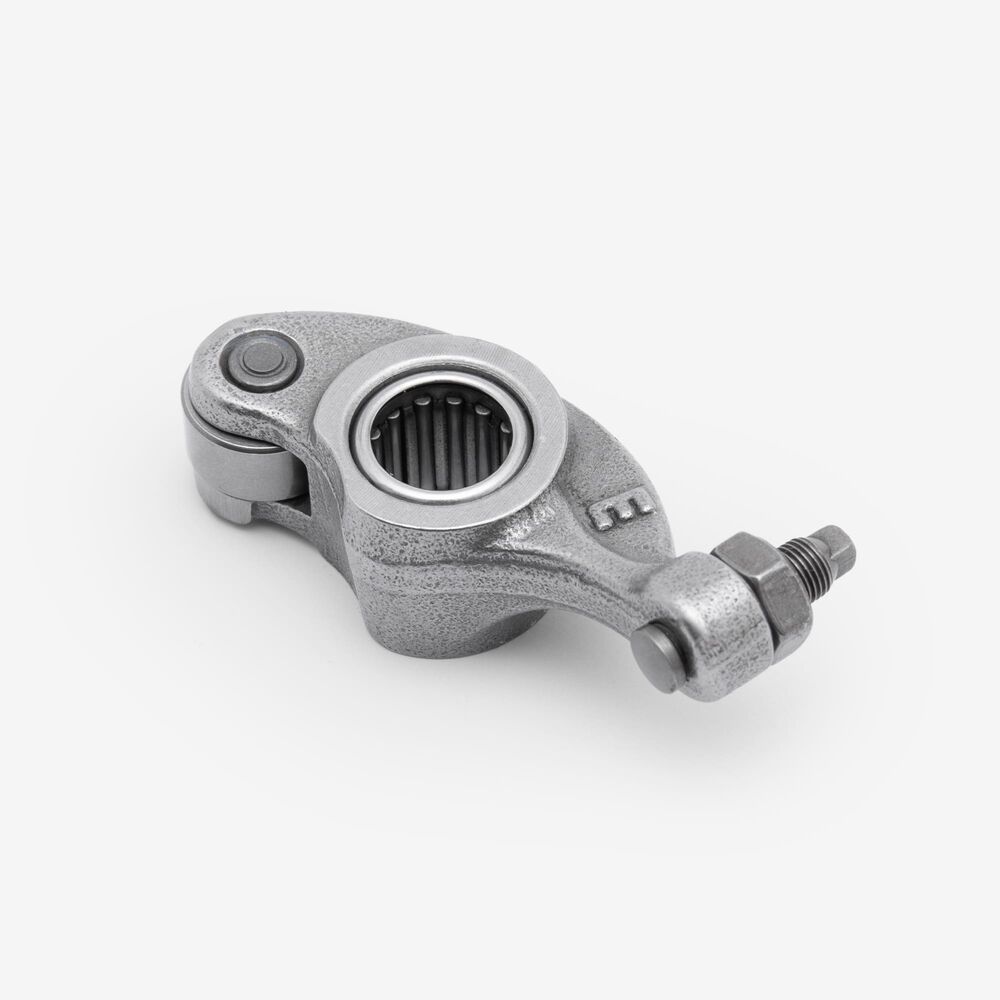

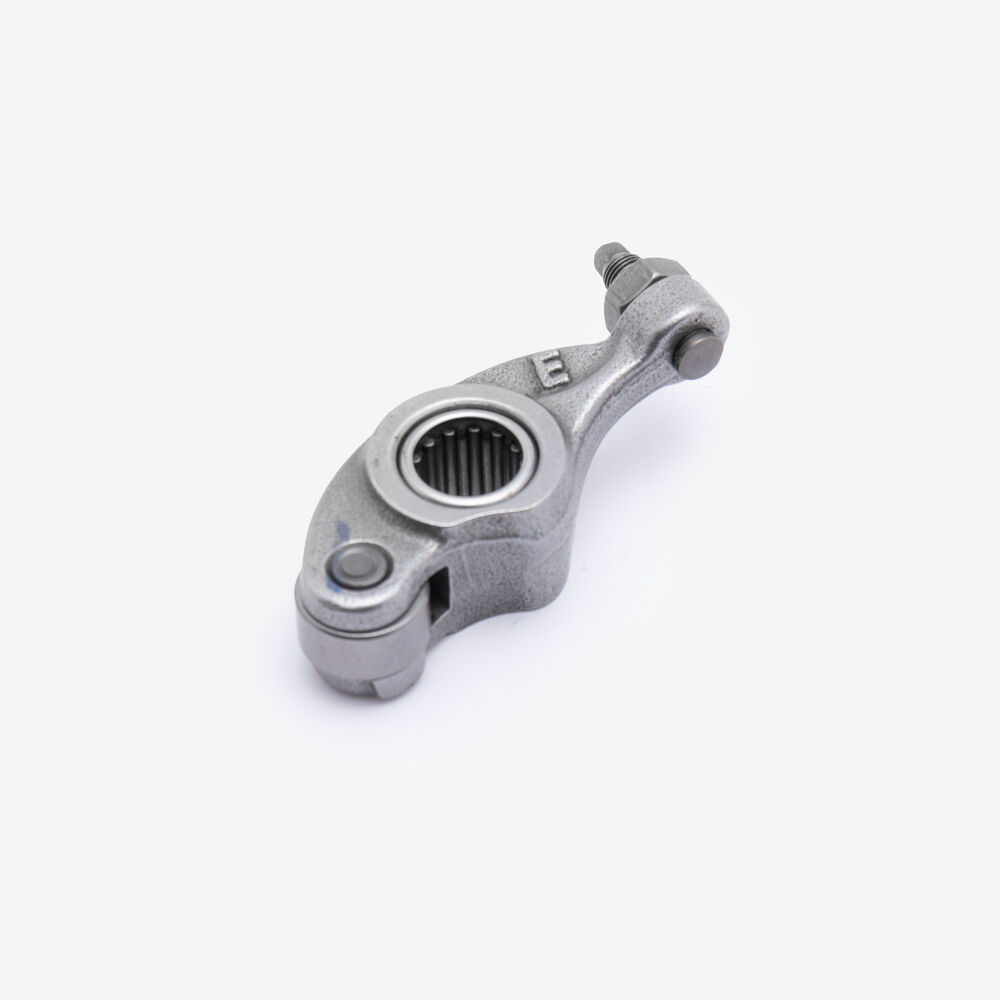

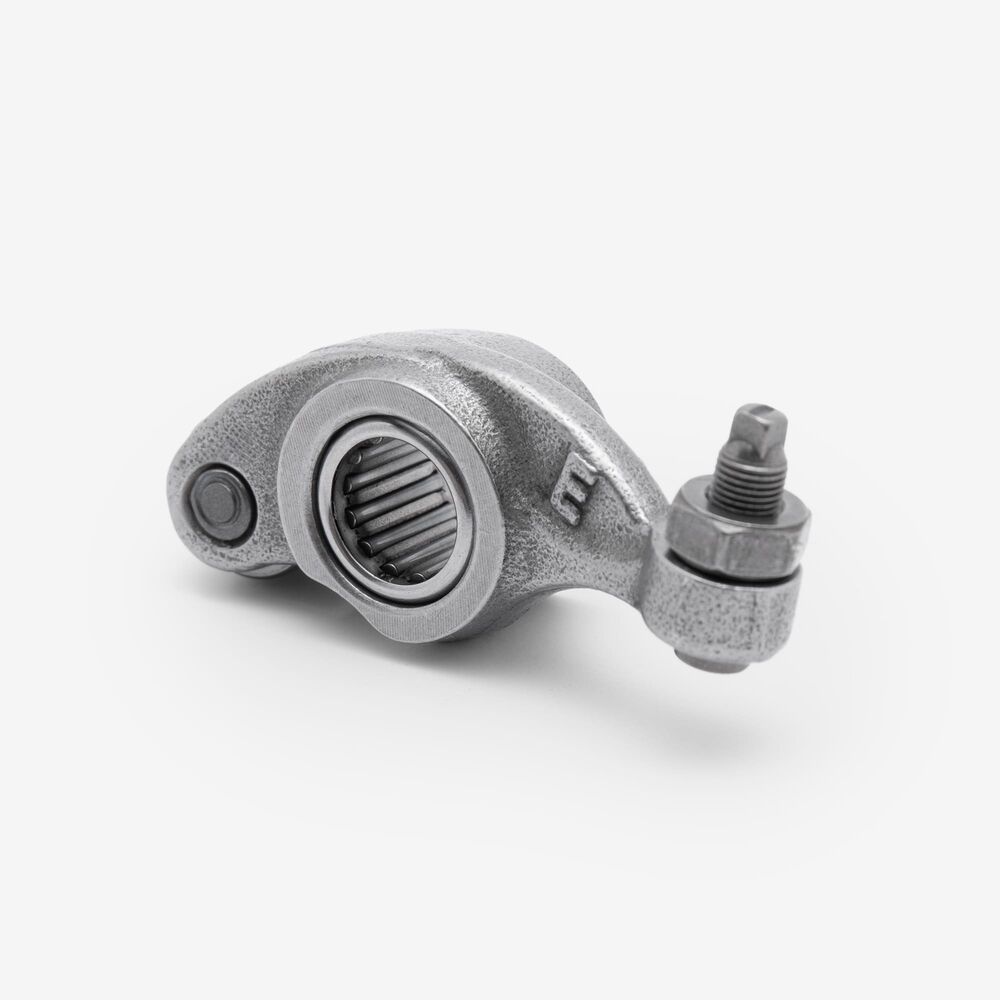

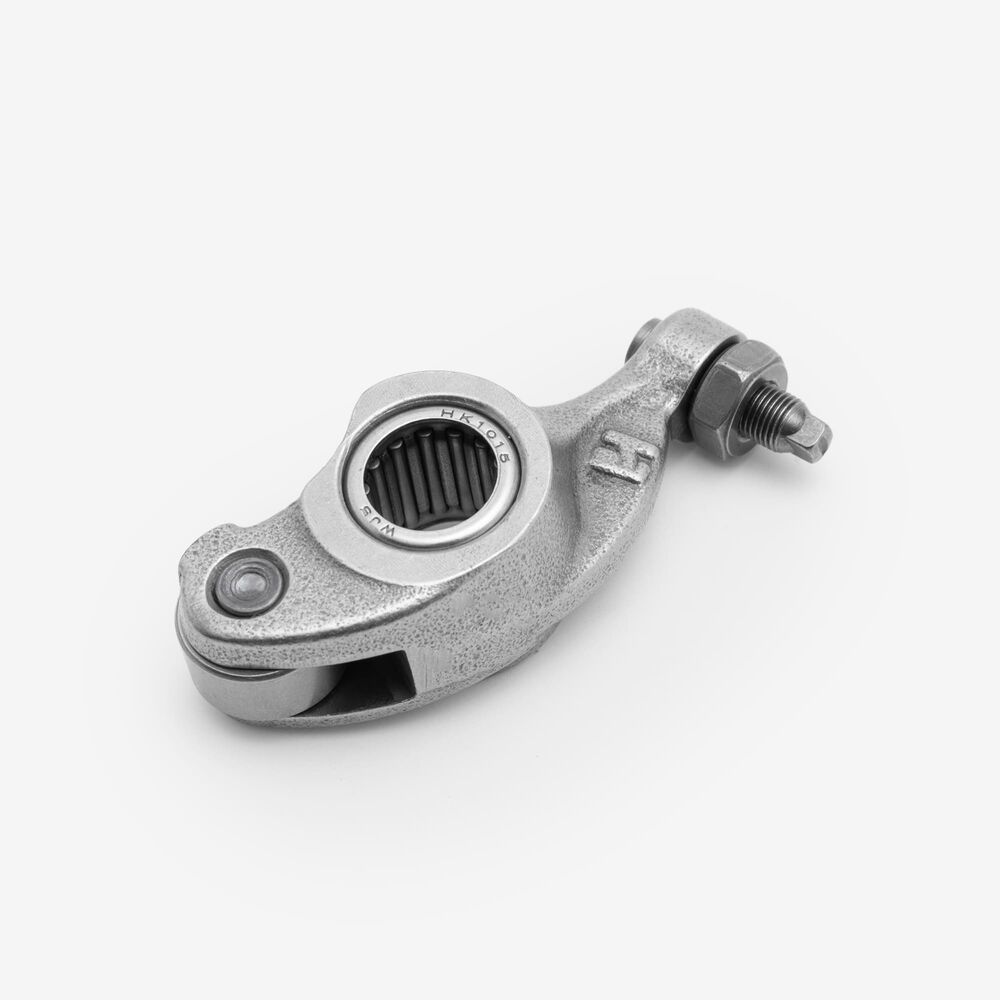

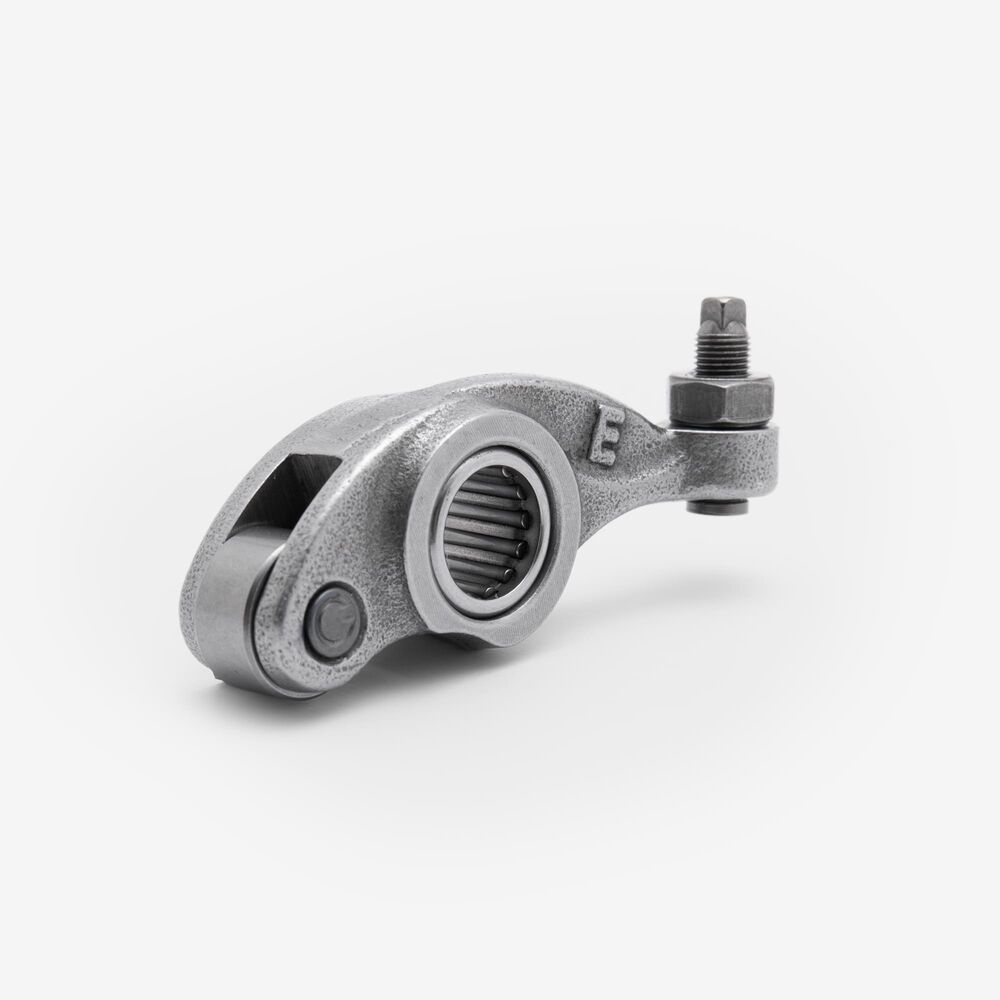

RKA059"Another great Valve Rocker"
The rocker arm is a pivotal component in a motorcycle’s engine valvetrain that transfers the motion from the camshaft to the engine's valves. It is typically a lever-like mechanism that pivots on a shaft or bearing, pushing the valve open and then allowing it to close as the camshaft rotates. By converting the rotational motion of the camshaft into the linear motion needed to operate the valves, the rocker arm plays a critical role in regulating the engine’s air-fuel intake and exhaust.
| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 1 | ![]() |
Bolt M6 x 16mm BLT967 x 1
|
||
| 2 | ![]() |
Cam Chain Guide Plate CMCG059 x 1
|
||
| 3 | ![]() |
Dowel 28.5 x 10mm DWL056 x 1
|
||
| 4 | ![]() |
Bolt M6 x 22mm BLTCH026 x 1
|
||
| 5 | ![]() |
Bolt M6 x 6mm BLT983 x 1
|
||
| 6 | ![]() |
O-Ring D9.6 x 1.7mm ORNG134 x 1
|
||
| 7 | ![]() |
Cam Chain Tensioner CMCT058 x 1
|
||
| 8 | ![]() |
Cam Chain Tensioner Gasket GSKCT026 x 1
|
||
| 9, 11 | ![]() |
Cam Chain Guides CMCG060 x 1
|
||
| 10 | ![]() |
Timing / Cam Chain CMCHN064 x 1
|
||
| 12 | ![]() |
Rocker Arm RKA058 x 1
|
||
| 13 | ![]() |
Valve Shim/Bucket VLVSB161 x 1
|
||
| 14 | ![]() |
Inlet/Exhaust Valve Spring Seat VLVSS028 x 1
|
||
| 15 | ![]() |
Valve Spring VLVS056 x 1
|
||
| 17 | ![]() |
Inlet/Exhaust Valve Spring Seat VLVSS029 x 1
|
||
| 18 | ![]() |
Inlet Valve VLVIN058 x 1
|
||
| 19 | ![]() |
Rocker Arm RKA059 x 1
|
||
| 20 | ![]() |
Exhaust Valve VLVEX051 x 1
|
||
| 21 | ![]() |
Camshaft CMS072 x 1
|
||
| 23 | ![]() |
Rocker Arm Shaft RKAS048 x 1
|
||
| 24 | ![]() |
Camshaft Bracket BRCKT412 x 1
|
||
| 25 | ![]() |
Bolt M6 x 12mm BLT861 x 1
|
||
| 26 | ![]() |
Timing / Camshaft Sprocket 34T CMCSPK005 x 1
|
| Manufacturer | Model | Diagram |
|---|---|---|
| Lexmoto | D2 E55 [GC125T-3A-E55] | View parts diagram |
| XDV 125 E55 [LJ125T-18A-E55] | View parts diagram | |
