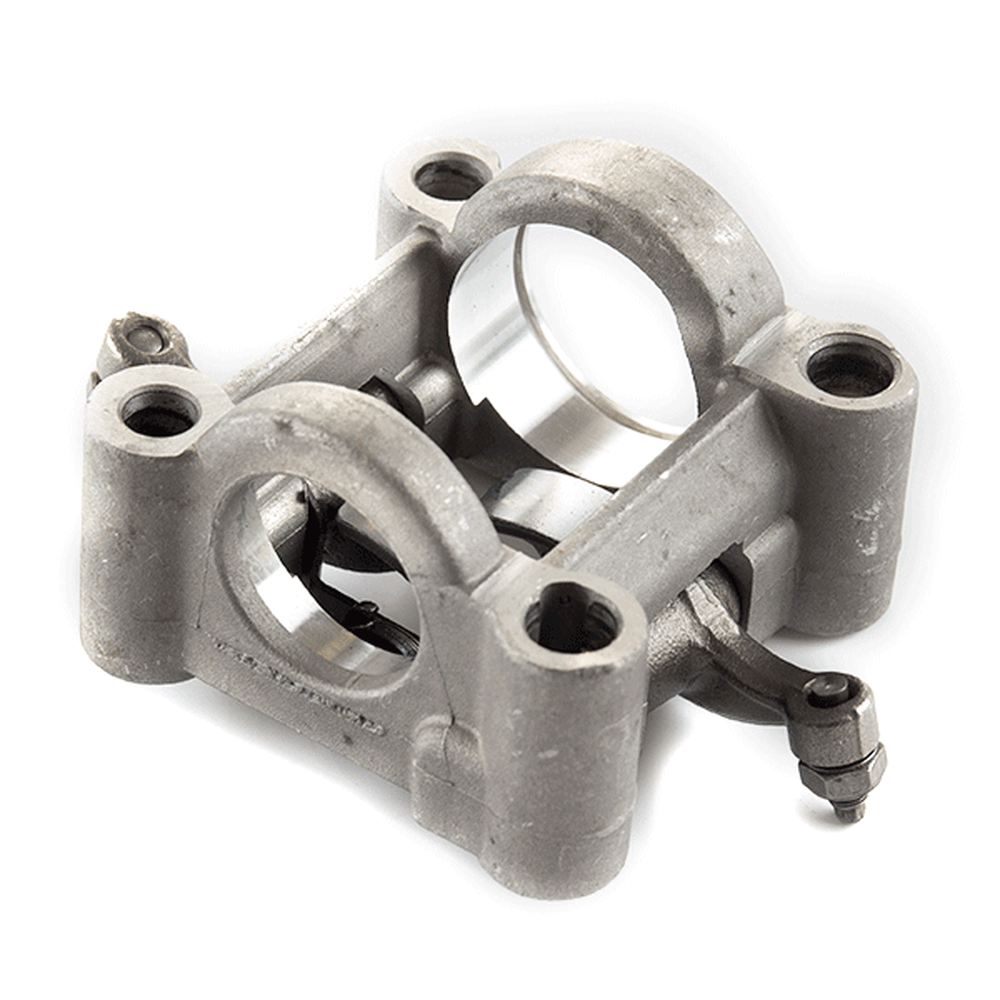

RKASM008"Another great Valve Rocker"
The rocker arm assembly is a crucial component of a motorcycle’s valvetrain, responsible for transferring motion from the camshaft to the engine's valves. It consists of rocker arms mounted on a shaft or supports, which pivot to push the valves open and closed as the camshaft rotates. The assembly ensures precise timing and movement of the valves, which is essential for proper engine operation and performance.
| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 2 | ![]() |
Cylinder Head Bolts M6 x 100mm BLTCH009 x 1
|
||
| 4 | ![]() |
Head Gasket GSKH042 x 1
|
||
| 14 | ![]() |
Inlet/Exhaust Valve Spring Seat VLVSS017 x 1
|
||
| 15, 16 | ![]() |
Valve Spring VLVS028 x 1
|
||
| 17 | ![]() |
Inlet/Exhaust Valve Spring Retainer VLVSR018 x 1
|
||
| 18 | ![]() |
Valve Collets VLVC007 x 1
|
||
| 20, 21, 22, 23, 24, 26, 30 | ![]() |
Rocker Arm Assembly RKASM008 x 1
|
||
| 25 | ![]() |
Camshaft CMS030 x 1
|
||
| 29 | ![]() |
Stainless Steel A2 Washer Form A M8 x 16mm WSH117 x 1
|
| Manufacturer | Model | Diagram |
|---|---|---|
| Lexmoto | FMR 125 EFI [WY125T-74R-E4] | View parts diagram |
| FMX 125 EFI [WY125T-108-E4] | View parts diagram | |
| Vienna 125 EFI [WY125T-121-E4] | View parts diagram | |
