RKC071"In the category of Cylinders and Cylinder heads, Cylinders"

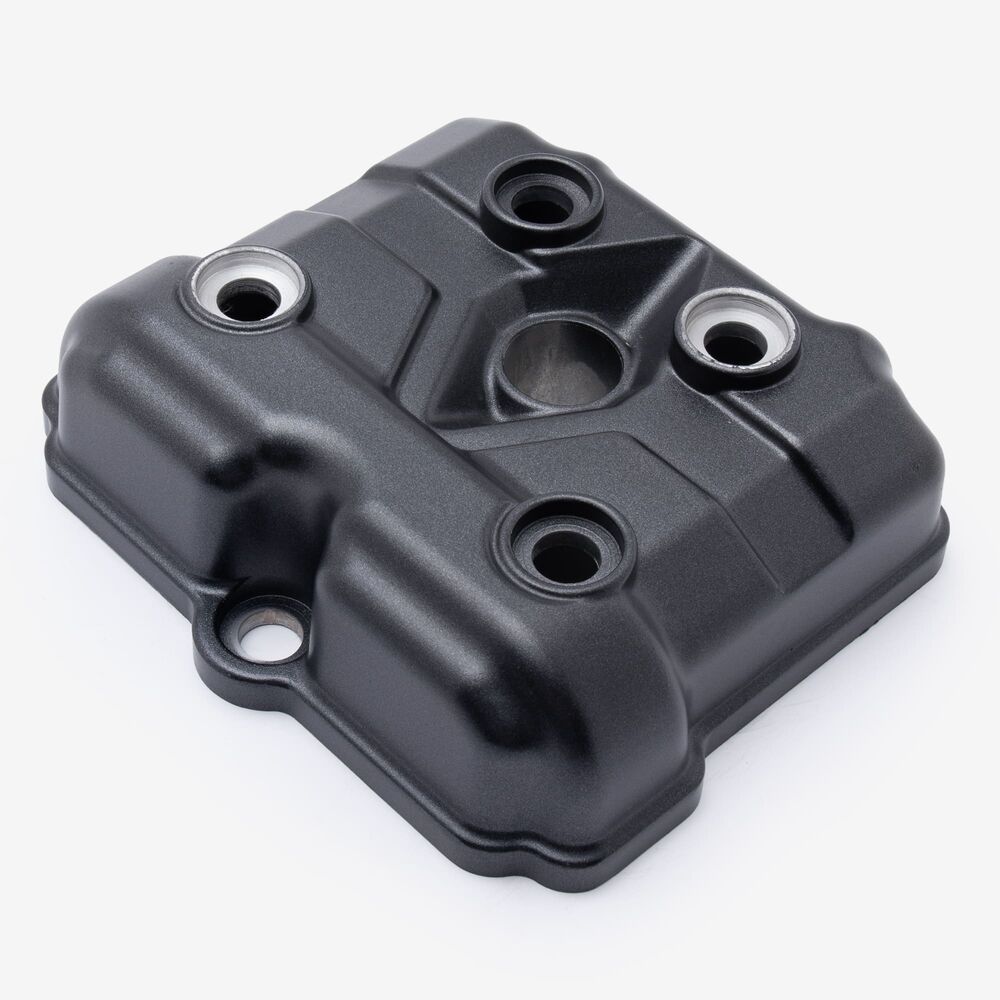

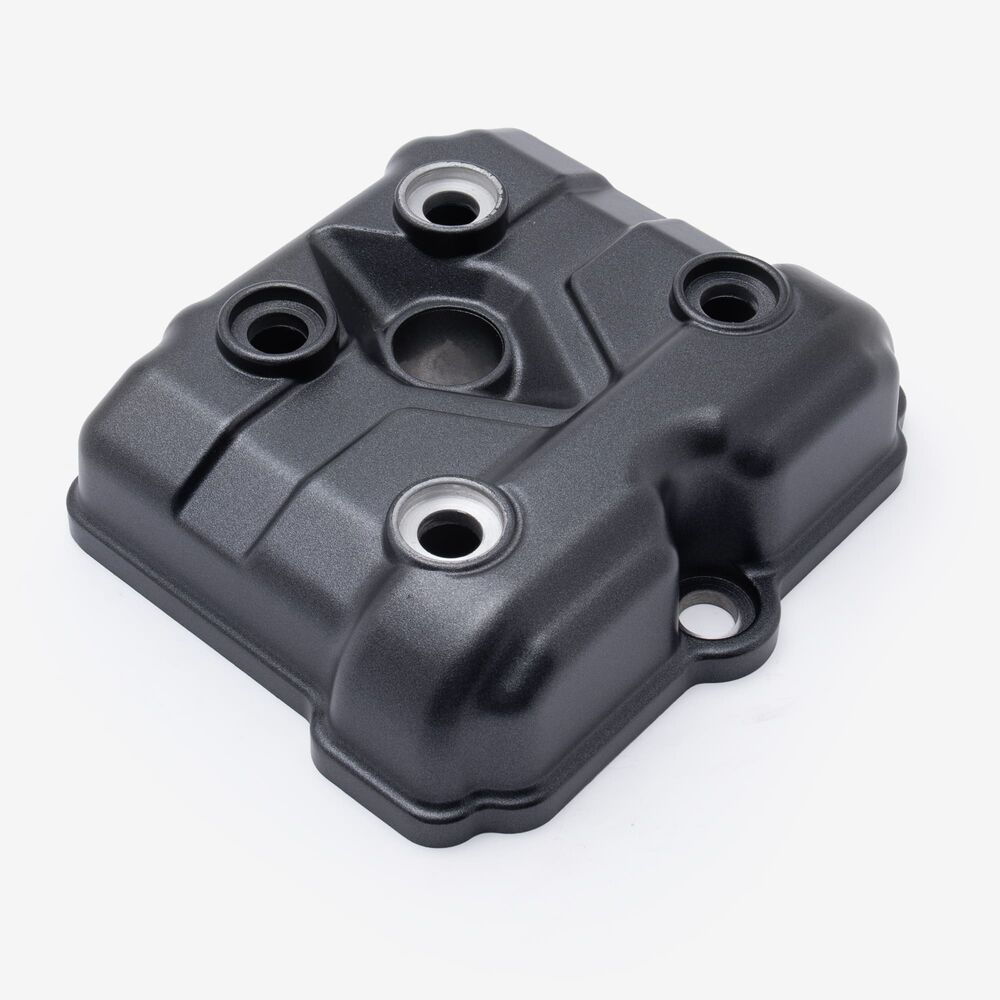

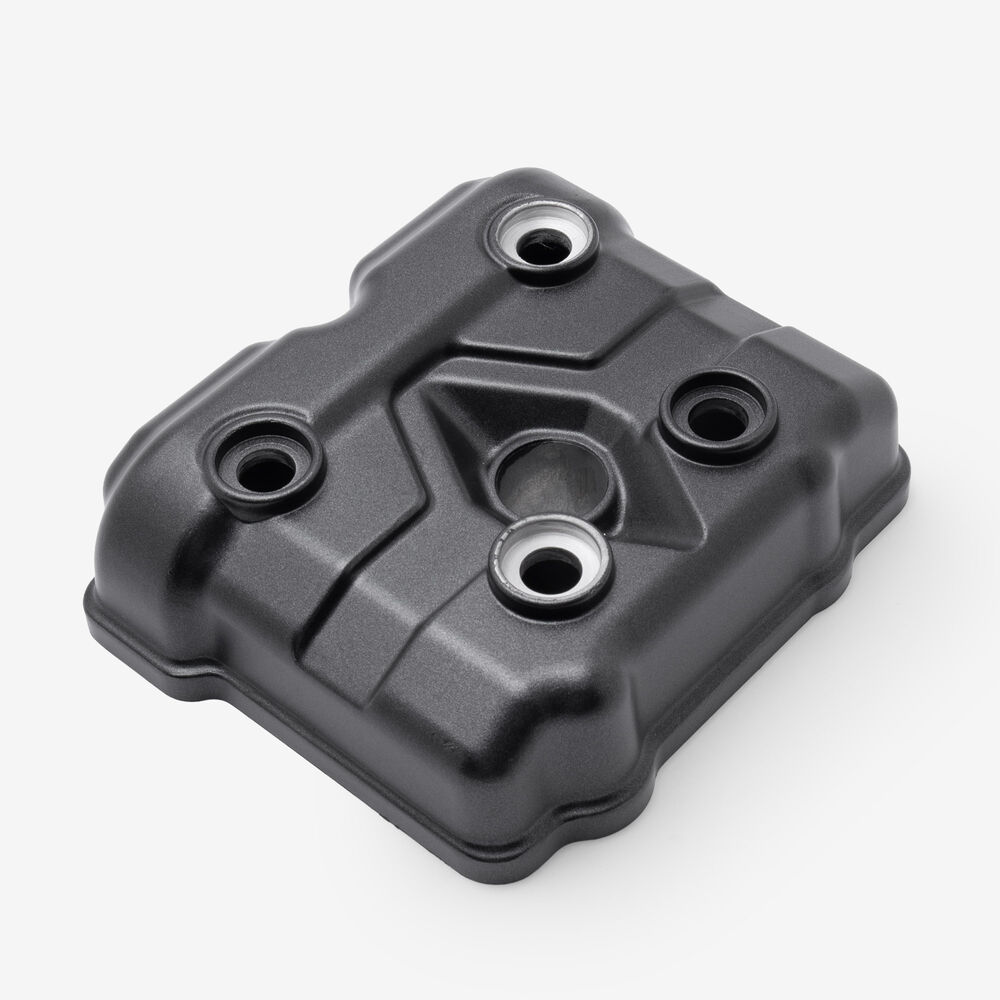

The rocker cover, also known as the valve cover, is a component that sits atop the engine’s cylinder head, covering the rocker arms and valvetrain. Its primary function is to seal the top of the engine, preventing oil leaks and protecting the internal components from dirt, debris, and moisture. The rocker cover typically features a gasket or seal to ensure a tight fit and prevent oil leakage. It may also include provisions for ventilation or oil filler caps.
| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 2 | ![]() |
Rocker Cover Bolt Washer WSH0039 x 1
|
||
| 3 | ![]() |
Cylinder Head Cover RKC071 x 1
|
||
| 4 | ![]() |
Spark Plug Seal GSKRC014 x 1
|
||
| 5 | ![]() |
Rocker Cover Gasket GSKRC015 x 1
|
||
| 6 | ![]() |
NGK CR9E Spark Plug 6263 SPRK015 x 1
|
||
| 7 | ![]() |
Cylinder Head CYLH122 x 1
|
||
| 8 | ![]() |
Dust Caps CPCVR067 x 1
|
||
| 9 | ![]() |
Flanged Hex Bolt M6 x 16mm BLT206 x 1
|
||
| 10 | ![]() |
EGR Blanking Plate EGRB003 x 1
|
||
| 11 | ![]() |
EGR Blanking Plate Gasket EGRB004 x 1
|
||
| 12 | ![]() |
Cylinder Head Bolt M6 x 120mm BLTCH011 x 1
|
||
| 13 | ![]() |
Head Gasket GSKH048 x 1
|
||
| 14 | ![]() |
Engine Dowel 10 x 14mm DWL048 x 1
|
||
| 15 | ![]() |
Cylinder CYL079 x 1
|
||
| 16 | ![]() |
Base Gasket GSKB026 x 1
|
||
| 17 | ![]() |
Flanged Hex Bolt with Shank M6 x 35mm BLT100 x 1
|
||
| 18 | ![]() |
Exhaust Stud M8 x 40mm STD018 x 1
|
| Manufacturer | Model | Diagram |
|---|---|---|
| Lexmoto | LXR 125 E55 [SY125-10-E55] | View parts diagram |
| LXR 125 SE E55 [SY125-10-SE-E55] | View parts diagram | |
| LXS 125 E55 [TR125-GP2-E55] | View parts diagram | |
