Product Diagram
REAR WHEEL ASSEMBLY diagram - Talaria Komodo L3e Road Legal - TL65
| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 1 |  |
Rear Wheel Black WHLR265 x 1
|
£254.49 | |
| 2 | |
Spindle Rear SPND184 x 1
|
£23.49 | |
| 3 | |
Chain Guard Tensioner Left CHNG084 x 1
|
£12.49 | |
| 4 | |
Rear Wheel Bush BSH249 x 1
|
£6.99 | |
| 5 | |
Disc Bolt BLTD052 x 1
|
£1.99 | |
| 6 | |
Rear Brake Disc BRDR087 x 1
|
£27.49 | |
| 8, 8, 8 | |
Rear Wheel Spokes 192 x 3.5mm 36pcs WHLSPK039 x 1
|
£39.99 | |
| 9 | |
Wheel Hub Rear BRH054 x 1
|
£157.99 | |
| 10 | |
Oil Seal 42 x 26 x 6mm OLSL173 x 1
|
£6.99 | |
| 11 | |
Wheel Bearing 6004-2RS 42 x 20 x 6mm BRG247 x 1
|
£8.99 | |
| 12 | |
Spacer 6004 SPCR318 x 1
|
£1.99 | |
| 13 | |
Spacer 94 x 26mm SPCR319 x 1
|
£15.99 | |
| 15 | |
Rear Sprocket 520-53T SPKR185 x 1
|
£61.49 | |
| 16 | |
Screw M8 x 19mm SCRW123 x 1
|
£2.49 | |
| 17 | |
Rear Wheel Bush BSH248 x 1
|
£4.99 | |
| 18 | |
Chain Guard Tensioner Right CHNG085 x 1
|
£12.49 | |
| 19 | |
Spindle Cap CPCVR072 x 1
|
£4.99 | |
| 21, 21, 21 | |

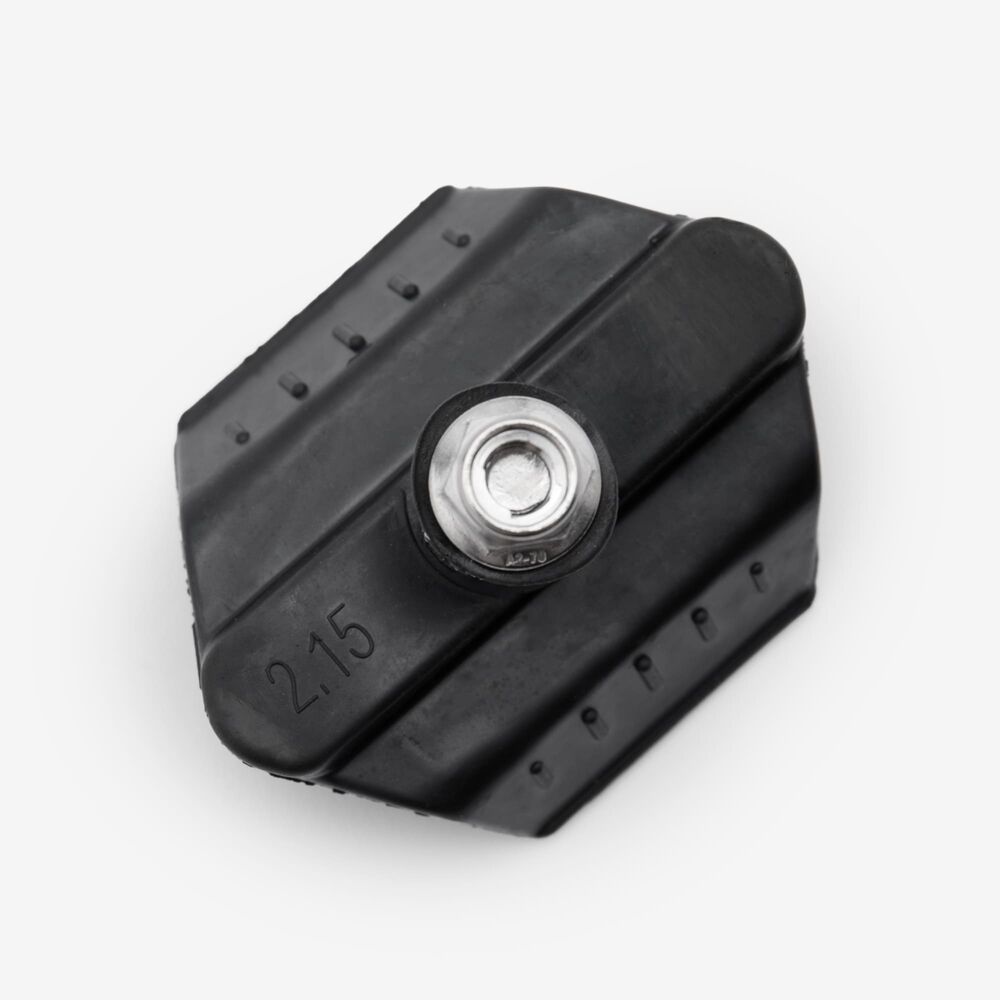

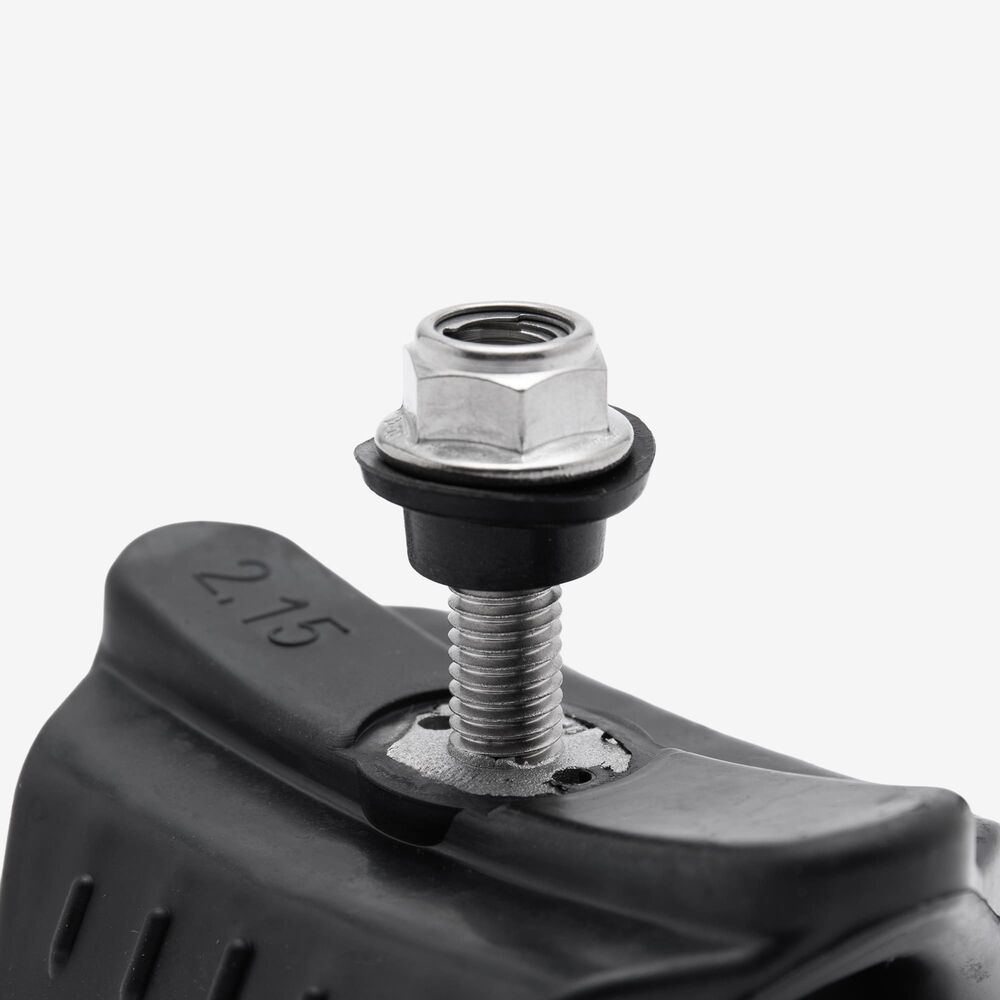

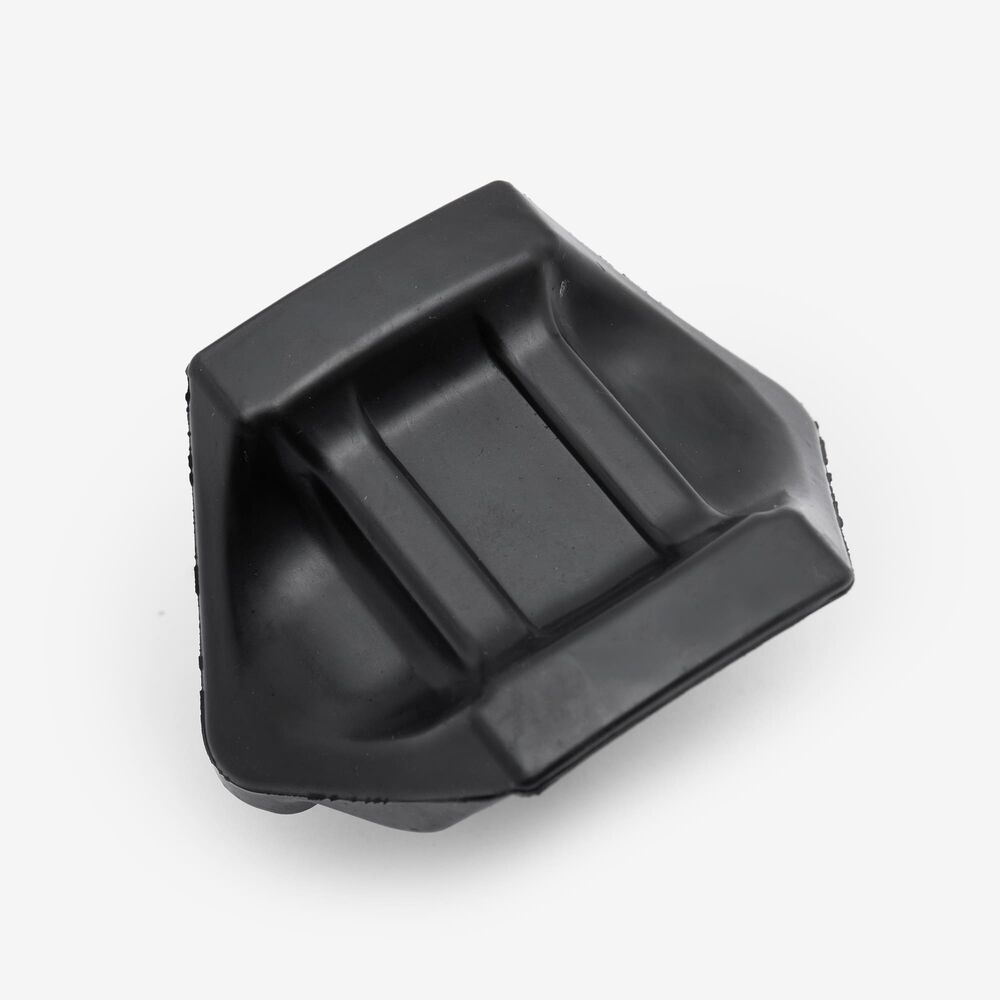

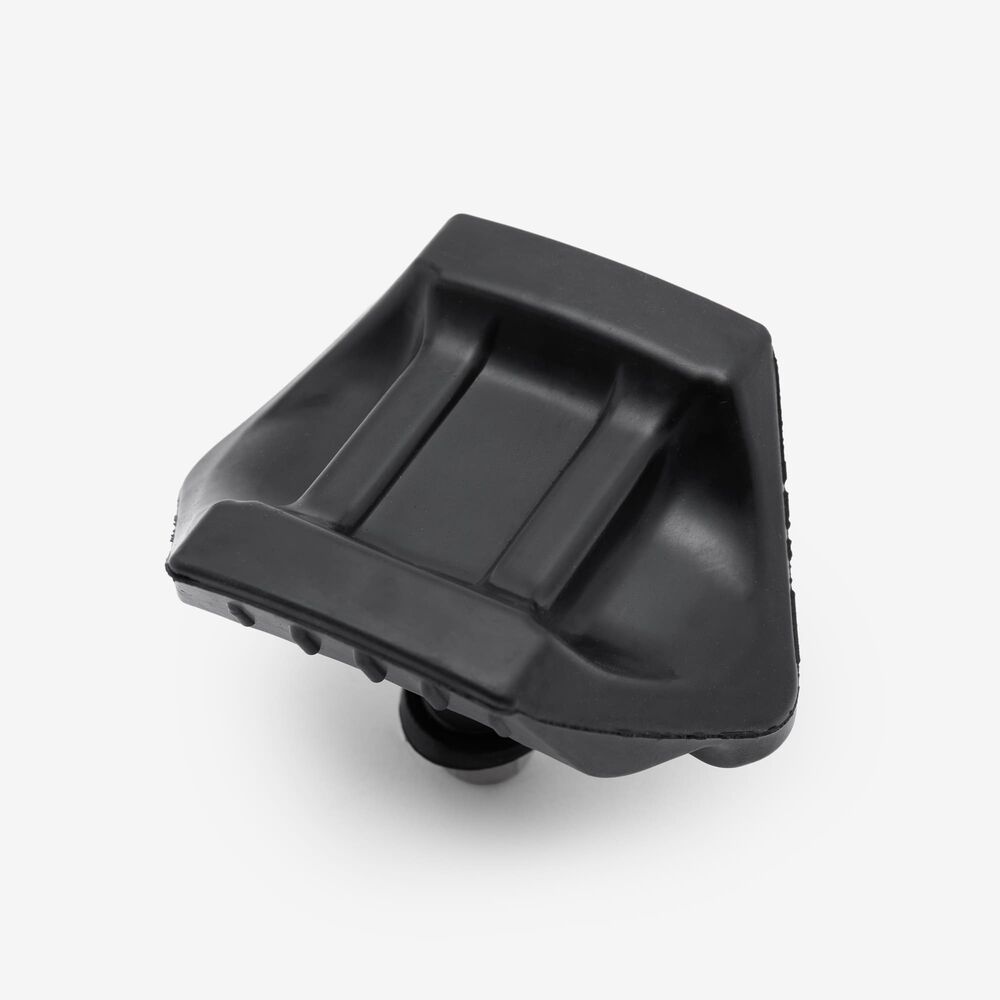

Rim Lock RMLK001 x 1
|
£22.49 |
More Product Diagrams
Compatibility
| Manufacturer | Model | Diagram |
|---|---|---|
| Talaria | Komodo L3e [TL65] | View parts diagram |
| Komodo [TL6000] | View parts diagram | |
