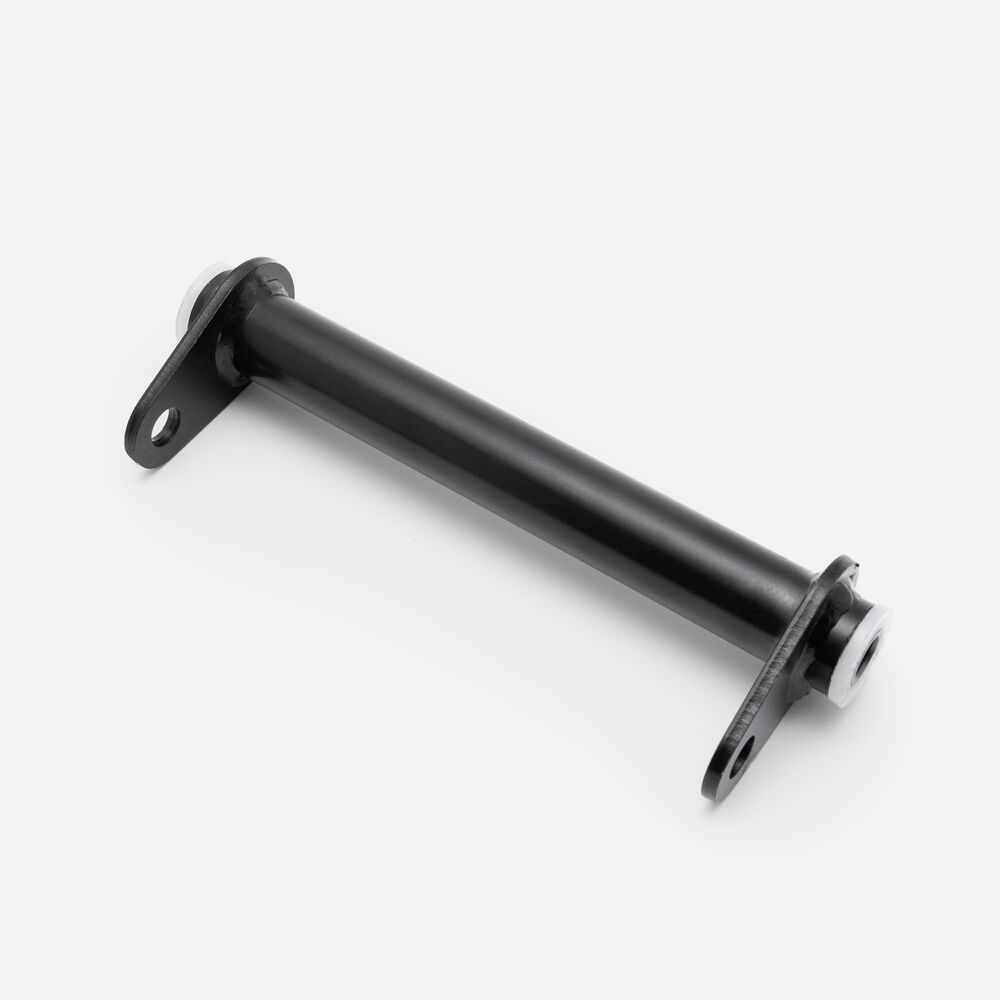

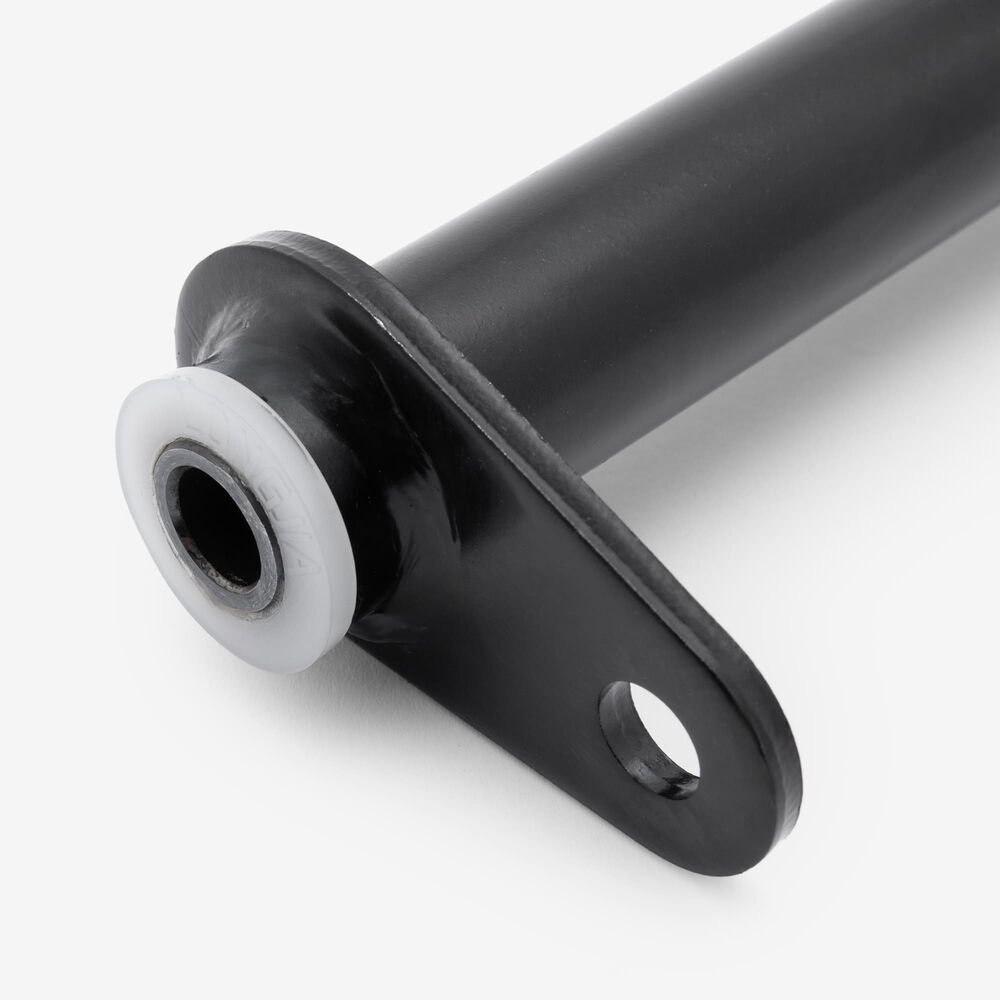

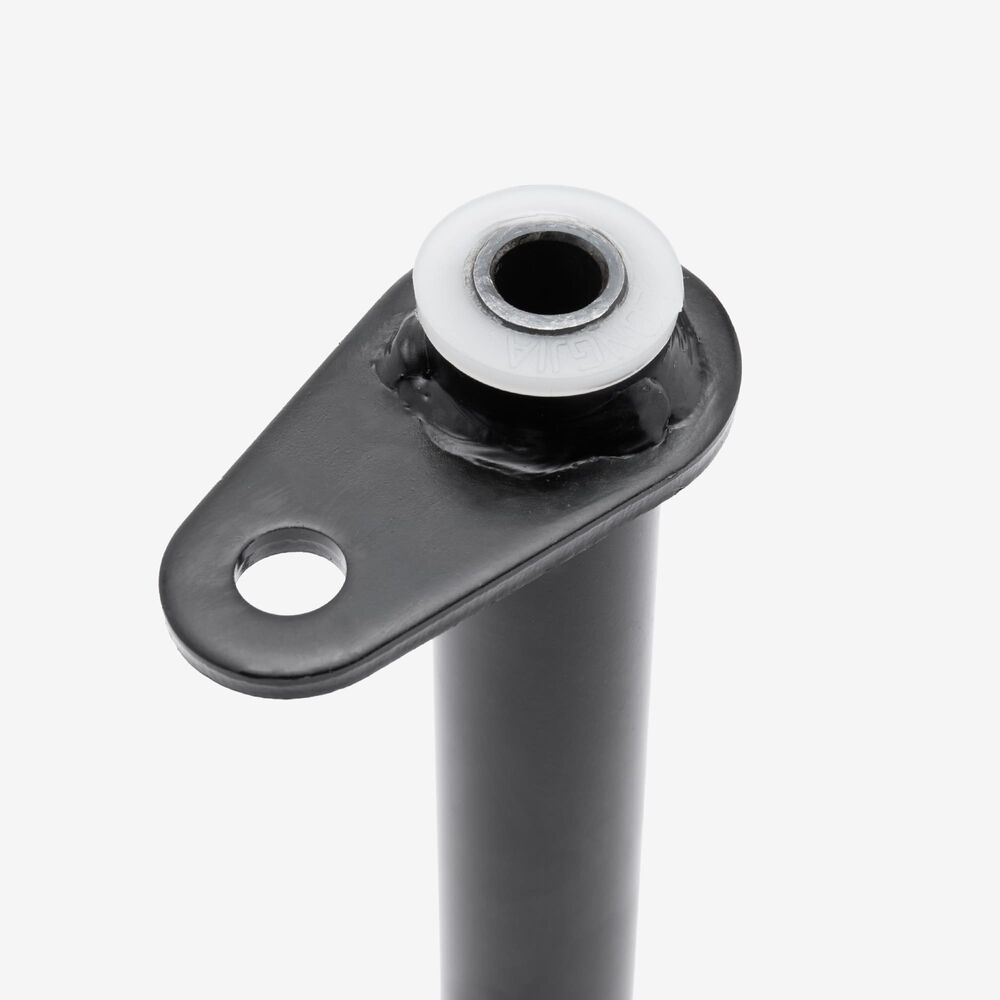

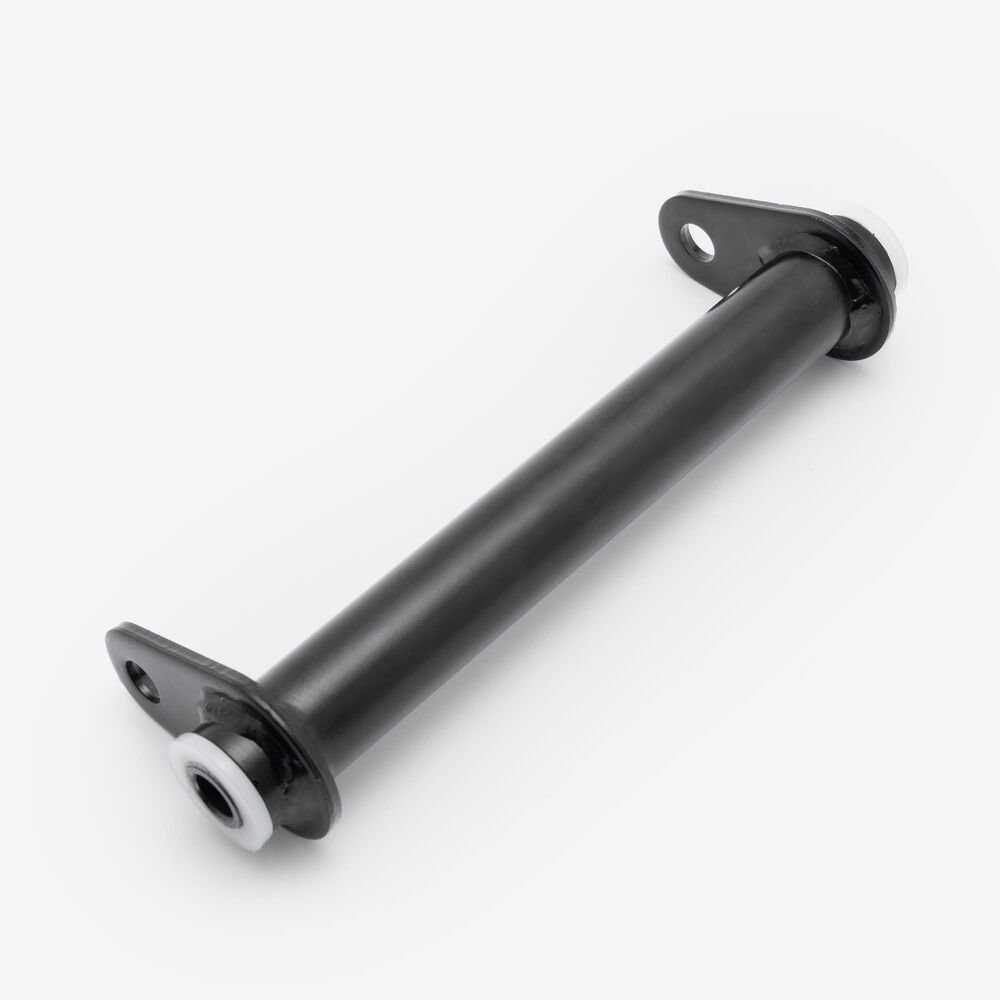

SBFRE024"Another great Frame"
The engine subframe of a motorcycle is a secondary frame structure that supports and secures the engine within the main motorcycle frame. It is designed to provide additional mounting points and stability for the engine, helping to distribute engine loads and vibrations more effectively. Typically made from metal, such as steel or aluminum, the engine subframe also helps to align the engine correctly with other components like the transmission and suspension.
| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 3 | ![]() |
Lock Set LCKST199 x 1
|
||
| 4 | ![]() |
Seat Lock Cable STCB079 x 1
|
||
| 5 | ![]() |
Seat Latch STL027 x 1
|
||
| 8 | ![]() |
Bracket BRCKT064 x 1
|
||
| 9 | ![]() |
Rear Mudguard Bracket for LJ50QT-N MGB016 x 1
|
||
| 10 | ![]() |
Engine Bracket (Side) for LJ125T-18, LJ125T-18-E5 ENGB086 x 1
|
||
| 11 | ![]() |
Engine Subframe SBFRE024 x 1
|
||
| 15 | ![]() |
Centre Stand Pin STDPC020 x 1
|
||
| 16 | ![]() |
Nut M8 NUT237 x 1
|
||
| 18 | ![]() |
Centre Stand Cushion T5 STDCC017 x 1
|
||
| 19 | ![]() |
Centre Stand STDC140 x 1
|
||
| 21 | ![]() |
Side Stand Switch (Male block connector) SWSTD005 x 1
|
||
| 22 | ![]() |
Bolt M8 x 28 mm BLTSTD016 x 1
|
||
| 23 | ![]() |
Side Stand for LJ50QT-N STDS135 x 1
|
||
| 24 | ![]() |
Side Stand Spring SPNG120 x 1
|
||
| 25 | ![]() |
Centre Stand Spring SPNG031 x 1
|
||
| 26 | ![]() |
Bolt M12 x 265 x 1.25mm BLT936 x 1
|
||
| 31 | ![]() |
Engine Bracket ENGB138 x 1
|
||
| 32 | ![]() |
Engine Mounting Bolt M12 x 220mm BLT744 x 1
|
||
| 36 | ![]() |
Bolt M10 x 220 x 1.25mm BLT937 x 1
|
||
| 38 | ![]() |
Rubber Bush 56 x 41 x 16mm BSH217 x 1
|
||
| 39 | ![]() |
Flange Bolt M10 x 25 x 20mm BLT945 x 1
|
||
| 40 | ![]() |
Spring Washer WSH0112 x 1
|
||
| 41 | ![]() |
Washer 20 x 10 x 2mm WSH0113 x 1
|
| Manufacturer | Model | Diagram |
|---|---|---|
| Lexmoto | L5 [LJ50QT-7E-E55] | View parts diagram |
