Description
"Another great Subframe"
The rear subframe on a motorcycle is a structural component that supports and connects the rear portion of the bike's frame to the main frame. It typically provides mounting points for the rear seat, rear suspension, and often the rear fender and tail light assembly. Made from materials such as steel or aluminum, the rear subframe is designed to withstand the stresses and loads experienced during riding while maintaining the bike's structural integrity. It plays a crucial role in the motorcycle's overall stability, handling, and comfort, and may be replaceable or adjustable for customization or repair purposes.
Product Diagrams
| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 1 |  |
Bracket for LX06MAX-E5 BRCKT193 x 1
|
£4.99 | |
| 5 | |
Fuse Box Bracket for LX06MAX-E5 BRCKT194 x 1
|
£4.99 | |
| 6 | |
Lock Plate Bracket for LX06MAX-E5 BRCKT195 x 1
|
£5.49 | |
| 7 | |
Lock Plate for LX06MAX-E5 BRCKT196 x 1
|
£4.99 | |
| 8 | |
Central Control Bracket for LX06MAX-E5 BRCKT197 x 1
|
£4.99 | |
| 9 | |
Rear Wheel Hugger Bracket for LX06MAX-E5 HGRB021 x 1
|
£23.49 | |
| 10 | |

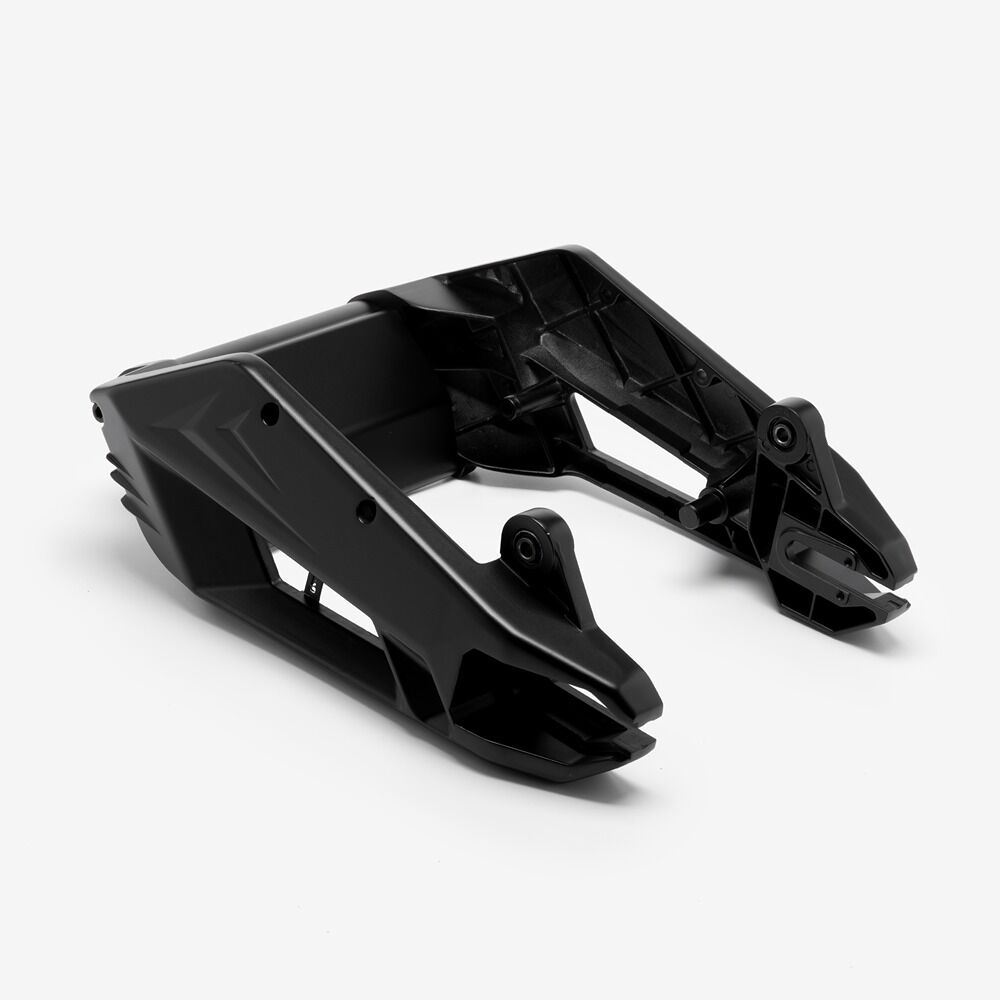

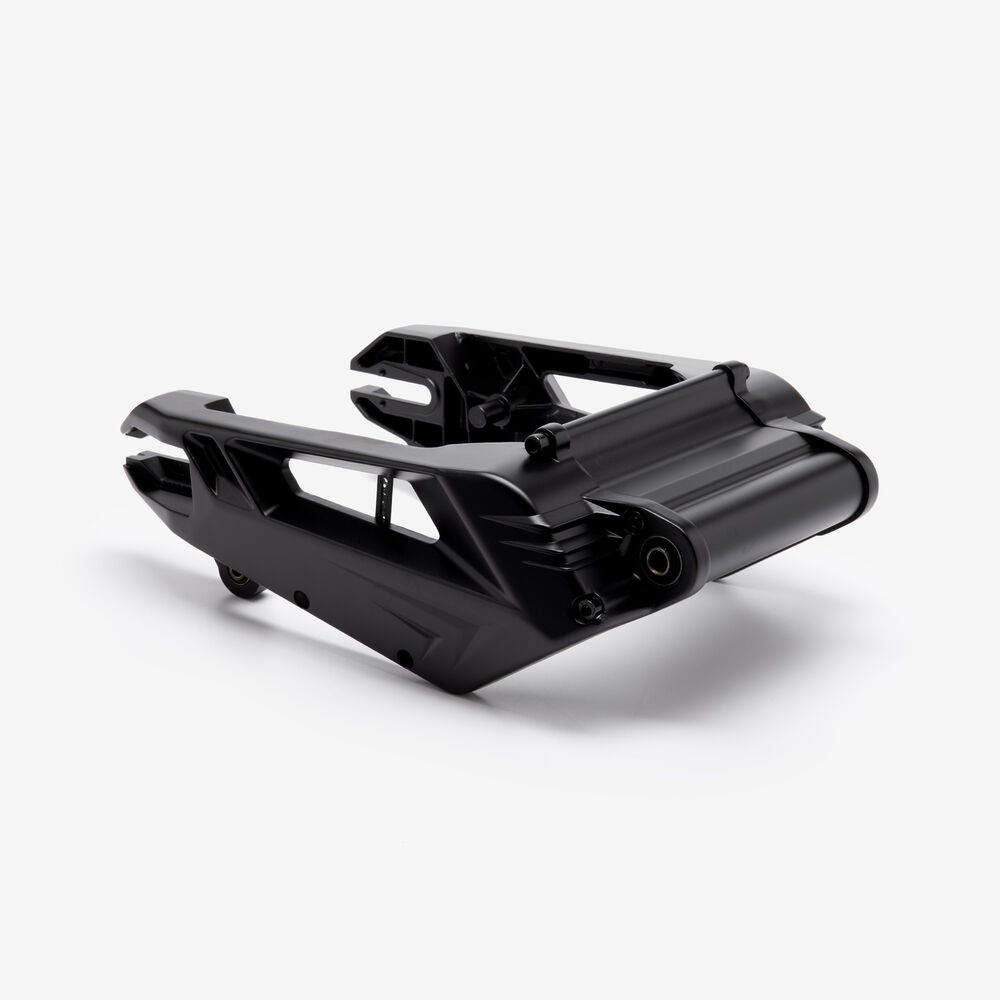

Swingarm for LX06MAX-E5 SBFRR008 x 1
|
£74.49 | |
| 11 | |
Mudguard Bracket for LX06MAX-E5 MGB103 x 1
|
£34.49 | |
| 12 | |
Mudguard Bracket for LX06MAX-E5 MGB104 x 1
|
£34.49 | |
| 13 | |
Stand Bush for LX06MAX-E5 BSH159 x 1
|
£15.99 | |
| 14 | |
Main Stand Bolt for LX06MAX-E5 BLT746 x 1
|
£1.99 | |
| 15 | |
Bottom Fork Axle Bush BSH160 x 1
|
£15.99 | |
| 17 | |
Centre Stand for LX06MAX-E5 STDC121 x 1
|
£38.99 | |
| 18 | |
Main Stand Spring for LX06MAX-E5, LX08MAX-E5 SPNG259 x 1
|
£9.49 | |
| 20 | |
Side Stand Spring for LX06MAX-E5, LX08MAX-E5 SPNG260 x 1
|
£9.49 | |
| 21 | |
Side Stand for LX06MAX-E5 STDS151 x 1
|
£20.49 | |
| 23 | |
Right Pillion Footpeg for LX06MAX-E5 BRCKT198 x 1
|
£14.49 | |
| 23 | |
Left Footpeg Pillion for LX06MAX-E5 FPPR061 x 1
|
£14.49 |
Compatibility
| Manufacturer | Model | Diagram |
|---|---|---|
| Lexmoto | LX06 | View parts diagram |
| Lvneng | LX06MAX | |
