SPKPF002"Another great Chain"

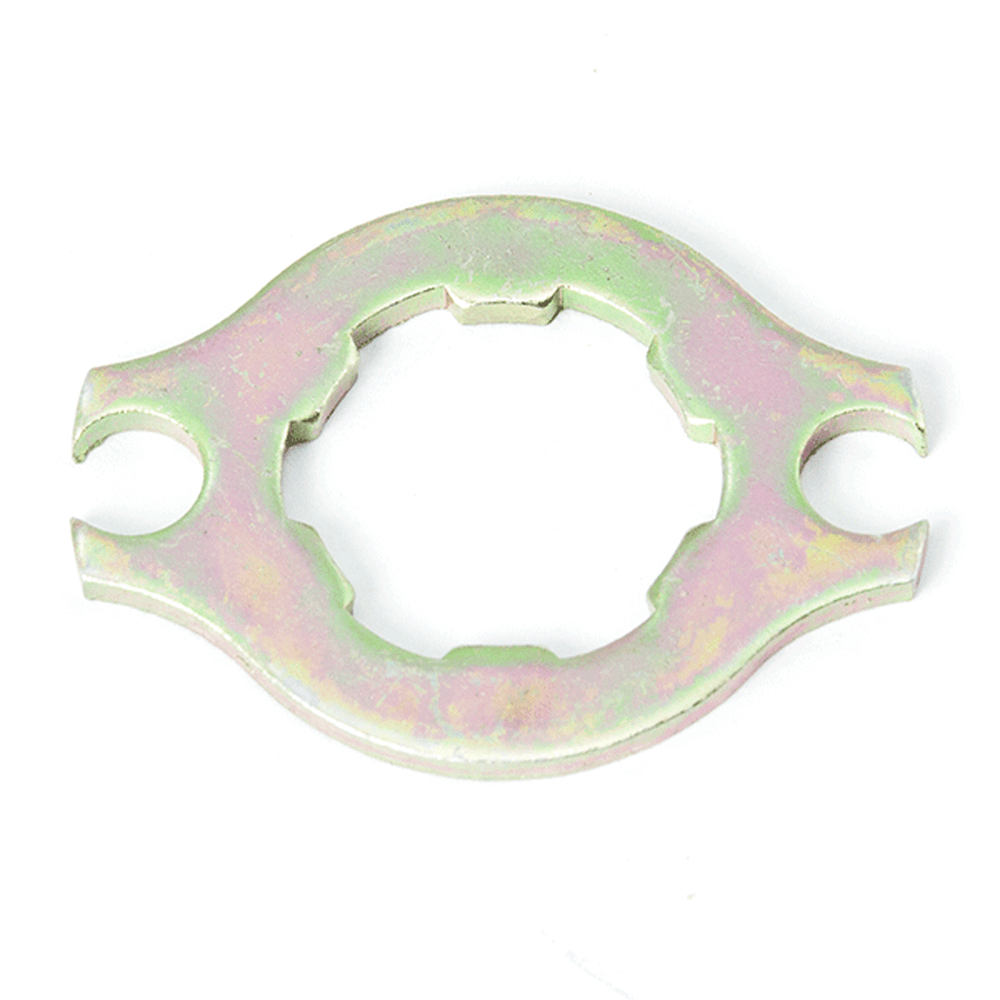

The front sprocket plate is a component that secures the front sprocket to the motorcycle's transmission or engine output shaft. Typically made from metal, it is designed to provide a stable mounting surface for the sprocket, ensuring it remains properly aligned and engaged with the chain. The plate often features mounting holes or slots for bolts that attach it to the shaft and may also have provisions for a retaining clip or washer.

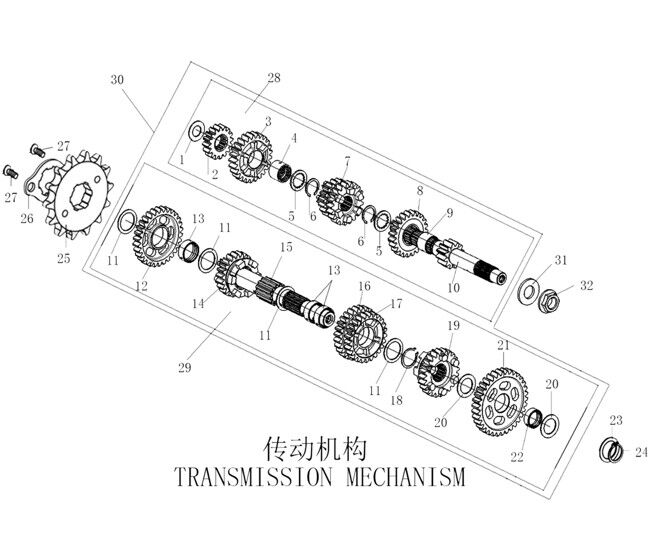

| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 1 | ![]() |

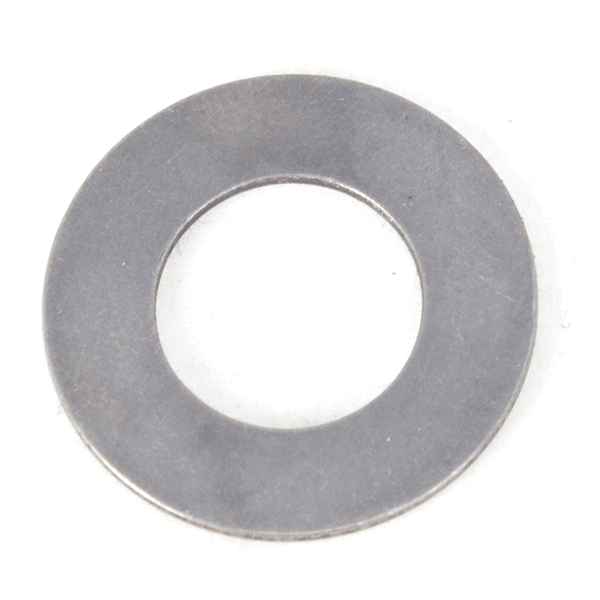

Washer M12 x 1 x 22.5mm WSH94 x 1
|
||
| 25 | ![]() |
Front Sprocket 428-14T for ZS125-48F,ZS125-48E SPKF037 x 1
|
||
| 26 | ![]() |
Front Sprocket Fixing Plate SPKPF002 x 1
|
||
| 27 | ![]() |
Front Sprocket Bolt M6 x 10mm for ZS125-79-E4, ZS125-79-E5, SR125-E5 BLT209 x 1
|
||
| 28 | ![]() |
Input Shaft for SY125-10-SE-E5, ZS125-39-E5 INSH036 x 1
|
||
| 29 | ![]() |
Output Shaft OTSH054 x 1
|
||
| 30 | ![]() |

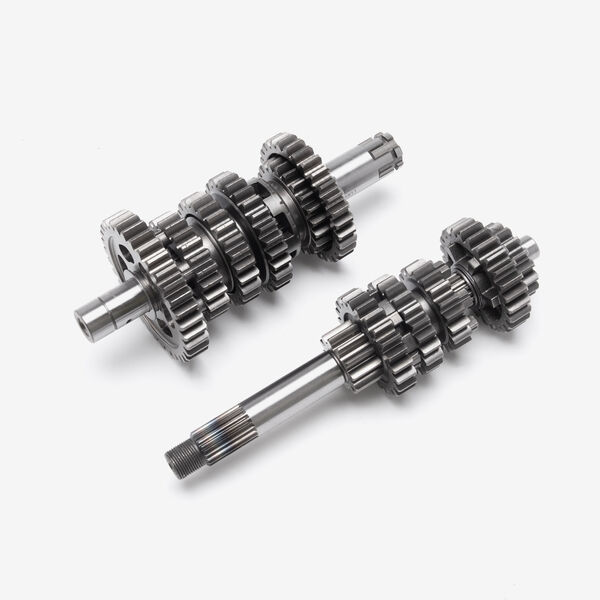

Complete Gearbox Input And Output Shaft for TR125-3-E5 GRBXC012 x 1
|
||
| 31 | ![]() |
Washer M14 x 2.8 x 29mm WSH93 x 1
|
||
| 32 | ![]() |
Nut M14 x 1 x 9mm NUT247 x 1
|
| Manufacturer | Model | Diagram |
|---|---|---|
| Lexmoto | Detroit 125 Euro 5 [SR125-E5] | View parts diagram |
| LS-Z E55 [ZS125-39-E55] | View parts diagram | |
| LXR 125 [SY125-10] | View parts diagram | |
| LXR SE 125 [SY125-10-SE] | View parts diagram | |
| Michigan 125 EFI [ZS125-79-E4] | View parts diagram | |
| Michigan 125 Euro 5 [ZS125-79-E5] | View parts diagram | |
| ZSX-F 125 EFI [ZS125-48E-E4] | View parts diagram | |
| ZSX-R 125 EFI [ZS125-48F-E4] | View parts diagram | |
| Mitt | MITT 125 GP [MITT125GP] | |
| Romet | Z-One S 125 [ZONES125] | |
| Z-One T 125 [ZONET125] | ||
| Sinnis | Outlaw 125 [SR125-S] | |
| RSX 125 [ZS125-80] | ||
