STCB079"Another great Cable"

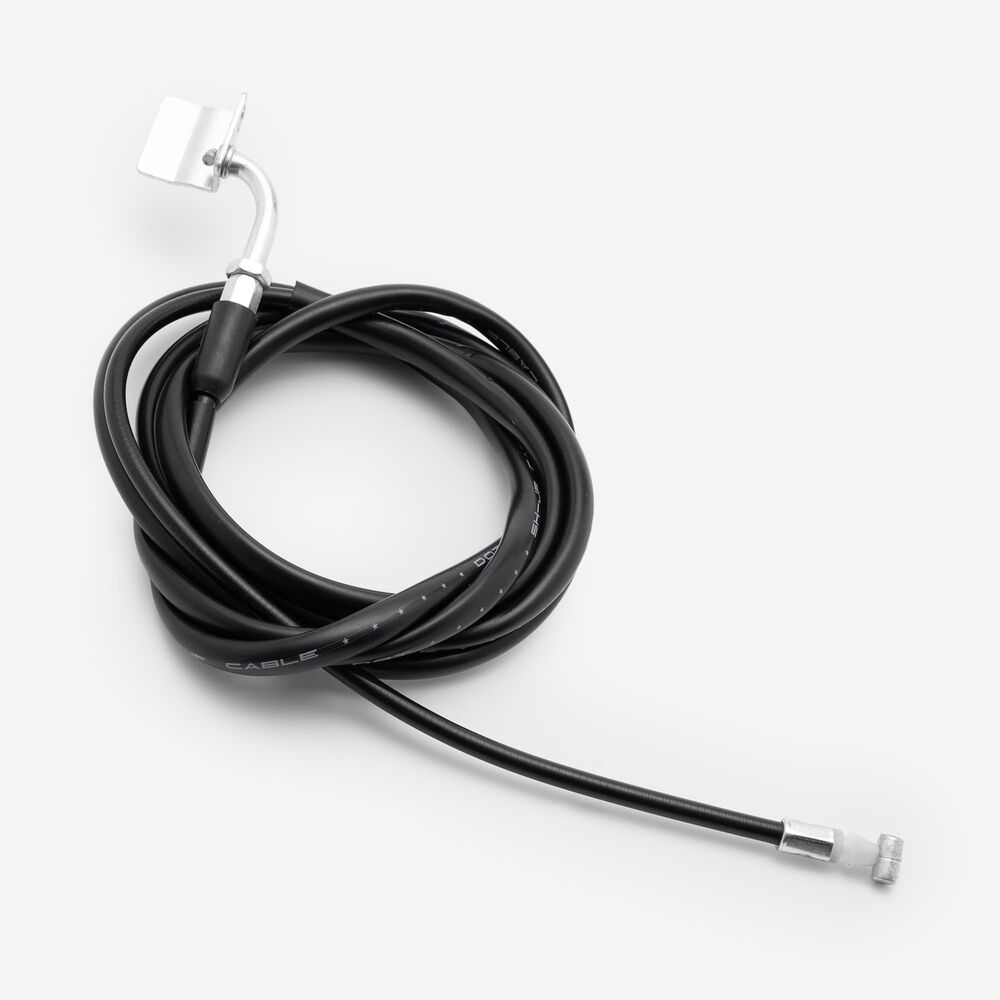

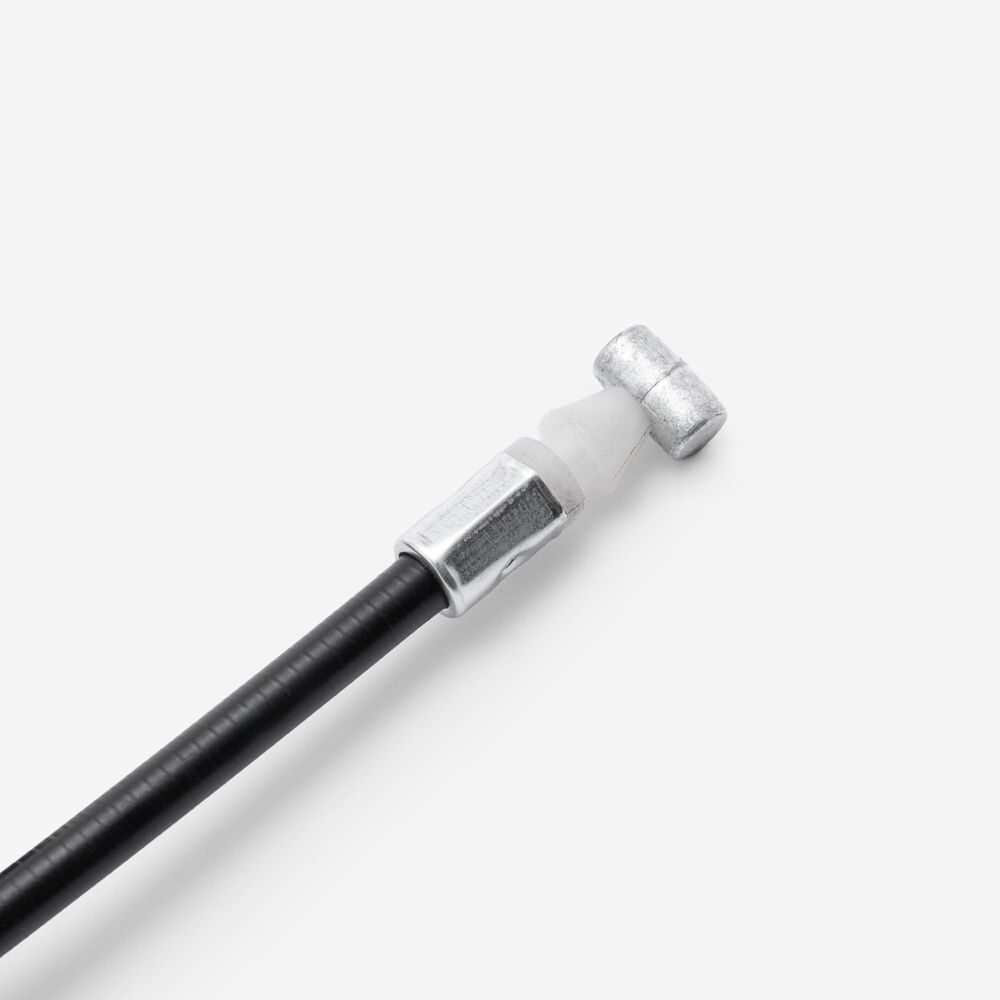

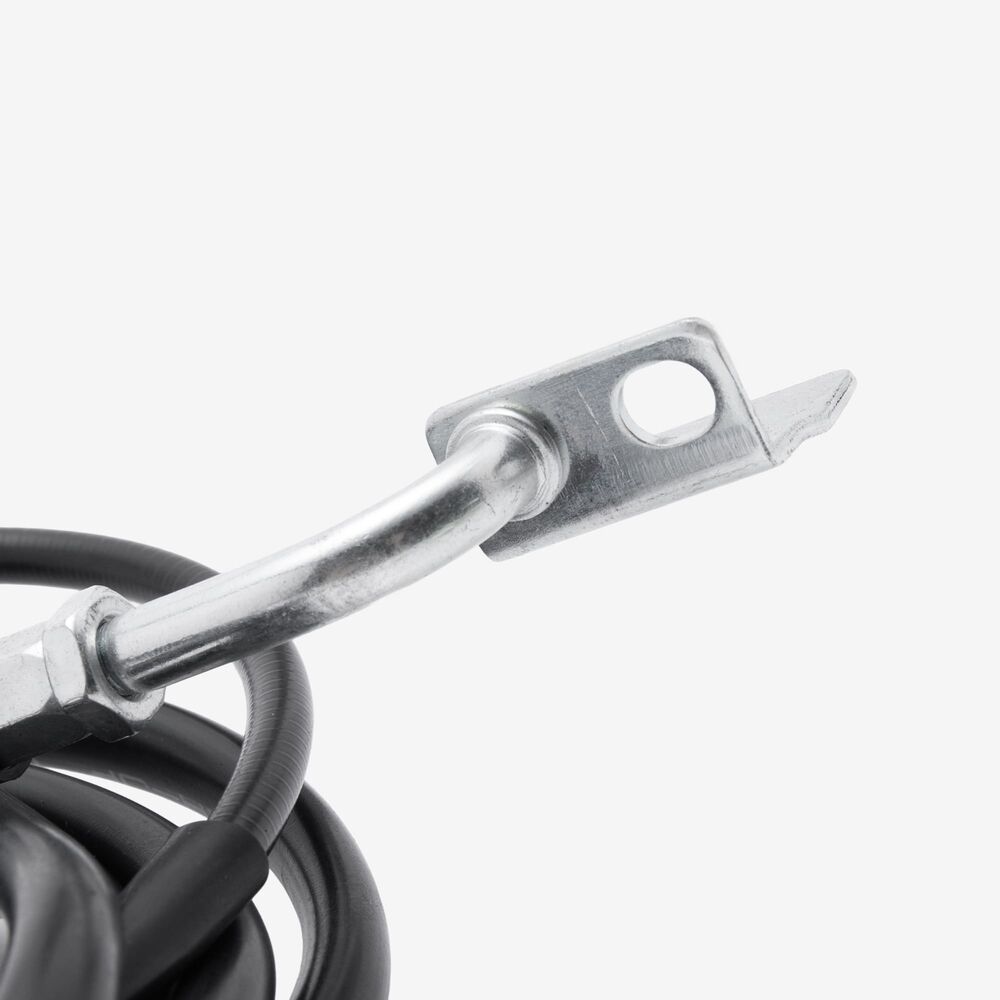

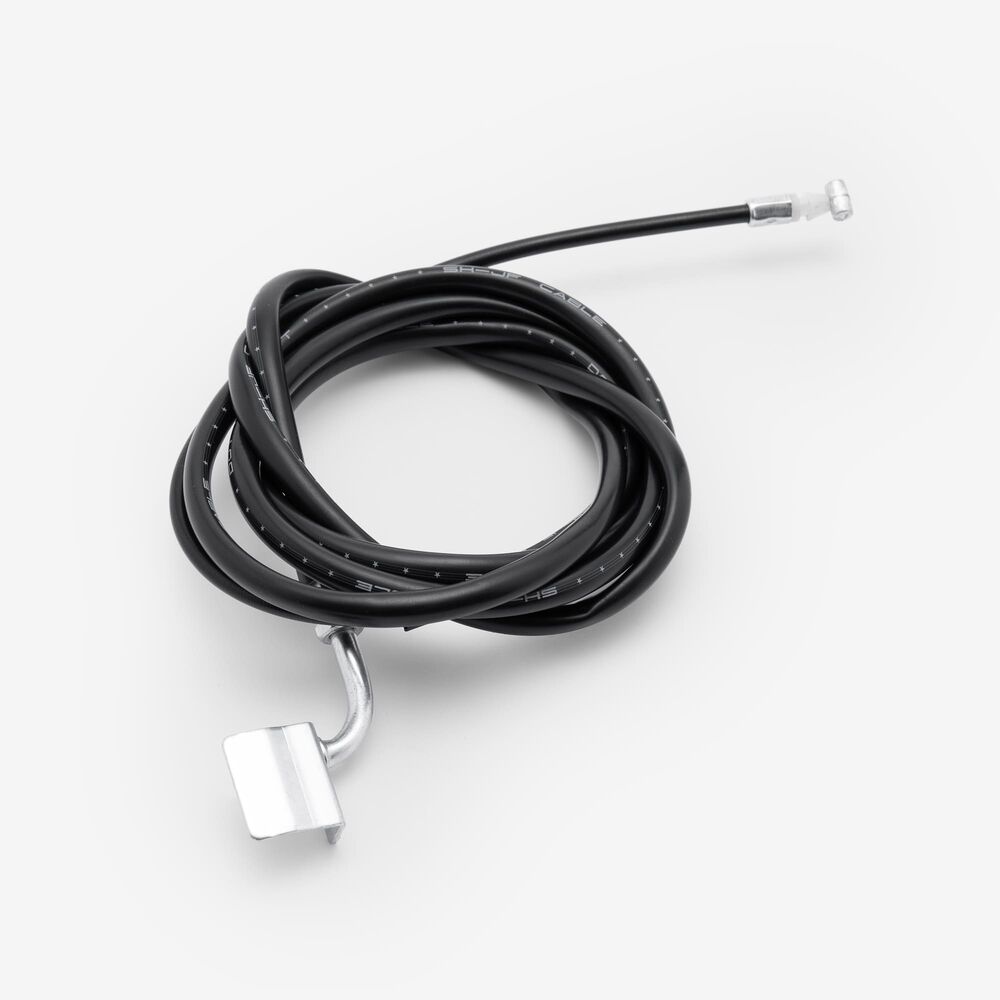

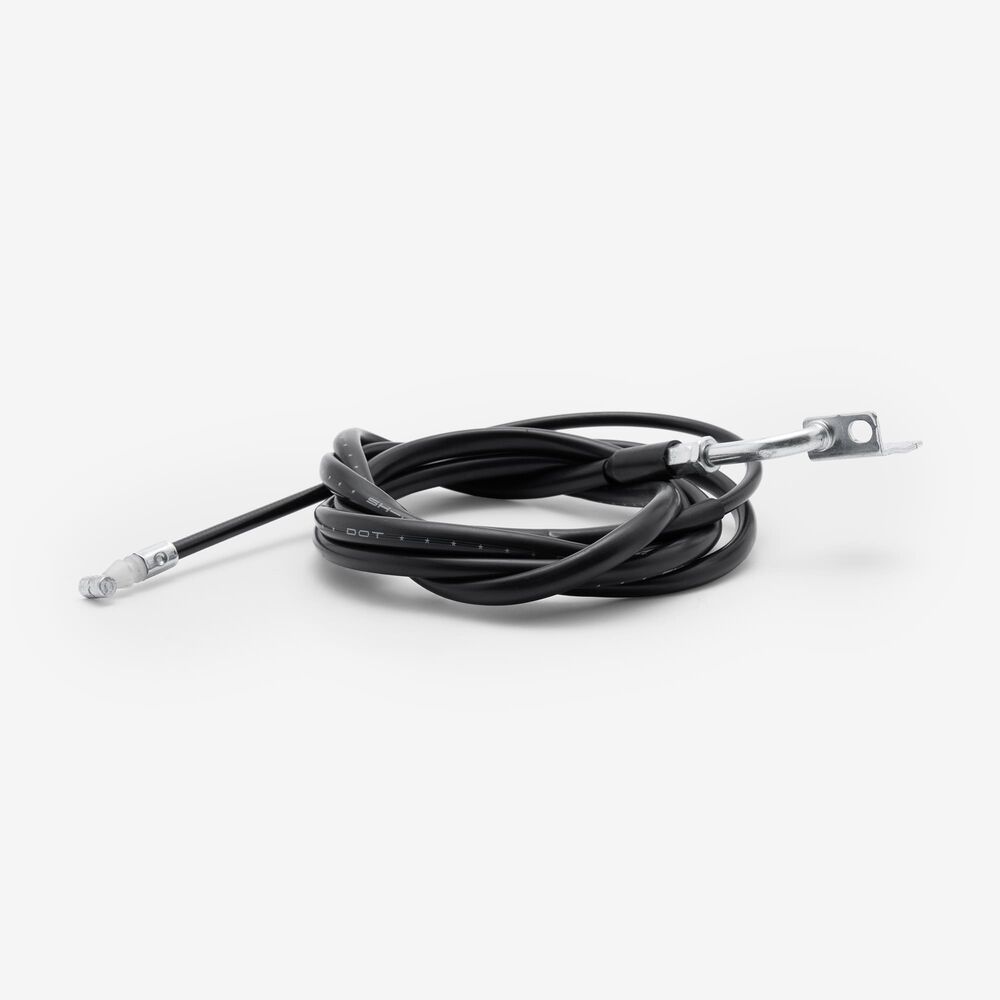

The seat lock cable is a flexible, often steel-reinforced cable used to secure the motorcycle seat and allow for its release. It connects the seat lock mechanism to the latch or release handle, enabling the rider to lock and unlock the seat for access to storage compartments or battery areas. The cable ensures that the seat remains firmly in place when locked and allows for smooth and reliable operation when unlocking or removing the seat. Proper functioning of the seat lock cable is crucial for maintaining security and ease of access to the motorcycle’s under-seat areas.
| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 3 | ![]() |
Lock Set LCKST199 x 1
|
||
| 4 | ![]() |
Seat Lock Cable STCB079 x 1
|
||
| 5 | ![]() |
Seat Latch STL027 x 1
|
||
| 8 | ![]() |
Bracket BRCKT064 x 1
|
||
| 9 | ![]() |
Rear Mudguard Bracket for LJ50QT-N MGB016 x 1
|
||
| 10 | ![]() |
Engine Bracket (Side) for LJ125T-18, LJ125T-18-E5 ENGB086 x 1
|
||
| 11 | ![]() |
Engine Subframe SBFRE024 x 1
|
||
| 15 | ![]() |
Centre Stand Pin STDPC020 x 1
|
||
| 16 | ![]() |
Nut M8 NUT237 x 1
|
||
| 18 | ![]() |
Centre Stand Cushion T5 STDCC017 x 1
|
||
| 19 | ![]() |
Centre Stand STDC140 x 1
|
||
| 21 | ![]() |
Side Stand Switch (Male block connector) SWSTD005 x 1
|
||
| 22 | ![]() |
Bolt M8 x 28 mm BLTSTD016 x 1
|
||
| 23 | ![]() |
Side Stand for LJ50QT-N STDS135 x 1
|
||
| 24 | ![]() |
Side Stand Spring SPNG120 x 1
|
||
| 25 | ![]() |
Centre Stand Spring SPNG031 x 1
|
||
| 26 | ![]() |
Bolt M12 x 265 x 1.25mm BLT936 x 1
|
||
| 31 | ![]() |
Engine Bracket ENGB138 x 1
|
||
| 32 | ![]() |
Engine Mounting Bolt M12 x 220mm BLT744 x 1
|
||
| 36 | ![]() |
Bolt M10 x 220 x 1.25mm BLT937 x 1
|
||
| 38 | ![]() |
Rubber Bush 56 x 41 x 16mm BSH217 x 1
|
||
| 39 | ![]() |
Flange Bolt M10 x 25 x 20mm BLT945 x 1
|
||
| 40 | ![]() |
Spring Washer WSH0112 x 1
|
||
| 41 | ![]() |
Washer 20 x 10 x 2mm WSH0113 x 1
|
| Manufacturer | Model | Diagram |
|---|---|---|
| Lexmoto | L5 [LJ50QT-7E-E55] | View parts diagram |
