STDC136"We have sold 6 of these in the last 12 months"
The center stand is a support mechanism on a motorcycle that allows the bike to be parked upright and stable when not in use. Mounted centrally beneath the motorcycle, it consists of two legs that extend downward and a pivot point that enables the stand to be deployed or retracted. When the stand is engaged, it provides a secure base, making it easier to perform maintenance tasks, such as tire changes or chain adjustments, and ensures the motorcycle remains upright and balanced while parked. The center stand is typically operated by the rider’s foot and is often equipped with a spring to assist in its retraction.

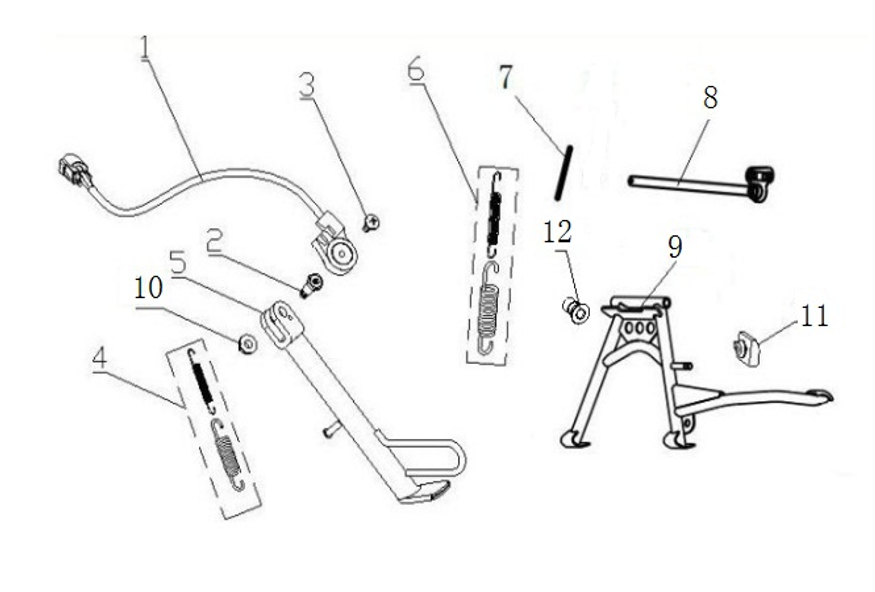

| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 1 | ![]() |
Side Stand Switch for LJ300T-18A-E5 SWSTD059 x 1
|
||
| 2 | ![]() |
Side Stand Bolt M8 x 28mm BLTSTD072 x 1
|
||
| 4 | ![]() |
Side Stand Spring SPNG120 x 1
|
||
| 5 | ![]() |
Side Stand STDS179 x 1
|
||
| 6 | ![]() |
Centre Stand Spring SPNG031 x 1
|
||
| 7 | ![]() |
Split Pin 3.0 x 3mm STDPC029 x 1
|
||
| 8 | ![]() |
Double Support Spring Bracket STDPC030 x 1
|
||
| 9 | ![]() |

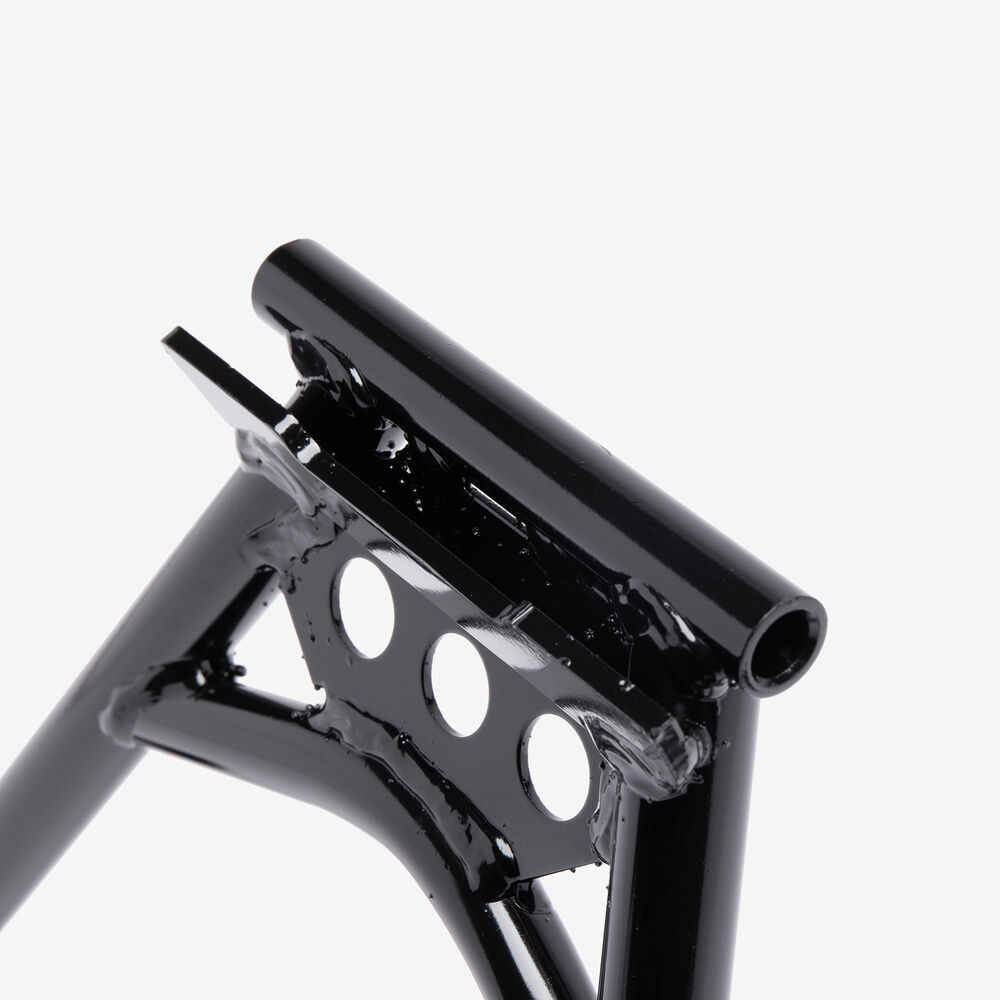

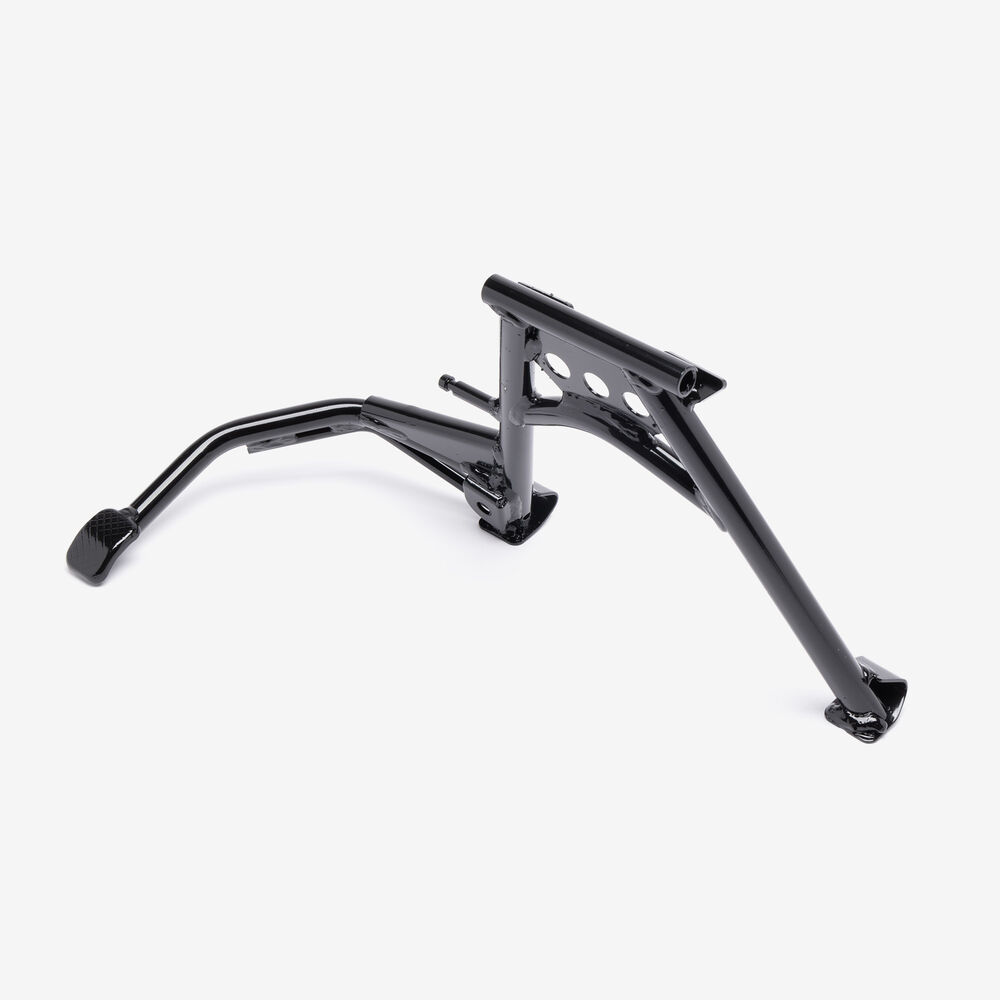

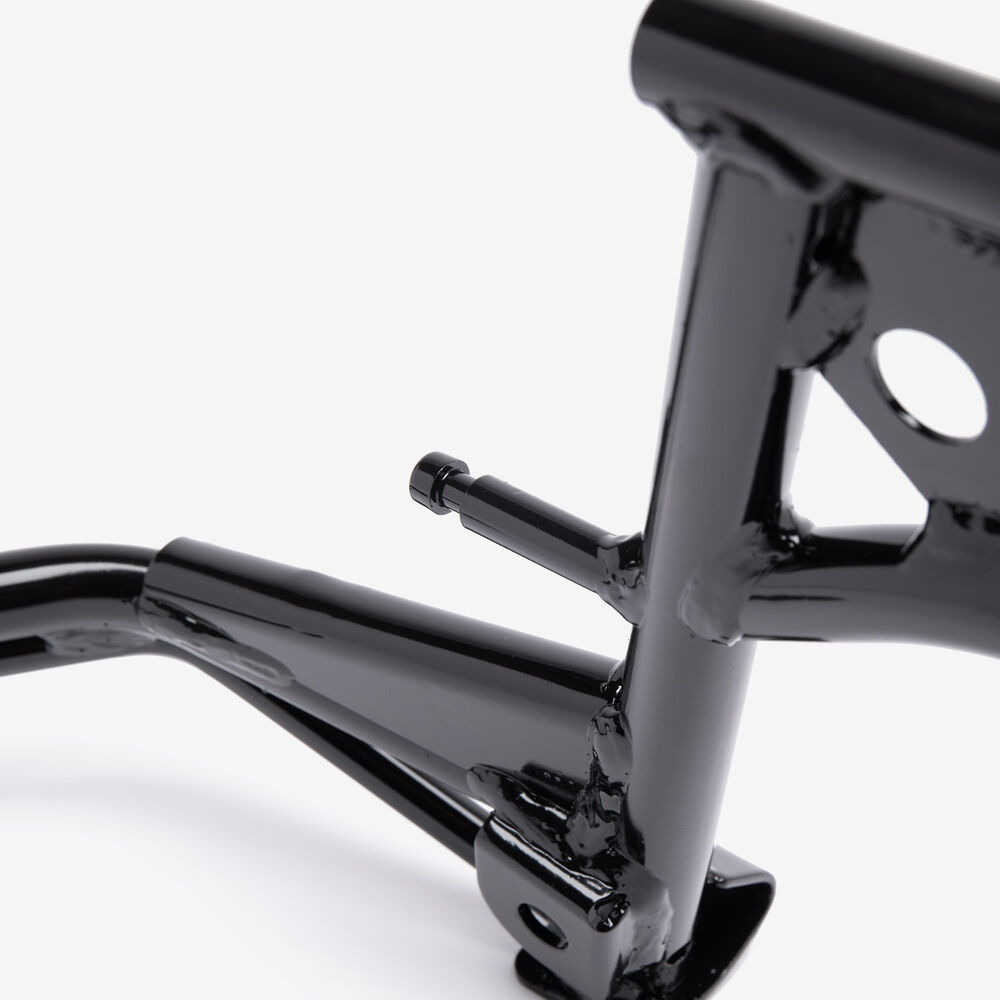

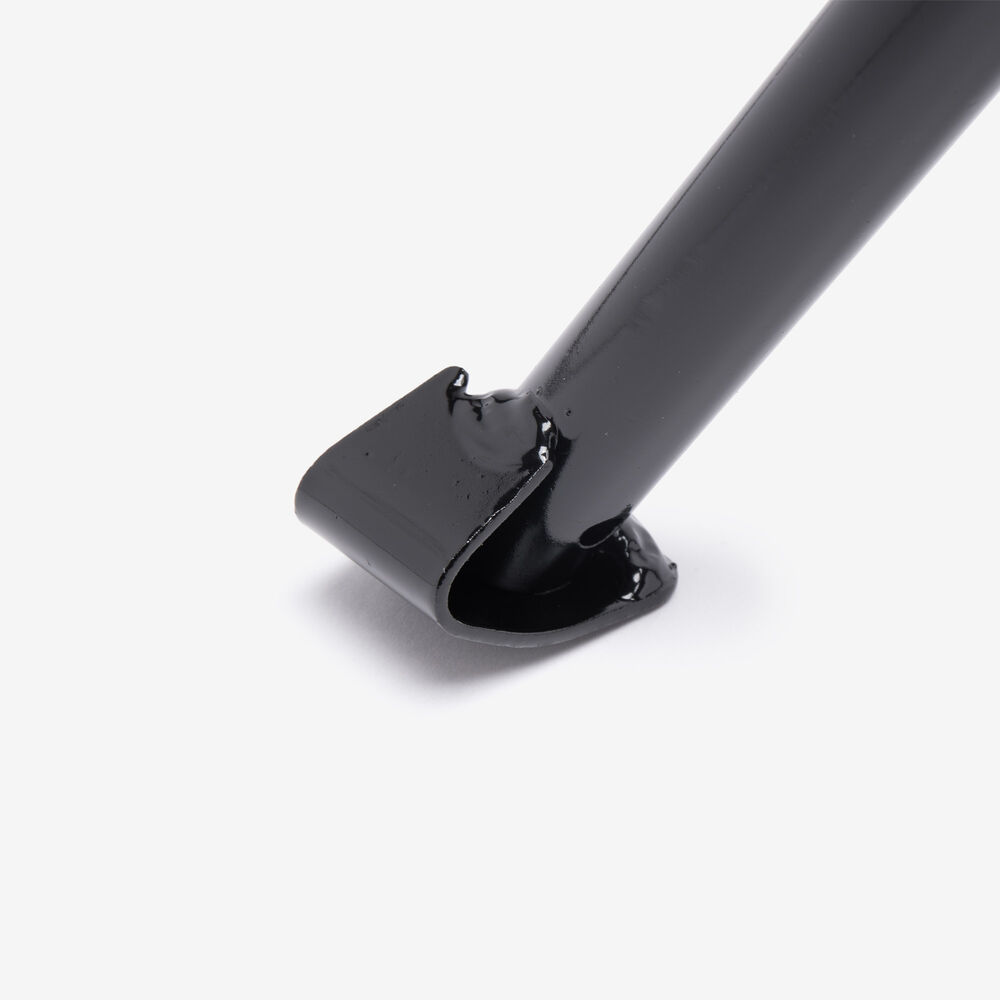

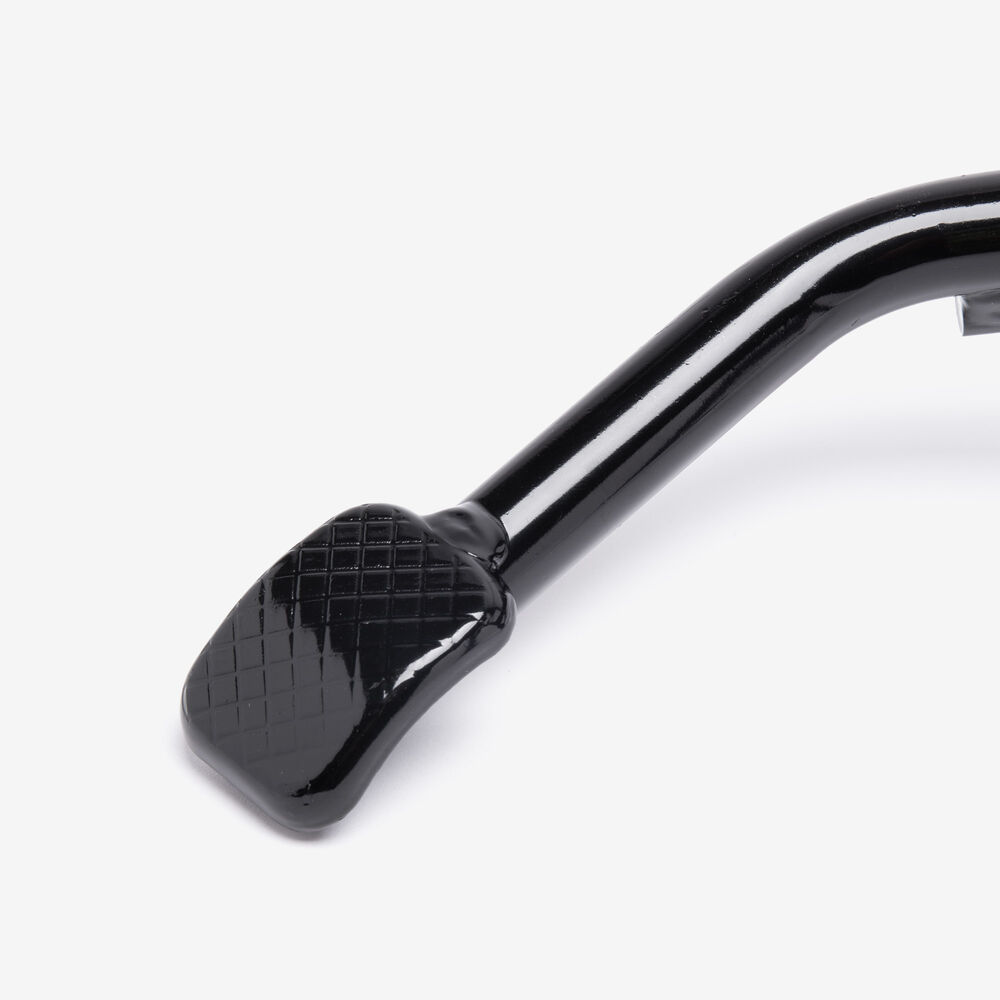

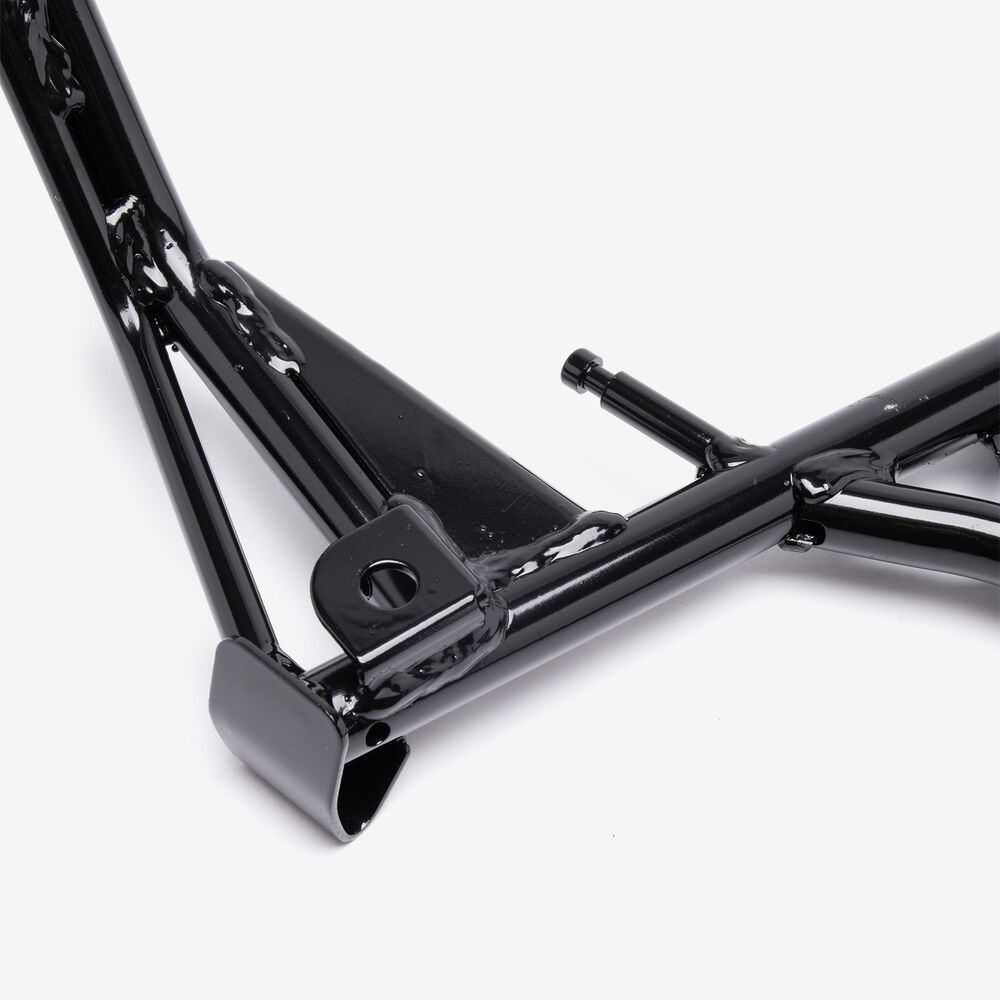

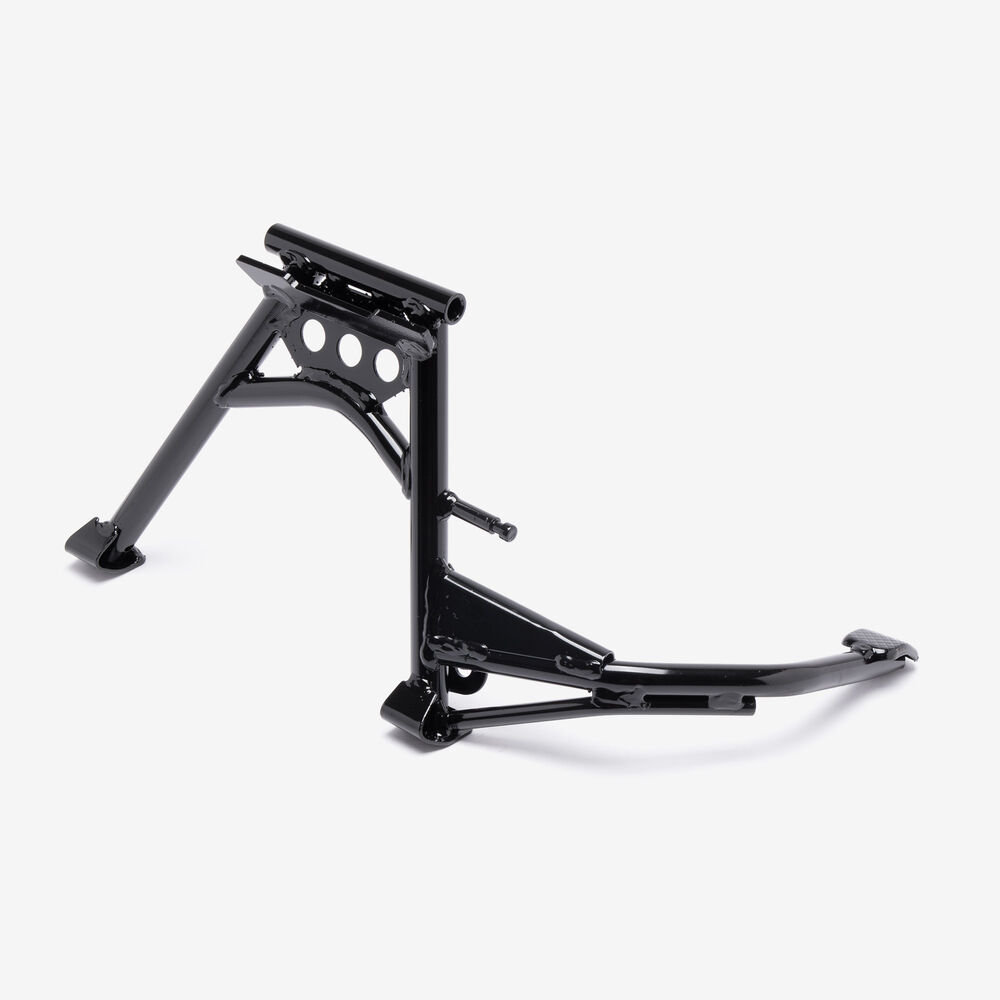

Centre Stand STDC136 x 1
|
||
| 11 | ![]() |
Centre Stand Cushion T1 STDCC014 x 1
|
||
| 12 | ![]() |
Centre Stand Collar 16 x 10.2 x 28mm STDCC023 x 1
|
| Manufacturer | Model | Diagram |
|---|---|---|
| Lexmoto | XDV 125 Euro 5 [LJ125T-18A-E5] | View parts diagram |
| Longjia | LJ125T-18A | |
