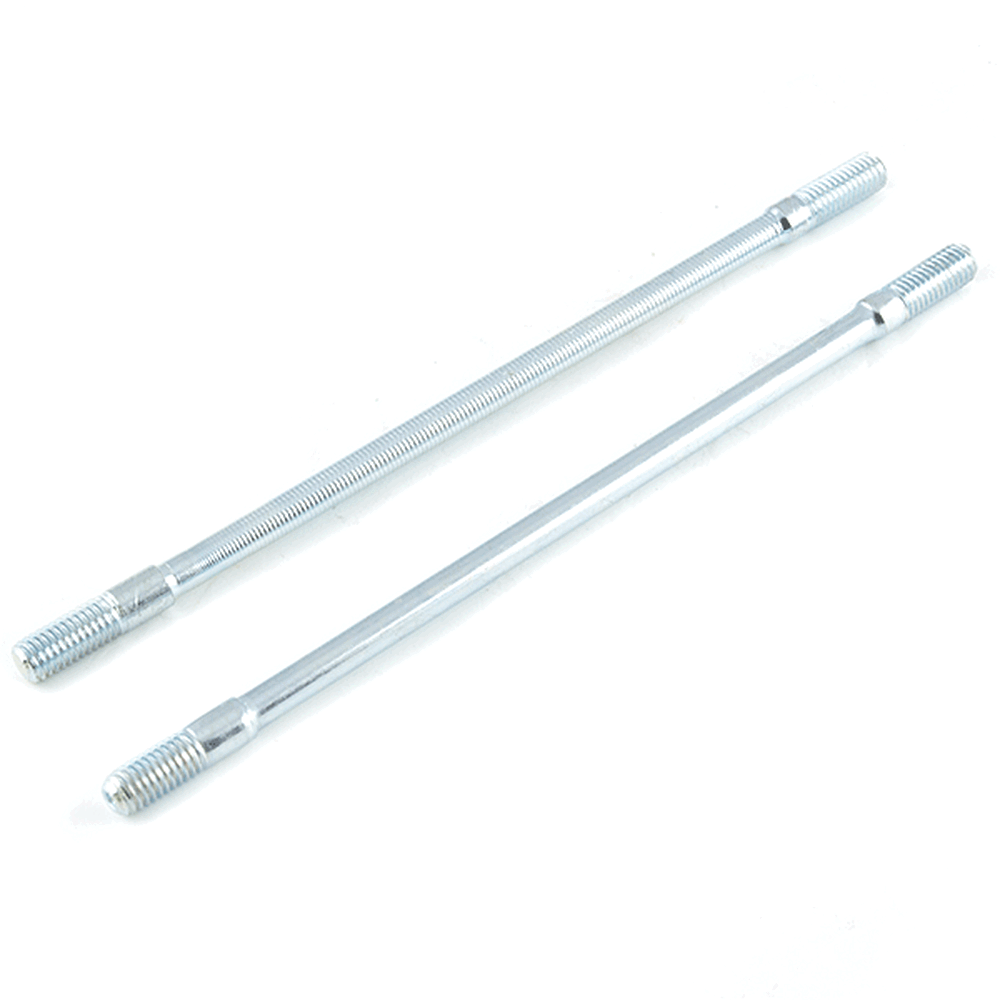

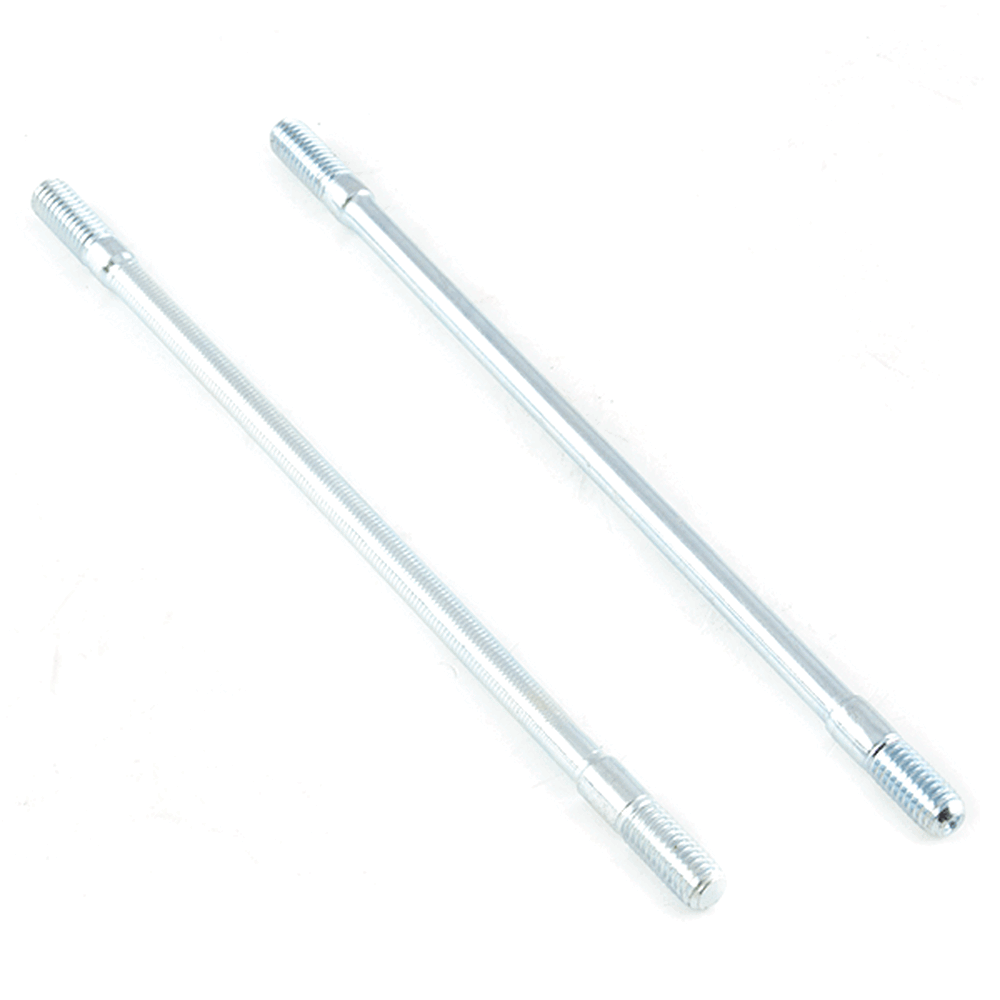

STDCH021"Another great Cylinder Head Bolt Stud"
Cylinder head studs are threaded fasteners that secure the cylinder head to the engine block in a motorcycle. They provide a robust and reliable connection, ensuring that the cylinder head remains tightly sealed against the engine block. Made from high-strength materials like steel or alloy, these studs withstand the high pressures and temperatures within the engine. Proper installation and torque of cylinder head studs are crucial for maintaining engine compression, preventing leaks, and ensuring optimal engine performance and longevity.

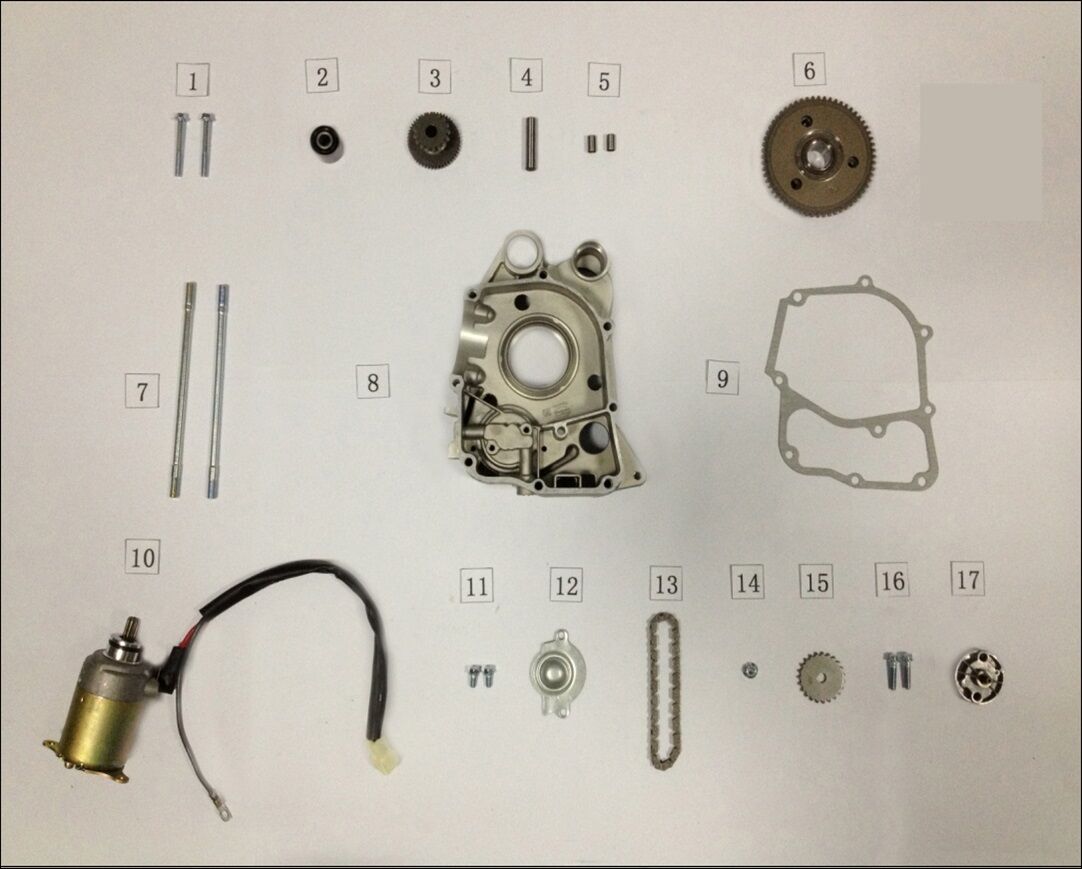

| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 5 | ![]() |
125cc Scooter Starter Clutch 152QMI STC007 x 1
|
||
| 7 | ![]() |
Cylinder Head Studs STDCH021 x 2
|
||
| 8 | ![]() |
Right Crankcase CRR028 x 1
|
||
| 9 | ![]() |
125cc Scooter Crankcase Gasket Centre 152QMI GSKCC010 x 1
|
||
| 10 | ![]() |
125cc Scooter Starter Motor 152QMI STM005 x 1
|
||
| 13 | ![]() |
Oil Pump Chain 152QMI 152QMI-A OLPC010 x 1
|
||
| 15 | ![]() |
Oil Pump Sprocket 152QMI 152QMI-A GROLP029 x 1
|
||
| 17 | ![]() |
125cc Scooter Oil Pump 152QMI 152QMI-A OLPMP007 x 1
|
| Manufacturer | Model | Diagram |
|---|---|---|
| Lexmoto | Milano 125 EFI [FT125T-27-E4] | View parts diagram |
| Monza 125 [ZN125T-34] | View parts diagram | |
| Titan 125 [ZN125T-8F] | View parts diagram | |
| Valletta 125 [ZN125T-Y] | View parts diagram | |
| Romet | RXL 125 [RXL125] | |
| Sinnis | Harrier EFI [ZN125T-22E] | |
| Shuttle 125 EFI [ZN125T-7S] | ||
| Zen 125 EFI [ZN125T-F10] | ||
