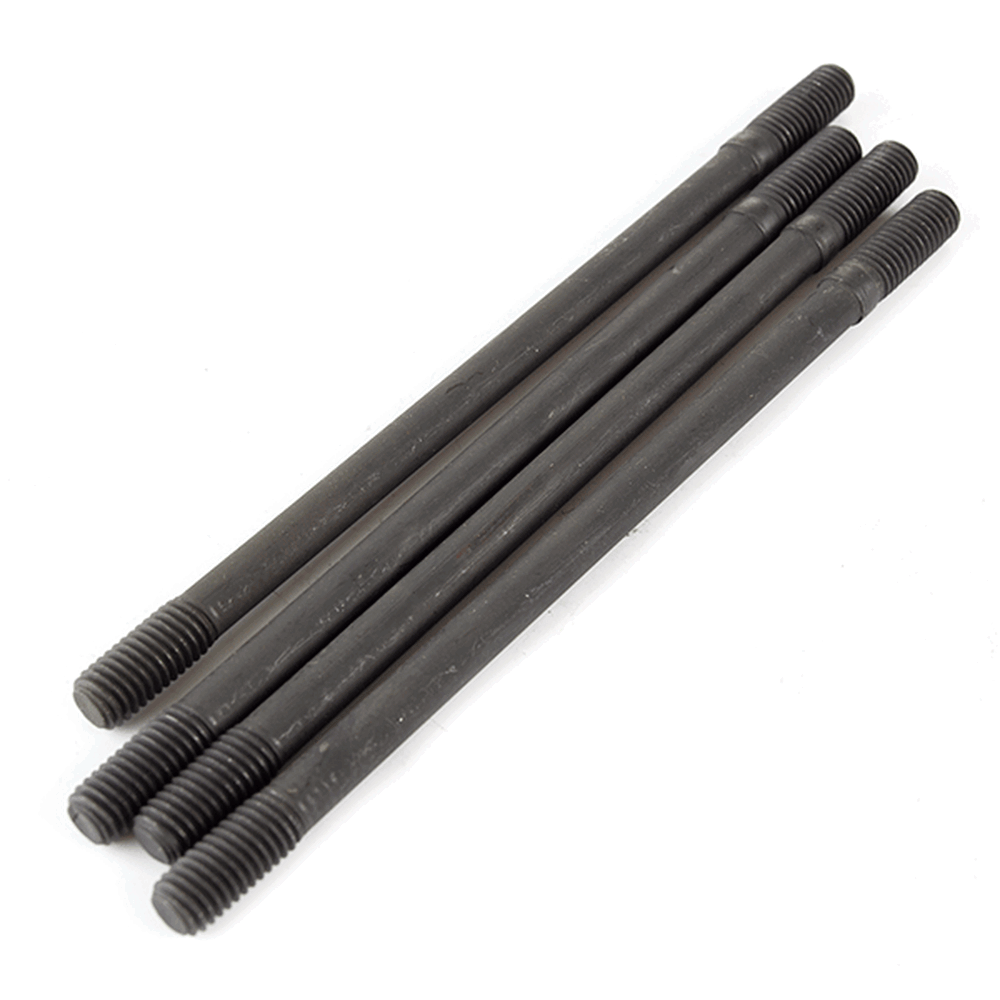

Cylinder Head Studs
Ensure a secure and reliable fit for your motorcycle's cylinder head with these high-quality Cylinder Stud Bolts.
Designed for durability and optimal performance, these studs are essential for maintaining proper compression ... view more
£6.49 £5.19 Sale
Availability: In Stock
Order now for dispatch on Monday
Description
"In the category of Plugs, Bolts and Fixings, Cylinder Head Bolts/Studs"
Ensure a secure and reliable fit for your motorcycle's cylinder head with these high-quality Cylinder Stud Bolts.
Designed for durability and optimal performance, these studs are essential for maintaining proper compression and preventing leaks.
- Premium Construction: Manufactured from robust materials to withstand high temperatures and pressures.
- Precise Fitment: Engineered for exact compatibility and ease of installation.
- Long-Lasting Reliability: Provides a strong and dependable connection for your engine.
Product Diagram
Crank Case diagram - Lexmoto LXR SE 125 - SY125-10-SE
| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 1 |  |
Cylinder Head Nuts ZY125 NUT120 x 4
|
||
| 2 | |
Washer 12.5 x 22 x 2mm ZY125 WSH17 x 4
|
||
| 3 | |
Cylinder Head Studs STDCH023 x 4
|
||
| 4 | |
Engine Dowel 8 x 10mm DWL007 x 1
|
||
| 5 | |
Bolt M8 x 30mm BLT560 x 1
|
||
| 6 | |
Engine Dowel 8 x 14mm DWL001 x 1
|
||
| 7 | |
Oil Strainer/Filter for ZY125 OLST008 x 1
|
||
| 9 | |
Crankcase Breather Pipe EGRPP007 x 1
|
||
| 10 | |
Right Crankcase for ZY125-E4 CRR008 x 1
|
||
| 14 | |
Bearing Pressure Plate BRG012 x 2
|
||
| 20 | |
ZY125 Sump Plug M12 SMPP005 x 1
|
||
| 21 | |
Sump Plug Washer 12.4 x 20 x 2mm WSH15 x 1
|
||
| 23 | |
Crank Bearing Pressure Pin for ZY125-E4 DWL022 x 1
|
||
| 24 | |
Pressure Spring - Crank Bearing Pin SPLPN025 x 1
|
||
| 25 | |
Crank Bearing Pressure Pin Retaining Plate for ZY125-E4 CBCLP032 x 1
|
||
| 26 | |
Flanged Hex Bolt M6 x 16mm BLT206 x 1
|
||
| 27 | |
Oil Seal 20 x 34 x 7mm OLSL037 x 1
|
||
| 29 | |
Flanged Hex Bolt with Shank M6 x 40mm BLT207 x 1
|
||
| 30 | |
Flanged Hex Bolt M6 x 70mm BLT191 x 1
|
||
| 31 | |
Flanged Hex Bolt M6 x 16mm BLT188 x 1
|
More Product Diagrams
Compatibility
| Manufacturer | Model | Diagram |
|---|---|---|
| Lexmoto | LXR 125 [SY125-10] | View parts diagram |
| LXR SE 125 [SY125-10-SE] | View parts diagram | |
| Mitt | MITT 125 GP [MITT125GP] | |
| UM | Commando Classic 125 [UM125-CL] | View parts diagram |
| Renegade Commando 125 [UM125-CO] | View parts diagram | |
| Renegade Sport S 125 [UM125-RS] | View parts diagram | |
| Vegas 125 [UM125-VG] | View parts diagram | |
