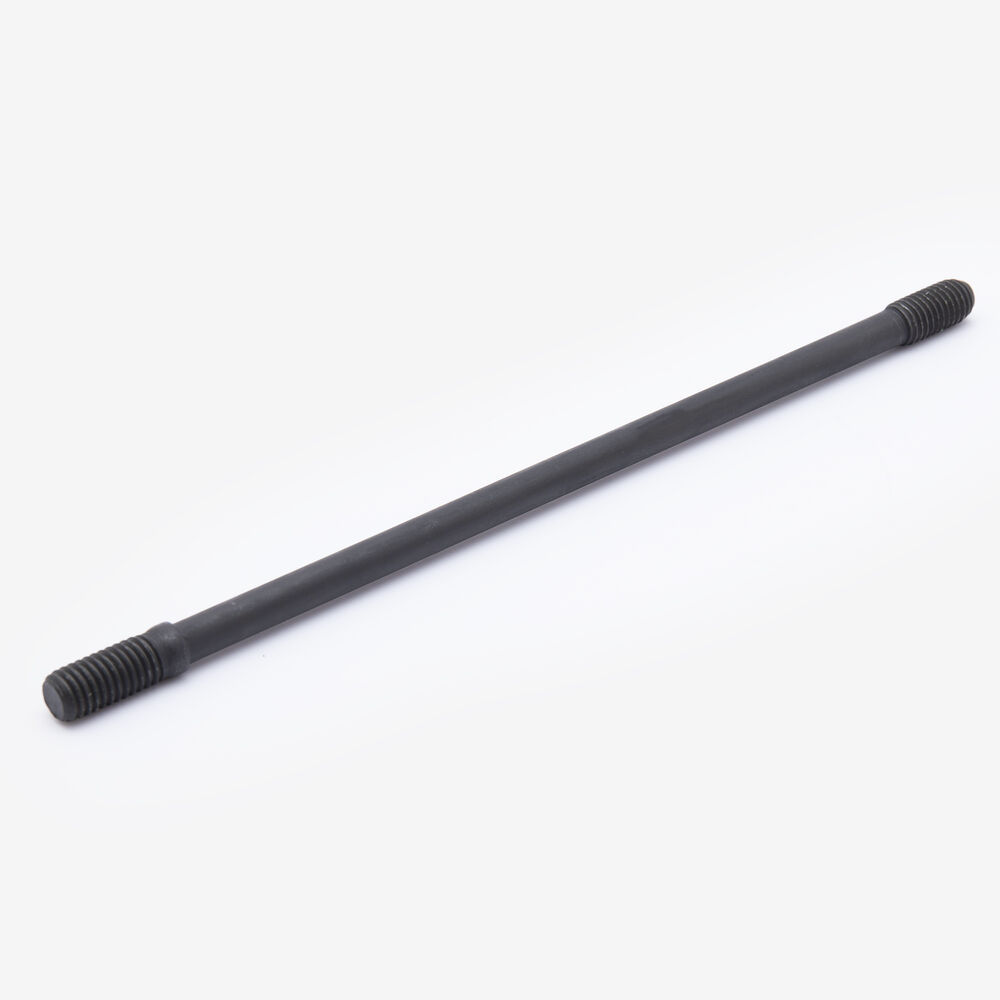

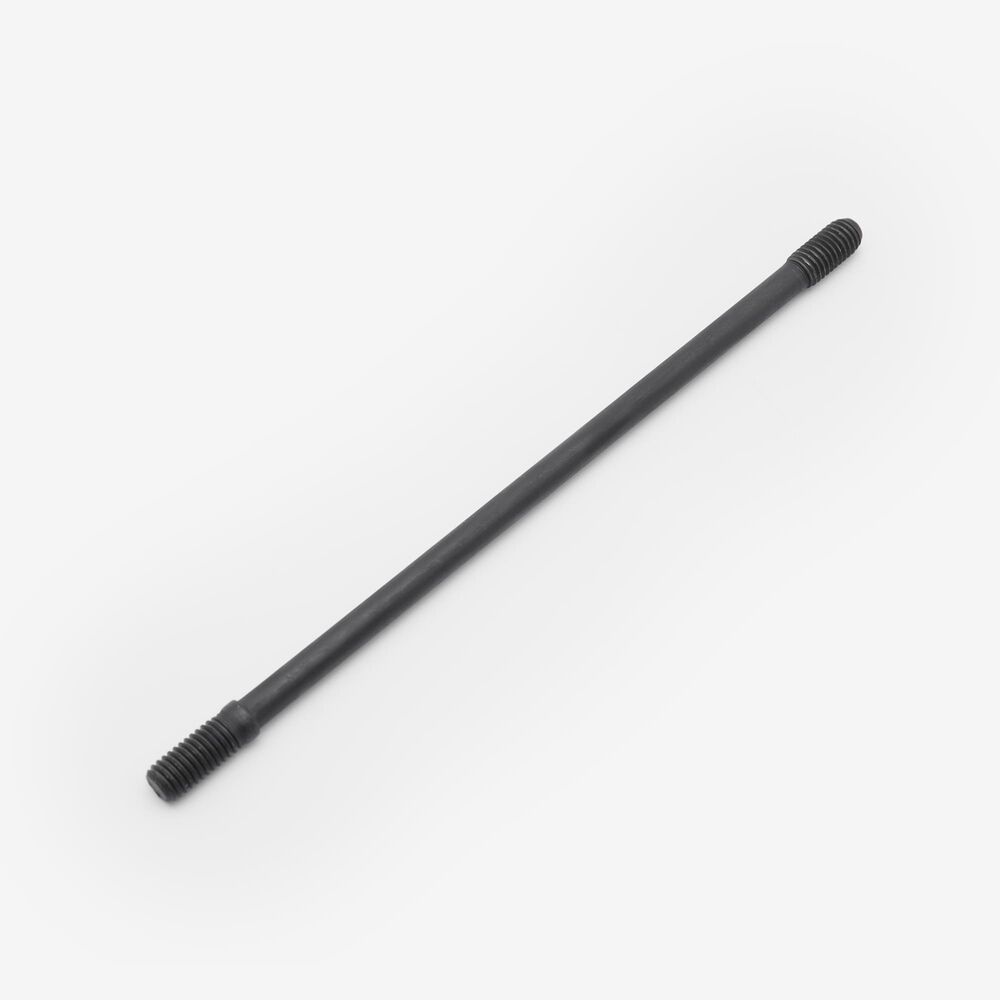

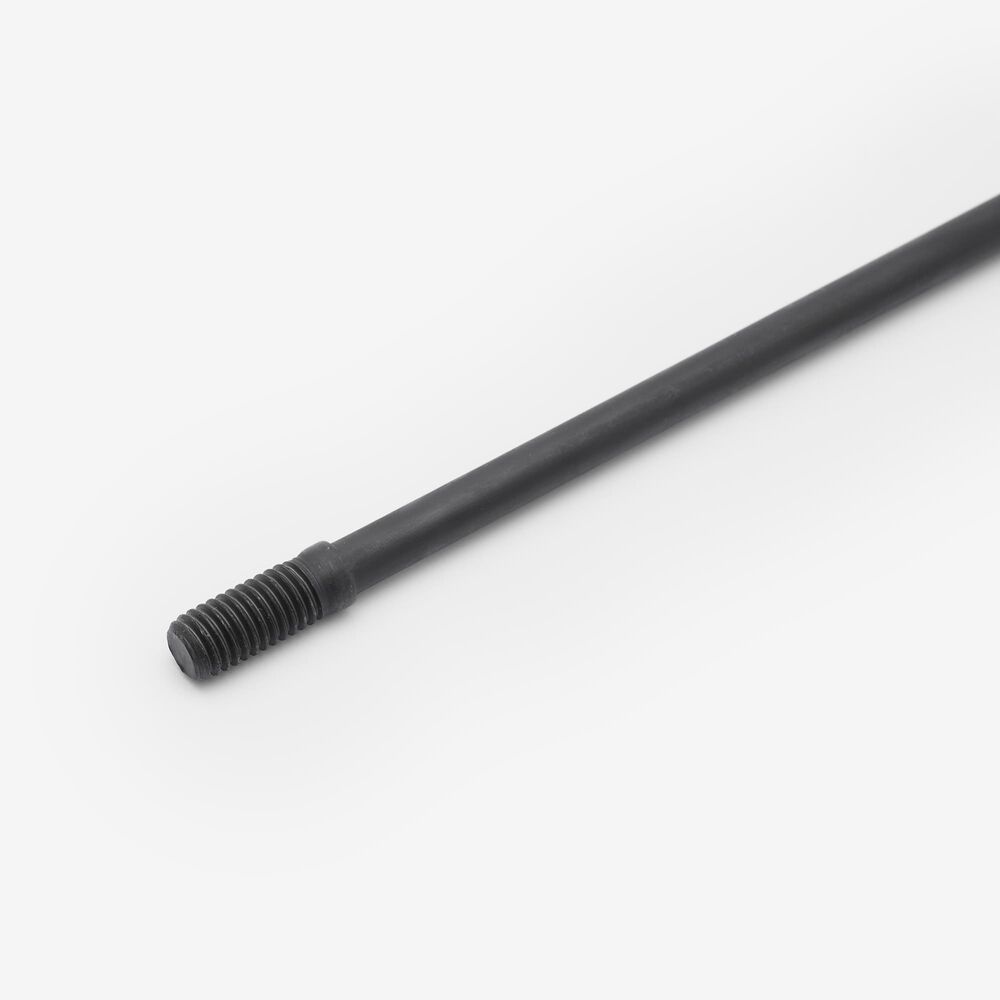

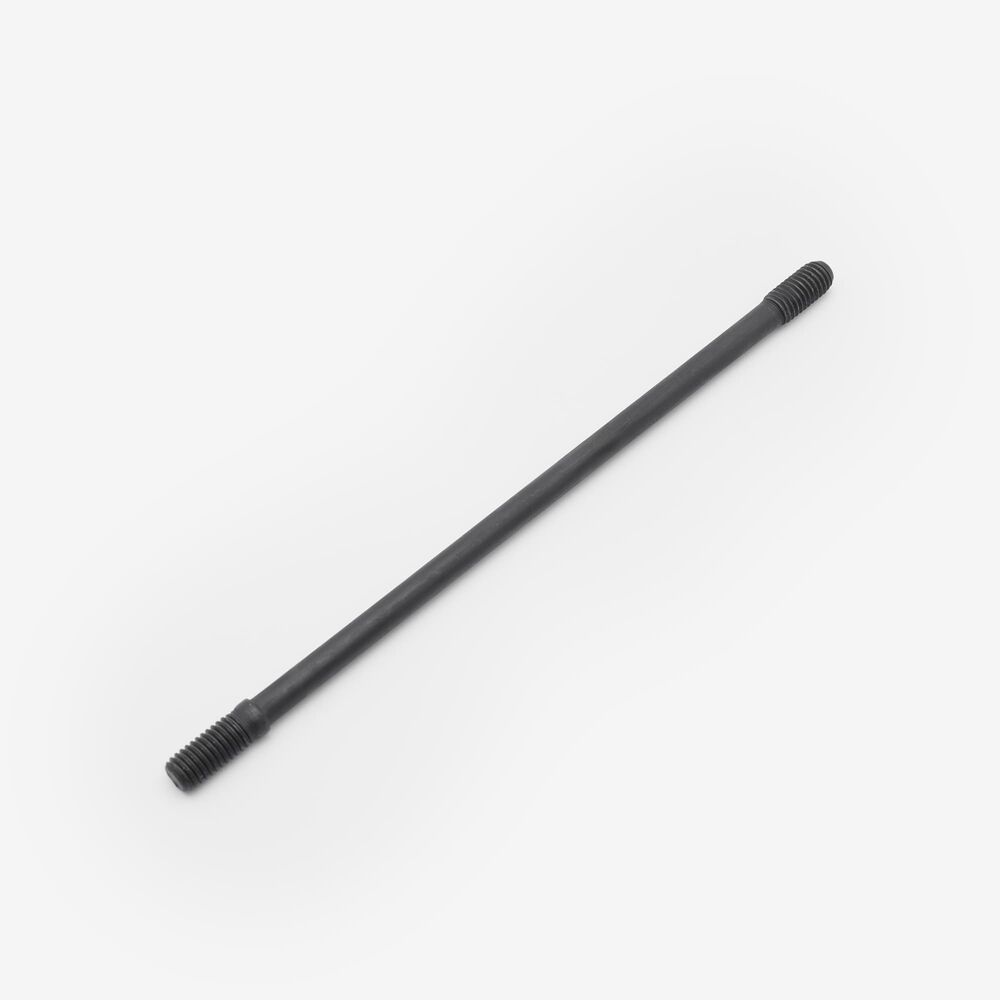

Cylinder Head Stud 180mm
Cylinder Stud Bolt B - 180mm
Ensure a secure and reliable connection for your cylinder head with this 180mm Cylinder Stud Bolt B. Crafted for durability and precise fitment, this essential component is vital for maintaining o... view more
£1.99 £1.59 Sale
Availability: In Stock
Order before 4pm for same day dispatch
Description
"Another great Cylinder"
Cylinder Stud Bolt B - 180mm
Ensure a secure and reliable connection for your cylinder head with this 180mm Cylinder Stud Bolt B. Crafted for durability and precise fitment, this essential component is vital for maintaining optimal engine performance and preventing leaks.
Length: 180mm
Material: High-strength alloy for superior durability.
Application: Designed for cylinder head to crankcase mounting.
Function: Provides secure fastening and alignment of cylinder head components.
Key Features:
Corrosion Resistant: Built to withstand harsh operating conditions.
Precise Machining: Guarantees a perfect fit and easy installation.
Engine Integrity: Crucial for maintaining compression and preventing gasket failure.
Replace worn or damaged studs with this high-quality part to restore the integrity of your engine.
Product Diagram
CRANKCASE diagram - Lexmoto Carrera 125 E55 - ZS125GY-13-E55
| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 1 |  |
Nut M8 NUT255 x 1
|
||
| 2 | |
Washer 8.5 x 2 x 18mm WSH0122 x 1
|
||
| 3 | |
Cylinder Head Stud 201mm STDCH044 x 1
|
||
| 4 | |
Dowel 10 x 12mm DWL047 x 1
|
||
| 5 | |
Bolt M8 x 30mm BLT560 x 1
|
||
| 6 | |
Engine Dowel 8 x 14mm DWL001 x 1
|
||
| 7 | |
Oil Strainer/Filter for ZY125 OLST008 x 1
|
||
| 8 | |
Flanged Hex Bolt with Shank M6 x 40mm BLT207 x 1
|
||
| 9 | |
Flanged Hex Bolt M6 x 70mm BLT191 x 1
|
||
| 11 | |
Open Bearing 6202 35 x 15 x 11mm BRG147 x 1
|
||
| 12 | |
Open Bearing 6203 P5 17 x 40 x 12mm BRG149 x 1
|
||
| 13 | |
Flanged Hex Bolt M6 x 16mm BLT188 x 1
|
||
| 14 | |
Bearing Pressure Plate BRG012 x 1
|
||
| 15 | |
Bearing 6303 X3-RS 42 x 17 x 12mm BRG023 x 1
|
||
| 16 | |
Open Bearing 6204 P5 47 x 20 x 14mm BRG150 x 1
|
||
| 17 | |
Bearing 6201 RS BRG037 x 1
|
||
| 18 | |
Crankshaft Bearing 63/28 BRG200 x 1
|
||
| 20 | |
ZY125 Sump Plug M12 SMPP005 x 1
|
||
| 21 | |
Sump Plug Washer 12.4 x 20 x 2mm WSH15 x 1
|
||
| 22 | |
Selector Shaft Oil Seal 14 x 22 x 5mm for ZS125-48F,ZS125-48E OLSL079 x 1
|
||
| 23 | |
Crank Bearing Pressure Pin for ZY125-E4 DWL022 x 1
|
||
| 24 | |
Pressure Spring - Crank Bearing Pin SPLPN025 x 1
|
||
| 25 | |
Crank Bearing Pressure Pin Retaining Plate for ZY125-E4 CBCLP032 x 1
|
||
| 26 | |
Flanged Hex Bolt M6 x 16mm BLT206 x 1
|
||
| 27 | |
Oil Seal 20 x 34 x 7mm OLSL037 x 1
|
||
| 28 | |
Hex Bolt M6 x 45mm BLT080 x 1
|
||
| 29 | |
Cylinder Head Stud 180mm STDCH045 x 1
|
More Product Diagrams
This part appears on 2 other diagrams
Compatibility
| Manufacturer | Model | Diagram |
|---|---|---|
| Lexmoto | Carrera 125 E55 [ZS125GY-13-E55] | View parts diagram |
| R66 E55 [SR125-A-E55] | View parts diagram | |
| R66+ E55 [ZS125-79C-E55] | View parts diagram | |
