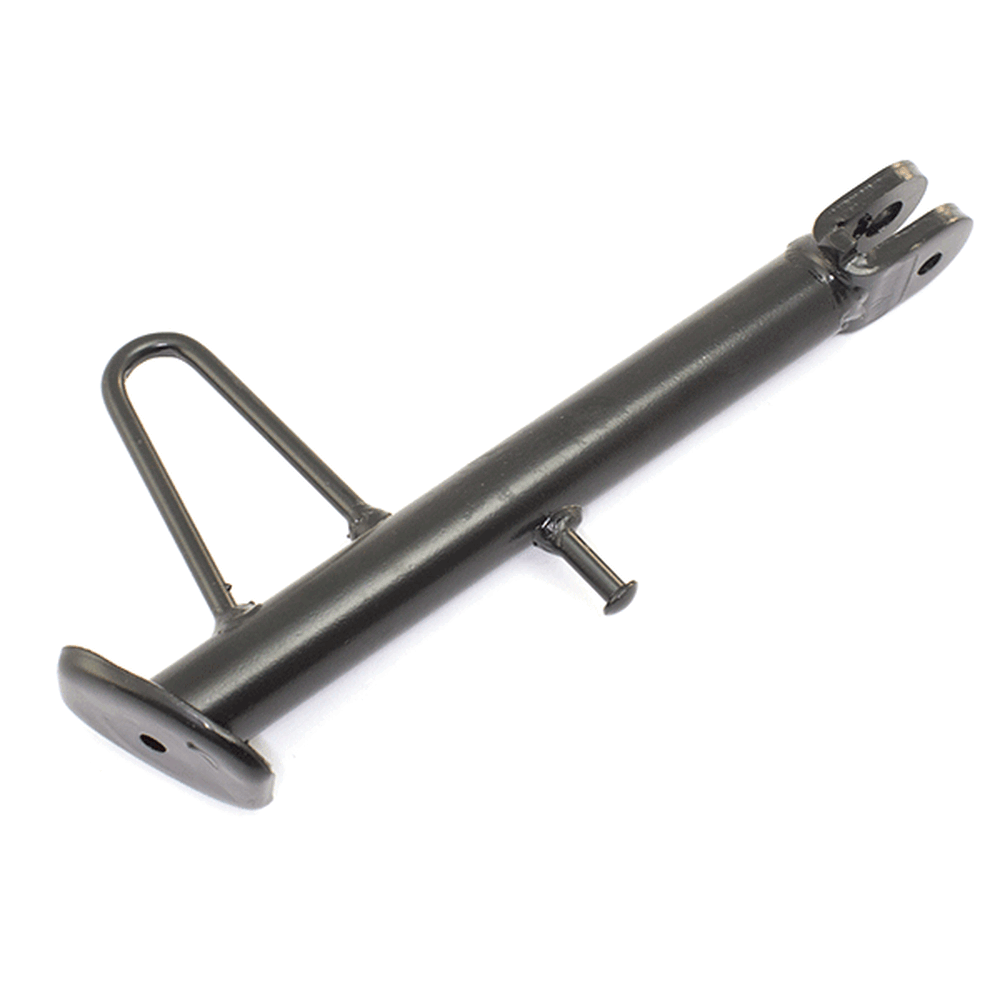

Side Stand for LJ125T-8M
STDS109
Description
"In the category of Side, Centre and Stand Fixings, Side Stands"
The side stand, also known as the kickstand, is a support mechanism on a motorcycle that allows it to remain upright when parked. It is typically mounted on the left side of the motorcycle and extends downward to rest on the ground. When deployed, the side stand stabilizes the motorcycle by providing a solid base, preventing it from tipping over. The stand is often equipped with a spring mechanism that automatically retracts it when the motorcycle is in use, and may include a safety switch to prevent engine start if the stand is down.

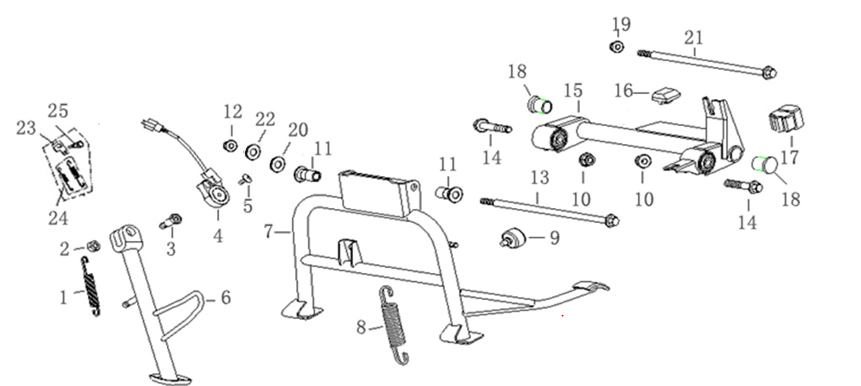

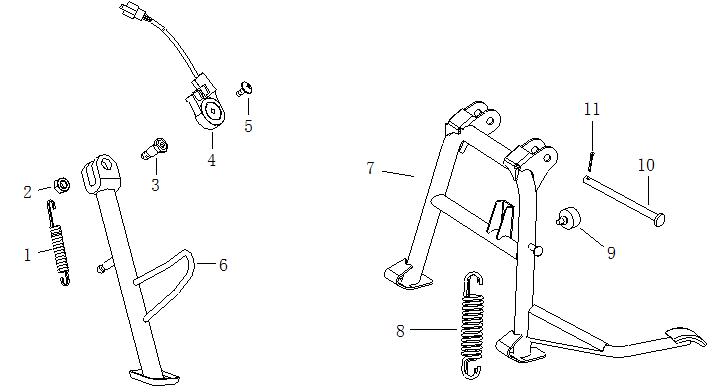

Product Diagrams
| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 1 |  |
Side Stand Spring SPNG120 x 1
|
||
| 3 |  |
Bolt M8 x 28 mm BLTSTD016 x 1
|
||
| 4 |  |
Side Stand Switch (Male block connector) SWSTD005 x 1
|
||
| 6 | |
Side Stand for LJ125T-8M STDS109 x 1
|
||
| 7 |  |
Centre Stand for LJ125T-8M STDC042 x 1
|
||
| 8 |  |
Centre Stand Spring SPNG031 x 1
|
||
| 9 |  |
Centre Stand Cushion T1 STDCC014 x 1
|
||
| 11 |  |
Centre Stand Collar 16 x 10.2 x 28mm STDCC023 x 1
|
||
| 13 |  |
Centre Stand Bolt M10 x 195mm for LJ125T-16, CITY125 BLTSTD065 x 1
|
||
| 15 |  |
Engine Subframe SBFRE009 x 1
|
||
| 16, 17 |  |
Engine Dampener Set BSH120 x 1
|
Compatibility
| Manufacturer | Model | Diagram |
|---|---|---|
| Lexmoto | Diablo 125 EFI [LJ125T-8M-E4] | View parts diagram |
| Diablo 125 Euro 5 [LJ125T-9M-E5] | View parts diagram | |
| Diablo 125 [LJ125T-8M] | View parts diagram | |
| Urban 125 [LJ125T-16] | View parts diagram | |
| Longjia | LJ125T-9M | |
| Romet | City 125 [CITY125] | |
