STDS111"In the category of Side, Centre and Stand Fixings, Side Stands"
The side stand, also known as the kickstand, is a support mechanism on a motorcycle that allows it to remain upright when parked. It is typically mounted on the left side of the motorcycle and extends downward to rest on the ground. When deployed, the side stand stabilizes the motorcycle by providing a solid base, preventing it from tipping over. The stand is often equipped with a spring mechanism that automatically retracts it when the motorcycle is in use, and may include a safety switch to prevent engine start if the stand is down.
| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 1 | ![]() |
Flanged Nut M10 x 1.25mm NUT123 x 1
|
||
| 2 | ![]() |

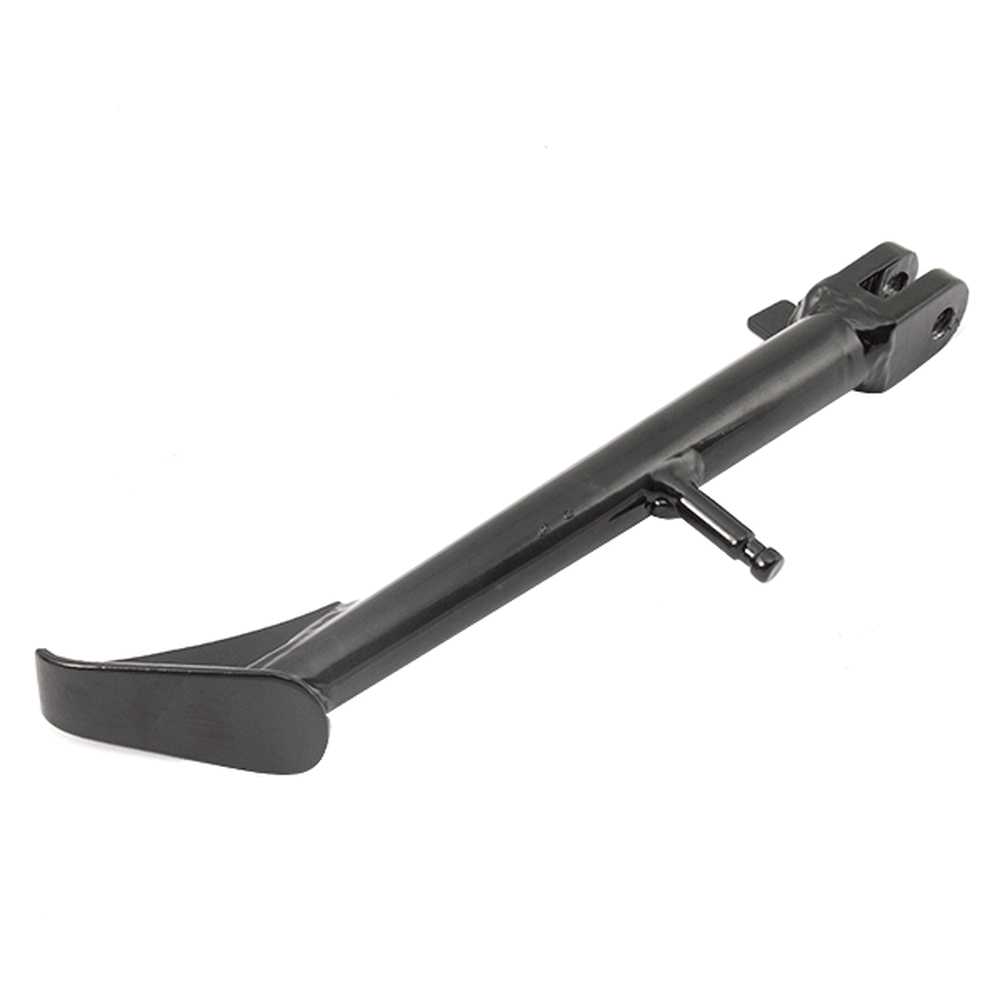

Side Stand for ZS125-79-E4 STDS111 x 1
|
||
| 4 | ![]() |

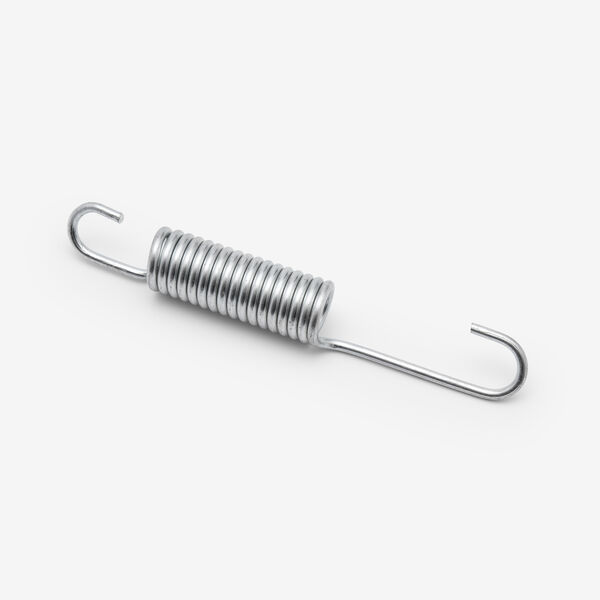

Side Stand Spring 2.5 X 16 X 110mm SPNG306 x 1
|
||
| 5 | ![]() |
Centre Stand Bolt for ZS125-79-E4 BLTSTD063 x 1
|
||
| 6 | ![]() |
Centre Stand Washer/Spacer 19 x 25 x 1.5mm WSH19 x 1
|
||
| 7 | ![]() |
Centre Stand Cushion for ZS125-79 T6 STDCC018 x 1
|
||
| 8 | ![]() |
Centre Stand STDC038 x 1
|
||
| 9 | ![]() |
Centre Stand Circlip CCLP009 x 1
|
||
| 10, 12 | ![]() |
Stand Spring for ZS125-79 SPNG036 x 1
|
||
| 11 | ![]() |
Side Stand Spring 1.8 x 9 x 112mm for SR125-E5 STDCC026 x 1
|
||
| 13 | ![]() |
Side Stand Switch SWSTD054 x 1
|
Soon |
| Manufacturer | Model | Diagram |
|---|---|---|
| Lexmoto | Diablo 50 Euro 5 [LJ50QT-9M-E5] | View parts diagram |
| Diablo 125 Euro 5 [LJ125T-9M-E5] | View parts diagram | |
| Michigan 125 EFI [ZS125-79-E4] | View parts diagram | |
| Michigan 125 Euro 5 [ZS125-79-E5] | View parts diagram | |
| R66+ E55 [ZS125-79C-E55] | View parts diagram | |
| Tempest GT 125 [LJ125-9A-GT] | View parts diagram | |
| Longjia | LJ125T-9M | |
| Sinnis | Hoodlum 125 [ZS125-79H] | |
