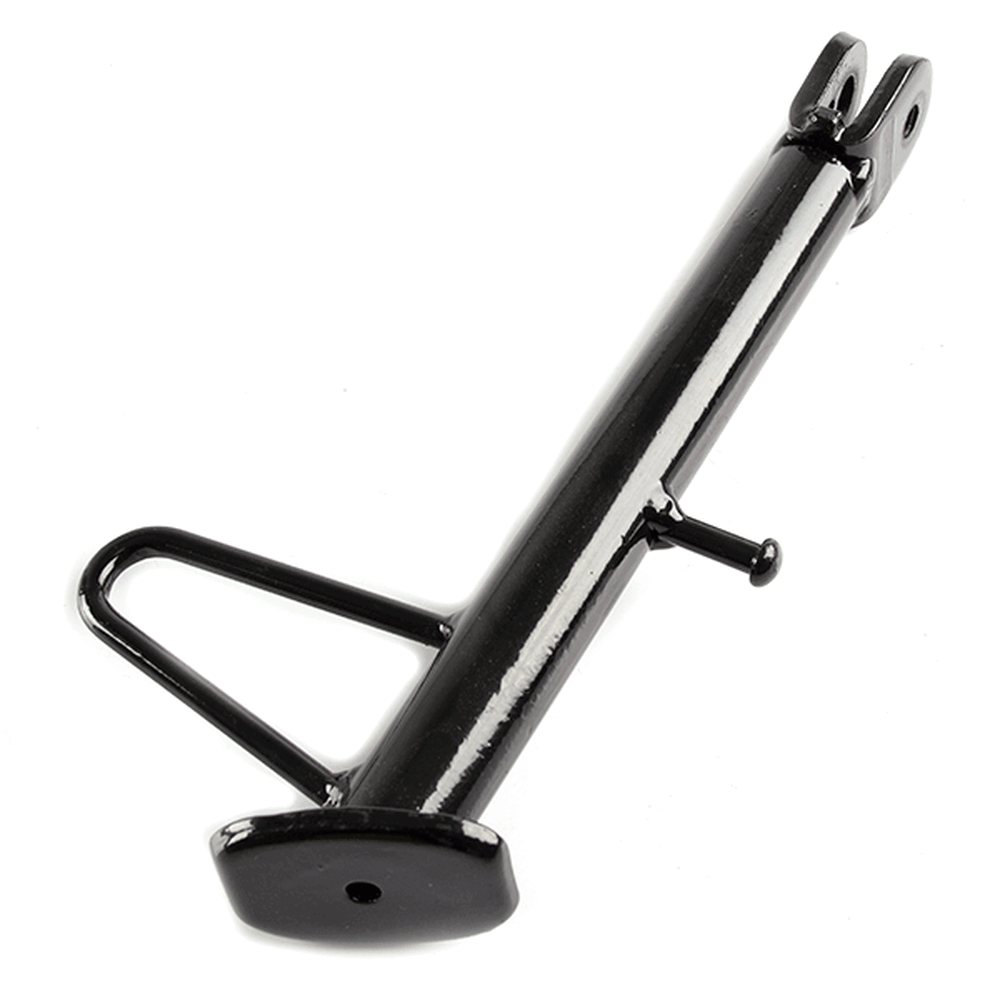

STDS135"You should buy this Side Stand"
The side stand, also known as the kickstand, is a support mechanism on a motorcycle that allows it to remain upright when parked. It is typically mounted on the left side of the motorcycle and extends downward to rest on the ground. When deployed, the side stand stabilizes the motorcycle by providing a solid base, preventing it from tipping over. The stand is often equipped with a spring mechanism that automatically retracts it when the motorcycle is in use, and may include a safety switch to prevent engine start if the stand is down.
| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 3 | ![]() |
Lock Set LCKST199 x 1
|
||
| 4 | ![]() |
Seat Lock Cable STCB079 x 1
|
||
| 5 | ![]() |
Seat Latch STL027 x 1
|
||
| 8 | ![]() |
Bracket BRCKT064 x 1
|
||
| 9 | ![]() |
Rear Mudguard Bracket for LJ50QT-N MGB016 x 1
|
||
| 10 | ![]() |
Engine Bracket (Side) for LJ125T-18, LJ125T-18-E5 ENGB086 x 1
|
||
| 11 | ![]() |
Engine Subframe SBFRE024 x 1
|
||
| 15 | ![]() |
Centre Stand Pin STDPC020 x 1
|
||

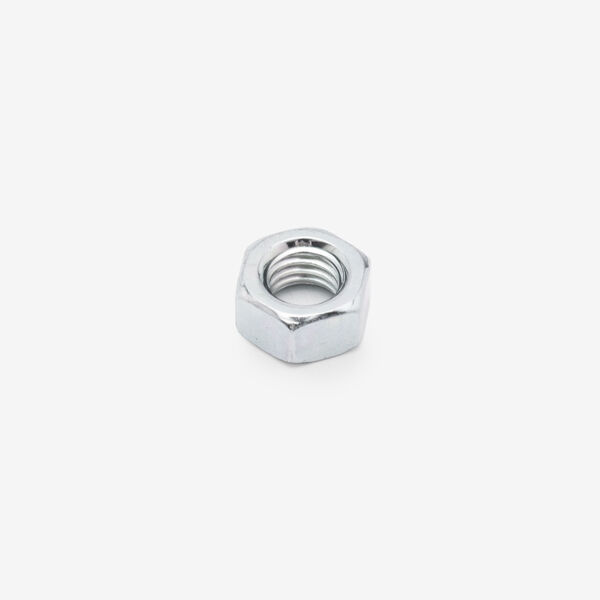

| 16 | ![]() |
Nut M8 NUT237 x 1
|
||
| 18 | ![]() |
Centre Stand Cushion T5 STDCC017 x 1
|
||

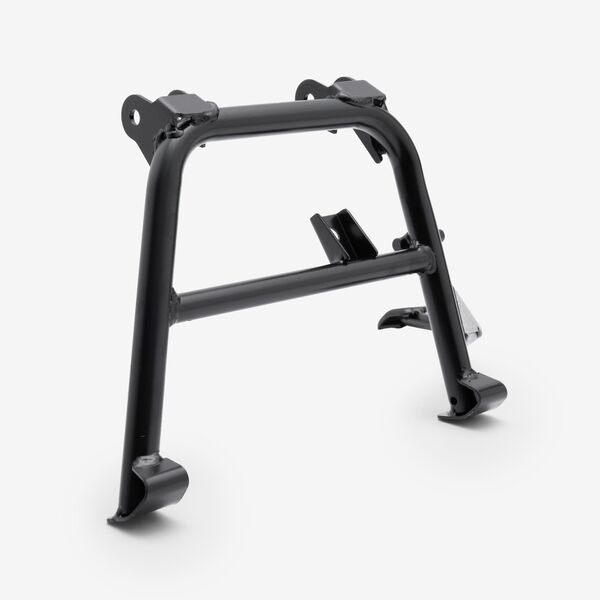

| 19 | ![]() |
Centre Stand STDC140 x 1
|
||
| 21 | ![]() |
Side Stand Switch (Male block connector) SWSTD005 x 1
|
||
| 22 | ![]() |
Bolt M8 x 28 mm BLTSTD016 x 1
|
||
| 23 | ![]() |
Side Stand for LJ50QT-N STDS135 x 1
|
||
| 24 | ![]() |
Side Stand Spring SPNG120 x 1
|
||
| 25 | ![]() |
Centre Stand Spring SPNG031 x 1
|
||
| 26 | ![]() |

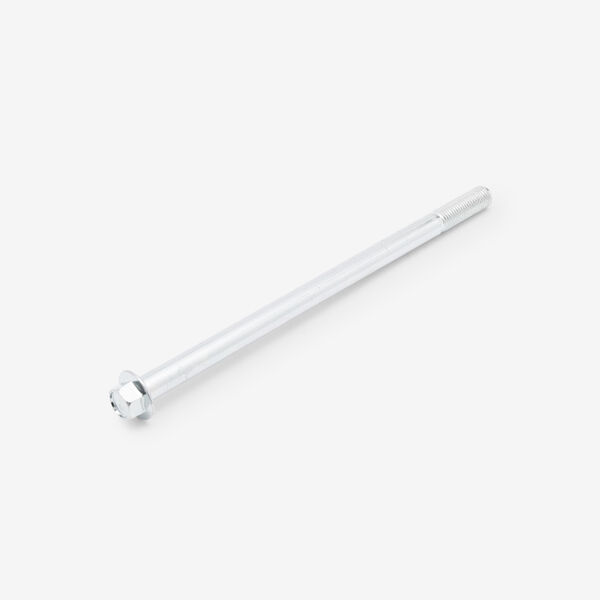

Bolt M12 x 265 x 1.25mm BLT936 x 1
|
||
| 31 | ![]() |
Engine Bracket ENGB138 x 1
|
||
| 32 | ![]() |
Engine Mounting Bolt M12 x 220mm BLT744 x 1
|
||
| 36 | ![]() |
Bolt M10 x 220 x 1.25mm BLT937 x 1
|
||

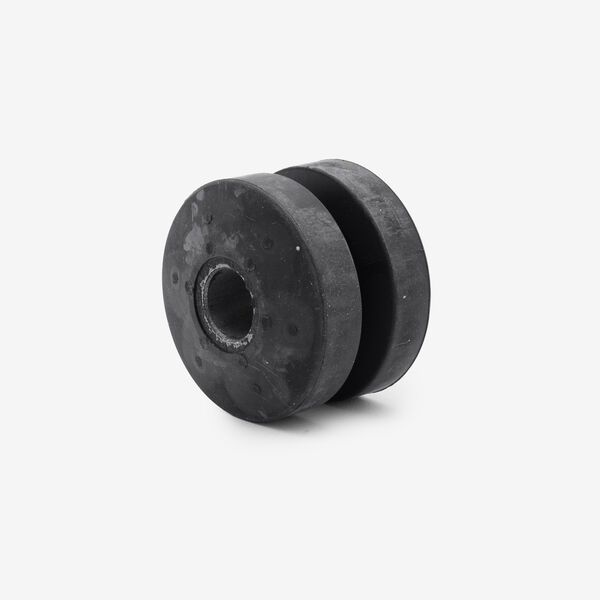

| 38 | ![]() |
Rubber Bush 56 x 41 x 16mm BSH217 x 1
|
||
| 39 | ![]() |
Flange Bolt M10 x 25 x 20mm BLT945 x 1
|
||

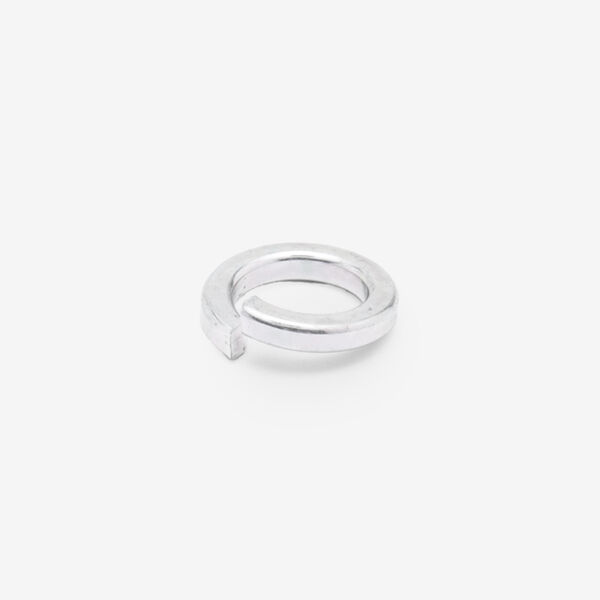

| 40 | ![]() |
Spring Washer WSH0112 x 1
|
||

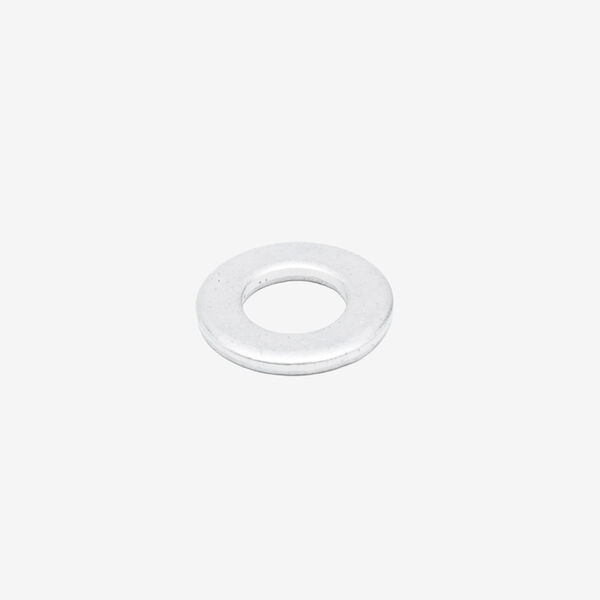

| 41 | ![]() |
Washer 20 x 10 x 2mm WSH0113 x 1
|

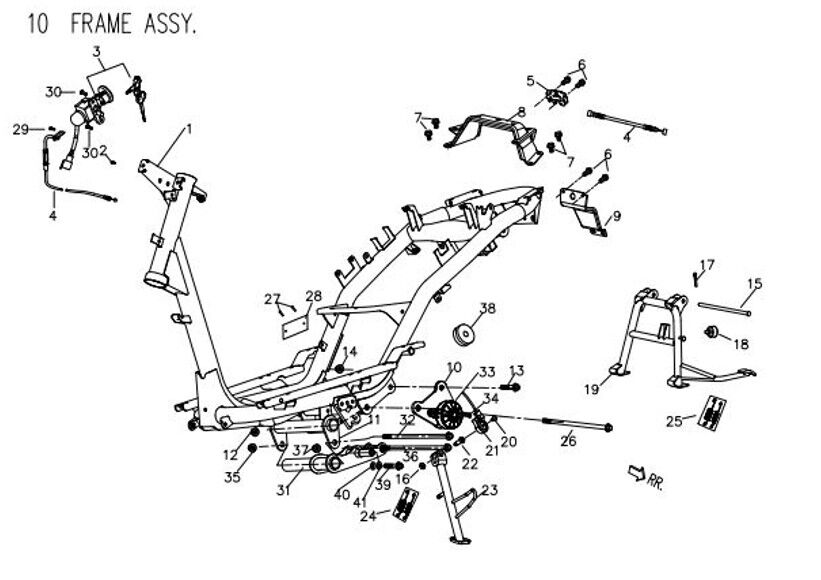

| Manufacturer | Model | Diagram |
|---|---|---|
| Lexmoto | L5 [LJ50QT-7E-E55] | View parts diagram |
| Nano 50 [LJ50QT-N] | View parts diagram | |
