STM071
Description
"In the category of Starter Motor, Starter Clutch/Bendix"
The starter motor is responsible for turning the engine over during ignition and allowing everything else to happen. When you turn the ignition on, the starter motor engages and turns the engine over allowing it to suck in air. On the engine, a flywheel, with a ring gear attached around the edge, is fitted to the end of the crankshaft. On the starter, the pinion is designed to fit into the grooves of the ring gear. When you turn the ignition switch, the electromagnet inside the body engages & pushes out a rod to which the pinion is attached. The pinion meets the flywheel and the starter motor turns. This spins the engine over, sucking in air (as well as fuel). As the engine turns over, the starter motor disengages, and the electromagnet stops.
Product Diagrams
| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 2 |  |
Starter Motor Reduction Gear Shaft WSH60 x 1
|
||
| 4 | |

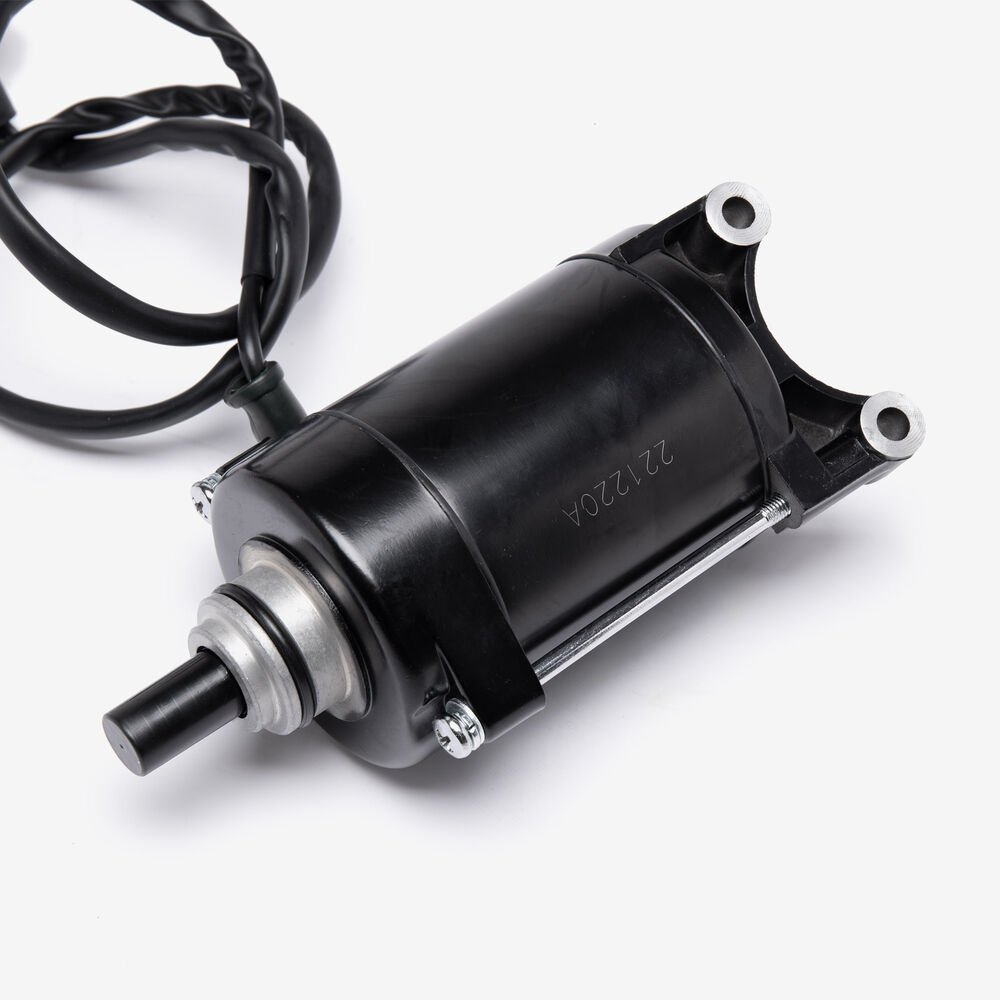

Starter Motor for SK125-8-E5 STM071 x 1
|
||
| 5 |  |
Starter Motor Reduction Gear GRRD013 x 1
|
||
| 6 |  |
O-Ring 62 x 66 x 3mm ORNG035 x 1
|
||
| 7 |  |
Starter Motor Casing for SK125-8-E5 STM072 x 1
|
||
| 9 |  |
Secondary Starter Motor Reduction Gear for SK125-22-E4 GRRD040 x 1
|
||
| 10 |  |
Output Shaft for SK125-8-E5 BRG198 x 1
|
||
| 12 |  |
Input Shaft for SK125-8-E5 BRG199 x 1
|
||
| 14 |  |
Front Sprocket Fixing Plate 12T SPKPF007 x 1
|
Compatibility
| Manufacturer | Model | Diagram |
|---|---|---|
| Lexmoto | ZSB 125 Euro 5 [SK125-8-E5] | View parts diagram |
