STRY020"We have sold 33 of these in the last 12 months"

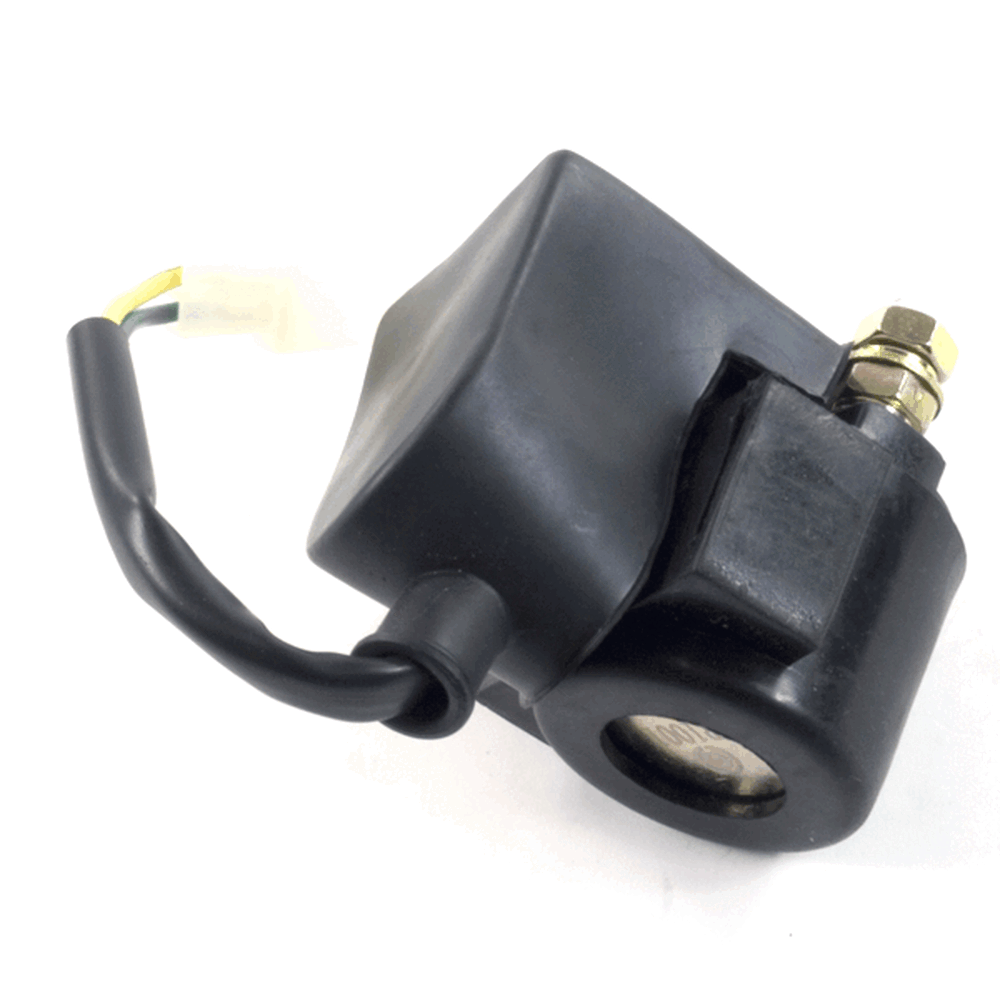

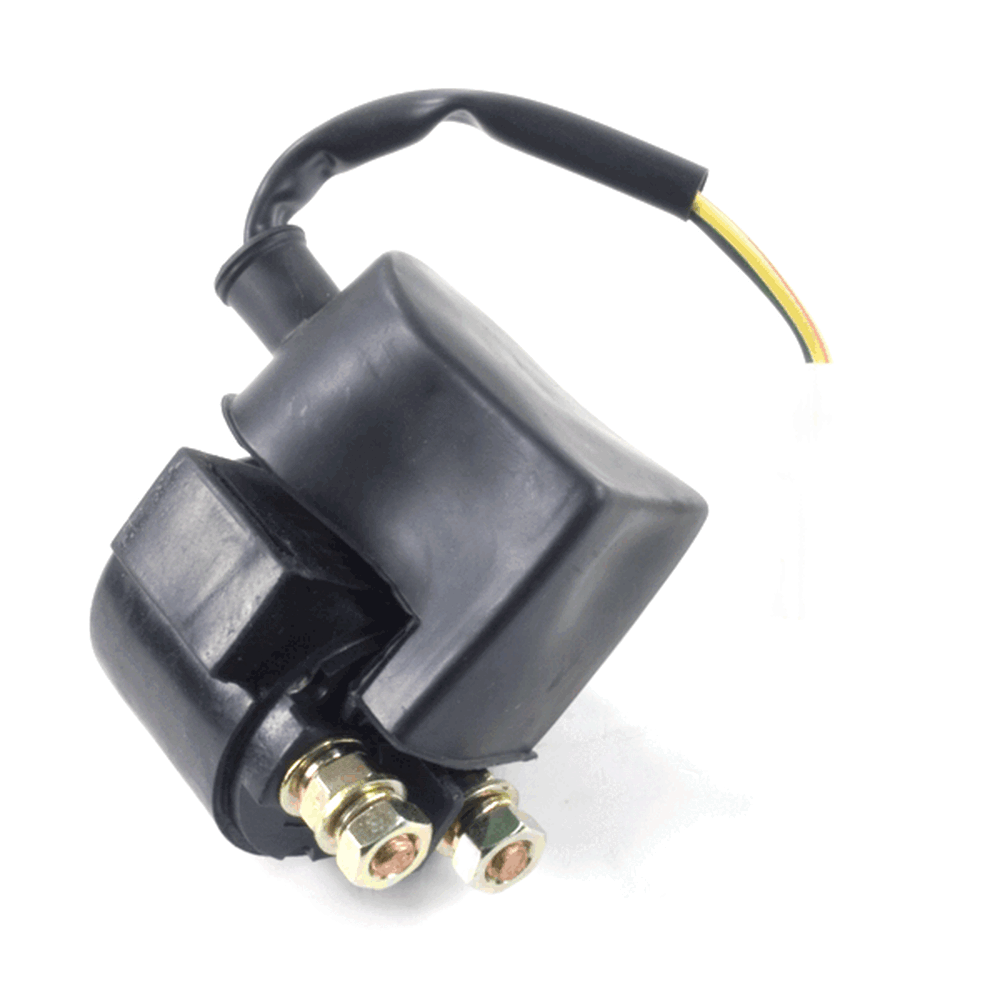

The starter relay in a motorcycle is an electrical component that acts as a switch to engage the starter motor. When the rider presses the starter button, the relay receives a signal and activates, allowing high-current electricity to flow from the battery to the starter motor. This action cranks the engine and initiates the starting process. The starter relay helps protect the starter button and other electrical components by handling the high current required to start the engine and ensures reliable engine ignition.
| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 1 | ![]() |
Loom WRLM334 x 1
|
||
| 2 | ![]() |
ECU ECU106 x 1
|
||
| 3 | ![]() |
Flanged Hex Bolt M6 x 12mm BLT124 x 1
|
||
| 4 | ![]() |
Regulator/Rectifier for ZS125T-48, ZS125-39-E5 RGRC082 x 1
|
||
| 5 | ![]() |
Flanged Hex Bolt M6 x 20mm BLT129 x 1
|
||
| 6 | ![]() |
Starter Relay STRY020 x 1
|
||
| 7 | ![]() |
Ignition Relay STRY074 x 1
|
||
| 8 | ![]() |
Main Harness Clip for ZS125-79-E4 CBCLP021 x 1
|
||
| 9 | ![]() |
Throttle Cable Bracket for SR125-E5 THCB183 x 1
|
||
| 10 | ![]() |
Headlight Relay for BT49QT-9 BT49QT-20BB LTRY001 x 1
|
||
| 11 | ![]() |
Indicator Relay INDRY004 x 1
|
||
| 12 | ![]() |
Ignition Coil IGNC096 x 1
|
||
| 13 | ![]() |
Flanged Hex Bolt Camshaft Locking Bolt M6 x 16mm BLT075 x 1
|
||
| 14 | ![]() |
Horn HRN052 x 1
|
||
| 15 | ![]() |
Fuse F Type 5A FUSE027 x 1
|
||
| 17 | ![]() |
Fuse F type 15A for ZS1500D-2 FUSE008 x 1
|
||
| 18 | ![]() |
Fuse F Type 20A FUSE028 x 1
|
| Manufacturer | Model | Diagram |
|---|---|---|
| Generic | Trigger SM 50 [TRIGGERSM50] | |
| Lexmoto | Detroit 125 Euro 5 [SR125-E5] | View parts diagram |
| Michigan 125 EFI [ZS125-79-E4] | View parts diagram | |
| Michigan 125 Euro 5 [ZS125-79-E5] | View parts diagram | |
| Michigan 125 [ZS125-79] | View parts diagram | |
| R66 E55 [SR125-A-E55] | View parts diagram | |
| R66+ E55 [ZS125-79C-E55] | View parts diagram | |
| R66S E55 [SR125-2-E55] | View parts diagram | |
| ZSX 125 [ZS125-48A] | View parts diagram | |
| ZSX-F 125 EFI [ZS125-48E-E4] | View parts diagram | |
| ZSX-F 125 [ZS125-48E] | View parts diagram | |
| ZSX-R 125 EFI [ZS125-48F-E4] | View parts diagram | |
| ZSX-R 125 [ZS125-48F] | View parts diagram | |
| Pulse | Evo SM 50 [A31B] | |
| Romet | Z-One S 125 [ZONES125] | |
| Z-One T 125 [ZONET125] | ||
| Sinnis | Akuma [AKUMA] | |
| Hoodlum 125 [ZS125-79H] | ||
| Outlaw 125 [SR125-S] | ||
| RSX 125 [ZS125-80] | ||
| Zongshen | ZSX 125 | |
