STTR105"In the category of Stators and Magnetos, Stators"
The stator is the stationary part of a rotary system, found in electric generators, electric motors, sirens, mud motors, or biological rotors. Energy flows through a stator to or from the rotating component of the system. In an electric motor, the stator provides a magnetic field that drives the rotating armature; in a generator, the stator converts the rotating magnetic field to electric current.

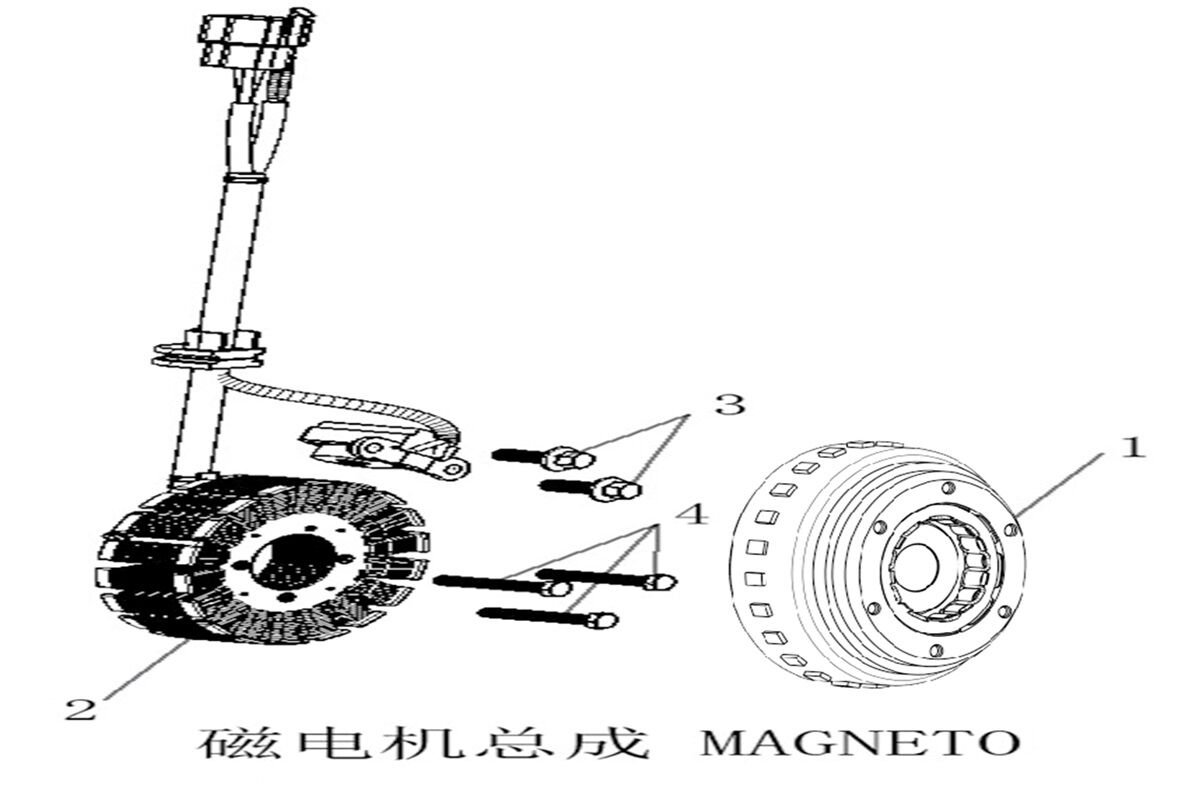

| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 1 | ![]() |

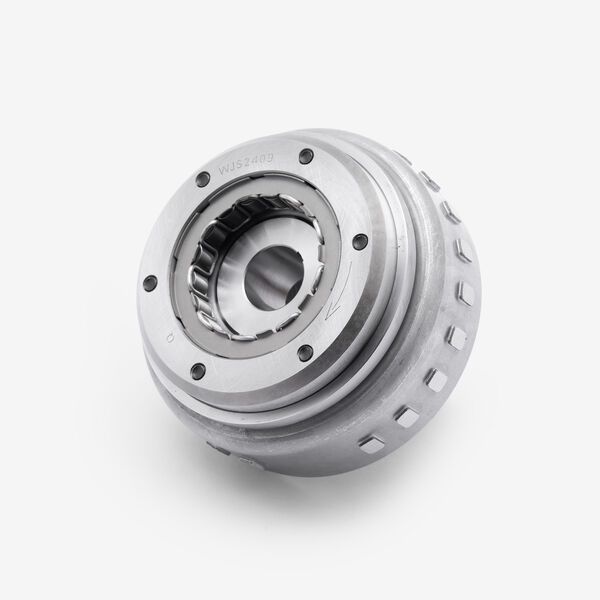

Flywheel FLW075 x 1
|
||
| 2 | ![]() |

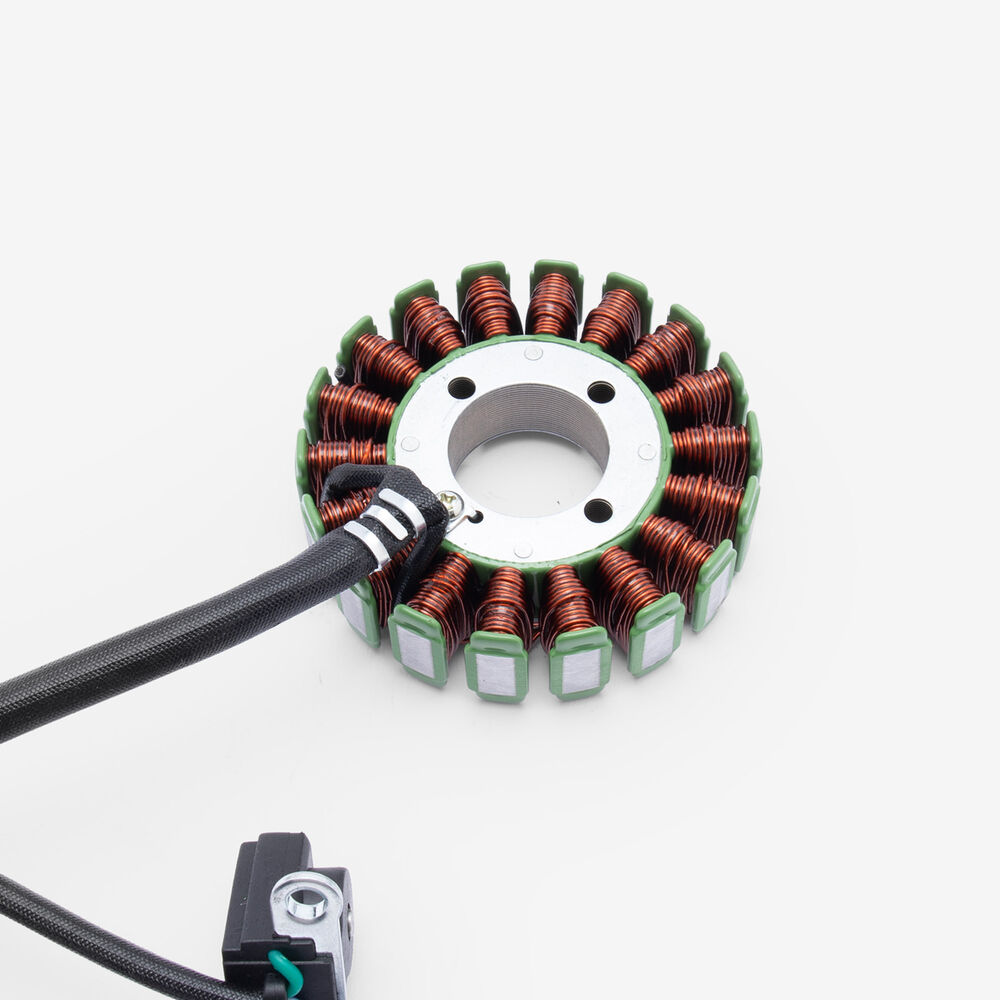

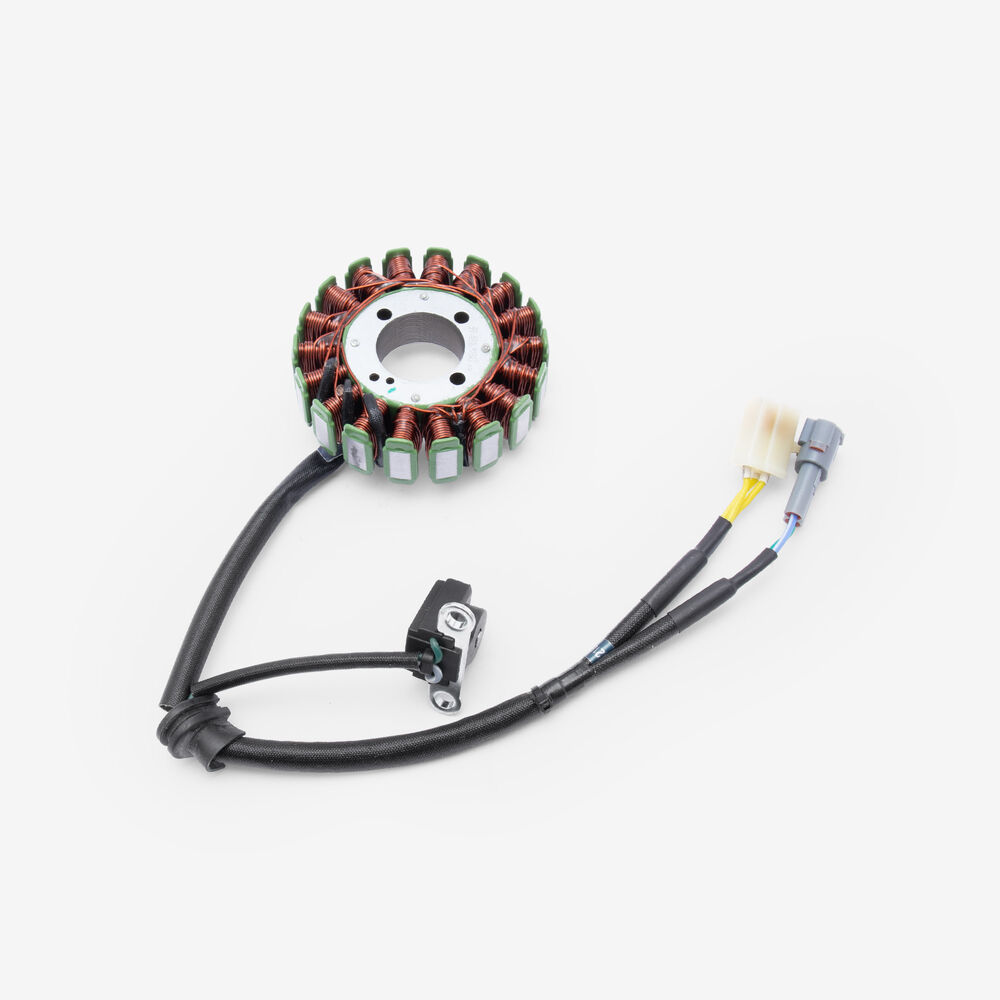

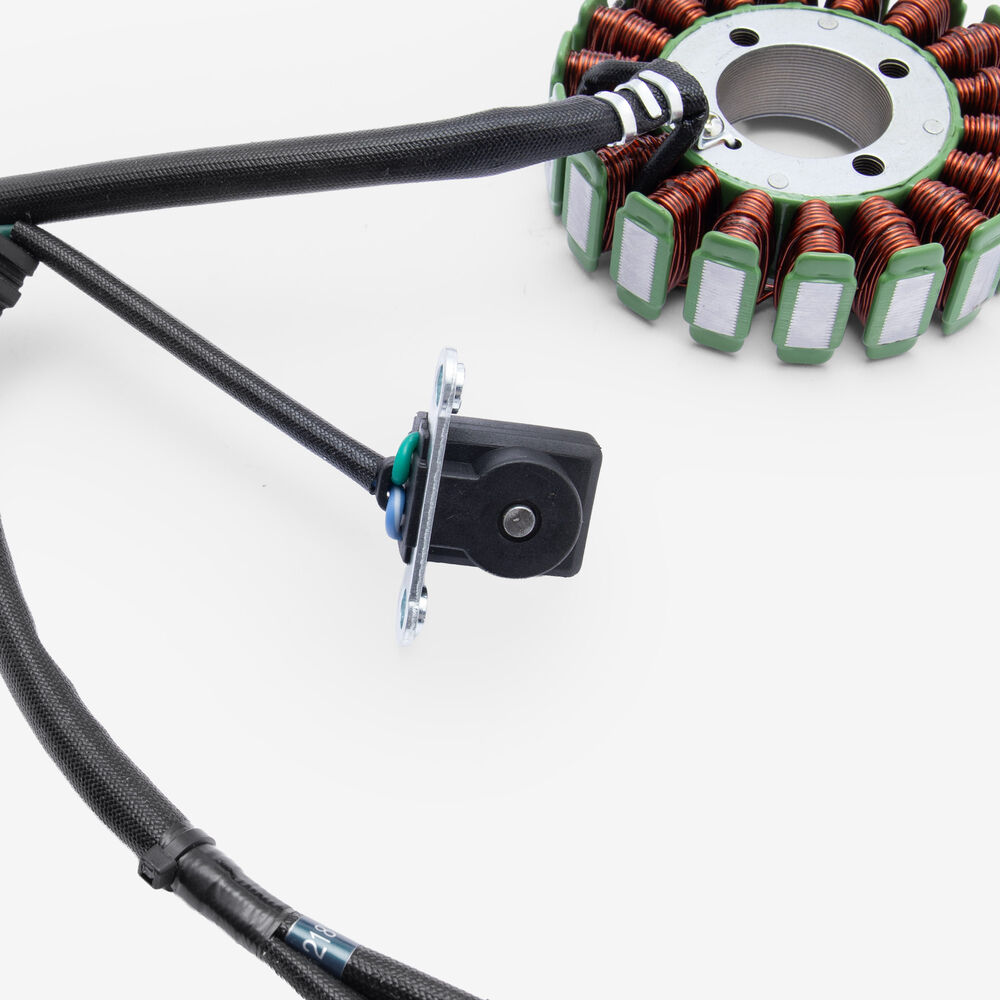

Stator STTR105 x 1
|
||
| 3 | ![]() |
Flanged Hex Bolt M6 x 16mm BLT206 x 1
|
||
| 4 | ![]() |
Hex Bolt M5 x 30mm BLT214 x 1
|
| Manufacturer | Model | Diagram |
|---|---|---|
| Lexmoto | LS-Z E55 [ZS125-39-E55] | View parts diagram |
| R66S E55 [SR125-2-E55] | View parts diagram | |
| RX1 125 E55 [ZS125-86C-E55] | View parts diagram | |
